Choosing the wrong die casting process can increase costs and reduce production efficiency. A die casting machine hot chamber suits zinc alloys, while cold chamber machines handle many aluminum alloys. This guide compares their key differences, helping manufacturers choose the right equipment for quality, productivity, and cost control.

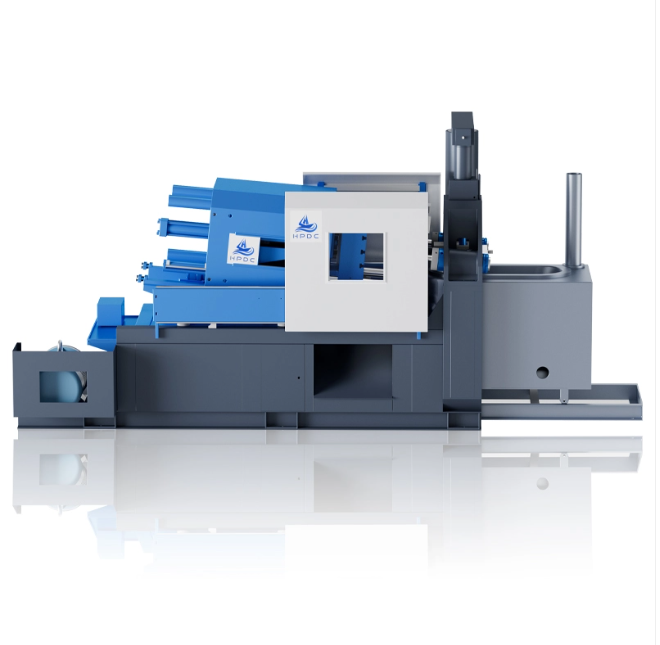

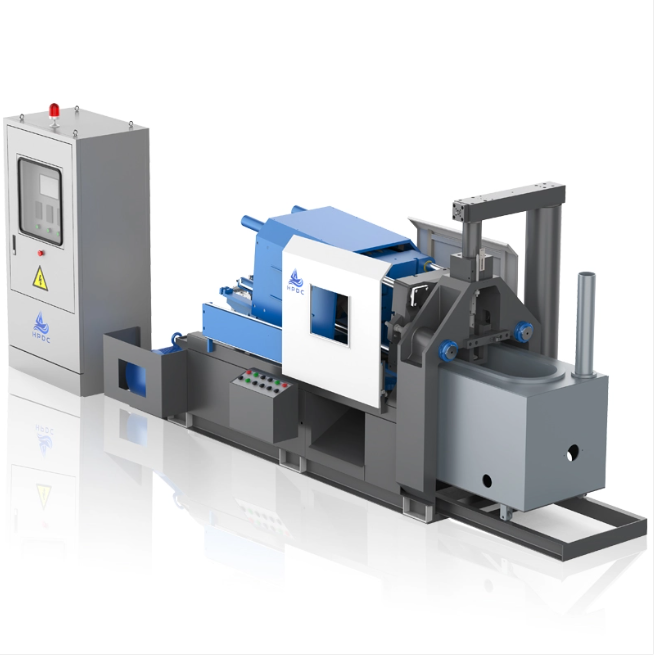

A hot chamber die casting machine keeps its injection mechanism connected to the molten-metal holding system. During operation, molten metal enters the injection mechanism and is forced into a closed mold under pressure. The casting then solidifies before the mold opens and the component is removed.
Because the metal-feeding system is integrated, the process avoids a separate charging step for every injection. This arrangement supports relatively short production cycles for compatible alloys. It is particularly useful when manufacturers need large quantities of small, detailed components.
Hot chamber machines commonly process zinc alloys and other compatible low-melting-point metals. They are widely used for hardware fittings, lock components, decorative parts, and selected electrical components. However, the process is unsuitable for many higher-temperature alloys because of the thermal and material demands placed on the injection system.
A cold chamber die casting machine uses a separate metal-charging process. Molten metal is transferred from a holding furnace into a shot sleeve. A plunger then pushes the metal into the mold cavity under high pressure.
This additional charging step changes the production sequence. However, the arrangement allows manufacturers to process alloys that require higher metal temperatures, including many aluminum alloys. Cold chamber machines are therefore widely used for automotive components, motor housings, industrial enclosures, and other metal parts.
The shot sleeve plays an important role in the process. Its material, geometry, temperature conditions, and maintenance affect injection stability. Manufacturers must also coordinate metal transfer, mold filling, cooling, and part removal to achieve consistent production.
The main structural difference concerns the relationship between the injection mechanism and the molten-metal supply. Hot chamber equipment uses an integrated arrangement, while cold chamber equipment receives metal through a separate shot sleeve. These designs influence operating procedures and production cycles.
Cold chamber machines also require attention to shot sleeve condition and metal transfer consistency. Hot chamber machines require suitable management of the injection components exposed to molten metal. Both systems need regular maintenance, stable process settings, and appropriate tooling.
Comparison factor | Hot chamber die casting | Cold chamber die casting |
|---|---|---|
Metal feeding | Integrated molten-metal supply | Separate molten-metal charge |
Typical materials | Zinc and compatible low-melting-point alloys | Aluminum and selected higher-temperature alloys |
Cycle characteristics | Often faster for suitable applications | Includes a separate charging step |
Common applications | Small precision hardware and zinc alloy parts | Aluminum housings and structural components |
Main selection factor | Alloy compatibility and repeat production | Alloy temperature, shot size, and part requirements |
These differences provide a useful starting point, but neither process is universally better. Actual performance depends on machine configuration, mold design, material properties, and production conditions.
Zinc alloys are widely used in hot chamber die casting because their processing characteristics suit the integrated injection system. They can fill detailed mold features under suitable conditions, making them useful for components requiring repeatable dimensions and consistent surface quality.
Typical applications include lock parts, door handles, hardware fittings, buckles, and decorative components. These products often require fine details and stable dimensions across large production batches. A suitable mold and controlled injection process can help manufacturers meet these requirements.
The exact alloy still matters. Different zinc alloy grades have different mechanical and processing properties. Buyers should confirm the alloy specification and finished-part requirements before choosing the machine.
Aluminum alloys are commonly processed using cold chamber machines because aluminum requires higher processing temperatures than conventional hot chamber systems can generally accommodate. The separate charging arrangement helps support this process.
Common applications include motor housings, automotive parts, mounting brackets, and industrial enclosures. These components may require a balance of low weight, mechanical performance, and dimensional consistency. The appropriate machine depends on the part's projected area, shot weight, mold design, and quality requirements.
Manufacturers should also consider secondary operations. Some aluminum castings require machining on critical surfaces or additional finishing before assembly. These steps influence the total production cost and should be included when evaluating equipment options.
Some magnesium alloys can be processed using suitable cold chamber systems. However, alloy selection must account for material properties, machine configuration, and appropriate operating procedures.
Temperature control, chemical compatibility, and material handling all affect process suitability. Buyers should not assume that one machine can process every non-ferrous alloy. The supplier should confirm compatibility with the exact material grade and intended production conditions.
Note: Confirm the alloy grade before comparing machine prices. Material compatibility is a basic requirement, not an optional equipment feature.
Hot chamber machines can achieve short production cycles because their injection mechanism remains connected to the molten-metal supply. This reduces separate charging steps and supports repeated production of compatible components.
Cold chamber machines require metal transfer into the shot sleeve before injection. This adds another step to the process, although the overall cycle also depends on other operations. Cooling, mold opening, part removal, and trimming may have a greater effect on total production time in some applications.
For this reason, buyers should compare actual cycle performance rather than relying only on general process descriptions. A faster injection stage does not always translate into higher finished-part output.
Hot chamber die casting is often effective for high-volume production of compatible small components. Its integrated feeding arrangement supports repeatable cycles and can help manufacturers maintain steady output.
Cold chamber machines are suitable for many aluminum components and parts with different size or weight requirements. The correct choice depends on the intended product rather than production volume alone.
Manufacturers should measure accepted parts per hour, rejection rates, and machine availability. These indicators provide a more realistic view of productivity than rated cycle speed. They also help reveal whether the main bottleneck comes from the machine, mold, or downstream operations.
Both processes can be integrated into automated production lines. Depending on the application, equipment may include automatic part extraction, die spraying, trimming, conveyor systems, and inspection stations.
Automation reduces repetitive handling and can improve production consistency. However, its value depends on product stability and manufacturing volume. A factory producing the same component over long runs may benefit more than one changing molds frequently.
Before investing, manufacturers should identify the most time-consuming production steps. Automation should address a clear bottleneck and work reliably alongside the casting machine.
A productive machine must deliver consistent output over time. Tooling wear, material variation, temperature changes, and unexpected maintenance can all reduce machine availability.
Manufacturers should record cycle time, downtime, rejection rate, and maintenance frequency. These figures help identify recurring problems and support more accurate production planning.
Tip: Compare both machines under similar production requirements. Use accepted-part output and total downtime rather than rated speed alone.
Both hot chamber and cold chamber die casting can produce detailed components when the process is properly designed. Mold precision, injection conditions, venting, and cooling all influence the final result.
Suitable zinc alloy processes can reproduce fine features and provide consistent surfaces. Aluminum components also require carefully designed gating and solidification conditions. Neither process automatically guarantees defect-free castings.
Manufacturers should define acceptable tolerances, surface requirements, and assembly needs before selecting equipment. These requirements determine whether the proposed machine and tooling can deliver the necessary quality.
Component geometry directly affects machine selection. Buyers should consider projected area, shot weight, cavity count, wall thickness, and mold dimensions. These factors influence clamping force, injection capacity, and tooling requirements.
Small, detailed zinc alloy parts may suit hot chamber equipment. Larger aluminum housings and structural components often require cold chamber systems. However, these are general patterns rather than fixed rules for every product.
A technical review should use actual component drawings. Choosing equipment based only on nominal tonnage can lead to capacity problems or unnecessary investment.
Common casting defects include incomplete filling, flash, porosity, and dimensional variation. Their causes may involve injection settings, material quality, mold venting, temperature control, or tooling condition.
Manufacturers should investigate the cause before changing machine parameters. Stable process control can reduce avoidable defects, but equipment selection alone cannot solve every quality problem.
Secondary operations also affect the final cost. Trimming, machining, polishing, and plating may be required depending on the component. Buyers should evaluate the complete production route, from metal preparation to finished-part inspection.
The machine purchase price represents only part of the investment. Buyers should also include mold manufacturing, installation, auxiliary equipment, commissioning, and operator training.
Tooling complexity and production volume influence the total cost. A mold used for long production runs may justify a larger initial investment if it delivers stable output. Frequent product changes may require a different approach.
Request quotations based on the same component requirements and production targets. This makes comparisons more meaningful and reduces the risk of choosing equipment based on price alone.
Operating expenses include energy, labor, consumables, maintenance, and downtime. The metal-feeding arrangement affects workflow, while automation can change labor requirements. Maintenance costs also vary according to machine design and operating conditions.
Cold chamber machines require attention to the shot sleeve and metal-charging process. Hot chamber machines require suitable care of their injection system and related components. Both need regular inspection and preventive maintenance.
Manufacturers should compare energy consumption under similar operating conditions. Measuring energy per accepted component gives a clearer picture than comparing machine power ratings alone.
Rejected parts increase material consumption and waste machine time. Rework adds labor and inspection expenses, while recurring defects may disrupt delivery schedules.
The cost per accepted component includes machine operation, labor, material losses, tooling, maintenance, and finishing. This measure helps buyers compare the financial performance of different production setups.
A machine with a lower purchase price may not deliver the lowest long-term cost. Reliable output, manageable maintenance, and lower rejection rates can be more valuable over the equipment's service life.
Return on investment depends on production demand and measurable operating savings. Manufacturers should estimate expected output, utilization, labor needs, scrap rates, and maintenance costs before purchasing.
Avoid relying on unverified claims about cycle-time reductions or energy savings. Instead, request technical data and conduct production trials where practical. Actual results provide a stronger basis for estimating payback.
The first step is confirming the intended alloy. Hot chamber machines commonly process zinc alloys and other compatible low-melting-point metals. Cold chamber machines are generally preferred for aluminum and selected higher-temperature alloys.
Once material compatibility is established, buyers can compare machine capacity, production efficiency, and cost. This avoids spending time evaluating equipment that cannot process the intended material.
Review clamping force, shot capacity, projected area, cavity layout, and mold dimensions. Confirm that the machine can accommodate the complete tooling arrangement and meet expected production targets.
Buyers should also consider operating shifts and future demand. The goal is to select a machine that meets current requirements without paying for unnecessary capacity.
For further equipment research, visit Die Casting Machine China and review the available cold chamber die casting machine range.
Technical specifications are important, but service support also affects long-term production. Buyers should review warranty terms, spare-parts availability, installation support, operator training, and troubleshooting services.
Compare suppliers using equivalent configurations and documented requirements. Ask how maintenance is performed and which parts require routine inspection. These details help estimate the total cost of ownership more accurately.
Where practical, request a production trial using representative materials and tooling. Measure cycle time, accepted-part output, dimensional consistency, and rejection rates.
Review the results against the original production targets. If the machine fails to meet the requirements, investigate whether the cause involves capacity, mold design, material selection, or process settings.
A structured validation process reduces purchasing risk. It also provides a useful baseline for monitoring performance after installation.
Hot chamber machines suit zinc alloys, while cold chamber machines handle aluminum and other higher-temperature alloys. Choosing the right process improves production efficiency, casting quality, and cost control. HPDC offers equipment options and technical support to help manufacturers select suitable machines for their production needs.
A: Hot chamber machines use integrated metal feeding, while cold chamber machines require separate metal charging.
A: It mainly processes zinc alloys and other compatible low-melting-point metals.
A: It handles aluminum's higher processing temperature more effectively.
A: Hot chamber die casting often delivers shorter cycles for compatible parts.
A: Compare accepted-part output, scrap rates, energy use, maintenance, and tooling costs.
