Selecting the proper equipment for Al Alloy Melting determines the operational viability and profitability of modern foundries. Suboptimal melting setups directly cause excessive energy consumption, high dross formation, and severe production bottlenecks. Balancing initial capital expenditure against long-term operational costs remains a complex challenge, especially when strict metallurgical quality must be maintained at scale. Every foundry must establish a structured evaluation framework for selecting the right melting technology, subsystems, and automation tools. Facility constraints, production volumes, and specific alloy requirements dictate these choices. By systematically analyzing heat sources, furnace architectures, and material handling systems, plant managers can optimize their casting lines for maximum efficiency and minimal metal loss.
Calculating required melt rates accurately forms the foundation of equipment selection. Foundries must determine their demand in pounds or kilograms per hour based on casting requirements, scrap rates, and holding buffers. You cannot simply match the furnace capacity to the shot weight of the casting machines. You must account for the entire cycle time, including the return of runners, biscuits, and rejected parts to the melting loop. Laboratory or pilot-scale crucible systems offer flexibility for low-volume prototype work, allowing rapid alloy changeovers without massive energy penalties. Conversely, continuous high-volume operations demand robust architectures capable of sustaining constant output without thermal degradation. A continuous melter might process 5,000 pounds per hour, requiring a completely different footprint and utility setup compared to a 500-pound batch crucible.
When sizing the equipment, always build in a 20% buffer. If your line requires 1,000 lbs/hr, sizing the furnace for exactly 1,000 lbs/hr leaves no room for recovery after charging cold metal or performing maintenance tasks like fluxing and skimming. This buffer ensures the metal temperature remains stable, preventing cold shuts and flow marks in the final castings.
Precise thermal regulation near the aluminum melting point of 660.3°C (1,220.5°F) is mandatory. Different commercial alloys, such as A356 or A380, possess distinct solidus and liquidus temperature ranges. A356, heavily used in automotive structural components, requires tight temperature control to maintain its specific silicon and magnesium distribution. A380, common in general die casting, is more forgiving but still susceptible to sludge formation if temperatures drop too low. This variance dictates the necessity for exact furnace zoning and temperature control precision.
Maintaining the melt within a tight thermal window prevents excessive hydrogen absorption and oxidation. Aluminum is highly reactive; as the temperature rises above 1,350°F, its affinity for hydrogen increases exponentially. This dissolved hydrogen precipitates out during solidification, causing porosity that ruins the mechanical properties of the cast components. Therefore, the melting equipment must hold the metal just above its liquidus temperature without overshooting.
Establishing baseline energy consumption metrics allows foundries to measure operational efficiency. You should track BTU per pound or kilowatt-hours per ton. Modern facilities must set strict benchmarks for their energy footprint. A highly efficient gas furnace might consume 1,200 to 1,500 BTU per pound of aluminum melted, while older, poorly insulated units can easily exceed 3,000 BTU per pound. Selecting an energy saving furnace equipped with advanced insulation and heat recovery mechanisms significantly reduces utility reliance while maintaining consistent melt temperatures.
Energy efficiency is not just about the burners or heating elements; it involves the entire thermal envelope. High-grade ceramic fiber insulation, properly sealed doors, and automated lids all contribute to keeping the heat in the metal rather than radiating it into the foundry environment. This also improves working conditions for the operators on the floor.

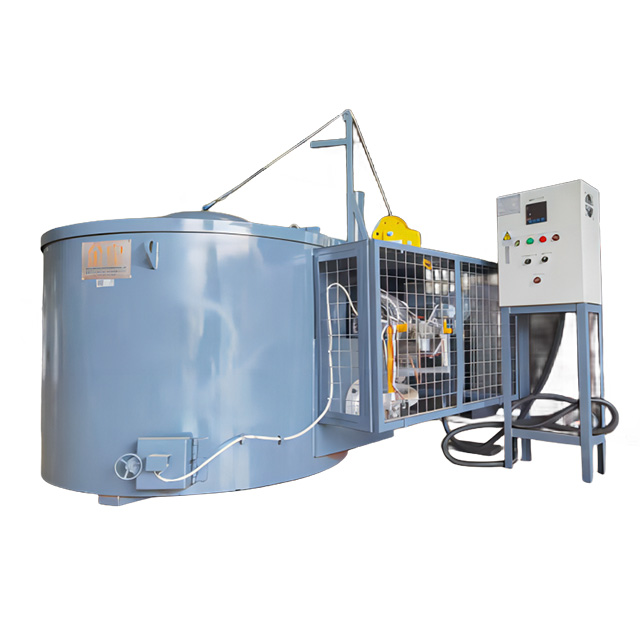

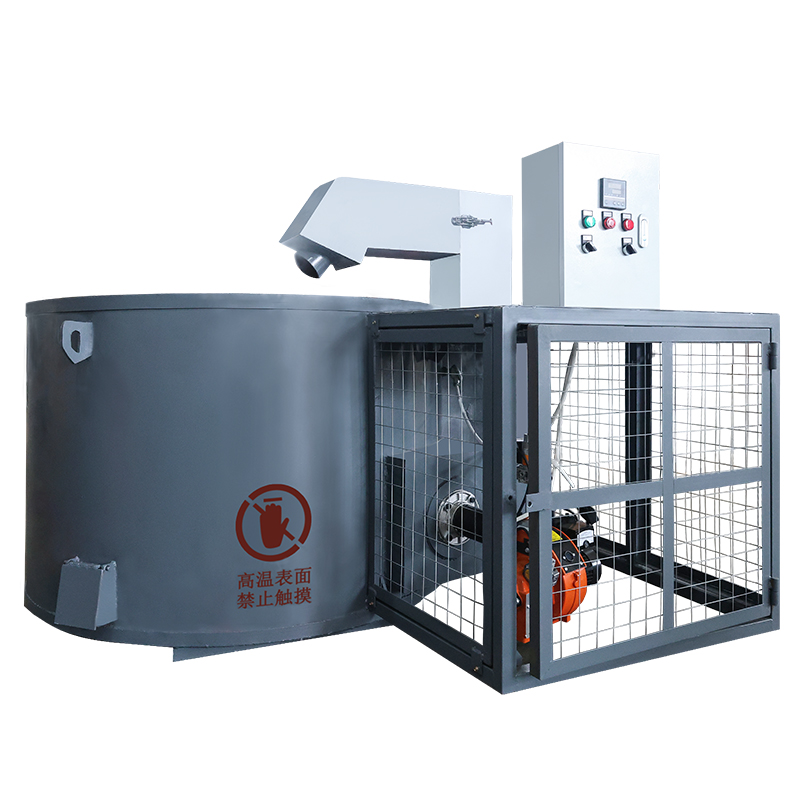

The primary heat source defines the operational characteristics of an industrial melting furnace. Gas-fired furnaces typically provide lower energy unit costs and faster melt rates, making them suitable for bulk melting operations. They utilize direct flame impingement or radiant tubes to transfer heat. However, direct gas firing can introduce combustion byproducts, specifically water vapor, which reacts with the molten aluminum to form hydrogen gas and aluminum oxide (dross). This increases metal loss and requires more aggressive degassing procedures.
Electric resistance furnaces offer superior temperature control, zero local emissions, and reduced metal loss. Because there are no combustion gases sweeping across the surface of the melt, oxidation is minimized. The heat transfer is purely radiant, providing a very calm bath surface. While they often require a higher initial electrical infrastructure investment and have slower recovery times after charging cold metal, the reduction in dross formation and improved metal quality often offset the higher cost of electricity in regions with stable power grids.
Coreless induction technology excels in scenarios demanding intense alloying, rapid melting, and minimal metal loss. The electromagnetic field generates heat directly within the charge material, ensuring rapid and uniform temperature distribution. This inherent electromagnetic stirring action homogenizes the alloy composition perfectly, making induction systems ideal for high-purity aerospace or automotive applications where metallurgical consistency is non-negotiable.
The stirring action also pulls light scrap, such as chips and turnings, down into the bath quickly before they can oxidize on the surface. This makes induction furnaces highly efficient for recycling operations. However, the intense stirring can also suspend non-metallic inclusions in the melt if the furnace is not allowed to settle or if proper filtration is not used downstream.
Choosing the correct structural type depends entirely on production workflow. Crucible furnaces utilize a refractory or silicon carbide pot to hold the metal, with heat applied to the outside of the crucible. Reverberatory furnaces hold the metal directly in a refractory-lined hearth, with heat radiating from the roof and walls.
| Furnace Architecture | Optimal Application | Operational Advantages | Known Limitations |
|---|---|---|---|
| Silicon Carbide Crucible | Frequent alloy changes, low to medium volume | Easy to clean, zero cross-contamination between alloys, small footprint | Limited capacity (typically under 2,000 lbs), crucible replacement costs |
| Wet-Bath Reverberatory | High-volume, continuous single-alloy production | Massive melt rates, high thermal efficiency for bulk melting | Difficult and time-consuming to change alloys, large floor space required |
| Dry-Hearth Reverberatory | Melting large scrap and ingots before holding | Separates melting from holding, reduces temperature fluctuations in the dip well | Higher oxidation rates on the dry hearth, requires diligent cleaning |
Manual batch feeding introduces severe temperature fluctuations and safety hazards. When an operator dumps a large load of cold ingots into the bath, the temperature plummets, forcing the burners to fire at maximum capacity. This creates localized hot spots and increases gas consumption. Integrating an automatic feeding system ensures continuous, metered charging. This prevents sudden temperature drops.
An automated elevator or conveyor system feeds material at a rate that matches the melting capacity of the furnace. Consequently, the system reduces energy spikes, improves melt consistency, and optimizes operator safety by eliminating splash risks. It also allows the furnace to operate in a steady state, which is the most efficient mode for any thermal equipment.
Introducing moisture into a molten aluminum bath causes catastrophic steam explosions and severe hydrogen pickup. Water expands 1,600 times its volume when converting to steam, and if this happens beneath the surface of molten aluminum, it ejects metal violently. Preheating systems eliminate moisture from scrap and ingots before they enter the furnace. These systems typically heat the charge material to around 400°F (200°C), well above the boiling point of water.
Dry-charging stations utilize waste heat from the melting process to warm the incoming charge, simultaneously improving overall thermal efficiency and ensuring strict safety compliance. By utilizing the exhaust gases that would otherwise be vented outside, foundries can recover a significant portion of their energy input.
Separating the melting and holding phases is essential for maintaining metal quality. Melting requires high heat input and causes turbulence, while holding requires precise temperature maintenance and a calm bath to allow oxides to float to the surface. Once melted, the aluminum must be transferred to holding furnaces using launders, dosing furnaces, or specialized transfer ladles.
This equipment is specifically engineered to minimize turbulence and oxide formation during transport. Open-air pouring generates massive amounts of dross. Enclosed launder systems with heated covers keep the metal at temperature and shield it from atmospheric oxygen, ensuring pristine metal reaches the aluminum die casting line.
Before casting, the molten aluminum must undergo purification. In-line degassing units utilize rotary impellers to inject argon or nitrogen gas into the melt. The impeller shears the gas into tiny bubbles, which float to the surface, absorbing dissolved hydrogen along the way. This process effectively removes the gas that causes porosity in castings.
Simultaneously, ceramic foam filters capture non-metallic inclusions and oxides. These filters are placed in the launder system just before the metal enters the casting machine. This dual purification process guarantees the structural integrity of the final cast components, reducing scrap rates and improving machining tool life.
Evaluating aluminum melting equipment requires looking far beyond the initial purchase price. A cheaper initial capital expenditure often masks higher per-ton melting costs driven by poor insulation, frequent refractory failures, and excessive energy consumption. Analyzing operational expenses over a multi-year horizon reveals the true financial impact of the equipment. If a cheap furnace consumes 20% more gas and generates 5% more dross, the savings on the purchase price will evaporate within the first year of operation.
Metal loss is often the largest hidden expense. Aluminum oxidized into dross is metal that cannot be sold as a finished casting. Furnaces designed to minimize surface turbulence and control atmospheric exposure will yield significantly higher metal recovery rates, directly impacting the bottom line.
Investing in advanced thermal technologies justifies a premium upfront cost through rapid operational savings. Regenerative burners, advanced refractory insulation, waste heat recovery systems, and smart thermal management software drastically cut utility bills. Regenerative burners work in pairs, using the exhaust gas from one burner to heat a ceramic bed, which then preheats the combustion air for the second burner. This can reduce fuel consumption by up to 30%.
These features ensure the furnace operates at peak efficiency, minimizing heat loss and maximizing the percentage of energy transferred directly into the metal. Upgrading to a modern control system with PID loops ensures the burners only fire exactly when needed, eliminating the wasteful overshooting common in older, relay-logic systems.
Downtime destroys foundry profitability. Assessing the expected lifespan of refractory linings and the regional availability of critical components is mandatory. Aluminum is highly aggressive and will penetrate porous refractories, leading to corundum growth—a rock-hard oxide buildup that destroys furnace walls and reduces capacity.
Foundries must evaluate OEM service agreements to ensure rapid response times for spare parts. Proper maintenance protocols, including regular cleaning, scraping the walls, and applying non-wetting fluxes, extend refractory life and prevent catastrophic equipment failures. You must factor the cost of annual refractory repairs and eventual complete relines into your equipment evaluation.
Procuring new equipment without auditing existing utilities leads to severe installation delays. Foundries must verify electrical grid capacities, gas line pressures, and ventilation exhaust limits. A new electric holding furnace might require a 480V, 3-phase service that your current panels cannot support. Similarly, high-output gas burners require specific dynamic gas pressures to function correctly.
Undersized utility supplies will throttle furnace performance and create hazardous operating conditions. A comprehensive infrastructure audit prevents these costly integration failures. You must also ensure your roof ventilation can handle the increased heat load and exhaust gases, maintaining a safe ambient temperature for the workforce.
Modern melting equipment requires skilled operators. Aligning new machinery with OSHA and NFPA standards ensures a safe working environment. NFPA 86 dictates strict rules for gas trains, purge cycles, and flame safety systems to prevent explosions. Facilities must enforce strict protocols for handling dross, managing molten metal transfer, and utilizing specialized Personal Protective Equipment to mitigate thermal risks.
Operators must understand not just how to push buttons, but the metallurgical reasons behind the processes. Training should cover the dangers of charging wet scrap, the proper techniques for fluxing without creating excessive smoke, and the emergency procedures for metal run-outs.
Linking new melting equipment PLCs with legacy SCADA systems presents technical hurdles. Seamless data exchange is necessary for tracking energy usage, melt temperatures, and cycle times. If your new furnace uses a Siemens PLC but your plant network is built on Allen-Bradley, you will need specific communication gateways.
Engaging automation engineers early in the procurement process ensures compatibility between the new furnace controls and the existing die casting machine networks. This integration allows for automated dosing, where the casting machine calls for metal and the furnace delivers the exact required volume without human intervention.
The optimal equipment configuration remains a direct function of alloy purity requirements, production volume, and local utility capacities. Balancing initial investments against long-term operational efficiencies dictates the success of the melting operation. You must look past the sticker price and evaluate how the equipment will perform under the stress of daily foundry conditions.
To finalize equipment selection, execute the following steps:
A: Regenerative gas furnaces and highly insulated electric resistance models represent the most energy-efficient options. Regenerative systems capture waste exhaust heat to preheat combustion air, significantly lowering gas consumption. Electric resistance furnaces offer near-perfect energy transfer to the metal, minimizing ambient heat loss and optimizing overall kilowatt-hour per ton metrics.
A: It eliminates manual charging splash hazards, drastically improving operator safety. By continuously metering material into the bath, it prevents severe thermal shock and temperature fluctuations. This steady introduction of material minimizes excessive oxidation and maintains a stable melt environment, ensuring consistent metallurgical quality.
A: Refractory linings typically last 1 to 3 years in primary melting chambers and up to 5 years in holding chambers. Lifespan depends heavily on alloy types, fluxing aggressiveness, and adherence to daily cleaning protocols. Poor maintenance or severe thermal cycling accelerates refractory degradation.
A: Calculate capacity by multiplying the total shot weight by the number of cycles per hour. Add the scrap and runner return rate, then incorporate a 15-20% safety margin for holding and transfer delays. This ensures the furnace can sustain continuous casting operations without starving the line.
A: Dross formation accelerates due to excessively high melt temperatures, severe bath turbulence, and poor fluxing practices. Manual feeding introduces atmospheric oxygen deep into the melt, while charging damp materials causes rapid oxidation. Maintaining calm bath surfaces and tight temperature controls minimizes dross generation.
A: Yes, existing furnaces can be retrofitted. Upgrading to modern PID thermal controllers, installing regenerative or recuperative burners, and applying advanced ceramic fiber insulation significantly improves efficiency. These retrofits reduce heat loss and optimize combustion, extending the operational life of legacy equipment.
