Selecting an industrial press is a high-stakes capital investment. An under-specced unit causes severe porosity, flashing, and catastrophic tooling damage that disrupts entire production schedules. Conversely, buying an excessively large unit wastes budget, consumes unnecessary floor space, and complicates daily operations. Unlike hot chamber configurations, cold chamber processes handle high-melting-point alloys. These metals include aluminum, magnesium, and brass. They demand immense injection pressures often exceeding 10,000 psi to fill complex mold cavities properly.
Identifying the exact specifications for your production line prevents costly manufacturing bottlenecks. This guide delivers a systematic, engineering-led framework. It helps you evaluate, size, and select the ideal setup tailored to your specific shop floor requirements. You will learn how to accurately calculate tonnage requirements. We will analyze advanced injection controls and discuss critical automation integration. By following these steps, you can confidently choose the exact hardware needed. This ensures you meet strict dimensional tolerances and scale your production operations reliably.
Tonnage dictates viability: Correctly calculating mold-clamping force (incorporating a 10–15% safety margin) is non-negotiable to prevent die separation.
Injection control drives quality: Advanced real-time curve control mitigates the inherent porosity risks of cold chamber casting.
Automation offsets cycle times: Because cold chamber processes involve external metal transfer, robotic integration is essential for maintaining high-volume throughput.
Before calculating mathematical tonnage, you must establish clear production baselines. These baselines guide every subsequent engineering decision and dictate the fundamental architecture of the machinery you will evaluate.
First, confirm the machinery is rated for your specific high-temperature alloys. Common materials include aluminum, copper, and specific magnesium grades. High melting points directly impact the wear rate on internal machine components. You must evaluate how molten aluminum affects the shot sleeve and plunger over time. Highly abrasive alloys require specialized heat-treated steel components. They prevent premature degradation and scoring inside the sleeve. Selecting the right alloy compatibility ensures long-term operational stability and prevents frequent maintenance shutdowns.
Cold chamber processes run inherently slower than hot chamber alternatives. Operators or automated systems must ladle molten metal into the shot sleeve from an external furnace for every single cycle. You must acknowledge this time penalty early in your planning phase. Define your target throughput clearly. Calculate exactly how many parts you need per hour. If volume demands are extremely high, you might need multi-cavity dies. Multi-cavity setups produce several parts per cycle, drastically increasing output. However, they also drastically increase the required clamping tonnage. Balancing cycle time against cavity count is a crucial early step.
Modern manufacturing often demands thinner walls and highly complex geometric structures. Thin-walled parts require sustained, ultra-high-speed injection profiles. The machine must fill the entire cavity before the metal solidifies prematurely. If the equipment lacks sufficient injection velocity, you will experience cold shuts, misruns, and incomplete fills. Analyze your most complex part designs carefully. Ensure your chosen Cold Chamber Die Casting Equipment can maintain the necessary speed profiles required to force metal into intricate tool sections without losing kinetic energy.
Sizing your machinery correctly requires strict adherence to structural mathematics. Guesswork leads to severe manufacturing defects and unsafe working environments.
The most critical metric is mold-locking force. You must establish a baseline tonnage capable of keeping the die completely closed during high-pressure injection.
The Core Formula
Engineers calculate this baseline using a straightforward equation. You determine the Expansion Force by multiplying the total projected area by the specific casting pressure. Include all runners, overflows, and the biscuit area in your calculation. If you underestimate the total projected area, the machine will fail to hold the mold closed against the injecting metal.
Safety Margin
Calculated expansion force is never the final tonnage specification. You must always apply a safety factor. Industry standards dictate a 1.1x (10%) to 1.15x (15%) safety margin. This buffer accommodates unexpected pressure spikes during the intensification phase. It prevents die separation, which causes dangerous flashing, dimensional shifts, and damage to the tie bars.
Table 1: Mold-Locking Force Safety Margin Guide | |||
Base Expansion Force (kN) | Recommended Safety Multiplier | Required Minimum Tonnage (kN) | Operational Risk if Ignored |
|---|---|---|---|
4,000 | 1.15x | 4,600 | Severe flashing, loss of dimensional tolerance |
8,000 | 1.15x | 9,200 | Die separation, severe operator hazard |
12,000 | 1.10x | 13,200 | Premature tie-bar fatigue and micro-fractures |
Locking force represents only half of the sizing equation. You must also evaluate the shot capacity to guarantee structural integrity of the casted metal.
Fill Volume Parameters
You must maintain a strict fill ratio inside the press chamber. Ensure the volume of the molten metal remains strictly between 60% and 75% of the total sleeve volume. If the ratio drops below 60%, the plunger gathers excessive air during the stroke. This increases air entrapment and creates highly porous parts. Conversely, if the ratio exceeds 75%, the metal might spill out of the pour hole. Furthermore, an overfilled sleeve compromises the kinetic energy needed for rapid, forceful cavity filling.
Tonnage and shot size matter little if your specific mold does not physically fit inside the machinery.
Tie-Bar Spacing and Stroke
You must meticulously verify the distance between the tie bars. Ensure this spacing easily accommodates your largest die blocks. Do not ignore the mold-opening stroke parameters. The stroke must allow safe, unobstructed part ejection. This dimension is especially critical for deep-draw parts like engine blocks or deep electronic housings. If the stroke is too short, extraction robots cannot clear the tie bars safely, halting automated production.
A robust clamping unit needs an equally capable injection system. Superior metal flow control directly dictates the final density and surface finish of your components.

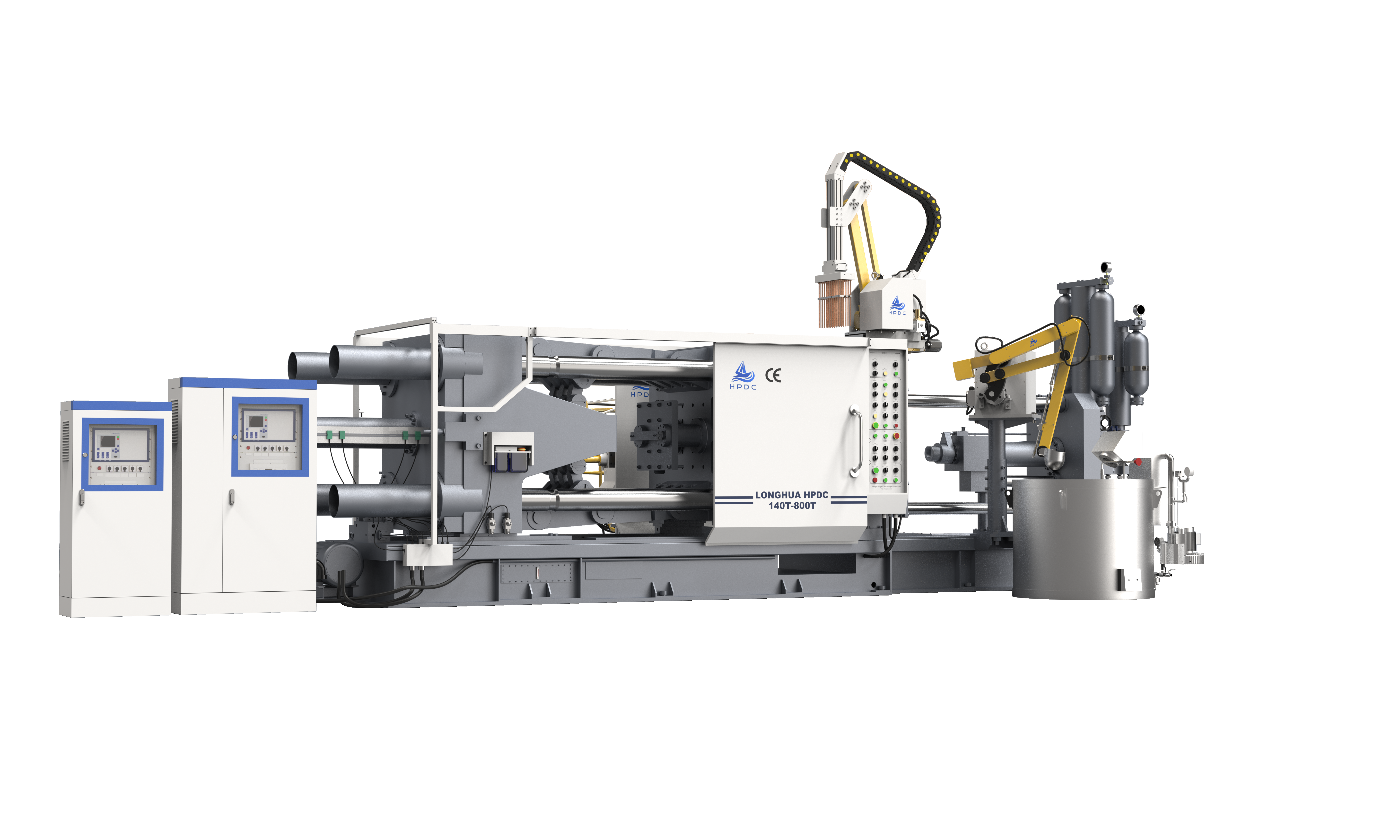

Modern Cold Chamber Die Casting Machine setups support precise, multi-stage injection profiles. You should look for systems offering at least three distinct phases to manage fluid dynamics effectively:
Low-Speed Approach: The plunger gently moves the molten metal past the pouring hole. This slow, deliberate movement vents trapped air upward and prevents turbulent splashing inside the sleeve.
High-Speed Filling: Once past the pour hole, the system rapidly accelerates. It forces metal into the mold cavity in milliseconds before solidification naturally begins.
Intensification Phase: The machine applies a massive, instantaneous pressure spike at the exact end of the stroke. This squeezes the solidifying metal to compensate for natural volumetric shrinkage.
Traditional open-loop systems react too slowly to fluid variations, leading to inconsistent quality. Prioritize machines featuring real-time closed-loop control. Look for systems boasting ultra-low response times, typically sub-5 milliseconds. These intelligent systems monitor injection parameters continuously. They automatically adjust hydraulic valves shot-to-shot to match programmed curves. This instant correction minimizes scrap rates by guaranteeing consistent part density across thousands of uninterrupted cycles.
Thick-walled part sections cool significantly slower than surrounding thin walls. This uneven thermal gradient creates internal shrinkage cavities. Assess if the machine supports localized pressure compressing. Advanced units feature specific core-pulling and local squeeze technologies. They apply targeted secondary pressure to specific thick sections during the cooling phase. This localized compression eliminates internal voids and dramatically improves the structural integrity of the final cast.
Manual operations introduce dangerous variability into high-heat processes. Automation and efficiency upgrades are essential for modern foundries looking to remain competitive.

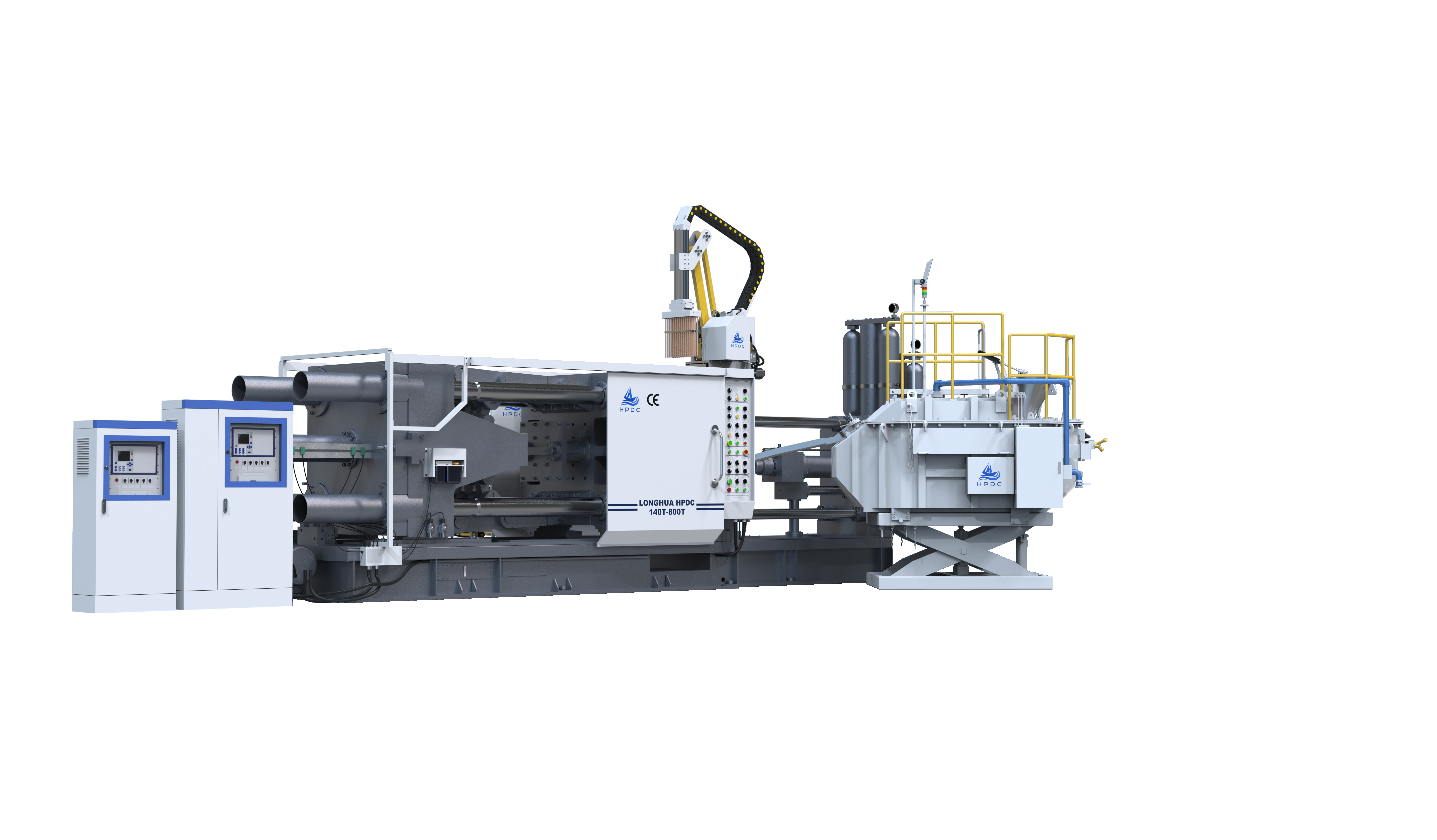

Because ladling is physically separated from the melting furnace, cold chamber processes face inherent manual bottlenecks. Integrating automation is critical to stabilizing your cycle times and removing human error. You should specify auto-ladles, which deliver a perfectly measured volume of metal every single cycle. Incorporate automatic sprayers to apply consistent die lubricant, ensuring reliable release and optimal thermal shock prevention. Finally, utilize robotic part extractors to remove hot components safely. These automated systems work synchronously to lock in a predictable, high-speed production rhythm.
Modern manufacturing demands flexibility for high-mix, low-volume production runs. Frequent die changes traditionally eat into valuable production hours. Evaluate machines equipped with Rapid Mold Exchange Systems (RMES). These setups utilize specialized hydraulic clamps and automated alignment guides. They reduce die changeover times from several grueling hours to under 10 minutes. This agility allows you to switch product lines rapidly to meet shifting market demands without losing a full day of production.
Traditional equipment utilizes constant-speed hydraulic pumps that consume immense power even when the machine sits idle. You should specify servo-driven hydraulic systems instead. Servo pumps throttle down completely during idle phases like cooling, spraying, and part extraction. This intelligent power management drastically reduces overall energy consumption. Additionally, it significantly lowers hydraulic fluid operating temperatures, extending the lifespan of your critical seals, hoses, and valves.
Selecting the right machinery requires vetting the manufacturer just as rigorously as the technical specifications. Focus purely on operational reliability, hardware longevity, and technical validation.
High-pressure injection environments cause rapid component wear. You must investigate the metallurgical quality of the vendor's standard consumables. Ask specific questions about their shot sleeves, plunger tips, and tie bars. Do they use standard steel, or do they offer advanced heat-treated alloys? Cheaper materials degrade quickly under the abrasive flow of liquid aluminum. Frequent sleeve replacements lead to unacceptable maintenance downtime. Ensure the manufacturer prioritizes high-durability metallurgy designed specifically for continuous industrial use.
Even the most robust equipment eventually requires expert service. Evaluate the vendor's local support footprint closely. Check their warehouse inventory for critical spare parts like hydraulic manifolds and control boards. Assess if they offer predictive maintenance software capabilities to flag mechanical deviations before catastrophic failures occur. You must secure a strict Service Level Agreement (SLA). The SLA should guarantee rapid field service response times to ensure production lines rarely stop.
Never purchase complex industrial equipment based solely on a marketing brochure. Demand a physical test run or highly detailed case studies. The vendor must demonstrate the machine's absolute capability to hold tolerances. Provide them with a complex part design similar to your own production requirements. Ask for empirical evidence showing how their equipment handles identical geometric complexity and alloy compositions. A successful proof of concept validates their engineering claims and fundamentally protects your investment.
Choosing the appropriate industrial press is a demanding exercise. It requires balancing strict structural mathematics with advanced process controls. You must calculate mold-locking forces accurately and prioritize real-time injection monitoring to prevent part porosity. Furthermore, implementing automation effectively offsets the inherent cycle time delays associated with external ladling.
Follow these decisive next steps to move your procurement forward:
Compile your absolute maximum projected part area and required specific casting pressure.
Determine your exact alloy type to assess wear rates and establish strict fill ratio limits.
Verify the physical dimensions of your largest dies against the machine's tie-bar spacing and stroke capabilities.
Use these finalized technical specifications to request targeted, line-itemized quotes from shortlisted machinery manufacturers.
A: If you cast metals with high melting points like aluminum, brass, or copper, you must use a cold chamber machine. These extreme temperatures would dissolve or severely damage submerged hot chamber pumping mechanisms. Hot chamber machines are strictly restricted to lower-melting-point alloys like zinc and lead.
A: Industry standards dictate a fill ratio strictly between 60% and 75%. This specific range provides optimal space for gas evacuation. Simultaneously, it maintains enough kinetic energy for a complete, high-density cavity fill without spilling molten metal from the pour hole.
A: Automation features like auto-ladling, robotic extraction, and automatic spraying directly offset inherently slower cycle times. They remove manual handling variables, ensure highly consistent thermal cycles, drastically decrease scrap rates, and stabilize continuous, defect-free production output.
