How Do You Reduce Defects In Cold Chamber Die Casting?

Reducing manufacturing defects is not merely an engineering challenge; it is a critical margin-preservation strategy. A mere 1% increase in scrap rates can drive up your total production costs by roughly 5%. While aluminum and magnesium alloys offer exceptional strength-to-weight ratios, they demand careful processing. The high melting points required inside a Cold Chamber Die Casting Machine create extreme thermal and mechanical stress on your tooling. Establishing a near-zero defect operation requires moving beyond reactive troubleshooting. You must embrace proactive parameter control across the entire production floor. We will evaluate everything from fluid dynamics models like PQ2 to machine-level clamping consistency. You will also learn how factory-wide quality management systems can permanently reduce your reject rates. By the end of this guide, you will understand how to optimize physical maintenance protocols, interpret core equipment dynamics, and implement predictive diagnostics.

Key Takeaways

• Financial Impact: Uncontrolled porosity and dimensional defects exponentially increase scrap rates and secondary machining costs.

• Troubleshooting Hierarchy: Effective defect resolution follows an "easy things first" protocol, starting with physical cleaning and ending with tooling modification.

• Equipment Capability: The baseline prevention of internal and superficial defects relies entirely on the precise injection speeds (40–60 m/s) and sub-0.1-second fill times achievable by a modern High Pressure Die Casting Machine.

• Systematic QA: Long-term defect reduction requires data-driven preventative frameworks, such as thermal imaging, vacuum-assisted casting, and PDCA (Plan-Do-Check-Act) cycles.

The True Cost of Defects in Cold Chamber Die Casting

Manufacturers often underestimate the cascading financial damage caused by production anomalies. To protect profit margins, you must differentiate between curable flaws and fatal structural errors.

Scrap vs. Rework Assumptions

Superficial defects often permit secondary salvage operations. You can polish away minor flow marks or machine down slight irregularities. However, internal defects like porosity usually mandate immediate scrapping. When you scrap a casting, you waste expensive raw materials. You also lose the massive thermal energy expended to hold aluminum at 700°C. Reworking parts drains labor hours and disrupts production schedules, while scrapping destroys your direct material investments.

Client Retention & Traceability

Modern supply chains demand flawless consistency. Tier-1 automotive and aerospace clients require strict traceability. Consistent dimensional defects threaten vendor compliance directly. Latent structural failures, such as hidden micro-cracks, pose an even greater danger. If a defective component reaches the end consumer, you risk catastrophic field failures. These incidents trigger expensive recalls and often lead to immediate contract termination. Quality control is essentially client retention.

Core Defect Categories and Their Root Causes

Rapid engineering evaluation requires grouping anomalies by their physical location. This categorization speeds up diagnostic efforts on the factory floor.

Internal Defects (Structural Integrity Risks)

Internal flaws compromise the load-bearing capacity of the final part. They remain invisible until X-ray inspection or destructive testing reveals them.

• Gas Porosity & Shrinkage: Trapped air creates spherical voids inside the metal. Moisture vaporization from excessive die lubricants often causes this. Shrinkage occurs due to uneven cooling gradients, leaving jagged cavities in thicker sections.

• Inclusions: Impurities weaken tensile strength. They stem from low-purity metal ingots or excessive graphite in your release agents. These foreign particles act as stress concentrators under mechanical load.

Superficial Defects (Aesthetic & Machining Risks)

Surface issues ruin the cosmetic appearance and complicate secondary CNC machining.

• Cold Shuts & Flow Marks: Molten metal streams sometimes fail to fuse completely. This happens due to inadequate mold temperatures or insufficient injection speeds. The result is a visible, jagged line across the casting.

• Cracks (Heat Checks) & Soldering: Extreme thermal cycling causes die steel to develop micro-fissures, leaving raised veins on the part. Soldering occurs when localized overheating or inadequate mold release agents allow aluminum to bond directly to the tool steel.

Dimensional & Mechanical Defects

Geometry failures prevent parts from fitting into final assemblies.

• Flash: Excess metal escapes the die cavity along the parting line. This symptom directly points to tooling wear. It can also indicate inadequate clamping force from the machine holding the mold closed.

• Warpage/Deformation: Castings bend out of shape after ejection. Premature ejection while the metal is too hot causes this. Asymmetric cooling channels also pull the part unevenly during solidification.

The "Easy Things First" Troubleshooting Framework

Chasing root causes randomly wastes engineering hours. Effective defect resolution follows a strict "easy things first" protocol. You should always escalate from the cheapest physical checks to the most expensive tooling modifications.

Step 1: Physical Maintenance (Lowest Cost)

Before altering any process parameters, inspect the physical environment. Clean all parting lines thoroughly. Remove debris from cavities and ensure ejector pins move freely. Optimize the spray pattern of your mold lubricants. Puddles of release agent vaporize into trapped gas, while dry spots lead to soldering. A simple cleaning cycle often resolves spontaneous defect spikes.

Step 2: Parameter Adjustment (Medium Cost)

Audit the current operating window. The mold working temperature must remain within the optimal threshold. For certain alloys, you should hold the die between 180°C and 280°C. If temperatures fall below this range, adjust your cooling lines. Next, modify injection pressure and holding times. Increasing holding time feeds more molten metal into the shrinking part, reducing internal voids.

Step 3: Melt Quality & Degassing (Medium Cost)

Focus on the chemistry of the molten pool. Introduce inert gas or vacuum degassing protocols to remove dissolved hydrogen. Ensure raw material purity by inspecting incoming ingots. Maintain optimal melt temperatures in the holding furnace. For typical aluminum alloys, you must hold the melt tightly between 630°C and 700°C. Overheating exacerbates gas absorption, while underheating causes sluggish flow.

Step 4: Tooling & Machine Overhaul (Highest Cost)

If superficial tweaks fail, examine the steel. Re-evaluate your gate and runner designs. Ensuring runners exceed 50mm allows proper venting before the metal seals the exit pathways. Modify cooling channels based on thermal analysis. Machining new water lines requires downtime, but it permanently eliminates stubborn hot spots causing shrinkage.

Evaluating Machine Capabilities for Defect Prevention

Even perfect tooling cannot compensate for inadequate hardware. Buyers assessing equipment upgrades must prioritize dynamic precision over basic tonnage.

Precision of Injection Dynamics

A robust machine must strictly control multi-stage injection speeds. Achieving typical aluminum injection speeds of 40–60 m/s is an absolute necessity. At these velocities, you can complete mold filling in under 0.1 seconds. This rapid fill prevents premature solidification inside thin-walled sections. If your equipment cannot accelerate rapidly enough, cold shuts become structurally unavoidable.

Clamping Force Consistency

Evaluate the tonnage accuracy of your High Pressure Die Casting Machine. Generating force is not enough; the machine must distribute it evenly across the platens. Reliable, evenly distributed clamping pressure is the only verifiable way to eliminate flash. Rigid lockups maintain tight dimensional tolerances, reliably holding part variations up to ±0.1 mm during extreme injection pressure spikes.

Integration with Advanced Diagnostics

Modern production demands data connectivity. Assess equipment compatibility with advanced analytical tools. Your hardware should support:

1. PQ2 Calculation Models: Software integration helps predict gate velocity and matches machine power to the specific die.

2. Thermal Imaging Sensors: Automated cameras detect hot-spot formation before soldering occurs.

3. Vacuum-Assist Add-ons: Evacuating air from the cavity before injection can reduce thin-wall porosity defects by up to 30%.

Establishing a Zero-Defect Quality Assurance System

Transforming your factory requires a mindset shift. You must elevate your focus from fixing broken parts to preventing flaws before metal ever enters the die.

Separating 'Solutions' from 'Prevention'

Troubleshooting fixes the immediate batch. Systemic prevention requires design-phase thermal analysis and flow simulation. Engineers use software like Magmasoft or Z-CAST to simulate the entire shot cycle virtually. They identify turbulent flow and trapped air pockets on a computer screen. By modifying gates virtually, you avoid cutting expensive steel twice.

Compliance & Frameworks

Implement rigorous quality standards. Pursuing IATF 16949 certification forces an organization to formalize its processes. Utilizing PDCA (Plan-Do-Check-Act) loops ensures continuous improvement. When you combine PDCA with strict lot traceability documentation, you can reliably reduce defect rates over a 12-month cycle. Tracking every parameter shift against batch numbers isolates the root cause of historical failures quickly.

Automated Monitoring

Human observation cannot catch millisecond variations. The industry is shifting toward AI-driven sensors. These systems capture fluid data, pressure spikes, and temperature drops in real-time. If a shot falls outside the validated thermodynamic envelope, the system instantly rejects it. Automated segregation guarantees non-conforming parts never reach your client.

Conclusion

Defect reduction in cold chamber operations is a predictable science, not guesswork. It requires marrying advanced metallurgical controls with high-precision machinery. To secure a near-zero defect environment, you must adopt a systematic approach.

• Physical cleaning and temperature control resolve a majority of sudden surface defects.

• Combating porosity demands precise injection speeds and vacuum-assisted evacuation.

• Long-term stability requires flow simulation software and strict PDCA continuous improvement cycles.

Take action today. Audit your current scrap rates to identify financial leakage. Run a PQ2 calculation on your existing tooling to verify operational alignment. Finally, consult an applications engineer to assess if your current machine tonnage and injection specs are inherently limiting your yield.

FAQ

Q: What is the most effective way to eliminate gas porosity in aluminum die casting?

A: The most effective method is utilizing vacuum-assisted casting to evacuate air before injection. Additionally, you must optimize mold venting, pre-heat the die to prevent moisture vaporization from lubricants, and degas the molten aluminum to remove dissolved hydrogen.

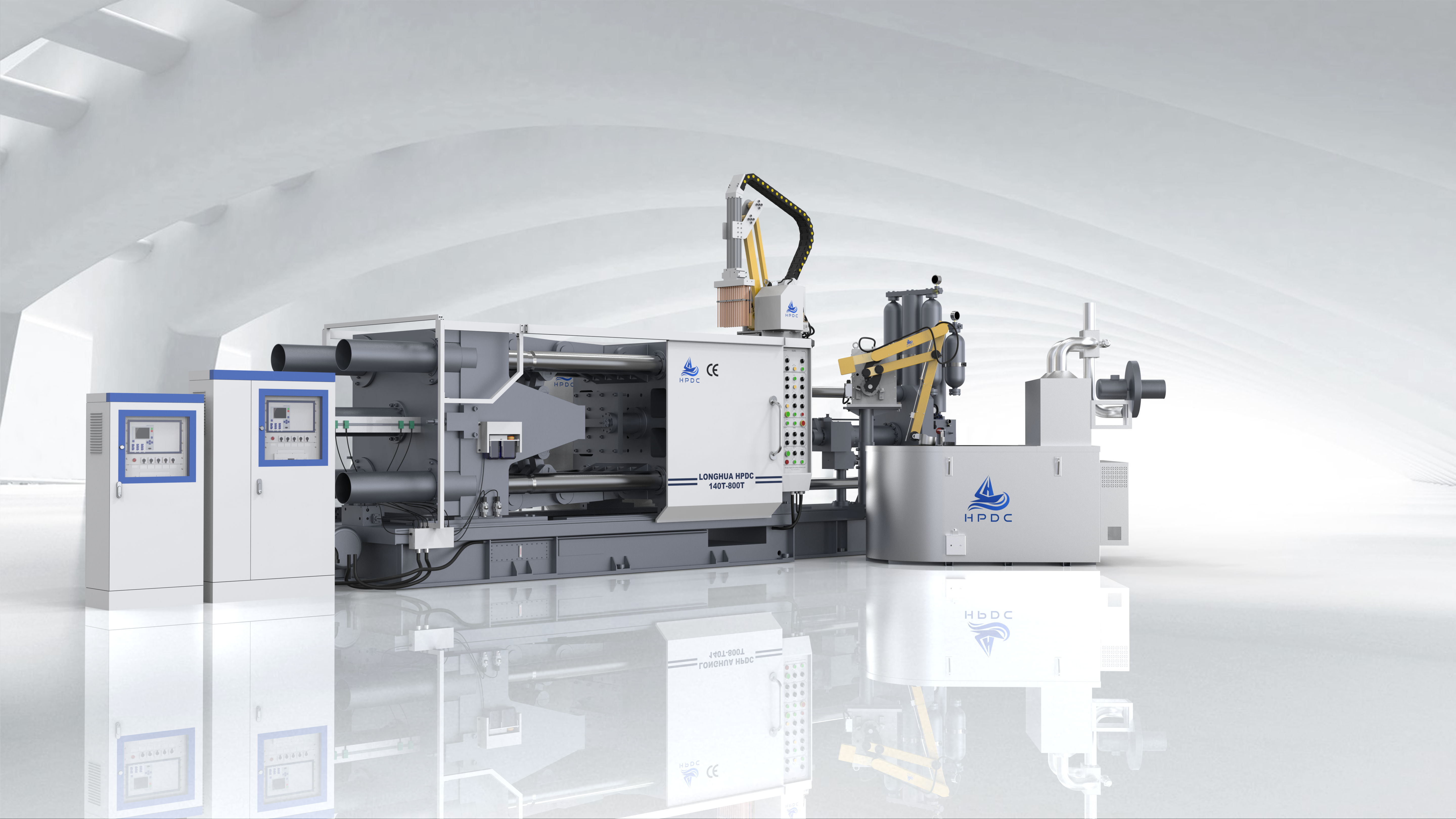

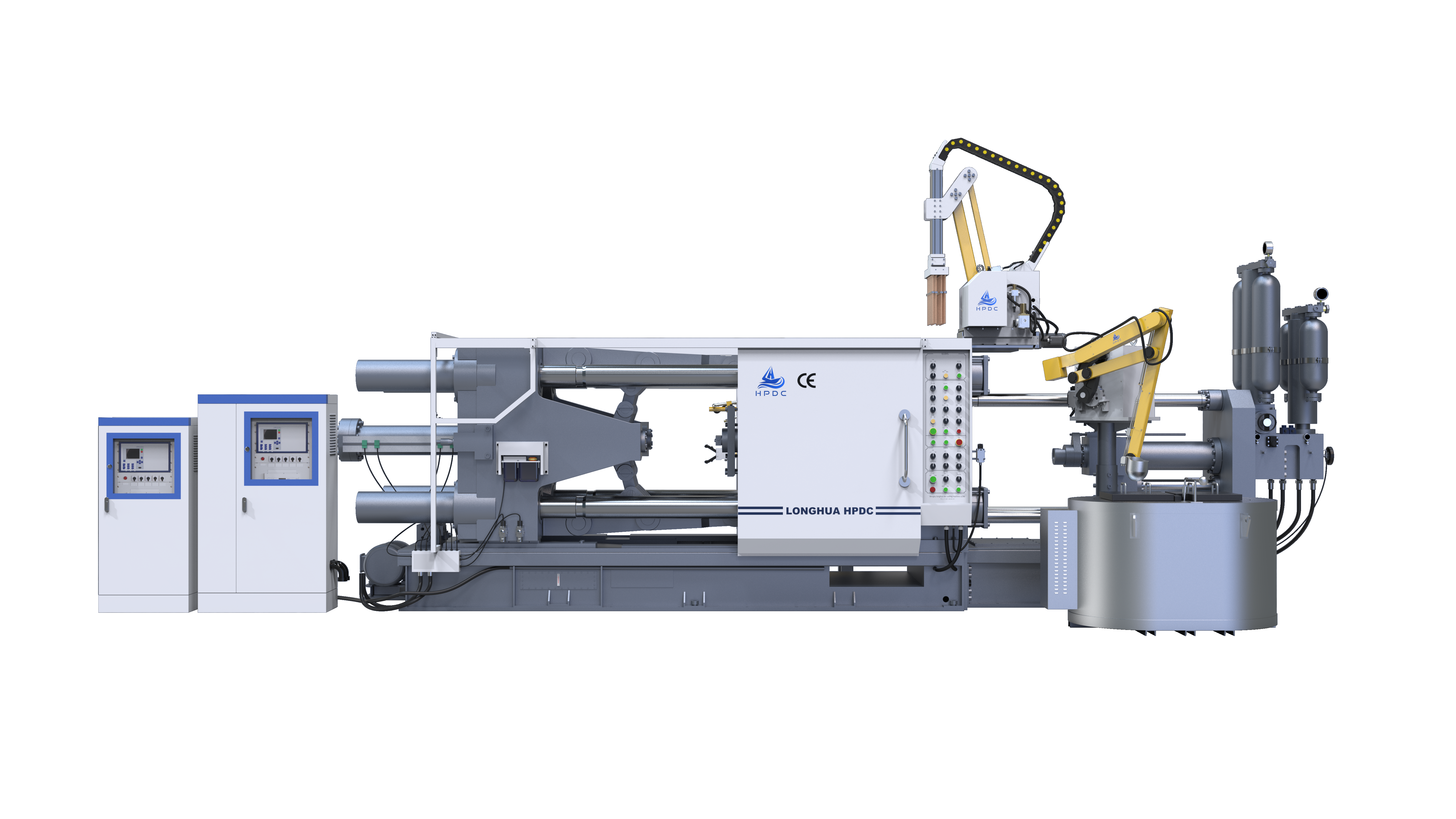

Q: How does a Cold Chamber Die Casting Machine differ in defect control compared to a hot chamber?

A: Cold chamber machines manage much higher melting temperatures for metals like aluminum. Defect control heavily focuses on precise ladle pouring and strict thermal management of the shot sleeve to prevent premature cooling and cold shuts.

Q: What is the PQ2 diagram and why is it critical for defect prevention?

A: The PQ2 diagram calculates the dynamic relationship between gate velocity, metal pressure, and fill time. It maps the optimal process window, matching the machine's specific power curve to the tooling design to guarantee complete cavity filling.

Q: How do you fix die soldering (metal sticking to the mold)?

A: Fix soldering by achieving thermal equilibrium across the die surface. Optimize internal cooling lines to eliminate localized hot spots and ensure you apply a consistent, correct ratio of mold release agent to protect the steel.
