How Does Al Alloy Melting Affect Die Casting Quality?

The Al Alloy Melting phase is the foundational determinant of structural integrity, mechanical performance, and microstructural quality in aluminum die cast components. Before molten metal ever enters a die cavity, the thermal and chemical conditions established in the furnace dictate the success or failure of the entire manufacturing run. Inadequate melting protocols—such as poor temperature regulation, improper alloying, or insufficient degassing—manifest directly as high scrap rates, delayed production cycles, and premature tooling failure on the foundry floor. These issues create bottlenecks that disrupt supply chains and inflate manufacturing overhead. Recognizing these operational risks makes the rigorous evaluation of a foundry’s melting capabilities and molten aluminum quality controls a mandatory step in vendor selection and quality assurance. Buyers must prioritize partners who treat melting as a precise metallurgical science rather than a basic preparatory step to ensure reliable, high-volume manufacturing.

• Strict alloy temperature control (typically between 1150°F and 1300°F) is non-negotiable for balancing material fluidity with die longevity.
• Molten aluminum quality directly dictates the presence of internal and external aluminum casting defects, particularly hydrogen porosity and oxide inclusions.
• Aluminum's classification as a moderate melting point alloy influences tooling wear profiles compared to lower-melting-point materials like zinc.
• Evaluating a manufacturing partner requires auditing their furnace capacity (e.g., melt rate efficiency), refining equipment, and thermal monitoring systems to ensure scalable die casting production.

The Physics of Al Alloy Melting in Die Casting Production

Melting Point Dynamics, Alloy Classification, and Material Composition

Aluminum alloys used in die casting, such as A380 and A356, exhibit a moderate melting point profile. The standard melting range falls between 1150°F and 1300°F (621°C to 704°C). This places aluminum above low-melting-point materials like zinc but significantly below high-melting-point metals like copper. Understanding this thermal window is essential for establishing stable processing parameters on the shop floor. When operators push temperatures outside this window, the metallurgical structure of the final part degrades rapidly.

Metallurgical influences dictate exact liquidus and solidus temperatures. Ingot purity levels and specific elemental percentages of silicon, copper, and magnesium shift the thermal requirements. For example, higher silicon content generally improves fluidity but requires precise thermal tracking to prevent sludge formation in the holding furnace. Prior manufacturing heat treatments also play a role in how the material responds during the melt phase. Casting directly from raw Al Alloy Melting processes fundamentally affects final material properties, influencing grain structure and ductility differently than machining components directly from extruded or smelted stock.

To illustrate the differences in common die casting alloys, consider the following baseline parameters used in standard foundry operations:

Thermal Stress and Die Degradation on the Aluminum Die Casting Machine

Elevated melting temperatures exert severe thermal shock on the aluminum die casting machine components and H13 tool steel dies. Thermal fatigue occurs as the die rapidly absorbs heat during injection and then cools during solidification and spraying. This continuous cycling leads to surface cracking, commonly known as heat checking, and dimensional shifts that ruin part tolerances.

Foundries must navigate the filling versus tool life trade-off daily. Higher melt temperatures improve cavity filling for complex geometries but exponentially accelerate heat checking, soldering, and premature tool degradation. Operators must optimize thermal parameters to ensure complete part formation without sacrificing the operational lifespan of expensive tooling. When molten metal solders to the die surface, production must halt for polishing, killing throughput and driving up labor hours.

1. Monitor die surface temperatures using infrared thermography between shots.
2. Adjust internal cooling line flow rates to counteract localized hot spots.
3. Apply specialized die release agents to create a thermal barrier.
4. Preheat dies uniformly to minimize the initial thermal shock during startup.

Evaluating Molten Aluminum Quality: Success Criteria for Defect Prevention

Refining and Degassing Protocols (Equipment & Process Integration)

Removing dissolved hydrogen gas is a non-negotiable requirement for maintaining high molten aluminum quality. Standard procedures for refining molten aluminum involve rotary degassing and fluxing. Foundries utilize top-mounted refiners or inline degassing units to introduce inert gases, typically argon or nitrogen, which bind with hydrogen and carry it to the surface for removal. The mechanical shearing action of the rotary impeller breaks the gas into fine bubbles, maximizing surface area for hydrogen absorption.

Success criteria rely on strict quality metrics measured directly on the foundry floor. Acceptable density index (DI) levels and specific hydrogen content thresholds must be met to produce high-performance structural applications. Without these integrated protocols, internal porosity compromises the mechanical strength of the final casting, leading to catastrophic failures in load-bearing applications. Technicians must perform regular reduced pressure tests (RPT) to verify the effectiveness of the degassing cycle before releasing the metal for production.

Dross Formation and Oxide Inclusion Mitigation

When molten aluminum is exposed to the atmosphere during melting and holding phases, oxidation dynamics trigger rapid dross formation. This chemical reaction creates hard oxide inclusions that can ruin cutting tools during post-machining and weaken the structural integrity of the cast part. Dross acts like a sponge, trapping usable aluminum and reducing overall material yield.

Evaluating a foundry’s dross management requires assessing several operational dimensions. Automated skimming practices, the application of protective flux, and strict furnace atmosphere control are necessary to prevent hard spots. Effective mitigation strategies ensure the melt remains clean before injection. Operators must use non-wetting tools to skim the surface gently, avoiding excessive turbulence that folds oxides back into the melt.

Alloy Temperature Control: The Core Driver of Casting Integrity

Fluidity vs. Thermal Fatigue (Conceptual Trade-offs)

Precise alloy temperature control requires a delicate balance. The metal must maintain sufficient fluidity to fill complex, thin-walled geometries rapidly. However, excessive heat increases thermal shock to the die, accelerating fatigue. Managing flow dynamics ensures the metal reaches all extremities of the cavity before solidifying, preventing scrap.

Modern monitoring infrastructure supports this balance. Automated thermocouple feedback loops and multi-point infrared sensors maintain holding furnace temperatures within a tight ±10°F tolerance. Consistent thermal management prevents the drastic fluctuations that lead to inconsistent part quality. Foundries relying on manual temperature checks often suffer from high variability, making automated systems a baseline requirement for modern operations.

Correlating Temperature Deviations to Aluminum Casting Defects

Insufficient melt temperatures cause the metal to lose fluidity too quickly. This premature solidification leads to cold shuts and misruns, where the metal fails to fuse completely or fill the cavity. These defects result in immediate part rejection and indicate a failure in the thermal management chain. Operators must immediately audit the holding furnace and transfer ladles if cold shuts appear.

Conversely, excessive melting temperatures introduce different failure modes. Overheating increases volumetric shrinkage, expands grain size, and raises gas solubility during the cooling phase. This thermal excess directly causes shrinkage porosity and surface blisters, compromising both aesthetics and structural soundness. These aluminum casting defects are often hidden beneath the surface, only revealing themselves during expensive CNC machining operations.

Semi-Solid vs. Liquid State: Assessing Production Approaches

Traditional Liquid Melting vs. Semi-Solid Rheocasting

Conventional liquid-state melting involves heating the alloy entirely above its liquidus temperature before injection. In contrast, semi-solid die casting, or rheocasting, injects a slurry of partially solid and partially liquid metal. This process comparison highlights fundamental differences in material handling and injection dynamics on the shop floor.

Semi-solid processing alters the defect landscape significantly. It shifts defect classifications by reducing external defects like surface cold laps and minimizing internal defects such as turbulent gas porosity. The higher viscosity of the slurry promotes a more laminar flow during injection, pushing air out of the cavity rather than trapping it within the metal stream.

Scalability, Cycle Times, and Energy Efficiency

The choice between semi-solid and liquid processing impacts overall throughput. Semi-solid methods often reduce cooling rates and overall cycle times because the metal enters the die at a lower temperature. This approach also lowers energy consumption during the melting phase, as the furnaces do not need to maintain peak liquidus temperatures.

However, volume assessment is critical. Maintaining semi-solid slurries requires specialized equipment and precise timing. Assessing the scalability of this method versus traditional liquid holding is necessary for high-volume die casting production of automotive, medical, or aerospace components. If the slurry sits too long, the solid fraction increases beyond usable limits, forcing operators to scrap the batch.

Implementation Risks and Supplier Auditing in the Melting Phase

Furnace Capacity, Melt Rates, and Production Cycle Alignment

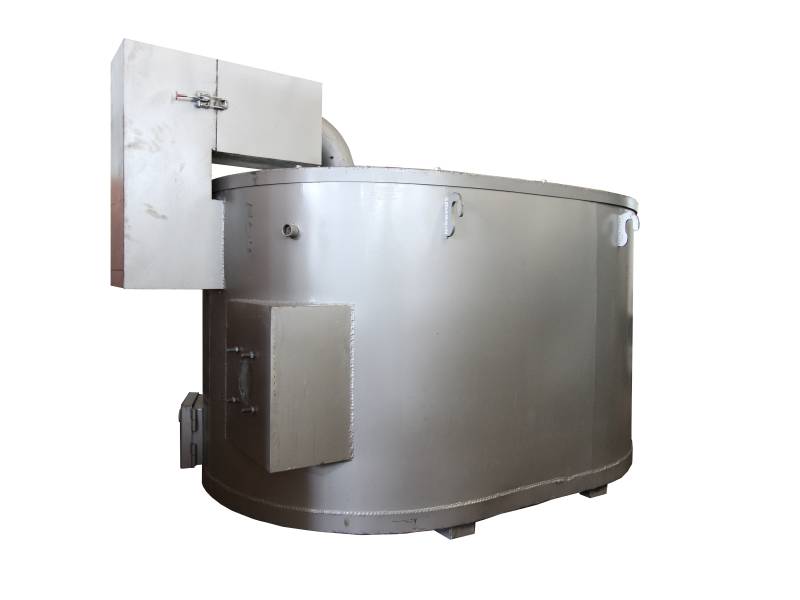

Operational risks arise when melt rates do not match machine shot weights and cycle demands. A high-capacity system capable of melting 1.5 tons of raw material in 45 minutes must align perfectly with the consumption rate of the die casting cells. Mismatched throughput leads to either metal starving, which halts production, or excessive holding times, which degrades metal quality through hydrogen absorption.

Verifying system integrity requires a strict checklist. Suppliers must demonstrate that their melting capacity prevents temperature drops during continuous, high-rate production. Consistent metal availability at the correct temperature is vital for uninterrupted manufacturing. Auditors should physically inspect the furnace lining and burner alignment to ensure the equipment can sustain stated melt rates.

• Verify the maximum melt rate against the total shot weight of all connected machines.
• Inspect the refractory lining for excessive wear that could cause heat loss.
• Check the calibration records of all furnace thermocouples.
• Review the preventative maintenance schedule for burner tuning and cleaning.

Auditing a Foundry's Melting Capabilities and Quality Systems

Effective supplier auditing begins with chemistry verification. Spectrometer calibration protocols must be reviewed for both incoming ingot verification and in-process chemistry checks. Accurate chemical composition is non-negotiable for meeting material specifications. If a foundry cannot produce daily spectrometer logs, their process control is inadequate.

Process traceability provides insight into operational discipline. Auditors should review automated temperature tracking logs and furnace maintenance histories. Furthermore, analyzing scrap-revert ratios reveals how the supplier manages the mix of virgin ingots versus recycled runners without degrading metal quality. High revert ratios introduce excessive oxides and tramp elements, severely compromising the mechanical properties of the final castings.

Conclusion

Implement these next steps to secure your production quality and ensure your foundry partner maintains strict melting controls:

• Audit potential suppliers specifically on their furnace capacity and automated temperature monitoring systems.
• Demand documented proof of degassing protocols and density index metrics for all structural components.
• Establish clear thresholds for scrap-revert ratios to maintain consistent material chemistry.
• Review the supplier's tool maintenance logs to verify that thermal fatigue is being actively managed.

FAQ

Q: What is the ideal temperature range for melting aluminum die casting alloys?

A: The standard melting range for common aluminum die casting alloys, such as A380 and A356, falls between 1150°F and 1300°F (621°C to 704°C). Precise control within this window balances material fluidity with die longevity.

Q: How does poor temperature control cause casting defects?

A: Low temperatures cause premature solidification, leading to cold shuts and misruns. High temperatures increase gas solubility and volumetric shrinkage, resulting in porosity and surface blisters.

Q: Why is degassing necessary in the melting process?

A: Degassing removes dissolved hydrogen gas from the molten metal. If left in the melt, hydrogen forms internal porosity during solidification, which severely weakens the mechanical properties of the final casting.

Q: What is dross, and how does it affect part quality?

A: Dross is a layer of aluminum oxide that forms when molten metal reacts with the atmosphere. If not skimmed or managed properly, these hard oxide inclusions enter the casting, causing hard spots that damage machining tools.

Q: How does semi-solid die casting differ from traditional liquid melting?

A: Semi-solid die casting injects a partially solid, partially liquid slurry rather than fully molten metal. This higher-viscosity flow reduces turbulence, lowering gas porosity and minimizing external surface defects.
