How does a die casting machine turn molten metal into precise components in seconds? The process depends on controlled pressure, accurate timing, and reliable tooling. Understanding how a die casting machine works helps manufacturers improve quality and production efficiency. This guide explains each operating stage, key components, common defects, and equipment selection.
A high-pressure die casting machine follows a coordinated production cycle. Each step prepares the mold, shapes the metal, and releases the finished component. Understanding this sequence helps operators identify process problems and improve repeatability.
Before production, operators inspect the die cavity and remove leftover metal or debris. They apply a suitable release agent to help prevent the casting from sticking. The die must also reach an appropriate operating temperature. Poor preparation can cause surface defects, uneven filling, or premature die wear.
The clamping unit closes the two die halves and holds them firmly together. This creates a sealed cavity for molten metal injection. The machine must provide sufficient clamping force to resist the pressure inside the cavity. Inadequate force may allow metal to escape along the parting line, creating flash.
In a cold-chamber die casting machine, molten metal enters a separate shot sleeve. An injection plunger then pushes it through the runner system and into the mold cavity. The injection system controls metal flow, filling speed, and pressure. These settings must suit the alloy, component geometry, and mold design.
After the cavity fills, pressure helps keep the metal in contact with the mold surfaces. It can also compensate for some shrinkage during solidification, depending on the gating design and feeding conditions. Cooling channels remove heat from the die. The metal gradually solidifies into the required shape.
Once the casting has solidified sufficiently, the clamping unit opens the die. Ejector pins push the component away from the mold surface. Correct ejection timing helps prevent bending, sticking, and surface damage. The casting must have enough strength to withstand removal.
The casting may contain excess metal around the parting line or gate area. Trimming equipment removes this material where required. Operators then check dimensions, surface quality, and visible defects. Critical components may also require additional inspection or testing.
The machine returns to its starting position after ejection. Operators or automated systems prepare the die for another shot. The next cycle begins after necessary checks and lubrication. Cycle time includes injection, solidification, die opening, ejection, and other process activities.
Tip： Record cycle time and defect rates together. Faster production is only useful when casting quality remains acceptable.
A die casting machine relies on several connected systems. Each system controls a different part of the production cycle. Their performance affects dimensional accuracy, casting quality, and machine reliability.
The injection system transfers molten metal into the die cavity. In cold-chamber machines, the shot sleeve receives metal from a separate melting furnace. A plunger then drives the metal through the runner and gate system. Injection speed and pressure must remain consistent to support reliable cavity filling.
Hot-chamber machines use a different arrangement. Their injection mechanism connects more directly to the molten metal supply. This design suits certain lower-melting-point alloys, depending on equipment specifications. Cold-chamber systems are commonly used for aluminum alloys because of their higher processing temperatures.
The clamping unit holds the die halves together during injection. It typically includes fixed and moving platens, a clamping mechanism, and supporting structures. Tie bars help maintain alignment and transfer loads across the machine.
Clamping force must match the projected area of the casting and the pressure acting inside the cavity. The required force also depends on the mold layout and process conditions. Correct sizing helps prevent flash and protects the mold from excessive loading.
The die determines the final component's shape, dimensions, and surface features. Its design includes the cavity, runners, gates, vents, and ejection features. Cooling channels help control heat transfer and solidification.
Uneven die temperatures can cause inconsistent filling or dimensional variation. Excessive cooling time can also reduce output. Manufacturers must balance thermal control, casting quality, and production speed.
Hydraulic systems commonly power clamping, injection, and other machine movements. The control system coordinates these operations through programmed parameters and safety interlocks. Ejection mechanisms release the casting after the die opens.
Modern equipment may also integrate sensors, automated lubrication, and robotic handling. These functions can reduce manual intervention and improve process consistency. Their availability depends on the machine configuration.

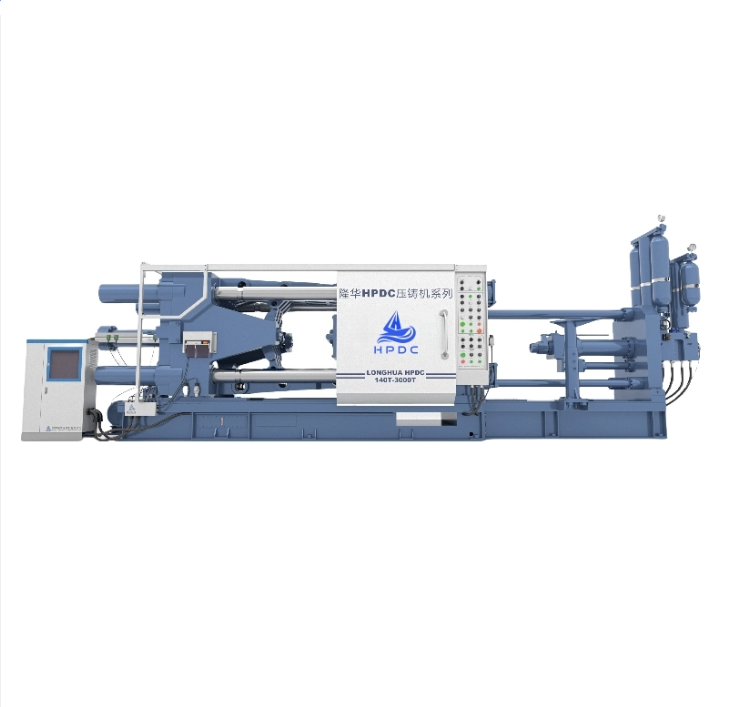

Cold-chamber technology is widely used for aluminum high-pressure die casting. It separates metal melting from the injection mechanism. This arrangement supports the high temperatures required for aluminum alloys.
Aluminum alloys generally require higher casting temperatures than zinc alloys. A cold-chamber machine avoids keeping its main injection mechanism immersed in molten aluminum. Instead, operators or automated ladling systems transfer each shot into the shot sleeve.
The machine then injects the measured metal charge into the closed die. This approach suits many automotive, machinery, and industrial components. The correct equipment still depends on alloy properties, shot weight, casting dimensions, and production requirements.
First, the machine closes the die and confirms the required clamping conditions. Molten aluminum enters the shot sleeve, where the plunger begins its programmed movement. The injection process typically uses controlled filling stages. The metal passes through the gate and fills the cavity at high speed.
After filling, the system applies the required pressure profile. Correct timing helps limit air entrapment and supports complete filling. The exact settings depend on the alloy, mold design, and component geometry.
The aluminum transfers heat to the die and solidifies. Cooling time must be long enough for safe ejection, but excessive cooling can reduce productivity. Once the casting is sufficiently solid, the die opens and ejector pins release the part.
Operators then trim excess metal and inspect the component. Automated equipment can perform some of these steps when integrated into the production line. Manufacturers evaluating an aluminum cold-chamber die casting machine should consider the full production process, not just the injection unit.
Tip： Aluminum alloys, mold geometry, and shot weight affect machine selection. Confirm compatibility before choosing equipment.
A die casting machine's performance depends on several interacting variables. Adjusting one parameter can affect other stages of the cycle. Manufacturers should evaluate the complete process rather than optimize individual settings in isolation.
Injection speed determines how quickly molten metal enters the cavity. Excessive or poorly controlled speed may increase turbulence and air entrapment. Insufficient speed may cause premature solidification or incomplete filling.
Pressure supports cavity filling and feeding during solidification. However, higher pressure does not automatically produce better castings. Operators must establish suitable settings through trials and quality checks.
Insufficient clamping force may allow metal to escape between the die halves. Excessive force can increase mechanical loads and place unnecessary stress on equipment. Proper sizing considers projected area, cavity pressure, and the mold configuration.
Mold alignment is equally important. Misalignment can cause uneven parting lines, dimensional errors, and accelerated die wear. Regular inspection helps identify these problems before they affect large production batches.
Die temperature affects metal flow, solidification, and surface finish. A die that is too cold may contribute to incomplete filling or cold shuts. Uneven heating can create inconsistent dimensions and local defects.
Cooling time must match the component's thickness and geometry. Thin sections generally cool faster than thick sections. Operators should validate cycle adjustments through casting inspections rather than relying on speed alone.
Metal cleanliness and melt temperature influence casting reliability. Oxides, inclusions, and trapped gases may contribute to defects. Proper melt handling, die lubrication, and repeatable operating conditions help reduce variation.
Tip： Track injection settings, die temperature, cycle time, and defect types. Comparing these records helps identify recurring production problems.
Casting defects can increase scrap rates, rework, and production costs. A die casting machine cannot prevent every defect by itself. Reliable results require suitable equipment, well-designed tooling, controlled metal quality, and consistent operating procedures.
Porosity can develop when gas becomes trapped inside the casting. Shrinkage during solidification can also create internal voids. Turbulent metal flow, inadequate venting, and unsuitable injection settings may increase these risks.
Manufacturers can review gate design, venting, and injection profiles to improve filling behavior. Vacuum-assisted die casting may help remove air from the cavity when the process and equipment support it. X-ray inspection or other suitable testing can identify internal defects in critical components.
Flash occurs when molten metal escapes between the die halves. Common causes include insufficient clamping force, damaged parting surfaces, or excessive cavity pressure. Inspecting the die and verifying machine settings can help locate the cause.
Incomplete filling occurs when metal fails to reach every part of the cavity. Low metal temperature, unsuitable injection speed, or restricted flow paths may contribute. Manufacturers should examine these factors before changing machine settings.
Cold shuts form when separate metal flows fail to fuse properly. They may result from poor filling conditions or premature cooling. Surface defects can also arise from die temperature variation, inadequate lubrication, or mold damage.
Deformation may occur when a casting is ejected before it has sufficient strength. Reviewing cooling time, ejection timing, and die condition can help reduce these problems. Corrective actions should be verified against actual production results.
Selecting a machine requires more than comparing rated tonnage. Buyers should assess the casting design, alloy, mold dimensions, production volume, and automation needs. These factors determine whether a machine can meet the required output and quality standards.
Clamping force is an important starting point. The required force depends partly on the projected area exposed to cavity pressure. Shot weight, die dimensions, and machine opening capacity also affect suitability.
A larger machine is not automatically the better choice. Excess capacity may increase investment and operating costs without improving production. Manufacturers should verify machine capacity against the actual mold and component requirements.
Buyers should review injection pressure, speed, shot capacity, and control accuracy. Mold thickness, tie-bar spacing, and platen dimensions must also accommodate the tooling. Thin-walled or complex components may require specific filling capabilities.
For automotive and motorcycle components, consistency and dimensional requirements are especially important. For smaller industrial parts, buyers may prioritize shot capacity and efficient cycle operation. The best configuration depends on the intended application.

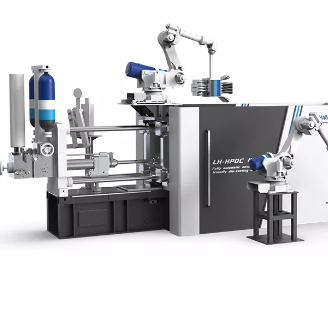

Robots can support part removal, die spraying, and material handling. Automated ladling systems can also transfer molten metal into cold-chamber machines. When properly integrated, these systems may reduce manual handling and improve repeatability.
However, automation requires compatible controls, safety systems, and sufficient workspace. Buyers should consider the entire production cell, including trimming and inspection. Longhua offers equipment options such as the LH-HPDC-800T cold-chamber aluminum die casting machine for automotive and motorcycle applications. Confirm the model's specifications against your actual production needs.
The purchase price is only one part of total equipment cost. Energy consumption, maintenance, tooling, downtime, labor, and scrap rates also affect long-term operating expenses. Buyers should compare these factors against expected production volume and component quality requirements.
Tip： Request a technical review using your part drawings, alloy, estimated shot weight, and target output. This makes equipment comparisons more meaningful.
Improving production requires a balance between speed, consistency, and defect prevention. Manufacturers should first establish a reliable baseline. They can then adjust the process and measure the results.
Review injection speed, pressure profiles, metal temperature, and cooling time together. Small adjustments may improve cavity filling or reduce defects. However, every change should be validated against dimensional and quality requirements.
Automated part extraction, die spraying, and metal transfer can reduce unnecessary pauses. Coordinated equipment can also improve workflow between casting and downstream operations. Manufacturers should assess whether these improvements justify integration costs.
Inspect the injection mechanism, clamping system, hydraulic components, cooling circuits, and die surfaces regularly. Follow the manufacturer's maintenance instructions and document recurring faults. Monitoring downtime, cycle time, and defect rates helps identify opportunities for improvement.
For production requirements involving different casting sizes or applications, manufacturers can explore Longhua's cold-chamber die casting machine range and discuss suitable configurations with the company.
A die casting machine produces precise metal parts through controlled injection, cooling, and ejection. Proper equipment selection and maintenance improve quality and efficiency. Longhua Die Casting Machine offers cold-chamber die casting machines and automation solutions to support reliable production and diverse manufacturing needs.
A: A die casting machine injects molten metal into a mold under pressure, then cools and ejects the finished part.
A: It injects metal from a separate shot sleeve, making it suitable for aluminum alloys.
A: Injection speed, clamping force, die temperature, and cooling time affect quality and cycle time.
A: Match machine capacity, shot weight, alloy, mold size, and automation needs to production requirements.
A: Optimize injection settings, maintain tooling, control metal quality, and monitor production consistently.
