How Much Does A Cold Chamber Die Casting Machine Cost?

Purchasing industrial foundry equipment represents a massive capital leap for any manufacturer. You are not just buying metal; you are investing in a decades-long production capability. Securing a Cold Chamber Die Casting Machine requires strategic foresight and rigorous financial planning.

Many buyers fixate entirely on the initial sticker price. However, accurate pricing requires a deeper evaluation. You must assess machine tonnage, automation cells, tooling lifespan, and energy efficiency. Failing to account for these variables often leads to blown budgets and unexpected operational hurdles down the road.

This guide provides a transparent breakdown of upfront costs and Return on Investment (ROI) frameworks. We will help you navigate component premiums, evaluate essential automation add-ons, and make verifiable, data-backed procurement decisions. You will learn exactly where your capital goes and how to forecast profitability.

Key Takeaways

• Base CapEx: Initial machine costs range from $100,000 for standard 300-ton units to well over $2,000,000 for mega-casting systems (6000+ tons).

• Automation Premium: Transitioning from a standalone machine to a fully automated turnkey cell increases upfront costs by roughly 25% but drastically reduces labor and cycle times.

• TCO Realities: Long-term profitability depends on tooling replacement cycles (averaging 100,000 shots per mold) and energy consumption.

• The 630°C Rule: Cold chamber technology is mandatory for metals with melting points above 630°C (like Aluminum A380/ADC12, Magnesium, and Copper).

The Initial Price Tag: Tonnage and Base Costs

Tonnage acts as your primary cost driver. In the die casting world, tonnage refers to the locking force. This metric dictates how tightly the machine can clamp the mold shut during high-pressure injection. Locking force directly defines the machine's physical footprint. It dictates the required steel volume for the frame. Ultimately, it establishes the baseline price.

Tie-bar spacing also plays a critical role. Wider spacing allows you to mount larger, more complex molds. A machine with high tonnage but narrow tie-bar spacing limits your production flexibility. Manufacturers price their equipment based on these geometric and physical capabilities.

Here is a baseline chart of tiered pricing expectations for new equipment. These figures represent bare-machine costs before shipping, installation, or peripheral automation.

You might consider the used market to save capital. Used 100-ton units often start around $80,000. However, you must carefully evaluate "rebuildability." Premium machines feature heavy-duty frames built from high-grade steel. Technicians can rebuild and refurbish these robust frames over decades. Conversely, cheaper imports often utilize inferior alloys. Industry experts view these low-cost options as disposable. They lack the structural integrity required for multiple overhauls. Investing in a rebuildable frame yields much better long-term value.

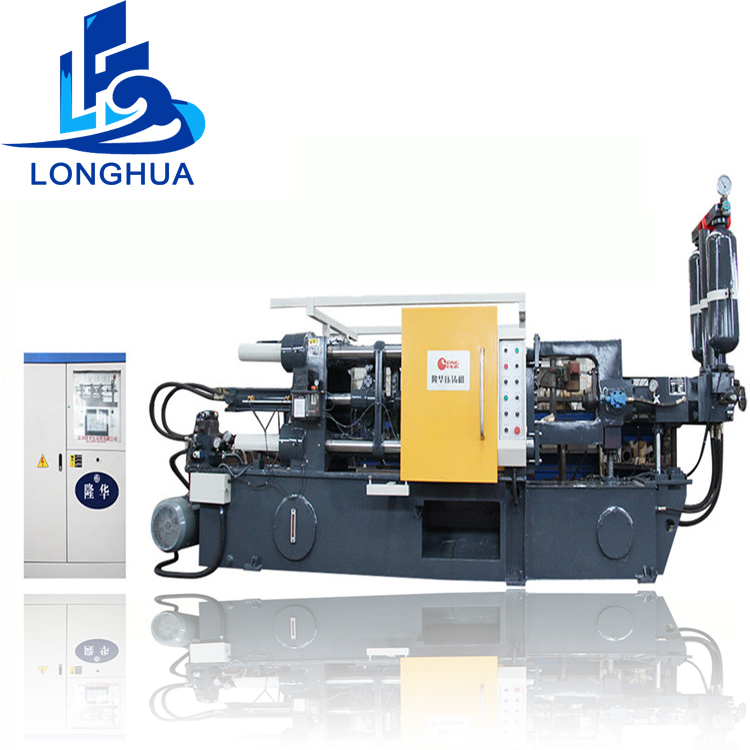

Component Cost Breakdown of a High Pressure Die Casting Machine

Understanding where your money goes helps you evaluate quotes. Every High Pressure Die Casting Machine consists of five core systems. Each system demands specific engineering standards to guarantee performance.

The frame and clamping system consumes the largest budget share. Manufacturers must prioritize platen rigidity. They use high-tensile alloy steel for the tie bars. If the clamping system flexes under pressure, molten metal escapes the mold. This creates "flash," which ruins part tolerances and forces expensive secondary machining.

Next, you pay for the injection and hydraulic systems. High-end machines utilize independent, high-speed accumulators. These devices store hydraulic energy and release it instantly. This drives the plunger forward at extreme speeds. Advanced systems also include non-flash braking technology. This slows the plunger right before the mold fills completely. It drastically reduces internal porosity and extends the lifespan of your dies.

Electrical controls and Programmable Logic Controllers (PLCs) make up another 15%. You pay a premium here for 1-millisecond real-time closed-loop feedback systems. These rapid sensors monitor pressure and speed continuously. They adjust hydraulic valves instantly to ensure steady, repeatable tolerances across thousands of cycles.

Melting and holding furnaces require separate physical footprints. Cold chamber machines handle metals like aluminum and copper, which melt above 630°C. At these temperatures, the molten alloy quickly degrades internal machine parts. Therefore, the furnace must sit externally. You ladle the metal into the injection sleeve for each shot. High-quality refractory linings in these furnaces prevent rapid corrosion and heat loss.

Finally, do not ignore installation and training. This 5-10% cost covers vital setup procedures. Engineers perform factory integration and execute 72-hour load testing. They also handle operator onboarding. Improper installation guarantees poor machine performance, regardless of the equipment's quality.

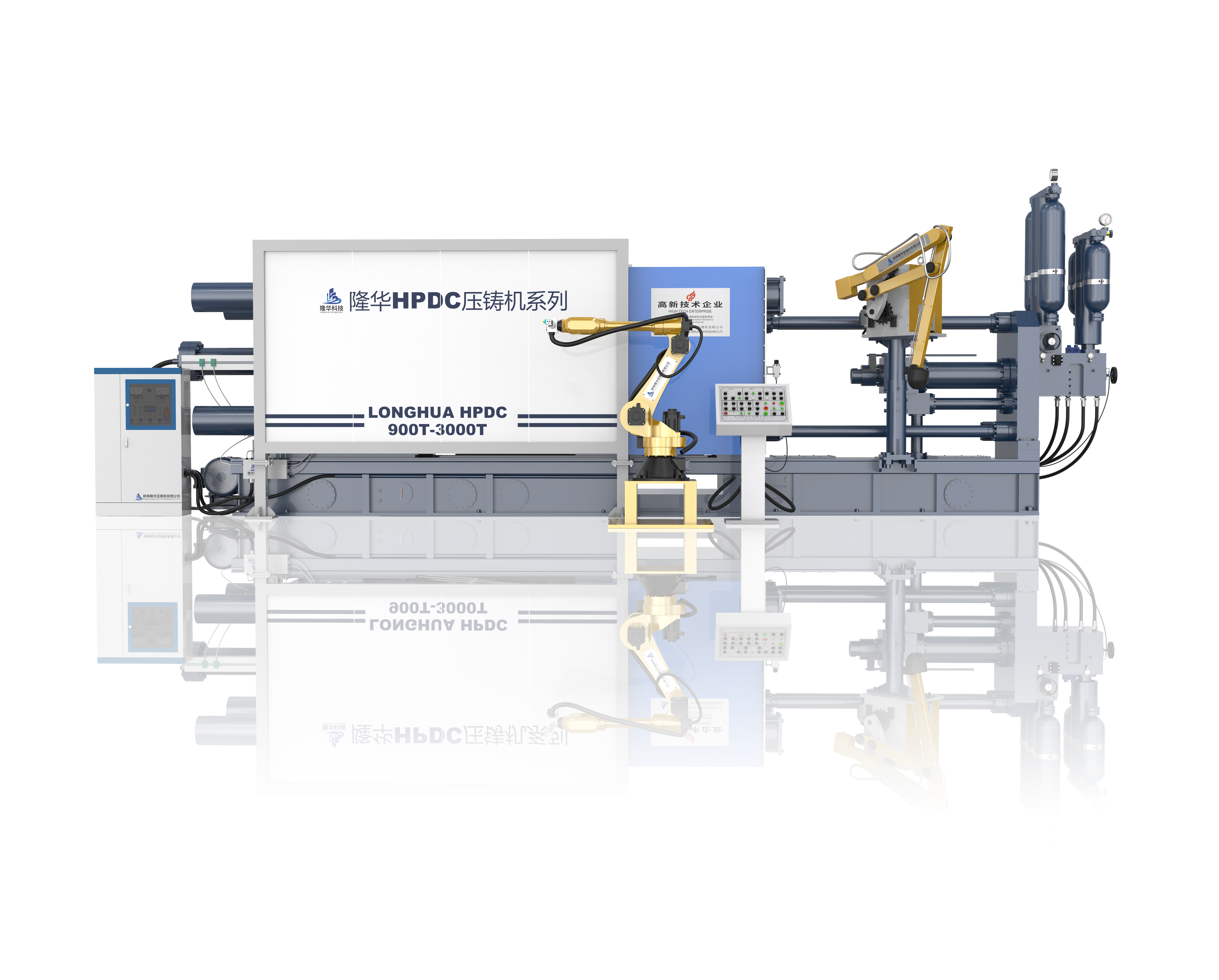

Building a Fully Automated Die Casting Cell (Integration Costs)

Modern high-volume production rarely relies on a standalone machine. To remain competitive, you must upgrade from a bare machine to a fully automated cell. We refer to this as a turn-key solution. A turn-key setup minimizes human error. It guarantees consistent cycle times and significantly improves workplace safety.

However, automation requires capital. Building a complete cell typically adds a 25% premium to your base machine cost. You achieve this by integrating four specific add-ons.

1. Auto-ladling systems (or Dosing furnaces): Manual ladling causes temperature drops and inconsistent shot weights. Automated ladles deliver the exact volume of molten metal into the shot sleeve every single time. This consistency reduces scrap rates immediately.

2. Automatic sprayers: Molten metal adheres to steel molds. You must apply a die-release agent between every cycle. Automated sprayers coat the intricate cavities evenly. They use less lubricant than manual operators and reduce cooling times.

3. Extraction robots: Safely removing a 600°C casting from a mold poses extreme risks. Six-axis foundry robots extract the hot parts rapidly. They move fluidly, preventing distortion of the newly formed metal.

4. Trimming presses: Castings emerge with attached runners, overflows, and flash. Automated trimming presses shear away this excess material instantly. This eliminates the need for manual grinding stations on the factory floor.

Some industries demand even higher precision. Aerospace and premium automotive manufacturers require structural components with zero trapped gas. In these cases, you must add vacuum integration. A vacuum block extracts air from the mold cavity moments before injection. Adding a robust vacuum system typically commands a 10-20% price premium over the standard cell.

Operating Expenses

Capital expenditure gets your facility running, but ongoing expenses determine your survival. You must forecast recurring costs accurately. Tooling replacement represents your largest continual expense.

Die casting molds endure extreme thermal shock. They absorb molten metal at 700°C, then cool rapidly via internal water channels. This violent temperature cycling eventually causes "heat checking" on the steel surface. Tiny cracks form and transfer onto your cast parts. Standard high-pressure molds usually last for roughly 100,000 shots. Depending on part complexity, a replacement mold costs between $50,000 and $200,000. You must build this replacement cycle into your piece-price calculations.

Energy consumption heavily influences your monthly overhead. Standard asynchronous motors run continuously, wasting electricity during the cooling and extraction phases. You should strongly consider upgrading to servo-driven systems. Servo motors only spin when the machine demands hydraulic flow. While servo systems add 10-15% to your upfront CapEx, they cut energy consumption by up to 30%. Furthermore, they generate less heat in the hydraulic system, which significantly improves your oil cooling efficiency.

Maintenance cannot be ignored. You must allocate funds for wear parts, specialized lubrication, and hydraulic fluid filtration. We advise buyers to forecast an annual maintenance budget equal to 5-10% of the machine’s initial purchase price. Skipping preventative maintenance accelerates wear on your tie bars and toggles, leading to catastrophic downtime.

ROI Timelines: In-House Setup vs. Outsourcing

Deciding between building an in-house foundry or outsourcing parts requires a strict financial framework. You need enough production volume to justify the capital outlay. Industry consensus relies on a standard break-even model.

Assume you deploy an optimized, fully automated cold chamber cell. You run it for 18 hours a day, across two or three shifts, 6 days a week. Under these conditions, a well-managed facility typically takes about 3 years to break even. This model assumes scrap rates remain under 5% and downtime stays minimized.

Before writing a purchase order, evaluate your long-term demand. You need a baseline of five or more years of guaranteed, stable production volume. If your product life cycle is short, or volumes fluctuate wildly, subcontracting remains the safer financial choice. An idle die casting machine burns cash through depreciation and factory overhead.

You must also avoid critical material pitfalls that destroy ROI. Many engineers design parts using extruded aluminum grades, like 6061, because of their strength. However, you cannot pressure die cast 6061 aluminum successfully. It lacks the fluidity required to fill complex mold cavities. You must quote standard casting grades, such as A380 or ADC12. These alloys contain higher silicon levels, which drastically improves liquid flow.

Furthermore, understand the limits of post-processing. High-pressure injection inherently traps microscopic gas bubbles inside the metal. We call this porosity. If you subject a porous casting to high-temperature T6 heat treatments, the trapped gas expands. The metal will blister and distort. Planning for unviable heat treatments unexpectedly inflates scrap rates and destroys your profit margins. Always align your material selection and mechanical expectations with the physical realities of the process.

Conclusion

Navigating the acquisition of a cold chamber system demands rigorous attention to detail. The true cost extends far beyond the base frame. Your final capital requirement combines the base tonnage, the depth of cell automation, and ongoing energy and tooling expenses. Building a robust production line requires balancing upfront quality against long-term operational efficiency.

Take actionable steps before requesting official quotes. Solidify your required material alloys and exact part dimensions. Determine your hourly production targets, whether that means 40 complex shots per hour or 300 smaller components. Bring these metrics to a qualified foundry engineer. Establishing these parameters first ensures OEM specification sheets align perfectly with your actual factory needs.

FAQ

Q: What is the price difference between a hot chamber and cold chamber die casting machine?

A: Cold chamber setups generally cost more. They require physically separate, external melting furnaces because they handle metals exceeding 630°C (like aluminum and copper). They also need heavier frames and more robust hydraulic systems to achieve the higher injection pressures necessary for these viscous alloys.

Q: Can high-pressure die casting machines be customized?

A: Yes. Manufacturers offer highly modular systems. You can specify custom tie-bar spacing or integrate specific add-ons. Popular customizations include servo drives for energy savings, vacuum blocks for low-porosity aerospace parts, and advanced 1-millisecond real-time shot controls.

Q: How long does a high-quality die casting machine last?

A: Premium machines can operate for several decades. Heavy-duty frames forged from high-tensile steel allow for repeated rebuilding and refurbishing. Cheaper, lower-grade machines often suffer frame fatigue and become unusable after 7 to 10 years of continuous high-pressure operation.

Q: Why is A380 or ADC12 aluminum used instead of standard aerospace aluminum?

A: High-pressure cold chamber injection requires excellent material fluidity to fill complex molds rapidly. A380 and ADC12 contain specific silicon levels that optimize liquid flow and reduce shrinkage. Standard aerospace aluminum (like 6061) lacks this fluidity, causing severe mold-filling failures and hot tearing.
