Defects in hot chamber die casting present severe financial drains. A 1% increase in scrap rates inflates overall production costs by up to 5%. Unpredicted machine downtime costs facilities thousands of dollars daily.
Hot chamber die casting demands extreme precision. Because the injection mechanism operates completely submerged in molten metal, variables like thermal equilibrium, gooseneck wear, and cycle times leave zero margin for error. You cannot rely on a reactive "scrap-and-sort" mentality anymore. Modern manufacturing demands better control.
Moving toward a proactive engineering framework remains critical for profitability. This operational shift requires you to understand the precise taxonomy of common defects. It also requires implementing a rigorous troubleshooting hierarchy. Our guide breaks down exactly how to identify, categorize, and eliminate these costly imperfections.
Defects generally fall into three measurable categories: internal structural failures, superficial blemishes, and dimensional inaccuracies.
The majority of hot chamber defects stem from an imbalance in the 4M1E framework (Material, Machine, Method, Mold, Environment).
Resolving issues follows an "Easy Things First" SOP: controlling die release agents before adjusting machine parameters, and tweaking parameters before modifying the physical mold.
Investing in modern, sensor-rich hot chamber equipment mitigates the baseline risks of pressure drops and thermal fluctuations.
We often underestimate the true financial impact of rejected parts. Defect costs compound exponentially as components move further down the assembly line. The Cost of Poor Quality (COPQ) model perfectly illustrates this escalation. A porosity issue caught right at the casting machine costs relatively little. However, discovering a similar flaw after secondary CNC machining multiplies the financial loss dramatically. Applying expensive surface treatments to defective units wastes valuable chemical resources.
High scrap rates also silently consume your valuable machine hours. You lose capacity you cannot ever recover. This lost time directly causes missed Delivery Level Agreements (SLAs). Frequent production delays ultimately damage your relationships alongside tier-1 supply chain partners. Purchasing managers quickly notice unpredictable delivery schedules.
To fight this, you must abandon binary "pass/fail" visual inspections. Establish a rigorous internal defect severity rating system instead. You need to know exactly how bad a defect looks, not just whether it exists. Tracking severity scores reveals whether your process variations are converging toward stability or actively degrading.
Cost Escalation of Undiscovered Casting Defects | ||
Defect Discovery Stage | Relative Cost Impact | Corrective Action Required |
|---|---|---|
At the casting machine | 1x Base Cost | Melt part down, adjust machine parameters immediately. |
Post-machining operations | 10x Base Cost | Scrap the part. Absorb lost machining labor and tooling wear. |
Post-surface finishing | 50x Base Cost | Absorb wasted plating materials and toxic disposal fees. |
At the customer facility | 100x+ Base Cost | Manage product recalls. Face severe reputation damage. |
You cannot fix a problem you cannot accurately identify. Defects divide into distinct categories based on their physical characteristics and engineering root causes.
Internal flaws compromise the physical strength of the cast component. They often remain entirely hidden until destructive testing occurs.
Gas Porosities: These appear as smooth, round cavities inside the metal. You must differentiate between trapped air caused by violent injection turbulence and gas release resulting from burnt lubricants. Detecting them reliably requires X-ray inspection or physical destructive sectioning. Without these diagnostic tools, you might ship porous parts unknowingly.
Solidification Shrinkage (Shrink Porosity): Unlike gas cavities, these feature rough, jagged interior edges. They happen due to volume reduction during the rapid cooling phase. You typically find shrink porosity isolated in thick-walled sections where proper thermal management remains lacking.
Surface blemishes ruin product cosmetics. They also disrupt subsequent plating or painting operations severely.
Blisters: These occur when trapped gas expands upon part ejection. Once the die depressurizes, the trapped high-pressure gas pushes outward. This action completely ruins smooth surface finishes.
Cold Shuts & Flow Marks: You will see visible lines where two semi-solidified metal streams met. They failed to fuse properly due to excessively low metal temperature or insufficient injection speed.
Laminations: These are hidden surface layers overlapping each other. They often peel or flake off unexpectedly during aggressive secondary processes like sandblasting or tumbling.
These defects cause the finished part to fall outside of strict geometric tolerances.
Flashes: You will notice excess metal escaping the parting line. High injection pressure forces fluid metal through tiny gaps between the closed die halves.
Swells & Warpage: These dimensional shifts point to several severe mechanical issues. They indicate end-of-life tool steel yielding, uneven cooling stress across the mold, or premature ejection of the hot part.
Understanding the core mechanics of your equipment highlights exactly where things usually go wrong. The submerged injection system inside a Hot Chamber Die Casting Machine faces constant abuse from molten alloys. The gooseneck acts as the main fluid conduit transferring metal directly from the holding furnace into the die cavity.
Worn plunger rings or severe gooseneck degradation inevitably lead to pressure leakage. When injection pressure bleeds off during the shot cycle, you experience short fills and cold shuts. The machine simply cannot deliver metal fast enough to fill the cavity completely.
Tooling temperatures must remain strictly controlled. Engineers recommend maintaining specific ranges between 180°C and 280°C. This target depends entirely on the specific zinc or magnesium alloy being poured. Cold dies actively cause premature solidification. Conversely, overheated local spots cause severe soldering. The metal physically welds itself to the bare die surface.
Impurities or improper remelting of scrap heavily alter fluid viscosity. Allowing excess sludge buildup inside the holding pot fundamentally alters the thermal dynamics of the shot. Sludge limits heat transfer efficiently. It also introduces hard inclusions into the finished product.
Finally, inadequate clamping force ruins dimensional accuracy. If the machine's tonnage is incorrectly calculated, high injection pressure forces the dies apart. Mechanical toggle wear also contributes heavily to this separation. You will immediately see excessive flash and out-of-tolerance dimensions.
Resolving issues requires a structured approach. Following the "Easy Things First" Standard Operating Procedure (SOP) prevents you from creating new problems while trying to fix old ones.
Phase 1: Housekeeping & Release Agents (Fastest Fix)
Always start by auditing the spray process. Excessive die lube directly causes massive gas porosity. Conversely, inadequate lubrication causes soldering and deep drag marks. You must clean the mold surface thoroughly before ever changing any hard machine parameters.
Phase 2: Process Parameter Tuning

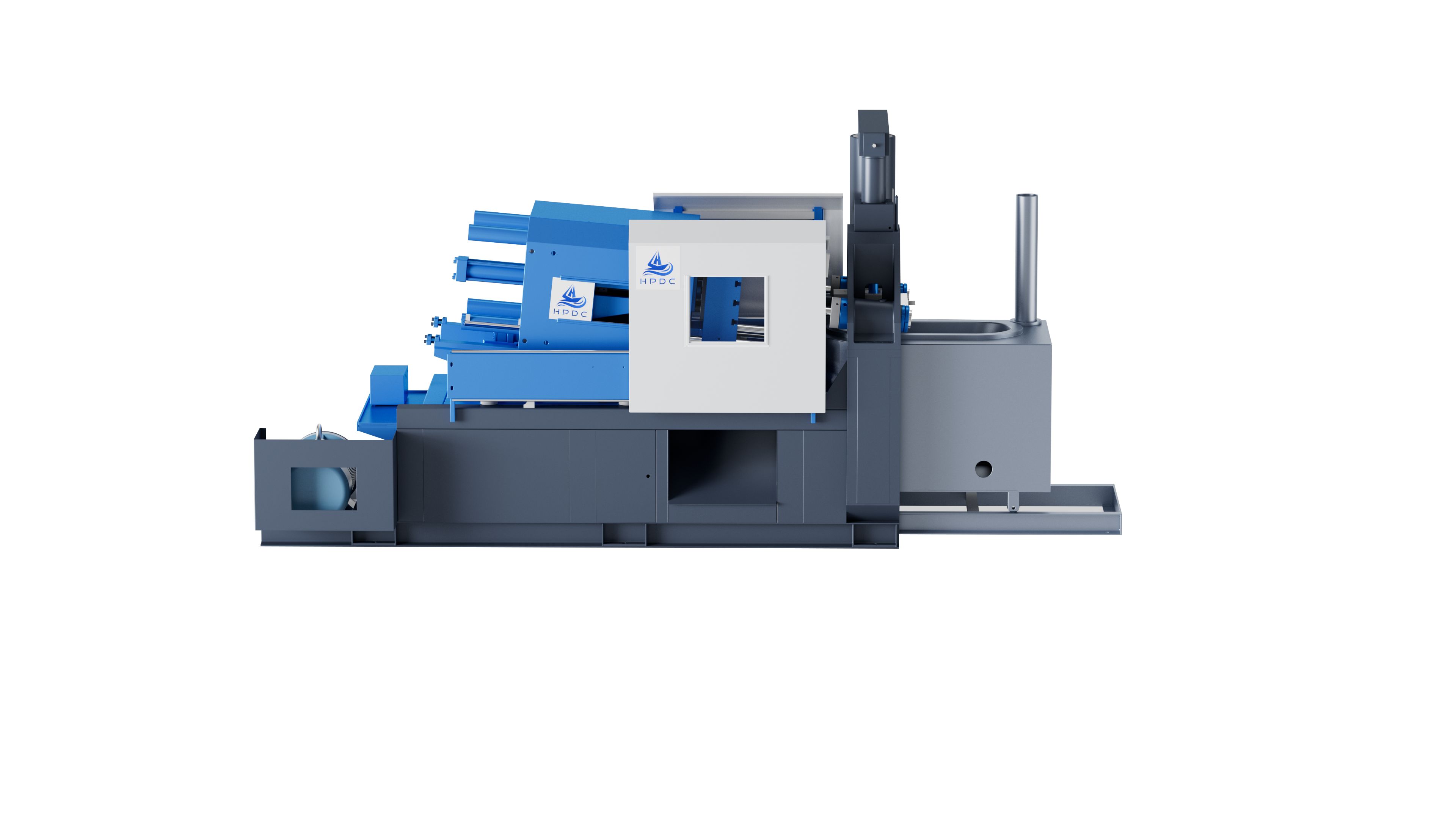

If lubrication is correct, move to injection settings. Utilize PQ² calculations to scientifically align the machine’s power capabilities. Match this power to the die’s required fill time and gate velocity. When operating a Magnesium Die Casting Machine, operators face extreme fill-time constraints. Magnesium often requires fill times well under 0.05 seconds for thin-walled parts. Utilizing fast plunger speeds and setting exact transition points between slow and fast shots are absolute non-negotiable requirements to prevent cold shuts.
Phase 3: Material Handling & Melt Control
Next, verify your holding furnace temperature consistency. Temperature swings change the metal's fluidity drastically. You should also check the melt for floating dross inclusions. Skim the pot regularly to keep the alloy perfectly pure.
Phase 4: Tooling Modification (Last Resort)
If parameter adjustments fail entirely, you must modify the physical tool. Adding overflows, expanding venting channels, or re-machining gating systems helps correct poor flow patterns. Never cut steel until you exhaust all parameter adjustments completely.
Guideline Chart: Maximum Allowed Fill Times by Material and Geometry | |||
Alloy Type | Thin Wall (<2mm) | Thick Wall (>2mm) | Critical Process Note |
|---|---|---|---|
Zinc (Standard) | 0.03 seconds | 0.05 seconds | Highly fluid. Prone to severe flash if pressure remains too high. |
Magnesium | 0.04 seconds | 0.08 seconds | Low heat capacity. Requires ultra-fast injection to prevent freezing. |
Lead/Tin | 0.05 seconds | 0.10 seconds | Lower melting point reduces thermal shock risks significantly. |
Sometimes the root cause lies completely beyond parameter tuning. Persistent process variations often point directly to structural machine fatigue. If you constantly deal with mismatched parts or erratic shot profiles, aging equipment might be the real culprit.
Worn tie bars stretch unevenly under heavy clamping pressure. Degraded hydraulic accumulators fail to deliver consistent burst energy. These mechanical limitations frequently masquerade as operator errors. Replacing tired equipment often instantly cures decades-old defect headaches.

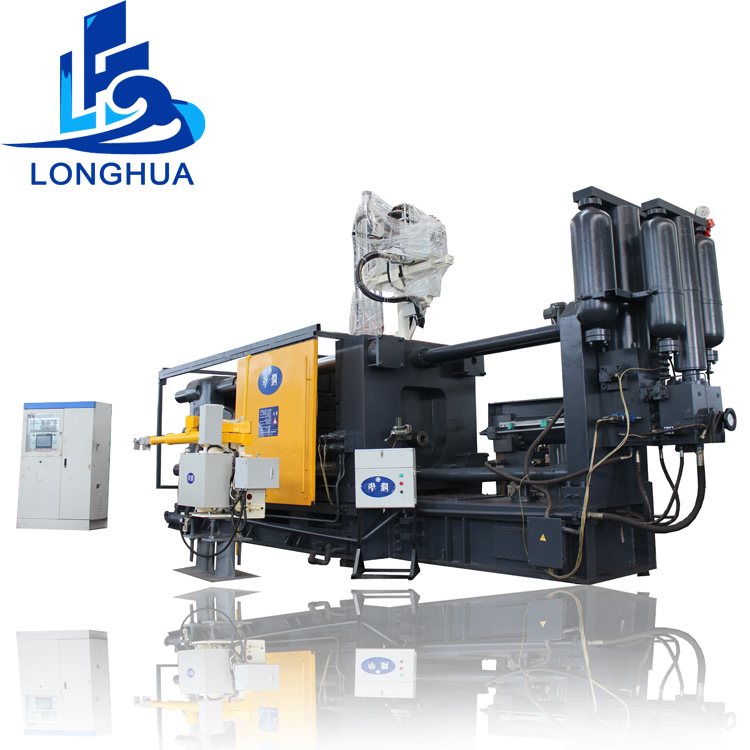

When evaluating new machinery, prioritize modern process control. Look for equipment featuring real-time closed-loop injection control. This advanced technology automatically adjusts plunger speeds mid-shot to guarantee consistency. Automated thermal management systems also heavily reduce your reliance on manual operator adjustments.
Modern machines provide immense scalability. They offer the highly traceable data logging strictly required by automotive and aerospace ISO compliance standards. For example, having a digital record of every single shot makes defect root-cause analysis entirely empirical. You replace stressful guesswork with clear, actionable production data.
Eliminating defects is an exercise in strict parameter adherence. Systematic troubleshooting works far better than blind trial and error. To permanently optimize your casting yields, consider these essential next steps:
Adopt the 4M1E logic daily. A robust manufacturing process strictly requires aligning smart tool design, precise alloy management, and high-precision equipment.
Implement the severity rating system immediately. Stop using simple pass/fail metrics. Start tracking the exact financial impact of your total scrap volume.
Perform a comprehensive daily spray audit. Re-evaluating your die release agent application often solves superficial blemishes without spending a dime.
Encourage your engineering teams to audit current scrap data against your machine's age. Determine objectively if an equipment upgrade is the smartest path forward.
A: Shrinkage porosity occurs when molten metal decreases in volume as it cools rapidly. It typically creates jagged, irregular voids in thicker sections of the part. Gas porosity happens when air or vaporized lubricants get trapped inside the molten metal during injection. This leaves smooth, spherical bubbles deep inside the casting.
A: First, ensure the die parting lines are completely clean of built-up debris. Next, verify your clamping force calibration actually matches the injection pressure requirements. If the machine's mechanical toggles are heavily worn, they will allow the die halves to separate slightly during the shot.
A: Magnesium has a notoriously low heat capacity. It loses temperature incredibly fast once injected into the cavity. If your fill time is too slow or the die temperature is too low, the metal solidifies before the streams fuse together. Fixing this requires ultra-fast fill times.
A: Yes, thermal imbalance is a primary driver of multiple casting defects. Running a mold too cold causes premature solidification, leading directly to flow marks and cold shuts. Conversely, running a mold too hot causes localized soldering and accelerates heat checking fatigue on the tool surface.
