High Pressure Die Casting (HPDC) is one of the most widely used and efficient processes in manufacturing today, especially for creating complex metal parts. The process involves injecting molten metal into a steel die under extremely high pressure. The resulting parts are durable, lightweight, and possess excellent dimensional accuracy, making them perfect for use in a variety of industries, including automotive, aerospace, and electronics. At the heart of this process lies the Hot Chamber Die Casting Machine. But what exactly is an HPDC machine, and how does it work? This article delves into the workings of these machines, their applications, advantages, and much more.
High Pressure Die Casting (HPDC) is a metal casting process where molten metal is injected into a die cavity at high speed and under immense pressure. The high pressure forces the metal to fill the die, solidifying rapidly to form the final shape. The key to this process lies in the use of specialized die casting machines, such as the Hot Chamber Die Casting Machine, which efficiently performs this function.
Melting of Metal: Metal alloys such as zinc, magnesium, and aluminum are melted in a furnace.
Injection of Molten Metal: Using hydraulic pressure, the molten metal is forced into the die cavity.
Cooling and Solidification: The metal rapidly cools inside the die, taking the shape of the mold.
Ejection: Once solidified, the die opens, and the finished part is ejected from the mold.
HPDC machines are typically used in high-volume manufacturing settings where complex parts need to be produced quickly, efficiently, and with high precision.
While HPDC is a general term for high-pressure die casting, there are two primary methods: Hot Chamber Die Casting and Cold Chamber Die Casting. These two methods differ mainly in how the molten metal is injected into the die, and the type of metals they are best suited for.

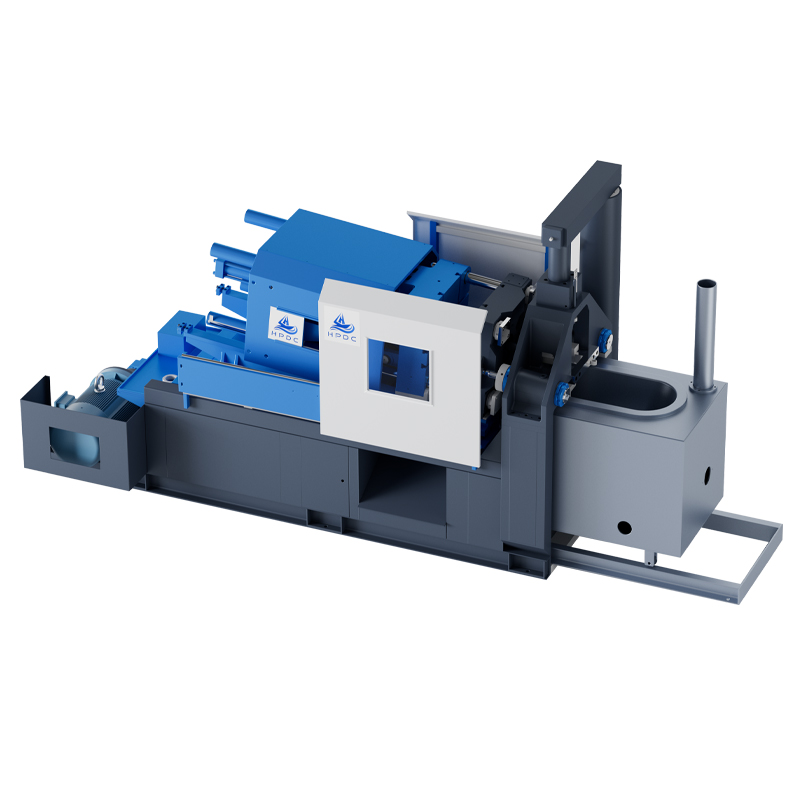

A Hot Chamber Die Casting Machine is designed for metals with low melting points, such as zinc, magnesium, and some alloys of lead. In this process, the injection system is immersed in the molten metal, allowing for faster injection speeds.
Advantages of Hot Chamber Die Casting:
Faster Cycle Times: The system's immersion in molten metal allows for faster injection cycles, making it ideal for high-volume production.
Suitable for Low Melting Point Metals: Hot Chamber Die Casting is best used with metals like zinc and magnesium that have lower melting points.
Lower Energy Consumption: The process is more energy-efficient compared to Cold Chamber Die Casting for certain materials.
Disadvantages:
Limited to Low Melting Point Metals: High melting point metals like aluminum are not suitable for Hot Chamber Die Casting, as the high temperatures would damage the machine.
Machine Wear: The constant immersion in molten metal can lead to wear and tear of the injection system.
In contrast, Cold Chamber Die Casting Machines are used for metals with higher melting points, such as aluminum and copper. These machines have a separate chamber where molten metal is ladled manually into the injection system. This method is more energy-intensive and slower but is necessary for high-melting-point alloys.
The closing force is one of the most critical factors in the operation of a Hot Chamber Die Casting Machine. These machines use powerful hydraulic systems to clamp the die shut during the injection process. The amount of force applied ensures that the die stays tightly closed while molten metal is injected, preventing leakage and ensuring that the casting is precise.
The closing force is essential for:
Achieving Tight Seals: Prevents molten metal from leaking out of the die cavity.
Ensuring Casting Precision: The higher the closing force, the more accurately the die can be sealed, which translates to higher-quality parts.
Preventing Defects: Insufficient closing forces can lead to casting defects, such as incomplete fills or porosity.
Understanding the various components of a Hot Chamber Die Casting Machine helps to appreciate the complexity and precision involved in the process.
Injection System: This is responsible for injecting molten metal into the die cavity under high pressure.
Die: The mold that shapes the final product. Dies are typically made of high-strength steel to withstand the extreme conditions of HPDC.
Plunger: The plunger forces the molten metal into the die cavity.
Cooling System: Cooling channels within the die ensure that the metal solidifies rapidly, allowing for faster production cycles.
Ejection Mechanism: After the metal solidifies, the die opens, and the ejection system pushes the part out.
Not all metals are suitable for Hot Chamber Die Casting. The materials used in this process are generally metals with lower melting points, such as:
Zinc: A common material used in HPDC due to its low melting point, excellent fluidity, and ability to fill complex molds.
Magnesium: Known for being lightweight and strong, magnesium is used for parts that require high strength and low weight.
Aluminum: Although typically used in Cold Chamber Die Casting, aluminum alloys can sometimes be cast using a Hot Chamber machine if specific conditions are met.
Choosing the right material for HPDC is crucial for achieving the desired mechanical properties, surface finish, and overall performance of the final part. Metals like zinc and magnesium are ideal for creating parts that need to be lightweight, durable, and easy to machine.
One of the main advantages of using a Hot Chamber Die Casting Machine is its ability to produce high volumes of parts quickly. The process is significantly faster than other casting methods due to its direct immersion in molten metal and the ability to inject metal rapidly into the die. This speed, combined with minimal post-production machining, makes HPDC an efficient choice for mass production.
The high-pressure injection process ensures that the parts produced are extremely precise. This results in superior surface finishes and close tolerances, which can reduce the need for additional machining or surface treatments. The ability to produce smooth, intricate parts makes HPDC a preferred choice for industries requiring high-quality metal parts.
The Hot Chamber Die Casting Machine process is also cost-effective. The rapid cycle times, minimal material waste, and reduced need for post-processing all contribute to lower production costs. Additionally, because the parts are often near-net shapes, they require little to no additional machining, making the overall process more cost-efficient compared to traditional manufacturing methods.
The Hot Chamber Die Casting Machine is used across many industries for producing high-volume, precision parts. Some of the primary sectors that benefit from this technology include:
Automotive Industry: HPDC is commonly used to produce engine components, transmission cases, structural parts, and other automotive parts that require high strength and precision.
Aerospace Industry: Aerospace components, such as turbine blades, housings, and brackets, are commonly produced using HPDC for their lightweight and high-strength properties.
Consumer Electronics: Small, complex parts for electronics, such as casings and connectors, are often cast using this process.
Industrial Machinery: HPDC is used to create various mechanical parts, including pumps, housings, and gears, for industrial machinery.
The Hot Chamber Die Casting Machine is particularly well-suited for manufacturing small parts in high volumes. For example, in the automotive and electronics industries, where precision and volume are critical, HPDC is used to create components such as switches, housings, and other intricate small parts.
Several industries have seen remarkable success using Hot Chamber Die Casting Machines. Case studies include automotive manufacturers producing lightweight engine blocks to improve fuel efficiency and aerospace companies creating durable parts for aircraft engines.
While Hot Chamber Die Casting is an effective method for producing high-quality parts, there are a few challenges associated with it:
Porosity: The presence of air pockets or voids within the casting can reduce the mechanical strength of the part.
Die Wear: The constant exposure to molten metal can cause the die to wear out over time, which can affect the precision and quality of the castings.
Thermal Fatigue: The repeated heating and cooling of the die can cause it to degrade, reducing its lifespan.
To minimize defects like porosity and die wear, manufacturers employ several strategies:
Optimizing Injection Speed and Pressure: Proper control of these parameters helps to avoid defects such as porosity.
Using High-Quality Materials: The use of high-quality metal alloys can prevent defects and improve the overall quality of the casting.
Advanced Die Materials: Innovations in die materials, such as coatings or hardened alloys, can extend the life of the dies and reduce wear and thermal fatigue.
With the advent of robotics and AI, the Hot Chamber Die Casting Machine process is becoming more automated. Automated systems can improve consistency, reduce labor costs, and minimize defects in the casting process. This trend towards automation is expected to increase, leading to even faster production times and higher precision.
Innovations in material science are enabling manufacturers to use new and improved alloys for HPDC. These materials offer better mechanical properties, enhanced durability, and lighter weights, making them suitable for a wide range of applications.
As sustainability becomes an increasingly important factor in manufacturing, HPDC machines are being adapted to reduce energy consumption and environmental impact. These innovations include energy-efficient machines, recycled materials, and more eco-friendly production processes.
In conclusion, Hot Chamber Die Casting Machines are an essential tool for high-precision, high-volume production of metal parts. From their speed and efficiency to their ability to produce complex shapes with excellent surface finishes, HPDC machines have become indispensable in industries ranging from automotive to aerospace. As technology continues to advance, we can expect to see even greater innovations that improve the efficiency, sustainability, and precision of these machines.
A Hot Chamber Die Casting Machine is primarily used for producing high-precision, lightweight metal parts in high volumes. It is ideal for metals with low melting points, such as zinc and magnesium.
No, Hot Chamber Die Casting Machines are typically not used for aluminum because it has a high melting point. Aluminum is usually cast using a Cold Chamber Die Casting Machine.
The cost of a Hot Chamber Die Casting Machine depends on factors such as machine size, capabilities, and the manufacturer. On average, these machines can cost anywhere from tens of thousands to several hundred thousand dollars.
Yes, Hot Chamber Die Casting is highly suitable for mass production due to its fast cycle times, high efficiency, and ability to produce high-quality parts with minimal post-processing.
