Injection pressure stands as the most critical variable in determining part density, surface finish, and overall yield in modern manufacturing. If you get it wrong, you risk structural failures and high scrap rates. Precision matters more than ever for high-volume production runs.
Unlike hot chamber processes, cold chamber systems handle high-melting-point alloys like aluminum, brass, and magnesium. These demanding materials require significantly higher pressures to overcome rapid cooling rates. They also must fill complex mold geometries incredibly fast. You must move molten metal rapidly before it freezes inside the channels.
Understanding these precise injection mechanics directly influences how you select and size your production equipment. We will explore baseline pressure parameters and break down the crucial three-phase injection mechanism. You will learn how pressure correlates to specific casting defects. We will also show you how to calculate tonnage. This ensures you deploy the right Cold Chamber Die Casting Machine for your enterprise-level operations.
Cold chamber injection pressures typically range from 2,000 to 20,000+ psi (13.8 to 138+ MPa), far exceeding hot chamber systems.
Modern injection relies on a precise three-phase system: slow prefilling, ultra-fast cavity filling (<0.1 seconds), and high-pressure intensification.
Required machine tonnage is directly dictated by the peak injection pressure multiplied by the projected area of the casting.

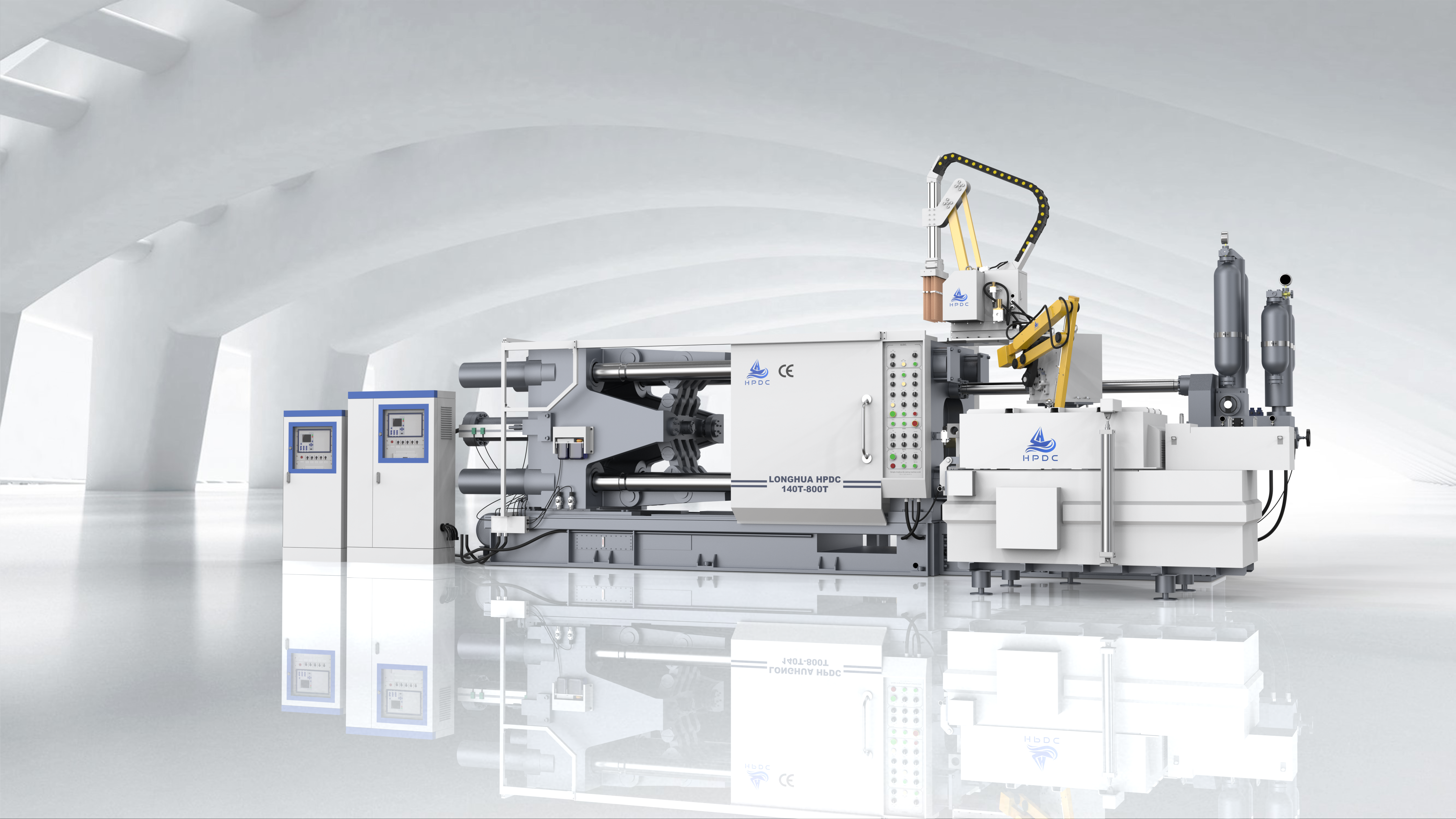

Selecting the right High Pressure Die Casting Machine requires evaluating closed-loop shot control, vacuum system compatibility, and intensification response times.
Operating a cold chamber process requires immense force. You must overcome severe thermal and mechanical hurdles to produce dense metal parts. The baseline pressure parameters set the foundation for your entire production cycle.
Typical operational pressures span from 2,000 to over 20,000 psi. In metric terms, this translates roughly to 13.8 MPa up to 138 MPa. Operators adjust these parameters based on the specific alloy and the complexity of the part design. Thin-walled aluminum components generally push toward the higher end of this pressure spectrum. Thicker parts may require less explosive force but demand sustained hold pressure. You must calibrate these settings precisely for every unique mold.
You might wonder why cold chamber systems need such extreme thresholds. The answer lies in the hardware design and material properties. Hot chamber machines submerge their pumping mechanism directly into the molten bath. They pump low-melting-point metals like zinc at a moderate 1,000 to 5,000 psi. However, high-melting-point alloys like aluminum would dissolve a submerged gooseneck.
To prevent hardware destruction, cold chamber systems separate the furnace from the injection mechanism. An automated ladle scoops liquid aluminum at roughly 650°C to 750°C. It pours this metal into an unheated shot sleeve. Because the sleeve is cold, the molten alloy begins losing heat immediately. You must inject it violently fast before it solidifies into a useless slug.
The unheated shot sleeve acts as the critical staging area for the molten charge. Once the ladle deposits the liquid metal, the plunger mechanism engages. It must exert immense force to overcome the friction of the cooling metal skin. The plunger drives the shot forward, pushing the semi-liquid mass through the runner system. If the pressure drops even slightly, premature solidification occurs. This blocks the gate and ruins the casting.
Modern metal injection is never a single, continuous push. It relies on a highly choreographed sequence of velocity and pressure changes. Engineers divide this process into three distinct phases. Each phase serves a specific metallurgical purpose.
Phase 1: Prefilling (Slow Shot)
Phase 2: Die Cavity Filling (Fast Shot)
Phase 3: Intensification (Squeeze/Hold)
The injection cycle begins deliberately slow. The plunger moves at a moderate speed, typically between 0.1 and 0.6 meters per second. The main objective here is to push molten metal past the pouring hole smoothly. You want to accumulate the alloy just behind the gate.
Moving slowly prevents excessive splashing. It acts like a sweeping mechanism, pushing atmospheric air out of the sleeve and into the mold vents. A recommended filling ratio for this phase sits between 60% and 70%. If you rush this step, you trap air inside the metal wave. This trapped air inevitably causes severe porosity in the final casting.
Once the metal reaches the gate, the machine transitions into the fast shot. The plunger accelerates aggressively to speeds ranging from 0.4 to 6.0 meters per second. Die cavity filling occurs in a matter of milliseconds. Typical filling times range strictly between 5 and 100 milliseconds.
The objective changes completely here. The high velocity atomizes the molten metal as it passes through the narrow gate. This fine metal spray fills the entire cavity almost instantaneously. You must complete this atomized filling before the alloy drops below its liquidus temperature. Any delay results in the metal freezing before reaching the farthest corners of the mold.
The fast shot ends the moment the cavity fills completely. Immediately, the system triggers the intensification phase. A sudden spike in static pressure applies massive force against the now-filled cavity. The transition must happen in mere milliseconds.
This final squeeze serves two vital purposes. First, it compresses any trapped gases into microscopic, harmless pinholes. Second, it forces additional liquid metal into the cavity. As the casting cools, it inherently shrinks. The intensification phase feeds extra material to compensate for this volumetric shrinkage. Proper execution here drops scrap rates dramatically. Industry data shows optimization of this phase can reduce scrap from 8% down to nearly 1%.
Injection Phase | Plunger Velocity | Duration / Timing | Primary Objective |
|---|---|---|---|
Phase 1: Prefilling | 0.1 - 0.6 m/s | Variable (depends on sleeve length) | Evacuate air, gather metal at the gate. |
Phase 2: Fast Shot | 0.4 - 6.0 m/s | 5 - 100 milliseconds | Atomize metal, completely fill the cavity. |
Phase 3: Intensification | Static Pressure Spike | During solidification | Compress gas, feed metal to counter shrinkage. |
Every defect in a cast metal part tells a story about its injection parameters. Pressure and velocity form a delicate balance. Finding the optimal setpoint determines whether you produce aerospace-grade components or expensive scrap.
Insufficient injection force leads to immediate structural failures. The molten metal lacks the kinetic energy required to navigate complex mold designs. You will typically encounter three distinct flaws.
Cold Shuts: Two metal fronts meet inside the cavity but fail to fuse together. The metal cooled too much before intersecting.
Misruns: The metal freezes completely before it reaches the extremities of the die. The casting emerges incomplete.
Unfilled Thin-Wall Sections: Thin areas cool the fastest. Low pressure cannot push the viscous fluid into these narrow channels quickly enough.
The root cause remains simple. The metal freezes before the injection stroke concludes.
You cannot simply maximize pressure to solve all problems. Excessive force introduces an entirely different set of manufacturing headaches. It stresses both the product and the equipment.
Flash: Extreme pressure forces molten metal to bleed outside the mold cavity. It escapes through the parting line between the two die halves. You must then spend time and money trimming this excess material.
Accelerated Die Wear: Tool steel can only withstand so much abuse. Excessive pressure causes "die washing," where the fast-moving metal erodes the mold surface.
Tool Fatigue: Constant, overpowering mechanical stress leads to heat checking. Tiny cracks form on the die surface, ruining the finish of future castings.
Porosity stands as the ultimate challenge in high-pressure manufacturing. High-speed, high-pressure injection inherently causes severe fluid turbulence. This turbulence traps atmospheric air and lubricating gases inside the flowing metal.
For structural automotive parts or pressure-tight vessels, porosity proves fatal. It weakens the component internally. To combat this, modern operations rely heavily on vacuum-assisted technology. You must utilize a High Pressure Die Casting Machine equipped with a vacuum system. These systems evacuate air from the mold cavity mere milliseconds ahead of the fast shot. Removing the air before the metal arrives drastically reduces gas entrapment.
You cannot discuss injection pressure without discussing machine clamping force. The two forces oppose each other directly. Understanding this relationship prevents you from purchasing undersized or grossly oversized equipment.
Engineers determine the required machine size using a straightforward calculation. The equation represents the physical limits of the equipment.
Clamping Force = Cavity Pressure × Total Projected Area
You must calculate the projected area of the casting, including the runner system and overflows. You then multiply this area by the peak intensification pressure applied during Phase 3.
Why does this formula matter to your operation? When the plunger drives molten metal into the mold, it creates an explosive outward force. The pressurized metal constantly tries to pry the two die halves apart. The machine's clamping mechanism must physically resist this massive separating force. If the injection pressure exceeds the clamping force, the mold blows open slightly. This separation causes severe flashing and destroys dimensional tolerances.
Let us walk through a standard engineering calculation to illustrate this concept clearly.
Assume you want to cast an aluminum part. The total projected area equals 120 cm².
Your desired peak injection pressure is 800 kg/cm² (roughly 11,300 psi).
Multiply 120 cm² by 800 kg/cm². The result equals 96,000 kilograms.
This equates to exactly 96 metric tons of separating force.
Your machine needs 96 tons of clamping force just to stay perfectly closed. However, engineering best practices require a safety buffer to absorb dynamic impact spikes. In this scenario, you would select a machine rated for 150+ tons. This buffer guarantees stable production without stressing the hydraulic tie bars.
High injection pressures dictate heavier machine tonnages. Heavier machines require massive hydraulic cylinders, thicker tie bars, and robust platens. This directly impacts your capital expenditure. Larger machines command higher initial purchase prices. Furthermore, massive platens take longer to open and close. This slightly increases your overall cycle time. You must balance the necessary injection pressure against the realities of equipment sizing to maintain operational efficiency.
Not all machines handle injection pressure equally. Two machines with identical tonnage ratings can produce vastly different quality outcomes. Buyers must evaluate the internal control systems to ensure high-yield production.
Modern buyers must demand closed-loop shot control systems. Older machines use open-loop hydraulics. They push the metal blindly, hoping the pressure remains stable. Closed-loop systems operate differently. They utilize real-time servo-valves and advanced sensors. These sensors monitor the plunger velocity and pressure thousands of times per second.
If the system detects a pressure drop during the fast shot, it dynamically opens the servo-valve further. It adjusts the force dynamically during the millisecond injection stroke. This guarantees a perfectly consistent shot profile every single cycle. Consistent profiles lead directly to consistent part quality.
The speed of your hardware matters immensely. Evaluate machines based on how quickly they transition from Phase 2 (cavity filling) to Phase 3 (intensification). The moment the cavity fills, the metal begins shrinking. You must apply the squeeze pressure instantly.
Slower response times cause a fatal delay. The gates freeze solid before the machine applies the final pressure. Without that extra squeezed metal, the part develops internal shrinkage voids. Look for machines boasting transition times measured in single-digit milliseconds.
High-pressure processes require tight environmental control. Look for systems that integrate seamlessly with peripheral equipment. Your machine must communicate flawlessly with automatic ladles to ensure consistent pouring temperatures. It should trigger automated die lubricators to apply exact volumes of release agents.
Furthermore, seek out Industry 4.0 capabilities. Modern setups stream injection pressure data directly to cloud-based quality inspection tools. If a specific shot experiences a pressure anomaly, the system automatically flags that casting for rejection. This smart integration prevents bad parts from ever reaching your customers.
Injection pressure is not a static number you simply program into a machine. It represents a highly dynamic, millisecond-by-millisecond curve. This curve dictates the structural integrity, surface finish, and final quality of your metal casting. Mastering the three-phase injection process allows you to eliminate defects and maximize yield.
Your next step requires careful analysis of your product portfolio. Conduct a thorough part-design audit. Calculate the total projected area of your heaviest parts. Determine the minimum wall thickness to understand your velocity needs. Gather this specific data before requesting technical specifications and tonnage recommendations from manufacturers. A data-driven approach guarantees you invest in the exact equipment your production lines demand.
A: Maximum injection pressures for aluminum generally range up to 20,000 psi (approximately 138 MPa). However, the exact maximum depends heavily on part design. Thin-walled components require higher peak pressures to fill properly. Complex structural parts also rely on high intensification pressures to eliminate porosity. Always match the pressure to the specific alloy type and mold geometry.
A: The injection time must be short due to rapid heat transfer. Cold chamber machines pour molten metal into an unheated shot sleeve. The alloy begins losing heat and solidifying instantly. To prevent the metal from freezing inside the runner or cavity, the fast shot phase must fill the entire mold in under 0.1 seconds.
A: Excessive injection pressure drastically reduces die life. High-velocity molten metal acts like an abrasive waterjet, causing severe tool wear and "die washing." Furthermore, massive pressure spikes induce thermal shock and mechanical stress on the tool steel. This eventually causes heat checking and cracking. Optimizing pressure settings is crucial for maximizing tooling return on investment.
