Many buyers see TCU and TCM in temperature-control discussions. The terms look similar, but they do not always mean the same thing.
In this article, TCU means Temperature Control Unit. It usually refers to a unit that controls one main process circuit. TCM means Temperature Control Module. It often refers to a modular or multi-zone temperature-control system.
This difference matters in die casting production. Mold temperature affects die preheating, metal flow, cooling speed, casting quality, cycle time, and mold service life. If the wrong system is selected, the process may become unstable.
For die casting, thermal balance is especially important. Some molds need one stable temperature. Others need different temperatures in different zones, such as the core, cavity, slide, or local high-heat areas.
This article explains the difference between TCU and TCM, how each system works, and how buyers can choose the right solution for die casting applications.
Note: In automotive content, TCU and TCM may refer to transmission control systems. Here, we focus only on industrial mold temperature control.

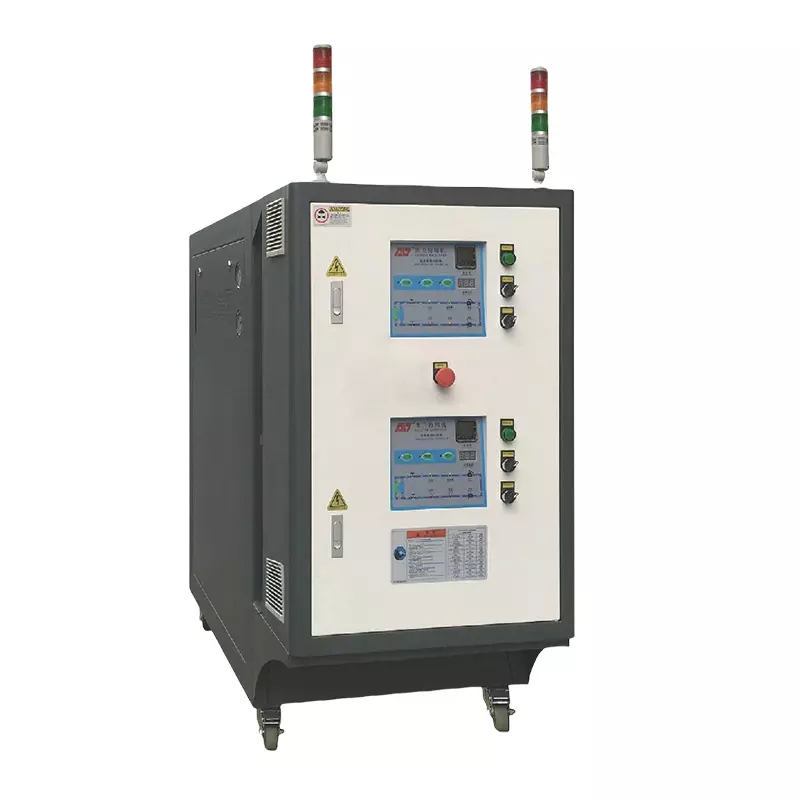

A Temperature Control Unit, or TCU, is an industrial thermal control system.
It circulates heat-transfer fluid through a mold or process circuit. The fluid may be water, pressurized water, or thermal oil.
The TCU measures the process temperature, compares it with a setpoint, then heats or cools as needed. Its goal is stable temperature regulation.
A TCU Temperature Control Unit is commonly used for die casting molds, injection molds, rollers, reactors, and other controlled heating or cooling applications.
For Longhua’s product structure, Temperature Control Unit includes mold temperature controller and air-cooling chiller categories. Mold temperature controllers include single-cycle and double-cycle systems for different mold temperature regulation needs during die casting.
A Temperature Control Module, or TCM, is usually a modular temperature-control system.
It may control several independent circuits or zones. Each zone can have its own setpoint, sensor, valve, and control loop.
A TCM Temperature Control Module is useful when one die casting mold has different temperature needs across different areas.
Supplier naming can vary. Some companies may call a multi-zone system a TCU. Others may call it a TCM. Buyers should verify the real configuration before purchasing.
The TCM and TCU difference affects quality, cost, maintenance, and process stability.
A simple die may only need one temperature zone. In that case, a TCU may be enough.
A complex die may need different thermal conditions across the core, cavity, inserts, slides, thick sections, or local hot spots. In that case, a TCM may be better.
Choosing the wrong system can create thermal imbalance, unstable cooling, longer cycles, poor casting consistency, or repeated defects.
TCU and TCM are used in many industries. They can mean different things in automotive, electronics, and industrial equipment.
For die casting production, buyers should focus on the actual control structure.
Ask these questions:
How many zones does it control?
Does each zone have its own setpoint?
Does each circuit have flow monitoring?
Are the sensors independent?
Can it connect to the die casting machine?
Is it designed for the required mold temperature?
Tip: Do not rely only on the product name. Confirm zones, circuits, sensors, and control loops.
The biggest TCU vs TCM difference is the number of temperature zones.
A typical Single Zone Temperature Control Unit controls one main circuit. It is suitable when the mold has one stable thermal requirement.
A Multi-Zone Temperature Control Module can control several independent circuits. It is suitable when different mold areas need different temperatures.
For example, a simple aluminum casting die may use one TCU. A large automotive die casting mold may need several controlled zones.
A TCU usually applies one setpoint to one circuit. It is simple and reliable.
A TCM allows different setpoints for different mold areas. One zone may need stronger cooling. Another zone may need warmer temperature stability.
This flexibility can improve thermal balance. It can also help engineers fine-tune complex die casting molds.
A TCU usually includes:
One pump
One heating section
One cooling valve
One controller
Supply and return sensors
One main process loop
A TCM may include:
Multiple circuits
Multiple sensors
Multiple valves
Zone-specific alarms
Centralized control
Possible machine communication
This makes the Mold Temperature Control Unit vs Module comparison important during die casting project planning.
Longhua’s product category structure includes Mold Temperature Controller, with Dual circuit and Single circuit categories under the Temperature Control Unit section.
A TCU is better for simple molds. It works well when the die has uniform heat load and stable cooling demand.
A TCM is better for complex molds. It is useful for large castings, multi-cavity tools, thick and thin sections, inserts, slides, cores, or local hot spots.
For high-pressure die casting, thermal balance can directly affect filling stability, shrinkage control, surface quality, and cycle consistency.
A TCU is usually easier to install. It has fewer circuits and fewer control points.
A TCM requires more setup. Each zone needs labeling, calibration, flow balancing, and maintenance planning.
This does not mean a TCM is worse. It means it needs better process discipline.
Factories should consider operator skill, maintenance ability, spare-part management, and production-line complexity.
A TCU usually has lower initial cost. It also has simpler installation and maintenance.
A TCM usually costs more. However, it may reduce scrap in complex die casting applications.
The return on investment depends on mold value, production volume, defect cost, cycle-time target, and casting tolerance requirements.
A cheaper system may cost more later if it cannot control the mold properly.
A TCU supports stable basic temperature control.
A TCM supports stronger zone control when different mold areas behave differently.
The better choice depends on the mold. It should not depend only on price, size, or supplier recommendation.
Comparison Point | TCU | TCM |
|---|---|---|
Full Name | Temperature Control Unit | Temperature Control Module |
Main Role | Single-circuit control | Multi-zone control |
Best For | Simple molds | Complex molds |
Setpoint Control | One main setpoint | Independent zone setpoints |
Installation | Easier | More complex |
Cost | Lower | Higher |
Flexibility | Limited | Higher |
Maintenance | Simpler | More detailed |
Typical Value | Stable basic control | Stronger thermal balance |
Note: A TCM is not always better. It is only better when the mold requires multi-zone control.
A Temperature Control Unit works through circulation and feedback.
The basic loop is simple:
The pump circulates heat-transfer fluid.
The fluid passes through heating or cooling components.
Conditioned fluid enters the mold circuit.
Return fluid is measured again.
The controller adjusts the next cycle.
This cycle repeats during production. It helps the mold stay close to the target temperature.
The TCU adds heat when the mold is too cold. It removes heat when the mold is too hot.
The goal is not maximum cooling. The goal is stable temperature regulation.
In die casting, this matters because mold temperature affects filling, solidification, surface quality, ejection stability, and cycle time.
Temperature-control equipment cannot fix poor circuit design alone.
Blocked channels, trapped air, scale buildup, incorrect pump sizing, or unbalanced flow can weaken thermal control.
This is where a TCM may help complex molds. It allows separate control for different circuits.
Still, the die casting mold must be designed correctly first. Cooling channels, circuit layout, flow balance, and thermal zones should be considered during mold planning.
Good thermal control reduces harsh temperature swings.
It can help protect mold surfaces, cooling channels, inserts, cores, and moving components. It also helps keep production more repeatable.
Longhua’s mold maintenance guidance notes that die casting molds should be heated gently and evenly during preheating, and that molds with thermostatic tubing can use a mold temperature controller for heat preservation and heating.
Tip: Review cooling channels and mold temperature requirements before selecting the temperature-control system.
Choose a TCU when the mold has one main thermal requirement.
It is suitable for:
Simple die geometry
Single-cavity molds
Uniform wall thickness
Similar heat load across the mold
Stable cooling demand
For many small and medium die casting molds, a TCU may provide enough control.
A TCU is usually easier to install and operate.
It may be the better choice when the project needs lower complexity and lower initial cost.
It also requires less operator training than a multi-zone system.
A TCU works well when production conditions are stable.
It is suitable when cycle time, alloy type, mold layout, and heat load are predictable.
If the mold does not show local hot spots or cooling imbalance, a single-zone system may be enough.
A TCU may be enough when advanced monitoring is not required.
However, buyers should still check:
Temperature accuracy
Flow capacity
Pressure range
Alarm functions
Safety protection
Maintenance access
Note: A simple system still needs proper sizing and stable flow.
Choose a TCM when different mold areas need different thermal control.
Common examples include:
Thick and thin sections
Deep cores
Inserts
Slides
Large cavity surfaces
Local hot spots
Local cold spots
A Multi-Zone Temperature Control Module helps each area follow its own setpoint.
A TCM may be justified when scrap reduction matters more than initial cost.
High-volume production can magnify small quality problems. A small defect rate may become expensive over time.
For high-value castings, better thermal balance may improve ROI.
This is especially important for automotive parts, motorcycle parts, electronic housings, household appliance parts, and other high-volume metal products. Longhua’s website describes its die casting machines as suitable for non-ferrous metals such as zinc, aluminum, bronze, and brass alloys, with applications in automotive, motorcycle accessories, home appliances, LED lighting, bathroom accessories, and electronic products.
Large molds often have uneven heat distribution.
Multi-cavity molds can also show cavity-to-cavity temperature variation. A TCM can help balance those differences.
It may improve casting consistency and reduce repeated process adjustments.
A TCM may be better when the line needs data logging, alarms, centralized monitoring, or machine communication.
Automation depends on stable conditions. Multi-zone thermal data helps engineers understand production changes faster.
It also helps quality teams compare temperature trends with defect records.
Longhua’s broader product structure includes cold chamber die casting machines, hot chamber die casting machines, temperature control units, trimming equipment, surface treatment equipment, and automatic equipment.
Tip: Choose multi-zone control when local temperature variation affects real casting quality.
Before choosing a system, review the mold and casting.
Check:
Casting size
Mold size
Number of cavities
Wall thickness variation
Core and slide complexity
Insert locations
Surface-finish requirements
Existing hot or cold spots
A simple mold often needs a TCU. A complex mold may need a TCM.
Review actual thermal needs.
Check:
Required mold temperature
Startup heating demand
Heat added per shot
Cooling time target
Recovery speed
Single-zone or multi-zone need
Alloy and casting structure
Large aluminum or magnesium castings may need tighter temperature balance than simpler zinc parts.
Review the production environment.
Check:
Available cooling water
Pump flow requirement
Pressure requirement
Hose and pipe layout
Installation space
Power supply
Maintenance access
Operator skill level
These factors affect stable operation after installation.
For die casting applications, buyers should confirm the required number of zones, temperature range, fluid type, heating capacity, cooling capacity, and flow rate with the equipment supplier before final selection.
Do not compare only purchase price.
Review:
Initial budget
Expected production volume
Scrap cost
Mold value
Training needs
Maintenance time
Spare-part availability
Long-term ROI
A TCM may cost more upfront. It may still be better for complex molds.
Note: The right choice is the system that supports the process at the lowest total risk.
A lower-cost TCU may be enough for simple molds.
However, it may be too limited for complex molds. If it cannot control hot spots, scrap may increase.
The lowest purchase price is not always the lowest total cost.
Temperature-control equipment depends on mold circuit design.
Poor cooling-channel layout can limit both TCU and TCM performance.
Buyers should evaluate channel diameter, distance from cavity surfaces, pressure drop, and flow balance.
A chiller or cooling tower removes heat.
A TCU or TCM controls process temperature near the mold.
This distinction matters. More cooling capacity does not always mean better mold temperature control.
Overcooling may create new casting problems, especially during startup or thin-wall production.
A TCM offers more control, but it also adds complexity.
Each zone needs correct setup, monitoring, and maintenance. Sensors, valves, pumps, and alarms must be checked.
If the factory lacks trained operators, a simpler TCU may be safer.
Tip: Match the system to both the mold and the team operating it.
The main difference between TCU and TCM is the level of zone control.
A Temperature Control Unit is usually suitable for one main circuit or simpler mold temperature requirements. It is easier to install, operate, and maintain.
A Temperature Control Module is better for complex molds that need independent control across different areas. It offers greater flexibility, but it also requires more setup and maintenance.
For die casting, the choice should depend on mold design, casting geometry, alloy type, heat load, cycle target, automation level, and total cost of ownership.
If the mold has uniform thermal needs, a TCU may be enough. If it has multiple thermal zones, a TCM may provide better process stability.
The right system supports stable mold temperature, predictable cycle time, longer mold service life, and repeatable casting quality.
Longhua provides die casting machines and peripheral equipment for complete die casting production planning, including temperature control units and mold temperature controllers. Buyers should match the system’s zone count, heating capacity, cooling capacity, and flow rate to their specific mold and production requirements.
For die casting applications, explore Longhua’s Temperature Control Unit and Mold Temperature Controller solutions when planning thermal control for your production line.
A: A TCU usually controls one temperature zone or circuit. A TCM controls multiple independent zones, each with its own setpoint, sensors, and control loop.
A: TCU means Temperature Control Unit. It heats, cools, circulates, and stabilizes process fluid through a die casting mold or process circuit.
A: TCM means Temperature Control Module. It is a multi-zone temperature-control system that manages several independent mold circuits.
A: Not always. A TCM is better for complex molds with different thermal zones. A TCU is enough for simpler molds with uniform temperature needs.
A: Choose a TCU for simple molds, one main temperature requirement, lower setup complexity, and stable die casting conditions.
A: Choose a TCM when different mold areas need separate temperature control, such as cores, slides, inserts, or thick and thin sections.
A: No. Cooling capacity removes heat, but temperature control means maintaining a stable setpoint under changing production loads.
A: A TCU usually costs less upfront. A TCM costs more but may reduce scrap and improve quality for complex die casting molds.
