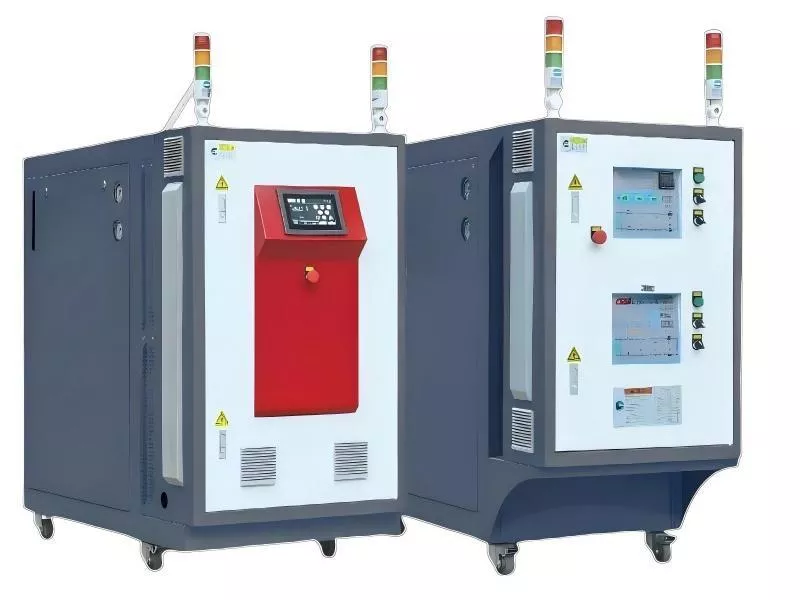

TCU stands for Temperature Control Unit. It is an industrial system used to control heat in a mold, machine, or connected process.
A TCU circulates heat-transfer fluid through a heating and cooling loop. It measures the fluid temperature, compares it with a target setpoint, and adjusts heating or cooling output automatically.
In die casting, mold temperature is never a small detail. If the die is too cold, molten metal may not fill the cavity smoothly. If the die is too hot, cooling becomes unstable. Both situations can affect surface quality, dimensions, cycle time, and die life.
That is why a Temperature Control Unit in die casting is more than auxiliary equipment. It helps stabilize the complete production process. It supports preheating, controlled cooling, repeatable solidification, and long-term mold protection.
This article explains the Temperature Control Unit function, working principle, benefits, equipment differences, selection factors, and common troubleshooting points.
Note: A TCU controls mold and process temperature. It does not replace correct die design, alloy control, or machine parameter adjustment.
The TCU meaning is Temperature Control Unit. It is a fluid-circulating system for precise industrial temperature regulation.
It usually connects to a mold, die, roller, vessel, or machine circuit. The unit pumps water or thermal oil through the connected equipment. Sensors measure the actual temperature. The controller then compares the reading with the target temperature.
When the temperature is too low, the TCU adds heat. When it is too high, the TCU removes heat. This continuous adjustment keeps the process within a stable range.
A TCU can manage several process conditions:
Mold or die temperature
Circulating-fluid temperature
Heating and cooling cycles
Heat-transfer speed
Flow through mold channels
Temperature recovery after each cycle
A TCU normally does not control molten metal temperature directly. It controls the thermal condition of the mold or process circuit.
This distinction matters in die casting. Molten aluminum temperature and die temperature are different variables. Both need control, but they need different systems.
Reaching a target temperature is only the first step. The harder job is keeping it stable during production.
Each shot transfers heat into the die. Spraying, pauses, cooling water, and cycle changes all affect mold temperature. If thermal control is unstable, the process becomes harder to repeat.
Stable temperature regulation helps operators reduce trial-and-error adjustments. It also helps engineers understand whether defects come from temperature, pressure, filling, venting, or mold design.
Tip: During process trials, compare supply and return temperatures instead of checking only the displayed setpoint.
A cold die creates a large temperature difference during the first shot. This can increase thermal shock and unstable startup quality.
A TCU circulates heated fluid through die channels before production starts. It gradually raises the mold toward its working temperature. This helps the first cycles become more stable.
For die casting, controlled preheating can reduce sudden stress on die steel. It also helps avoid unstable filling caused by an overly cold mold surface.
Repeated casting cycles keep adding heat to the die. Without controlled removal, the mold temperature may rise beyond the ideal range.
The TCU removes surplus heat through cooling water, a heat exchanger, or another cooling source. The purpose is not maximum cooling. The purpose is controlled heat removal.
Too much cooling can be as harmful as too little cooling. A good TCU keeps the die within a controlled thermal window.
The core mold Temperature Control Unit function is stability.
The system adds heat when the circuit becomes too cold. It removes heat when the process becomes too hot. This continuous correction keeps mold temperature closer to the setpoint.
Stable thermal control is usually more valuable than fast heating or aggressive cooling alone. It makes each production cycle more predictable.
Complex dies rarely heat evenly. Gates, cores, slides, thin walls, and thick walls may all create different thermal loads.
A single-circuit TCU may be enough for simple molds. More complex molds may need a dual-circuit or multi-zone control strategy.
Longhua lists Single circuit and Dual circuit mold temperature controller categories under its Temperature Control Unit product structure. For complex applications, buyers can review Longhua’s dual-circuit mold temperature controller options.
Die temperature affects metal flow, cavity filling, cooling speed, and solidification.
If one area cools too early, defects may appear. If another area stays too hot, dimensions may become less stable. A TCU helps create repeatable heat-transfer conditions from one shot to the next.
This is one important reason why Temperature Control Unit in die casting matters. It helps the mold support more predictable solidification.
Repeated heating and cooling can stress die steel. Severe temperature swings may lead to heat checking, deformation, cracking, or premature wear.
Preheating reduces the first thermal shock. Stable operation reduces extreme temperature movement during production.
For expensive die casting molds, this is a direct production benefit. Better thermal control can support longer mold life and lower maintenance pressure.
A stable die supports similar conditions across repeated cycles. This helps manufacturers achieve:
More predictable casting cycles
Lower variation between parts
Fewer unstable startup rejects
Easier process adjustment
More consistent output
Better control in automated lines
Note: TCU performance still depends on mold channel design, fluid flow, spray settings, and correct die casting parameters.
So, how does a Temperature Control Unit work?
The system follows a repeating circulation cycle:
The pump moves heat-transfer fluid.
The fluid passes through the heating or cooling section.
Conditioned fluid enters the mold channels.
Return fluid flows back to the TCU.
Sensors measure the temperature again.
The controller adjusts the next cycle.
TCU Pump
↓
Heating or Cooling Section
↓
Supply Line
↓
Mold or Die Channels
↓
Return Temperature Sensor
↓
Controller Adjustment
↺This loop repeats throughout production. It allows the TCU to react when the process temperature changes.
Component | Main Purpose |
|---|---|
Circulation pump | Moves fluid through the mold circuit |
Electric heater | Adds heat during startup or heat loss |
Cooling valve | Opens when temperature must be reduced |
Heat exchanger | Transfers process heat to another circuit |
Temperature sensor | Measures actual process temperature |
Controller | Compares actual temperature with setpoint |
Pressure gauge | Helps identify flow restrictions |
Flow meter | Confirms adequate circulation |
Each component supports the Temperature Control Unit working principle. If one part fails, temperature stability may become poor.
Most modern TCUs use PID control.
PID means proportional, integral, and derivative control. In simple terms, the controller checks the gap between actual temperature and target temperature.
It then adjusts heating or cooling output gradually. This avoids large temperature swings and reduces overshoot.
For die casting, PID control is useful because the heat load changes during startup, continuous production, and temporary pauses.
Temperature control needs strong and stable fluid movement. A powerful heater cannot solve poor circulation.
Low flow may come from:
Narrow cooling passages
Long hoses
Pinched hoses
Closed manual valves
Trapped air
Scale buildup
Dirty filters
Worn pump parts
Good flow improves heat transfer between the fluid and mold channels. Turbulent flow usually transfers heat better than smooth laminar flow.
Tip: Before changing setpoints, confirm real flow and pressure in the mold circuit.
Unstable die temperature may contribute to several production problems:
Cold shuts
Misruns
Surface marks
Dimensional variation
Irregular shrinkage
Local porosity risk
Unstable ejection
A TCU cannot remove every defect. It stabilizes one major process variable. Operators should still check alloy temperature, injection speed, pressure, venting, spraying, and die design.
Controlled die temperature creates a more repeatable relationship between filling and solidification.
When the die stays within a stable range, each shot experiences similar thermal conditions. This helps improve dimensional consistency and surface repeatability.
It also makes root-cause analysis easier. Engineers can separate thermal issues from mechanical or material issues.
A die that is too cold may need longer startup adjustment. A die that is too hot may need extra cooling time.
Both conditions reduce cycle predictability.
A correctly sized TCU reacts to changing heat loads. It keeps production closer to the validated process window. This can support better efficiency in long production runs.
Automated die casting lines depend on repeatable conditions.
The TCU works together with:
Die casting machine
Mold spraying equipment
Cooling system
Extractor system
Trimming equipment
Process monitoring system
Longhua provides die casting machines and peripheral equipment as part of a complete production setup. Buyers can review Longhua’s cold chamber die casting machines when planning a full production line.
Note: Thermal control should be planned as part of the complete die casting process.
A TCU provides local and precise thermal control. It can usually heat and cool the circulating fluid.
A chiller mainly removes heat through refrigeration. It supplies chilled water or fluid, often below ambient temperature.
Some production systems use both. The chiller provides cooling capacity. The TCU controls the process temperature near the mold.
A cooling tower rejects heat from a larger water system. Its performance depends partly on ambient conditions.
A TCU provides more precise local control. It adjusts the fluid temperature entering a mold or machine.
The cooling tower may support the TCU. The TCU then performs the final temperature regulation.
Mold cooling channels are passive passages inside the die. They cannot measure or correct temperature alone.
The TCU is the active system. It pumps, heats, cools, measures, and regulates the fluid passing through those channels.
A hot runner controller regulates electrical heaters in injection molding nozzles.
A TCU regulates circulating liquid inside the mold body or process circuit. These two systems control different thermal areas.
Equipment | Primary Role | Heating Ability | Typical Control Target |
|---|---|---|---|
TCU | Precise local temperature control | Yes | Mold or process circuit |
Chiller | Refrigerated heat removal | Usually no | Central chilled-water supply |
Cooling tower | Facility heat rejection | No | Plant cooling water |
Hot runner controller | Electrical heater control | Yes | Nozzle or runner zones |
Tip: Select equipment according to the required control target, not only the product name.
Stable die temperature supports repeatable filling and solidification.
This can reduce variation between startup, normal production, and later production cycles. It can also help quality teams track process changes more clearly.
Temperature fluctuation may cause unstable first pieces or repeated defects.
A TCU helps reduce this variation. However, results still depend on proper die design, process validation, alloy control, and machine setup.
Teams should compare temperature data with defect records. This helps confirm whether defects follow thermal changes.
Sudden temperature changes create repeated stress inside tooling.
A stable control strategy limits these extremes. It may reduce thermal fatigue and protect expensive dies.
The final benefit depends on die material, channel layout, operating temperature, maintenance, and production discipline.
Automatic control applies heating or cooling only when required.
This can reduce unnecessary full-power operation. It can also reduce manual adjustments, unstable downtime, and process drift.
Energy performance still depends on correct sizing, insulation, flow settings, and maintenance.
Note: A TCU saves the most value when it is sized for the real mold and production cycle.
Start with the required mold-temperature range.
Review the alloy, part geometry, die material, cycle target, and production environment. Do not choose a TCU by maximum temperature alone.
Also compare:
Control accuracy
Temperature stability
Heating speed
Cooling response
Recovery after each cycle
The required capacity depends on several factors:
Die size and weight
Initial preheating demand
Heat added during each shot
Cycle time
Hourly output
Ambient factory conditions
Heat loss through hoses and surfaces
An undersized TCU may fail to reach stable conditions. An oversized unit may cycle too aggressively and waste energy.
Pump selection must match the complete circuit.
Review channel diameter, circuit length, hose size, bends, manifolds, and restrictions. These details affect pressure and flow.
Adequate flow supports effective heat transfer. Excessive pressure may damage hoses, seals, or connectors.
Useful features include:
Accurate PID control
High-temperature alarms
High-pressure protection
Low-flow protection
Automatic air venting
Leak detection
Accessible filters
Modular heaters
Clear fault codes
Machine communication ports
For equipment planning, buyers can start from Longhua’s Temperature Control Unit product category and match the TCU type with the mold, machine, and production target.
Tip: Share mold drawings, target cycle time, and heat-load requirements before requesting a final TCU recommendation.
Problem | Possible Cause | Practical Check |
|---|---|---|
TCU cannot reach setpoint | Weak heater, leaking cooling valve, poor flow | Check heater, valve, pump, and sensor |
Mold temperature fluctuates | Air, scale, unstable water supply, PID issue | Record supply and return temperatures |
High-pressure alarm appears | Closed valve, blocked channel, pinched hose | Inspect valves, hoses, filters, and mold lines |
Low-flow alarm appears | Pump issue, dirty strainer, restricted circuit | Clean strainers and verify pump output |
Slow heating occurs | Oversized die, heat loss, low heater capacity | Check heat load and insulation |
Uneven mold temperature appears | Poor channel balance or zone mismatch | Review circuit layout and flow balance |
Common causes include insufficient heater capacity, cooling-valve leakage, sensor error, trapped air, blocked channels, or wrong fluid selection.
Check flow and valve status first. They often explain unexpected temperature loss.
Temperature fluctuation may come from unstable cooling water, incorrect PID settings, air in the circuit, variable pump flow, or scale inside channels.
Record supply and return temperatures during several cycles. This simple chart often shows when the variation begins.
Pressure and flow alarms usually point to circulation problems.
Closed valves, dirty strainers, blocked channels, damaged hoses, and pump faults can restrict fluid movement. Stop the unit before opening pressurized components.
A practical maintenance plan should include:
Inspect hoses and fittings
Check pump pressure
Confirm flow-meter readings
Clean filters and strainers
Test cooling valves
Inspect heater condition
Verify sensor accuracy
Check fluid quality
Remove mineral scale
Tip: Track maintenance dates beside alarm records for faster troubleshooting.
What is the function of TCU?
A Temperature Control Unit circulates heat-transfer fluid through a connected process. It automatically heats, cools, measures, and stabilizes the operating temperature.
The main industrial Temperature Control Unit purpose is repeatable thermal control.
In die casting, a TCU can support:
Controlled die preheating
Stable heat removal
Balanced mold temperature
Repeatable solidification
Reduced thermal stress
Predictable cycle time
More consistent casting quality
Correct equipment selection requires more than choosing a temperature range. Engineers must assess heat load, flow, pressure, circuit design, control accuracy, safety, and maintenance access.
The best TCU is matched to the complete process. It should support the mold, machine, alloy, cycle target, and production environment together.
When these elements work together, the TCU becomes an essential process-control system. It is much more than auxiliary cooling equipment.
A: A Temperature Control Unit is an industrial system that heats, cools, and stabilizes fluid temperature in a mold or process circuit.
A: The main Temperature Control Unit function is maintaining stable mold or process temperature during changing production heat loads.
A: It pumps fluid through heating or cooling sections, sends it through mold channels, then corrects temperature using sensor feedback.
A: It preheats dies, removes excess heat, supports controlled solidification, and helps reduce thermal shock during repeated casting cycles.
A: No. A TCU provides two-way thermal control, while a chiller mainly supplies process cooling below ambient temperature.
A: Common causes include low flow, heater failure, cooling-valve leakage, trapped air, blocked channels, or sensor problems.
