What Temperature Should a Die Casting TCU Be Set At?

1. Introduction

A Temperature Control Unit, or TCU, manages die temperature during die casting.

It circulates heated or cooled fluid through channels inside the die. This circulation helps the mold reach a suitable starting temperature. It also removes excess heat during repeated casting cycles.

The correct TCU setting matters because die temperature affects:

• Molten metal flow

• Cavity filling

• Solidification behavior

• Casting dimensions

• Surface quality

• Cycle stability

• Die thermal stress

A die that is too cold may cause incomplete filling or cold-flow defects. A die that is too hot may increase soldering, sticking, long cycles, and dimensional variation.

However, there is no universal TCU setpoint for every die casting process.

The correct temperature depends on:

• Alloy family and grade

• Casting size and weight

• Wall thickness

• Gate and runner design

• Die steel and thermal mass

• Cooling-channel layout

• Cycle time

• Surface requirements

• Local hot and cold zones

Longhua’s published mold temperature controller specification covers a 50–300°C working range. Water-based configurations cover 50–120°C, while oil-based configurations cover 50–300°C. The final setpoint must still be established for the actual mold and casting process.

Note: The equipment temperature range and the mold’s production setpoint are not the same thing.

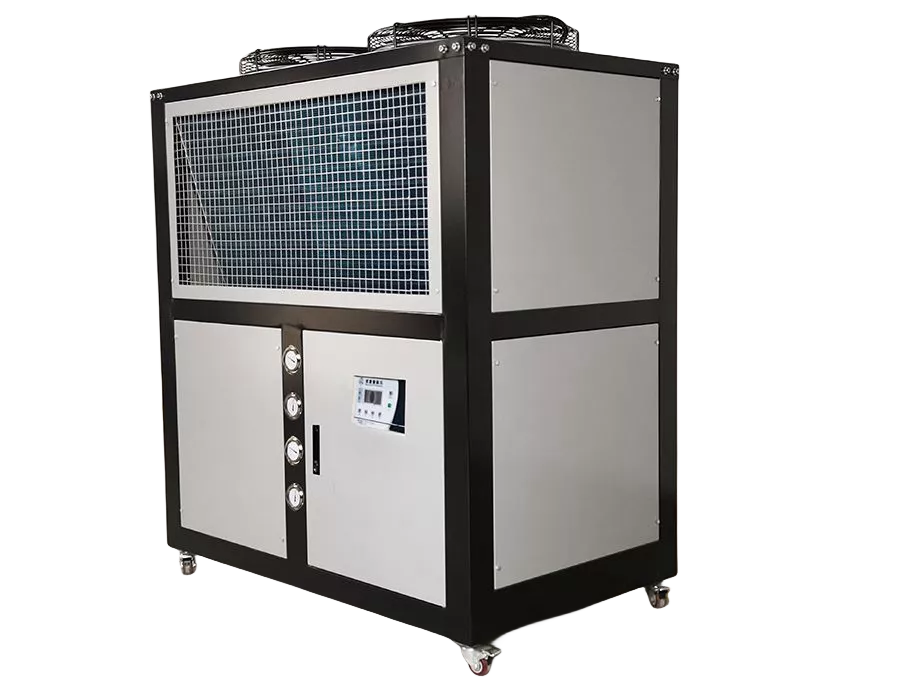

2. What Is a Die Casting Temperature Control Unit?

A die casting TCU is a closed circulation system for mold heating and cooling.

It moves water or thermal oil through internal die channels. A controller compares the measured temperature with the selected setpoint. It then adjusts heating or cooling output.

A typical TCU includes:

• Circulation pump

• Electric heating elements

• Cooling heat exchanger

• Temperature sensors

• PID controller

• Fluid tank or expansion system

• Pressure and flow protection

• Alarm and monitoring functions

Longhua classifies its temperature-control products into mold temperature controllers and air-cooling chillers. Its mold temperature controllers are available in single-cycle and double-cycle configurations.

What Does the TCU Control?

The TCU primarily controls the circulating fluid temperature.

That temperature influences the mold steel. However, the controller display may not equal every cavity-surface temperature.

Actual cavity temperatures can vary because of:

• Distance from the fluid channel

• Uneven casting thickness

• Local metal heat input

• Spray distribution

• Core and cavity differences

• Restricted channel flow

For critical applications, engineers should measure both fluid and mold temperatures.

Tip: Use surface thermocouples or thermal imaging during mold trials to identify local hot spots.

3. What Is the Correct Die Casting TCU Temperature?

The correct answer is a validated process window, not one fixed number.

The selected temperature should keep the die warm enough for reliable filling. It must also remove enough heat for stable solidification and ejection.

Longhua TCU Working Range

Longhua also states that its controller supports PID regulation, 1–6 temperature zones, and aluminum, zinc, and magnesium die casting applications.

These figures describe equipment capability.

They do not mean every aluminum mold should run at 280°C. They also do not mean every zinc mold should use a water system.

An Aluminum Die Casting Example

One Longhua 500-ton aluminum cookware application describes using a mold temperature controller at 180°C. The page presents this as a project-specific setup for a cookware mold, not a universal aluminum die casting standard.

This distinction is important.

A thin electronics housing, automotive bracket, deep cookware body, and structural casting may all need different thermal strategies.

Starting Logic by Alloy Family

These are selection principles, not final setpoints.

Copper-based die casting may exceed the practical range of some standard mold controllers. Longhua’s published controller maximum is 300°C, so projects requiring higher temperatures need separate technical confirmation.

Note: Never select a setpoint from the alloy name alone.

4. What Determines the Correct TCU Setpoint?

4.1 Alloy and Metal Temperature

Different alloys transfer heat into the die at different rates.

The poured or dosed metal temperature also affects thermal load. Hotter metal can increase local die temperature and extend cooling time.

The TCU setting must work together with:

• Furnace temperature

• Ladling or dosing time

• Shot sleeve heat loss

• Injection timing

• Alloy solidification behavior

Do not calculate mold temperature as a fixed percentage of alloy melting temperature.

That method ignores geometry, cycle time, heat transfer, and the actual production process.

4.2 Part Geometry and Wall Thickness

Thin sections cool quickly during filling.

They may need warmer cavity areas to delay premature solidification. However, raising the complete die temperature may not be the best solution.

Engineers may instead adjust:

• Gate position

• Injection speed

• Local heating

• Metal temperature

• Vacuum or venting

• Individual temperature zones

Thick sections introduce more heat into the die.

They may require stronger cooling capacity, higher flow, or separate circuits. This does not automatically mean the main setpoint must be reduced.

Uniform wall thickness generally supports more balanced solidification and lower defect risk. Effective thermal management also helps reduce shrinkage and thermal-gradient problems.

4.3 Die Design and Cooling Channels

The cooling-channel layout strongly affects TCU performance.

Important variables include:

• Channel diameter

• Channel depth

• Distance from cavity surfaces

• Number of circuits

• Core and cavity separation

• Hose length

• Flow restrictions

• Scale or contamination

A powerful TCU cannot correct a poorly designed circuit.

Dead zones may remain hot even when the return-fluid temperature appears normal. Restricted channels can also reduce heat transfer.

4.4 Cycle Time and Thermal Load

Every shot transfers heat into the die.

A faster cycle increases the average thermal load. Larger shot weights also place more demand on the cooling system.

The TCU must recover between shots without large temperature swings.

For high-output production, engineers should evaluate:

• Heating capacity

• Cooling capacity

• Pump flow

• Pressure loss

• Fluid volume

• Return temperature

• Cycle-to-cycle stability

Lowering the setpoint alone may not solve overheating.

The system may need greater flow or cooling capacity.

4.5 Casting Quality Requirements

The correct setpoint should support the required casting result.

Monitor:

• Incomplete filling

• Cold flow or cold shuts

• Soldering

• Sticking

• Shrinkage

• Surface finish

• Warpage

• Dimensional drift

• Ejection behavior

Stable mold temperature can reduce several defect risks. However, temperature control does not work alone.

Porosity also depends on melt quality, gating, injection parameters, vacuum, and venting. Soldering can involve local heat, die material, metal flow, and cooling distribution.

5. How Does a TCU Control Die Temperature?

Preheating Before Production

A cold die should not receive full production shots immediately.

The TCU can preheat the die gradually before startup. This reduces thermal shock and improves early-shot consistency.

Preheating also helps stabilize:

• Die dimensions

• Lubricant behavior

• Metal flow

• Ejection

• Initial cycle time

The required preheating period depends on die weight, channel layout, heating power, and target temperature.

Avoid using one fixed preheat time for every mold.

Heating During Operation

When the fluid temperature falls below the setpoint, the controller activates the heater.

The pump circulates warm fluid through the die. Heat transfers from the fluid into the mold steel.

The controller repeats this process until the setpoint is restored.

Cooling During Operation

Molten metal adds heat during each shot.

When the system exceeds the setpoint, the cooling circuit removes heat from the circulating fluid.

The cooled fluid returns to the die and absorbs more heat.

Stable operation depends on:

• Sufficient flow

• Clean channels

• Correct cooling-water supply

• Responsive sensors

• Suitable PID settings

Controlled Cooling After Production

A die should cool in a controlled manner after production.

Sudden cooling can create severe thermal gradients. These gradients may increase stress or condensation risk.

The shutdown method should follow the die and TCU supplier’s procedure.

Tip: Record startup, production, and shutdown settings in the approved process sheet.

6. Water-Based or Oil-Based TCU?

The selected heat-transfer fluid determines the usable temperature range and system design.

Water-Based TCU

Longhua publishes a water-based operating range of 50–120°C.

Water provides strong heat-transfer performance at moderate temperatures.

Potential advantages include:

• Efficient heat transfer

• Fast temperature response

• Lower fluid cost

• Easier cleanup after minor leakage

Important considerations include:

• Corrosion

• Scale formation

• Water quality

• System pressure

• Seal condition

• Freezing risk

Pressurized-water systems from other industrial suppliers can operate above 120°C. However, that capability depends on pressure-rated equipment and safety design. It should not be assumed for every TCU.

Oil-Based TCU

Longhua publishes an oil-based operating range of 50–300°C.

Thermal oil suits higher die-temperature requirements.

Potential advantages include:

• Higher operating temperatures

• Lower system pressure than high-temperature water

• Stable high-temperature circulation

• Reduced corrosion from water exposure

Oil systems also require careful management.

Buyers should consider:

• Approved oil grade

• Maximum bulk temperature

• Maximum film temperature

• Oxidation

• Leakage

• Expansion volume

• Flash point

• Filter and pump compatibility

Thermal oil does not eliminate vaporization, fire, or maintenance risks.

It must match the TCU manufacturer’s specification.

Water vs. Oil Comparison

7. How Should You Optimize TCU Settings During Mold Trials?

A mold trial should establish the approved thermal process window.

Step 1: Confirm Equipment Limits

Check:

• Maximum operating temperature

• Heating power

• Cooling capacity

• Pump flow

• Operating pressure

• Fluid compatibility

• Number of circuits

• Machine interface

Step 2: Start From Documented Recommendations

Use available guidance from:

• Die designer

• Alloy supplier

• Die casting machine supplier

• TCU manufacturer

• Previous validated molds

• Simulation results

Avoid copying a setting from an unrelated casting.

Step 3: Stabilize the Die

Allow the die to reach thermal equilibrium.

Do not judge the process from the first few shots alone.

Record:

• Supply-fluid temperature

• Return-fluid temperature

• Cavity temperature

• Core temperature

• Cycle time

• Shot weight

Step 4: Evaluate Casting Results

Inspect the casting for fill, soldering, porosity, surface appearance, dimensions, and ejection.

Adjust only one major variable at a time.

Changing temperature, shot speed, spray time, and metal temperature together makes root-cause analysis difficult.

Step 5: Define an Operating Window

The final process should include:

• Normal setpoint

• Upper and lower limits

• Alarm limits

• Flow requirement

• Pressure requirement

• Startup procedure

• Shutdown procedure

• Inspection frequency

Note: The best TCU setting is the lowest-risk stable window, not the highest available temperature.

8. Single-Circuit, Dual-Circuit, or Multi-Zone Control?

Longhua’s product structure includes single-cycle and double-cycle mold temperature controllers. Its published mold controller also supports 1–6 temperature zones.

Single-Circuit Control

A single circuit uses one primary temperature loop.

It may suit:

• Smaller molds

• Simple geometry

• Similar core and cavity heat loads

• One common setpoint

Dual-Circuit Control

A dual-circuit controller manages two separate loops.

It may control:

• Fixed and moving die halves

• Core and cavity areas

• Two thermal zones

• Separate heating and cooling demands

Multi-Zone Control

Multi-zone control supports areas with different thermal loads.

It may help with:

• Large molds

• Multi-cavity tooling

• Deep cores

• Uneven wall thickness

• Local hot spots

• Complex castings

The required configuration depends on thermal mapping, not machine tonnage alone.

9. How to Select a TCU for a Longhua Die Casting Machine

The TCU should be selected as part of the complete casting cell.

Buyers should provide:

• Die casting machine model

• Alloy and grade

• Casting weight

• Cycle time

• Mold weight

• Target mold temperature

• Number of cooling circuits

• Channel dimensions

• Required fluid

• Factory cooling-water conditions

Longhua’s temperature-control category includes mold temperature controllers, air-cooling chillers, and cooling equipment. The correct configuration depends on the mold and production line.

Key specifications to confirm include:

• 50–120°C water or 50–300°C oil configuration

• Heating capacity

• Cooling capacity

• Pump flow and pressure

• Temperature-zone count

• Hose and connection size

• Alarm functions

• Communication interface

• Spare-parts availability

Longhua’s published controller includes real-time monitoring for overtemperature and low fluid level. It also lists touchscreen control and remote data access.

10. Conclusion

What temperature should a die casting TCU be set at?

There is no universal setpoint.

Longhua mold temperature controllers cover a published working range of 50–300°C:

• Water-based systems: 50–120°C

• Oil-based systems: 50–300°C

The actual production setting depends on:

• Alloy

• Casting geometry

• Die design

• Thermal load

• Cycle time

• Fluid flow

• Surface requirements

• Defect results

One Longhua aluminum cookware application uses a 180°C mold temperature, but this is a project example rather than a universal aluminum setting.

The correct method is to:

1. Confirm TCU and fluid limits.

2. Start from engineering recommendations.

3. Stabilize the mold.

4. Measure actual die temperatures.

5. Inspect casting results.

6. Adjust one variable at a time.

7. Document the approved process window.

A well-selected TCU supports stable production, consistent dimensions, controlled solidification, and longer die life.

FAQ

Q: What temperature range does a Longhua TCU support?

A: Longhua lists 50–120°C for water systems and 50–300°C for oil systems.

Q: What TCU setting should aluminum die casting use?

A: It depends on the mold. One Longhua cookware application uses 180°C.

Q: Does higher TCU temperature always improve filling?

A: No. Excessive heat can increase soldering, long cycles, and dimensional variation.

Q: Should I choose water or thermal oil?

A: Use water for moderate temperatures and oil for higher-temperature requirements.

Q: Can one TCU control several mold zones?

A: Yes. Longhua lists support for one to six temperature zones.
