Die casting is an essential manufacturing process used to produce metal parts with high precision and complex shapes. A die casting machine is a specialized tool used in this process, designed to inject molten metal under high pressure into molds (also called dies). This process ensures that the final parts have excellent dimensional accuracy and surface finish, making die casting an ideal choice for high-volume production of metal components. In this article, we will explore how a die casting machine works, its components, types, and applications, with a focus on the high pressure die casting machine.
Die casting is a metal casting process in which molten metal is injected into a mold cavity under high pressure. The metal solidifies quickly, forming precise parts with intricate geometries. This method is known for its ability to create high-quality, repeatable parts in large quantities, making it essential for industries such as automotive, aerospace, electronics, and consumer goods.
Die casting machines play a pivotal role in this process by ensuring the proper injection of molten metal into the molds. These machines can handle various metals, including aluminum, zinc, magnesium, and copper, which are commonly used in die casting to produce durable, lightweight parts.
A die casting machine consists of several key components, each playing a specific role in the process:
Frame and Clamping Unit: The frame provides structural support, while the clamping unit holds the die in place during injection and ejection.
Injection System: This system is responsible for injecting the molten metal into the die at high pressure.
Molten Metal Handling Subsystem: It includes the furnace or molten metal reservoir that stores and controls the temperature of the metal.
Control Systems: These are used to manage the machine’s operation, including pressure, temperature, and injection speed.
Ejection System: After the metal cools and solidifies, this system ejects the finished part from the mold.
Here’s an overview of the process that a die casting machine follows:
Die Closing: The die halves are clamped together under pressure, preparing the mold cavity for injection.
Injection of Molten Metal: The molten metal is injected into the mold cavity at high pressure, filling the cavity completely.
Cooling and Solidification: The molten metal cools and solidifies rapidly, taking the shape of the mold.
Die Opening and Ejection: Once the metal has solidified, the die opens, and the finished part is ejected from the mold.
The use of high pressure during the injection phase is crucial for producing fine details and achieving high-quality parts. This pressure forces the molten metal to fill the mold quickly and completely, ensuring a consistent and precise shape.
There are two primary types of die casting machines: hot chamber and cold chamber machines. Both types are used for specific applications based on the material being cast and the desired production speed.
Hot Chamber Die Casting Machine: In this machine, the molten metal is stored in a chamber that is part of the machine, and the metal is injected into the mold using a piston. Hot chamber machines are ideal for metals with low melting points, such as zinc and magnesium. They offer faster cycle times but are limited to metals with lower melting temperatures.
Cold Chamber Die Casting Machine: In contrast, cold chamber machines use a separate furnace to melt the metal, which is then manually or automatically transferred into the injection chamber. This type of machine is used for metals with higher melting points, such as aluminum and copper. Cold chamber machines tend to have slower cycle times but are more versatile in terms of the materials they can handle.

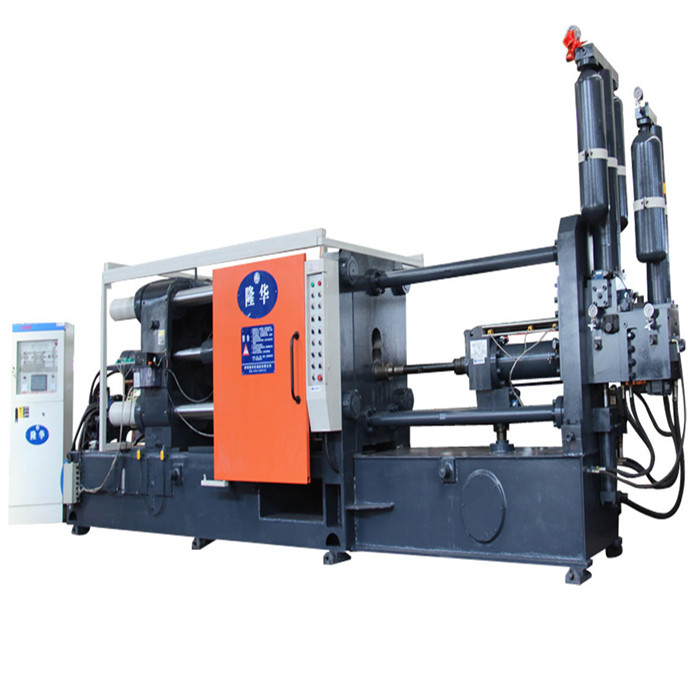

A high pressure die casting machine is a specific type of die casting machine that uses high pressure to inject molten metal into the mold cavity. This high pressure ensures that the molten metal fills all the intricate details of the mold quickly and completely, producing parts with excellent surface finishes and high dimensional accuracy.
In high pressure die casting, the pressure used during the injection phase can reach up to 450 MPa (megapascals). The process is well-suited for metals like aluminum, which can be molded into complex shapes for industries such as automotive, electronics, and consumer goods. The machine’s ability to produce high-quality parts in large volumes makes it a popular choice in modern manufacturing.
Die casting machines are used in various industries to produce parts with high precision and complex shapes. Some common applications include:
Automotive Components: Die casting is used to produce parts such as engine blocks, transmission housings, and structural components.
Aerospace Parts: Lightweight and high-strength parts for aircraft and spacecraft are often made using die casting.
Consumer Electronics: Die casting is used to create enclosures for devices like smartphones, laptops, and home appliances.
Electrical Housings: Electrical components such as connectors and switch housings are often made using die casting to ensure durability and precision.
Advantages:
High Precision: Die casting produces parts with excellent dimensional accuracy, reducing the need for secondary machining.
High Production Speed: The process is efficient and can produce large volumes of parts in a short amount of time.
Excellent Surface Finish: Die cast parts have smooth surfaces, reducing the need for post-processing.
Minimal Waste: The die casting process is highly efficient, with minimal material waste.
Limitations:
High Initial Costs: The cost of tooling and machinery can be high, making it more suitable for high-volume production.
Limited to Certain Metals: Die casting is primarily used for non-ferrous metals, such as aluminum, zinc, and magnesium.
Size Limitations: The size of the parts that can be produced is limited by the size of the die casting machine.
Wikipedia: Defines a die casting machine as a device used to inject molten metal into a mold cavity under pressure to form metal parts with high precision and intricate geometries.
ScienceDirect: Explains that die casting machines force molten metal into the mold cavity using high pressure, enabling the production of parts with complex shapes and fine details.
Twin City Die Castings: Offers insights into how die casting machines can handle various materials and produce parts with minimal waste and high precision.
Fictiv: Describes die casting as an essential method for producing high-quality metal parts with complex shapes, highlighting the importance of high pressure in the injection process.
Frech USA: Explains the differences between hot chamber and cold chamber die casting machines, emphasizing their suitability for different metals and production speeds.
Diecastingmachinechina: Highlights the role of die casting machines in modern manufacturing, focusing on their ability to create high-quality, durable parts in large volumes.
WorldManufactures: Provides an overview of die casting machines, detailing their role in producing precise, repeatable parts for various industries.
Die casting machines are essential tools in modern manufacturing, allowing for the production of precise, durable parts in high volumes. Whether using hot or cold chamber machines, the application of high pressure during the casting process ensures high-quality results. The growing demand for metal parts in industries like automotive, aerospace, and electronics continues to drive the popularity of die casting, especially high pressure die casting machines, which offer unparalleled precision and efficiency.
For industries seeking to produce high-quality, complex parts, die casting remains one of the most efficient and reliable methods available.
