Die casting machines play a crucial role in modern manufacturing, especially in industries that require precision, high volume production, and intricate designs. These machines are used for casting metal components with exceptional dimensional accuracy, surface finish, and strength. In this article, we will dive into the details of what a die casting machine is, how it works, the types of die casting machines, their components, applications, and innovations in the field.
Die casting is a manufacturing process that involves forcing molten metal into a mold cavity under high pressure. The term "die" refers to the mold used in the process, and "casting" refers to the creation of a component by pouring liquid metal into the mold. Unlike sand casting or gravity casting, die casting uses a metal mold that can be reused multiple times, making it suitable for mass production.

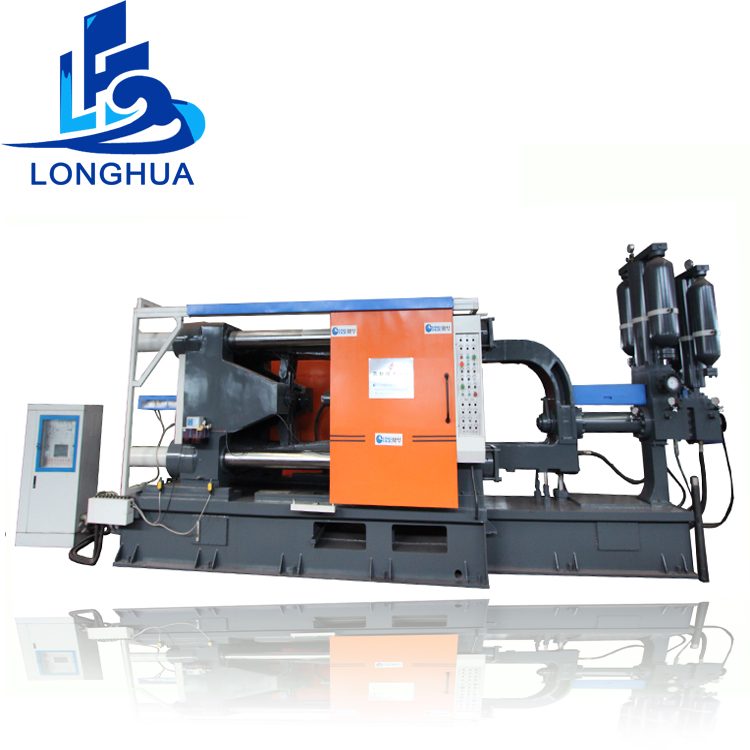

A die casting machine is used to inject molten metal into a steel mold under high pressure, creating precise, complex, and durable components. The process is typically divided into several steps:
Preparation: The mold is heated, and a lubricant or refractory coating is applied to ensure the metal flows smoothly and is easily removed after solidification.
Injection: The molten metal is injected into the mold cavity under high pressure, using a plunger mechanism. The pressure can range from 700 to 5,000 psi depending on the machine type and the material used.
Cooling and Solidification: After the mold is filled, the molten metal cools and solidifies, taking the shape of the mold.
Ejection: Once the part has solidified, the mold opens, and the component is ejected from the mold.
Trimming: Any excess material, such as gates and runners, is trimmed off the cast part.
Die casting machines are typically used to cast metals with low to medium melting points, such as:
Aluminum: Known for its lightweight and corrosion resistance.
Zinc: Offers high strength and is easy to cast with excellent fluidity.
Magnesium: Has a high strength-to-weight ratio and is used for lightweight components.
Copper: Provides excellent corrosion resistance and mechanical properties.
Alloys: Die casting machines also handle alloyed metals to enhance specific characteristics, such as strength, durability, and resistance to corrosion.
While die casting is a widely used method for creating metal parts, it differs from other casting techniques like sand casting or gravity casting in several ways:
Mold Material: Die casting uses permanent metal molds, while other methods use expendable molds (e.g., sand molds).
Pressure: Die casting employs high pressure to inject molten metal, resulting in superior surface finish and dimensional accuracy compared to gravity casting.
Production Speed: Die casting is faster, making it ideal for high-volume production, while sand casting is slower and more labor-intensive.
There are several types of die casting machines, each designed to handle specific materials, part geometries, and production requirements.
Hot-chamber die casting, also known as gooseneck casting or hot casting, is the more well-known of the two primary die-casting techniques.
In hot-chamber die casting, the molten metal supply is directly connected to the machine, and the chamber is heated. The plunger is used to inject molten metal into the mold cavity under high pressure. The molten metal is forced into the cavity through a shot cylinder that is attached to the plunger by a rod. This process is typically faster and is suitable for metals with low melting points, such as zinc and magnesium.
Shorter Cycle Time: The hot-chamber method is faster, allowing for more products to be made in less time.
Lower Metal Waste: Since the metal is continuously fed into the mold, there is less waste, making it more environmentally friendly.
High Production Efficiency: The internal melting pot helps reduce the number of steps needed for casting.
Limited to Low-Melting-Point Metals: The hot-chamber method is only suitable for metals that do not corrode or damage the machine at high temperatures.
Porosity Issues: Parts created using hot-chamber die casting may suffer from porosity, though techniques like evacuated chambers can minimize this.
Cold-chamber die casting is used primarily for metals with higher melting points, such as aluminum, copper, and brass.
In cold-chamber die casting, the molten metal is poured into a separate furnace and ladled into the machine chamber. The metal is then injected into the mold using a plunger mechanism under high pressure. The cold-chamber method helps prevent the corrosion of machine components, making it ideal for metals that would damage hot-chamber systems.
Versatility: Suitable for a wide range of metals, including those with high melting points.
Durability: The machine components are less likely to degrade due to the separation of the furnace and machine.
Strong Parts: Cold-chamber die casting creates denser and more durable parts compared to other methods.
Longer Cycle Time: The cold-chamber method has a longer cycle time due to the extra step of ladling the molten metal into the chamber.
Higher Maintenance Costs: Since it involves additional equipment and handling, maintenance costs can be higher.
High-pressure die casting machines use a high-pressure injection system to force molten metal into the mold. The process is very quick, with the metal solidifying in just a few seconds.
High Production Volume: Ideal for mass production of large quantities of parts.
Excellent Surface Finish: High-pressure die casting ensures that the parts have a smooth and polished finish.
Dimensional Accuracy: Provides high precision and minimizes the need for secondary machining.
Expensive Equipment: The cost of the high-pressure die casting machines can be quite high.
Porosity: There is a risk of porosity in the castings, which can affect the part's strength.
Low-pressure die casting uses low pressure (typically 20-100 kPa) to push molten metal into the mold, resulting in parts with minimal porosity and greater uniformity.
Precision: Produces highly accurate parts, especially in thin-walled applications.
Reduced Oxidation: Low pressure reduces oxidation and other impurities in the molten metal.
Increased Density: Parts cast using low-pressure die casting are denser and stronger.
Slower Cycle Time: The slower pressure application can lead to a longer production cycle.
Not Suitable for Thin Parts: The minimum wall thickness for low-pressure die casting is around 3mm, so it's not ideal for very thin parts.
Vacuum die casting, also known as vacuum-assisted high-pressure die casting, helps reduce porosity by creating a vacuum in the mold cavity before the molten metal is injected.
Minimized Surface Defects: Vacuum die casting eliminates blowholes and surface blisters.
Higher Density: Parts made through vacuum die casting have higher density and mechanical strength.
Complex Equipment: The vacuum system adds complexity and cost to the die casting machine.
Limited Application: Best suited for parts that require high precision and strength, but may not be suitable for all casting applications.
Squeeze die casting combines the die casting and forging processes, using high pressure to solidify molten metals sandwiched between hydraulic press plates.
Low Porosity: Squeeze die casting produces near-net parts with minimal porosity.
Enhanced Mechanical Properties: The pressurization during solidification results in components with superior mechanical strength.
Expensive Tooling: The tooling required for squeeze die casting is more expensive than traditional die casting methods.
Low Flexibility: The tooling is dedicated to specific parts, reducing flexibility in production.
The frame supports all other components of the machine and ensures stability during the casting process. It is designed to withstand high pressures and forces exerted during injection and ejection.
The injection system is responsible for injecting molten metal into the mold cavity under high pressure. This system includes a shot cylinder, plunger, and nozzle, all of which work together to ensure precise and efficient injection.
The clamping system holds the two halves of the mold together during the injection process. It ensures that the mold is securely closed to prevent any leaks of molten metal.
The cooling system controls the temperature of the mold during the casting process. It uses cooling channels to circulate water or other cooling agents around the mold to ensure that the metal solidifies properly.
Molds are made of durable metals such as steel and are designed to withstand high temperatures. Tooling includes various components such as inserts, cavities, and ejector pins that shape and eject the casting.
The die casting process begins with the preparation of the mold, followed by the injection of molten metal into the mold cavity. Once the metal solidifies, the mold opens, and the casting is ejected. The machine cycle includes several steps:
Preparing the Mold: The mold is coated with a lubricant to facilitate the removal of the cast part.
Melting the Metal: The metal is heated to its melting point in a furnace before being injected into the mold.
Injection of Molten Metal: The molten metal is injected into the mold cavity at high speed under pressure.
Cooling and Solidification: The molten metal cools and solidifies into the shape of the mold.
Ejection and Trimming: The mold opens, and the casting is ejected. Any excess material is trimmed off to create a finished part.
Die casting machines offer numerous benefits, particularly for mass production of high-precision parts:
High Precision: Die casting machines produce components with excellent dimensional accuracy.
Shorter Cycle Times: The process is faster compared to other casting methods, making it ideal for high-volume production.
Durable Parts: Parts created through die casting are strong, durable, and can withstand harsh conditions.
Cost-Effective for Mass Production: Die casting is highly cost-effective when producing large quantities of parts due to the reusable molds and efficient process.
Die casting machines are used in a wide range of industries to produce components such as:
Automotive Parts: Engine components, transmission parts, wheels, etc.
Aerospace Components: Lightweight and durable parts for aircraft.
Electronics: Housings for devices like smartphones, laptops, and more.
Medical Equipment: Surgical instruments, medical devices, and components.
Consumer Goods: Kitchen appliances, furniture, and toys.
Regular maintenance is essential to ensure the longevity and efficiency of die casting machines. Common maintenance tasks include cleaning, lubrication, and mold inspection. Troubleshooting common issues, such as porosity, surface defects, and machine malfunctions, can help keep production running smoothly.
Advancements in technology have led to innovations in die casting machines, such as:
Automation: Robotics and automated systems have improved efficiency and precision in die casting.
Energy Efficiency: Modern machines are designed to consume less energy, reducing operating costs.
Advanced Materials: New materials are being used to enhance the performance of die casting machines and the parts they produce.
The future of die casting machines is shaped by emerging technologies like Industry 4.0, smart manufacturing, and sustainability initiatives. Innovations in 3D printing, automation, and eco-friendly practices are expected to revolutionize the die casting industry.
Die casting machines are a crucial part of modern manufacturing, enabling the production of high-precision, durable, and cost-effective components. With advancements in technology and a growing focus on sustainability, die casting continues to play a vital role in industries such as automotive, aerospace, and electronics.
What is the Difference Between Hot-Chamber and Cold-Chamber Die Casting Machines?
Hot-chamber machines are used for low-melting-point metals, while cold-chamber machines are designed for high-melting-point metals.
Can Die Casting Machines Be Used for Non-Metallic Materials?
No, die casting machines are specifically designed for metal casting, though some variations may handle plastics.
What is the Typical Lifespan of a Die Casting Machine?
The lifespan of a die casting machine depends on maintenance and usage but typically lasts between 10-20 years.
How Do Die Casting Machines Contribute to Sustainable Manufacturing?
Die casting machines reduce material waste, improve production efficiency, and can use recyclable materials, contributing to sustainability.
What Factors Affect the Cost of Operating a Die Casting Machine?
Factors include energy consumption, maintenance costs, the complexity of the parts being produced, and the cost of raw materials.
