Why Choose a Hot Chamber Die Casting Machine?

When it comes to high‑precision, high‑volume metal parts manufacturing, selecting the right die casting machine is crucial. Among the various types of die casting processes, the hot chamber die casting machine stands out due to its distinct advantages in speed, cost efficiency, and part quality. This article will explore why manufacturers might choose a hot chamber die casting machine, including its key benefits, applications, and practical considerations.

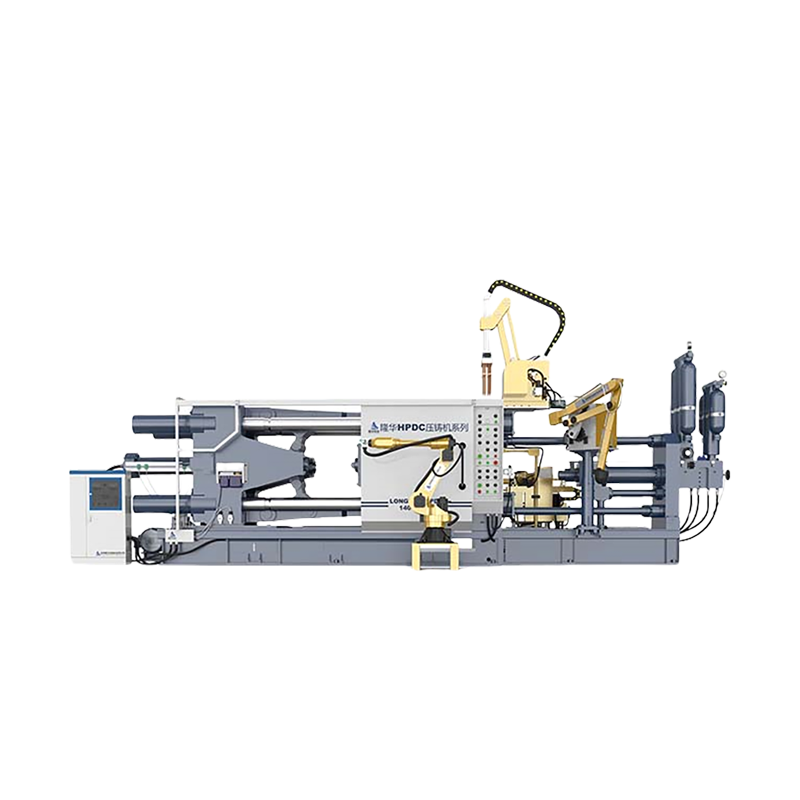

What is a Hot Chamber Die Casting Machine?

A hot chamber die casting machine is a type of die casting machine that uses a molten metal reservoir within the machine itself. This chamber is heated and used to inject molten metal into molds under high pressure, producing complex and precise parts. The key feature of hot chamber machines is that the injection mechanism is submerged in the molten metal, making them ideal for alloys with low melting points such as zinc, magnesium, and lead.

In contrast, cold chamber machines require the metal to be manually poured into the injection chamber from a separate furnace, making them better suited for metals with higher melting points, such as aluminum. The difference in the process results in varying cycle times, energy usage, and cost efficiency.

Key Advantages of Choosing a Hot Chamber Die Casting Machine

Faster Cycle Times and High Throughput

One of the most significant benefits of a hot chamber die casting machine is the faster cycle time. The molten metal is directly supplied into the injection chamber, eliminating the need for additional steps like manually transferring metal. This allows for higher throughput and increased production capacity, especially in industries where mass production is critical.

Excellent Dimensional Accuracy and Surface Finish

Hot chamber machines excel at producing parts with high precision. The continuous process ensures that the metal is consistently injected into the mold under controlled pressure, which improves the quality of the finished parts. The result is high dimensional accuracy and a smooth surface finish, reducing the need for post‑production machining.

Reduced Material Waste and Lower Cost Per Part

The design of the hot chamber die casting machine allows for efficient material usage. The molten metal is injected into the mold quickly and efficiently, minimizing scrap and reducing overall material waste. Additionally, the speed of the process means that more parts can be produced within the same timeframe, resulting in lower costs per part. For industries with tight profit margins, this can lead to significant cost savings.

Highly Automated for High‑Volume Production

Hot chamber machines are often highly automated, which reduces the need for manual labor and decreases the risk of human error. Automation also means consistent quality across all parts produced, making it ideal for large‑scale manufacturing operations. Automation in hot chamber machines can include features like robotic handling, automated mold insertion and ejection, and real‑time monitoring for quality control.

Suitable for Thin‑Walled, Complex Shapes

The high injection pressure of hot chamber machines allows for the production of parts with very thin walls and complex geometries. This makes them ideal for industries such as electronics and automotive, where intricate designs and lightweight components are essential. The ability to produce such parts without compromising on strength or dimensional accuracy is a key advantage of the hot chamber method.

Lower Energy Consumption Under Suitable Conditions

Hot chamber die casting machines are more energy efficient compared to other casting methods when working with low‑melting‑point metals. The process requires less energy because the molten metal is always at the optimal temperature, reducing the energy needed for reheating or re-melting. This can lead to significant energy cost savings for manufacturers over time.

Typical Limitations or Considerations

While hot chamber die casting machines offer numerous advantages, they are not suitable for all applications. Some important limitations to consider include:

• Material Restrictions: Hot chamber machines are best suited for low‑melting‑point alloys such as zinc, magnesium, and lead. They are not suitable for higher‑melting metals like aluminum, which would cause damage to the machine’s components.

• Size and Weight Limits of Parts: The size of the parts that can be produced in a hot chamber machine is generally smaller compared to cold chamber machines. The technology is more effective for producing small to medium‑sized parts.

• Initial Equipment Cost: While the operational costs of hot chamber die casting machines can be lower, the initial investment in the machinery can be higher. This is an important consideration for businesses evaluating their upfront capital expenditure.

When to Choose a Hot Chamber Die Casting Machine

Choosing the right die casting machine depends on several factors, including the material to be used, the size of the part, the required volume of production, and the desired quality.

Ideal Scenarios for Hot Chamber Die Casting

A hot chamber die casting machine is ideal for high‑volume production of parts made from alloys with low melting points, such as zinc or magnesium. The machine is especially effective for small to medium parts that require high precision, fast cycle times, and a good surface finish. Typical applications include parts for the automotive, electronics, and hardware industries.

Conditions for Cold Chamber Die Casting

While hot chamber machines offer many advantages, they are not suitable for all alloys or part sizes. If you are working with materials that have high melting points, such as aluminum, a cold chamber die casting machine would be the better choice. Cold chamber machines also tend to be more appropriate for larger or thicker parts.

How the Process Works

The hot chamber die casting process begins with the molten metal being heated in a furnace and then transferred into the hot chamber. From there, the metal is injected into the mold under high pressure, where it cools and solidifies. Once the part is ejected, the cycle begins again.

Key operational parameters include the injection pressure, cycle time, and mold temperature. Monitoring these parameters helps ensure that the parts produced meet the required specifications for strength, accuracy, and surface finish.

Practical Benefits for Business and Industry

For manufacturers, the choice of a hot chamber die casting machine can lead to significant benefits in terms of cost savings, quality, and efficiency. By reducing cycle times and material waste, businesses can improve their bottom line. Moreover, the ability to produce high‑precision, complex parts can help manufacturers stay competitive in markets that demand innovation and high‑quality standards.

Viewpoints from Industry Platforms / Companies

• Haichen DCM: Acknowledges the machine's high precision and speed, especially for small‑sized parts, emphasizing its cost‑effectiveness for suitable alloys.

• TOPS Best Precision: Highlights the importance of cycle time reduction and material savings, noting that hot chamber machines are ideal for smaller, mass‑produced parts.

• HMaking: Suggests that hot chamber machines are particularly effective for manufacturers who require fast production of complex designs with minimal waste.

• TheDieCasting: Focuses on the superior surface finish and dimensional accuracy that hot chamber machines can offer, making them ideal for parts requiring tight tolerances.

• MechRank: Provides insights into the long‑term operational benefits of hot chamber machines, citing reduced labor costs due to automation and improved material efficiency.

• RuiCiCasting: Emphasizes the efficiency of hot chamber machines in high‑volume production, particularly when working with zinc and other low‑melting alloys.

• ProleanTech: Discusses the versatility and reliability of hot chamber die casting machines, highlighting their ability to maintain consistent quality over extended production runs.

Key Decision‑Making Checklist for Buyers

When considering a hot chamber die casting machine, buyers should evaluate the following:

• Alloy Compatibility: Ensure the machine is compatible with the alloys you plan to use, as hot chamber machines are best suited for low‑melting alloys.

• Part Size: Consider the size and complexity of the parts you need to produce to ensure they fall within the capabilities of the machine.

• Production Volume: Hot chamber machines are ideal for high‑volume production; consider the production requirements and cycle times.

• Cost Considerations: Weigh the initial cost of the machine against the long‑term operational savings in terms of cycle time and material efficiency.

FAQs

• What alloys can a hot chamber die casting machine handle?

• Why is aluminum typically not suitable for hot chamber machines?

• What is the typical cycle time advantage vs cold chamber?

• How small/thin can the wall thickness be in hot chamber parts?

• What are typical machine maintenance or die‑wear concerns?

Conclusion

A hot chamber die casting machine offers numerous advantages, particularly for high‑volume production of small to medium‑sized parts made from low‑melting alloys. With faster cycle times, better material efficiency, and reduced waste, these machines provide a compelling choice for manufacturers aiming to optimize their production processes. By carefully considering the material compatibility, part size, and production volume, businesses can make an informed decision to enhance their manufacturing capabilities and stay competitive in the market.
