Zinc alloy die casting is a highly efficient manufacturing process used to produce precise and complex parts from molten zinc alloys. In this process, molten zinc is injected into a steel mold under high pressure, solidifying into the desired shape. The process offers several advantages, such as high dimensional accuracy, fast cycle times, and low material waste. This article will provide an overview of the zinc alloy die casting machine operations and the die casting machine process, helping manufacturers understand the intricate steps involved in creating high-quality die-cast parts.
Zinc alloy die casting is the process of injecting molten zinc alloys into a mold under high pressure to create parts with exceptional precision and surface finish. Zinc alloys, such as Zamak (a blend of zinc, aluminum, magnesium, and copper), are popular for their excellent fluidity, low melting point, and superior strength. The casting process ensures the production of parts with complex shapes, thin walls, and tight tolerances, making it ideal for industries like automotive, electronics, and industrial machinery.
Before beginning the zinc alloy die casting process, the mold, or die, needs to be prepared. This involves designing and fabricating the die, ensuring it is properly cleaned and lubricated for smooth operation. The mold is typically made from high-strength steel to withstand the high-pressure injection of molten zinc. Proper mold preparation is essential to ensuring the longevity of the die and the quality of the cast parts.
The next step involves heating the zinc alloy to its molten state. Zinc has a relatively low melting point, which allows for faster melting and injection cycles compared to other metals. Once the alloy is molten, it is injected under high pressure into the mold cavity through the die-casting machine's injection system. This high-pressure injection ensures that the molten metal fills all the intricate details of the mold, producing parts with excellent surface finish and dimensional accuracy.
Once the molten zinc is injected into the mold, it is allowed to cool and solidify. Zinc alloys have a quick solidification time, making this stage efficient and allowing for high production rates. The cooling process ensures that the cast parts retain their precise shape and achieve the required mechanical properties, such as strength and hardness.
After the zinc alloy has solidified, the die is opened, and the part is ejected. Ejection is typically done using an automated system, ensuring that parts are removed from the die without causing any damage. The part may then undergo trimming to remove any excess material, such as flash or runners, that was left over from the injection process. This step ensures that the part meets the specified dimensions and quality standards.
After the parts are ejected and trimmed, they may require additional finishing processes, such as machining, plating, or surface coating, depending on the part's requirements. Quality control measures are also implemented at this stage to ensure that the parts meet the desired specifications. This includes visual inspections, dimensional measurements, and mechanical testing to verify that the parts meet the required standards for performance and appearance.

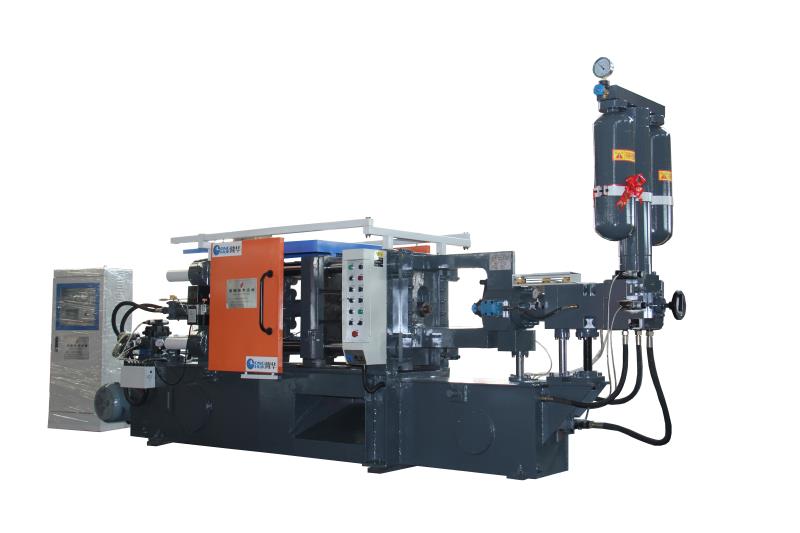

A zinc alloy die casting machine consists of several key components that work together to produce high-quality parts. These components include:
Injection System: The system responsible for injecting molten zinc into the mold under high pressure.
Mold Clamping Unit: The unit that holds the mold securely in place during injection and ensures proper alignment.
Plunger: The component that pushes the molten zinc into the mold cavity.
Heating and Melting System: The system used to melt the zinc alloy and maintain the required temperature.
Automatic Ejection System: The mechanism responsible for ejecting the solidified part from the mold.
Cooling System: The system responsible for rapidly cooling the mold and solidifying the molten metal.
There are several advantages to using zinc alloy die casting machines for manufacturing parts:
High Production Speed: Zinc alloy die casting machines can produce parts at a high rate due to the fast cycle times associated with zinc alloys.
Dimensional Accuracy: The high-pressure injection process results in parts with exceptional dimensional accuracy and a superior surface finish.
Cost-Effectiveness: Zinc alloys are relatively inexpensive compared to other metals, making zinc die casting a cost-effective solution for mass production.
Reduced Material Waste: The process allows for the precise use of material, minimizing waste and maximizing the yield from each casting cycle.
Complex Geometries: Zinc alloys can be cast into complex shapes with thin walls and fine details, making them ideal for producing intricate parts.
While zinc alloy die casting offers many advantages, there are some challenges and limitations to consider:
Tooling and Machine Costs: The initial investment in die casting machinery and molds can be high, especially for complex parts.
Defects: Common defects in zinc die casting include porosity, cold shuts, and misruns, which may occur if the process parameters are not optimized.
Size Limitations: Zinc alloy die casting is not suitable for very large parts due to the limitations of the equipment and the size of the molds that can be used.
Weight Limitations: Zinc alloys, although strong, may not be suitable for parts requiring extremely lightweight properties, as they are denser than aluminum alloys.
Zinc alloy die casting is used in a wide range of industries, including:
Automotive: Components such as brackets, housings, and gears are often manufactured using zinc die casting due to the material's strength and durability.
Electronics: Zinc die cast parts are used in the production of consumer electronics like mobile phones, cameras, and computer components.
Industrial Equipment: Zinc die casting is used to create parts for machinery and tools, including valves, fittings, and housings.
IQS Directory: IQS Directory emphasizes the high-precision nature of the zinc alloy die casting process, highlighting its ability to produce parts with tight tolerances and superior surface finishes.
Decoprod: Decoprod focuses on the efficiency of zinc die casting, noting that the process is well-suited for mass production, allowing for high-speed operations while maintaining part quality.
ASME: The American Society of Mechanical Engineers (ASME) discusses the advancements in die casting technology, including improved machine controls and monitoring systems that optimize cycle time and part quality.
Neway Precision: Neway Precision highlights the importance of selecting the right zinc alloy and optimizing the die casting process parameters to achieve consistent, high-quality parts.
Sunrise Metal: Sunrise Metal notes that zinc die casting is ideal for producing small to medium-sized parts with high strength and good corrosion resistance, making it suitable for various industrial applications.
Gabrian: Gabrian emphasizes the cost-effectiveness and recyclability of zinc die casting, making it an attractive option for manufacturers seeking sustainable production methods.
Makerverse: Makerverse focuses on the ability of zinc die casting to produce complex parts with fine details, which are essential in industries like consumer electronics and automotive manufacturing.
In conclusion, zinc alloy die casting machines offer numerous benefits, including high production speed, dimensional accuracy, and cost-effectiveness. The die casting machine process involves several stages, including die preparation, injection, cooling, and ejection, which work together to produce high-quality parts. While there are some challenges associated with the process, such as tooling costs and potential defects, the advantages make it a popular choice for a wide range of industries, from automotive to electronics. Manufacturers can optimize the process by selecting the right zinc alloy and fine-tuning machine parameters to achieve the best results.
