You will find two main types of temperature control units in industrial settings: analog controllers and digital controllers. Analog controllers offer basic temperature management, while digital controllers use smart sensors and advanced algorithms for more precise results.
Effective temperature control improves industrial efficiency and product quality. For example, manufacturing plants achieve consistent material properties and fewer defects. Food processing facilities maintain safety and quality standards while saving energy.
Sector | Impact on Efficiency and Quality |
|---|---|
Manufacturing | Accurate temperature regulation leads to consistent material properties and reduced production costs and defects. |
Food Processing | Maintains specific temperatures for safety and quality, resulting in improved energy efficiency and compliance with health regulations. |
Simple explanations and practical examples help you understand which temperature control unit fits your needs.
Temperature control units are essential for managing industrial processes. They help maintain safety and quality by stabilizing temperatures.
There are three main types of temperature controllers: On/Off, Proportional, and PID. Each type offers different levels of precision and control.
Choosing the right temperature control unit depends on factors like accuracy, measurement range, and environmental conditions. Match the unit to your specific process needs.
Using a PID controller provides the highest precision and stability, making it ideal for sensitive applications like pharmaceuticals and food processing.
Effective temperature control can improve product quality, reduce energy costs, and ensure compliance with industry regulations.
A temperature control unit helps you manage and stabilize temperature in industrial processes. You use it to keep equipment and materials at the right temperature for safety and quality. In industrial automation, a temperature control unit receives signals from a temperature sensor, such as a thermocouple or resistance thermometer. It uses advanced PID controllers to adjust heating or cooling. You can see how important this device is in many industries.
Term | Definition |
|---|---|
Temperature Control Unit | A special I/O unit that receives inputs directly from a thermocouple or resistance thermometer and performs advanced PID control. It can output signals for two-loop control. |
Temperature Control Unit (TCU) | A device that adjusts temperature, improves product quality, ensures process safety, and optimizes energy efficiency. It maintains temperature stability in key processes with high precision. |
You will find several key components inside most temperature control units. Each part plays a specific role in temperature control.
Component | Function |
|---|---|
Sensor | Provides accurate temperature readings. Common types include thermocouples and RTDs. |
Controller | Sends signals to adjust temperature based on the difference between actual and setpoint temperatures. |
Control Element | Adjusts system temperature using heaters or coolers. |
You often see pumps, heaters, PLCs, and fluid circulation systems working together. Pumps circulate fluids for even temperature distribution. Heaters raise the temperature of fluids to meet process needs. PLCs monitor temperature and control pumps and heaters using real-time data. Fluid circulation ensures heated or cooled fluids reach all parts of the system.
You might wonder, how does a temperature control unit work? The process starts when the temperature sensor detects the current temperature. The temperature controller compares this value to the setpoint. If there is a difference, the controller sends a signal to the control element, such as a heater or cooler. Pumps move the fluid through the system, and PLCs coordinate the actions for precise temperature control.
You see temperature control units in many industries. In injection molding, you use them to regulate mold temperature for high-quality parts. In pharmaceuticals, you rely on them to keep products like vaccines at safe temperatures. In food processing, they help with pasteurization and fermentation, ensuring safety and quality.
Tip: Using a temperature control unit helps you maintain product quality, comply with regulations, and save energy.
When you choose a temperature control unit, you will find several types of temperature controllers. Each type uses a different method to manage temperature. Understanding these differences helps you select the right system for your process.
An On/Off temperature controller is the simplest type. You use it when you need basic temperature control. This controller works like a switch. When the temperature drops below your setpoint, the controller turns the heater or cooler on. When the temperature rises above the setpoint, it turns the device off. This creates a cycle where the temperature moves up and down around the setpoint.
You often see On/Off controllers in:
Manufacturing, such as plastics, metalworking, and textiles, where machines must stay within a safe temperature range.
Food and beverage processing, where you need to keep products safe during storage and transport.
HVAC systems, which keep buildings comfortable by turning heaters or air conditioners on and off.
Laboratories, where you maintain stable conditions for experiments.
Medical equipment, such as incubators, where a constant temperature is critical.
Note: On/Off controllers work best in systems with a large thermal mass, like die casting or injection molding, where temperature changes slowly.
While On/Off controllers are simple and inexpensive, they do not provide precise temperature control. The temperature can swing above and below the setpoint. This can lead to energy waste, especially if the system switches on and off too often.
Advantages | Limitations |
|---|---|
Simple to use | Temperature swings around the setpoint |
Low cost | Less precise control |
Digital output (on/off) | Can waste energy with frequent switching |
A proportional temperature controller gives you better control than an On/Off controller. Instead of switching fully on or off, it adjusts the output based on how close the temperature is to the setpoint. If the temperature is far from the setpoint, the controller increases the output. As the temperature gets closer, the output decreases. This reduces the size of temperature swings.
Controller Type | Functionality | Temperature Control Precision | Temperature Swing |
|---|---|---|---|
Proportional Controller | Adjusts output based on proximity to set point, using a deadband for control. | Better | Smaller swings |
On/Off Controller | Toggles system on or off, leading to larger temperature swings. | Poorer | Larger swings |
You often use proportional controllers in processes that need steady temperature, such as:
Heat treatment of metals
Baking
Curing rubber
Drying processes
Proportional controllers help you avoid the constant cycling of On/Off controllers. You get smoother temperature control, which improves product quality and saves energy.
A PID temperature controller is the most advanced type. PID stands for Proportional, Integral, and Derivative. This controller uses three actions to keep the temperature as close as possible to the setpoint.
Proportional: Adjusts the output based on the current difference between the setpoint and the actual temperature.
Integral: Looks at the total error over time and corrects it, so the temperature does not drift away from the setpoint.
Derivative: Predicts future changes by looking at how fast the temperature is changing, helping to prevent overshooting.
A PID temperature controller continuously measures the temperature using a temperature sensor. It calculates the best output to reach and hold the setpoint. You often use PID controllers in systems where you need very stable and accurate temperature control, such as ovens, air conditioning, and injection molding.
PID controllers are common in temperature control, flow control, and motor control.
They provide stable and accurate control with simple implementation.
You rely on them in industries where precise temperature control is crucial.
Tip: PID controllers can be complex to set up and tune. In some cases, simpler controllers may work better, especially if your process does not need high precision.
PID controllers offer excellent stability, but they may not always save more energy than On/Off controllers, especially in systems with high thermal inertia. Tuning a PID controller can also be challenging, especially for small businesses.

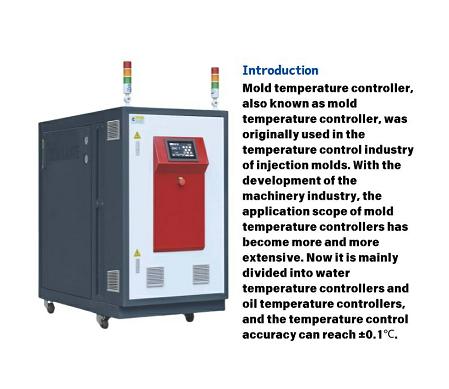

You can find different types of temperature control units on the market. Some use standard water and work up to the boiling point. Others use pressurized water to reach higher temperatures without boiling.
Type of TCU | Description |
|---|---|
Standard Water TCUs | Economical units suitable for applications up to a certain temperature range, limited by water's boiling point. |
Pressurized Water TCUs | Designed for high-temperature applications, maintaining water under pressure to exceed boiling point without vaporizing. |
Note: When you select a temperature control unit, consider the type of controller, the temperature range, and the needs of your process.
You need to understand the main differences between On/Off, Proportional, and PID temperature controllers before choosing one for your process. Each type manages temperature in a unique way. The table below highlights their operational features:
Control Type | Description | Advantages | Disadvantages |
|---|---|---|---|
On/Off Control | Switches output on or off at the setpoint. | Simple, cost-effective | Causes temperature swings and cycling |
Proportional Control | Adjusts output based on the difference between setpoint and actual temperature. | Smoother temperature control, less overshoot | May not eliminate all fluctuations |
PID Control | Uses proportional, integral, and derivative actions for precise regulation. | Highly accurate, stable temperature regulation | More complex setup and tuning |
You see On/Off controllers in basic applications. Proportional controllers work well when you want fewer temperature swings. PID controllers give you the most precise temperature regulation, which is important in processes like injection molding.
Every temperature controller has strengths and weaknesses. You should weigh these carefully:
On/Off controllers:
�� Easy to use and install
�� Poor accuracy, can lead to temperature oscillations
Proportional controllers:
�� Reduce rise time and speed up response
�� May not fully remove steady-state errors
PID controllers:
�� Offer the best stability and accuracy
�� Require more expertise and may cost more
Tip: If your process needs tight temperature control, such as in a cooling system for sensitive equipment, PID controllers are often the best choice.
When you select temperature control units, consider several important factors:
Factor | Description |
|---|---|
Accuracy | Match the controller’s accuracy to your process needs. |
Measurement Range | Ensure the controller covers your required temperature range. |
Environmental Conditions | Choose materials and designs that withstand your facility’s environment. |
Type of Process Medium | Make sure the controller is compatible with your process fluids or gases. |
Installation & Integration | Plan for sensor placement and compatibility with existing systems. |
Regulatory Compliance | Follow industry guidelines, such as USP <1079> for pharmaceuticals. |
You should also think about how does a temperature control unit work in your specific setup. For example, in injection molding, you need precise temperature control to avoid defects. In food processing, you must meet safety standards. Always check if your team has the skills to operate and maintain the chosen controller. Training often includes learning about sensors, calibration, and control loop performance.
Remember: The right temperature controller improves product quality, saves energy, and ensures safe operation.
You can choose from several types of temperature controllers, each with unique benefits:
On/Off controllers provide basic, reliable temperature control.
Proportional controllers adjust output for smoother temperature changes.
PID controllers deliver the highest precision and process stability.
Modern controllers help you save energy and improve safety.
When selecting a temperature controller, check sensor compatibility and consider your industry’s needs. Experts recommend consulting with professionals for the best fit. Matching the right controller to your application boosts efficiency and product quality. For example, food processing plants reduce spoilage, and pharmaceutical companies achieve better batch stability.
Industry | Use Case Example | Improvement |
|---|---|---|
Food Processing | Pasteurization in dairy plants | Less spoilage, better consistency |
Pharmaceuticals | Vaccine production | Fewer batch failures, more safety |
You set a target temperature. The controller reads data from temperature sensors. It compares the actual temperature to your setpoint. If there is a difference, the controller signals the system to heat or cool until the temperature matches your target.
You use a heat transfer fluid to move heat from one part of a temperature control system to another. Common fluids include water, oil, and specialized chemicals. These fluids help maintain stable temperatures in industrial processes like blow molding.
You rely on temperature sensors to provide accurate readings for your temperature control unit. These sensors help you monitor and adjust the temperature in real time. Reliable sensors improve safety and product quality in your process.
You can use a temperature control system to regulate mold temperature in blow molding. This helps you produce consistent, high-quality plastic parts. Proper temperature control reduces defects and improves cycle times.
You should consider your process requirements, temperature range, type of heat transfer fluid, and compatibility with temperature sensors. You also need to think about installation, maintenance, and integration with your existing equipment.
