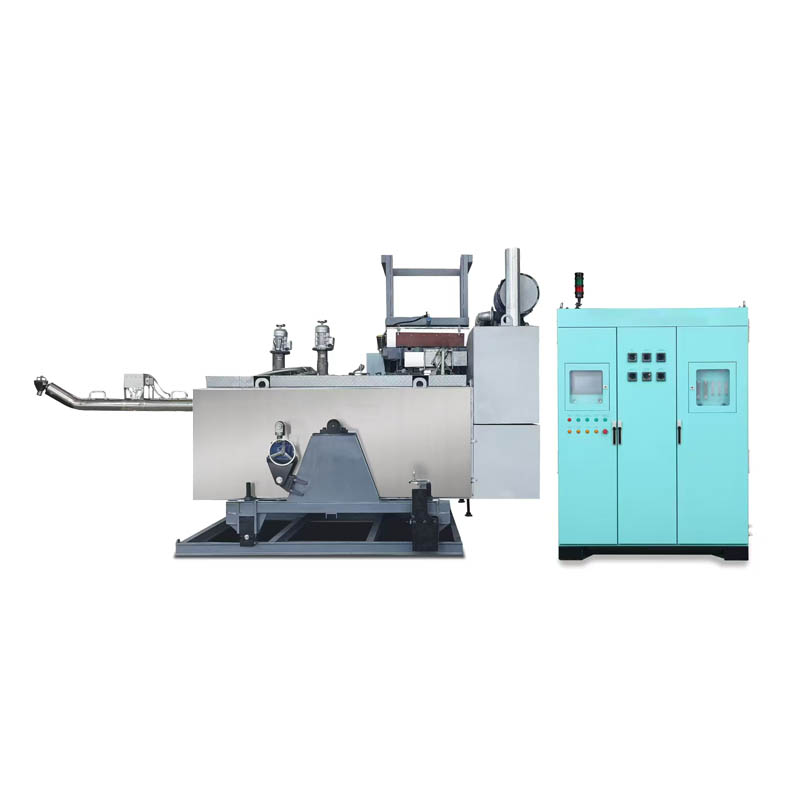

How Do You Choose the Right Mg Alloy Melting Furnace?

Magnesium presents severe metallurgical hurdles. Its high oxygen affinity, extreme reactivity, and narrow thermal processing windows demand specialized handling. Exposing molten magnesium to ambient air without proper protection causes rapid oxidation and potential ignition. Selecting the wrong furnace configuration directly causes excessive dross formation, dangerous thermal runaways, frequent crucible failures, and unacceptable facility downtime. To mitigate these risks and maintain continuous production, plant engineers must implement a structured framework for evaluating magnesium melting equipment. A proper technical assessment goes beyond basic capacity requirements. It requires analyzing thermal precision, advanced safety mechanisms, utility infrastructure matching, and seamless integration capabilities with your existing casting architecture. This guide breaks down the technical specifications and operational realities you must evaluate to specify the correct melting system for your facility.

• Safety and Atmosphere Control: Furnace selection must prioritize advanced protective gas mixing systems (fluxless melting) to prevent oxidation and combustion.
• Energy Source Trade-offs: Electric heating offers superior temperature uniformity and element redundancy, while gas-fired systems provide rapid melt rates but require complex exhaust and burner management.
• Process Integration: The choice between continuous holding and batch melting dictates whether a hot chamber setup or an automated dosing system is required.
• Crucible Integrity: Long-term operational viability depends heavily on crucible metallurgy (e.g., bimetallic or clad steel) to prevent iron dissolution and catastrophic leaks.
• Facility Readiness & Utility Match: Upfront assessment of power supply (3-phase power availability), facility footprint, and exhaust ducting is critical to avoid costly post-purchase facility modifications.

The Core Operational Challenges of Mg Alloy Melting

Oxidation and Flammability Risks

The fundamental challenge in Mg Alloy Melting is isolating the melt surface from ambient oxygen. Historically, foundries relied on heavy flux layers to create a physical barrier over the molten metal. Modern operations have shifted entirely to fluxless melting using protective gas atmospheres. This transition requires furnaces designed with tightly sealed crucible covers and precise gas delivery systems. If the furnace design allows drafts or fails to maintain a consistent gas blanket, the magnesium will oxidize, creating hard inclusions that ruin casting quality and pose severe fire hazards. You must ensure the furnace lid seals perfectly against the crucible rim. Even a millimeter gap can draw in oxygen due to the thermal draft created by the hot metal. The gas delivery system must distribute the protective mixture evenly across the entire melt surface without creating high-velocity jets that disturb the liquid metal.

Furthermore, the physical design of the charging door plays a massive role in atmosphere retention. Every time an operator opens the door to load ingots, the protective gas escapes, and ambient air rushes in. High-quality furnaces utilize airlock systems or automated charging elevators that minimize the open-door time. Some advanced systems even feature secondary gas purge nozzles that flood the charging vestibule with inert gas before the main door opens, ensuring zero oxygen ingress during the loading cycle.

Thermal Sensitivity

Magnesium alloys require strict temperature control. Common alloys like AZ91D or AM60B are typically processed between 650°C and 680°C. If the furnace temperature drops, the metal becomes sluggish, leading to cold shuts and incomplete fills in the die. Overheating accelerates alloy degradation, increases the vaporization rate, and rapidly degrades the crucible walls. The melting equipment must feature multi-zone temperature monitoring and rapid-response heating controls to maintain the melt within a tight ±5°C tolerance. Thermocouples must be positioned strategically—both in the melt and in the heating chamber—to provide the PLC with accurate data for predictive heating algorithms.

Thermal stratification is another issue in poorly designed furnaces. The metal at the bottom of the crucible can be significantly colder than the surface. This temperature gradient causes inconsistent shot weights and unpredictable shrinkage in the final casting. To combat this, the furnace heating elements must be zoned vertically, allowing the control system to apply more heat to the lower sections of the crucible when necessary. This ensures a homogenous temperature profile throughout the entire molten bath.

Sludge and Dross Management

During continuous operation, intermetallic compounds and oxides inevitably form, settling at the bottom or floating on the surface. Furnace geometry directly impacts how this sludge accumulates and how easily operators can remove it. A poorly designed crucible with inaccessible corners makes routine cleaning difficult. Accumulated sludge reduces the effective capacity of the furnace, creates cold spots, and can trap protective gases, leading to dangerous pressure buildups. Operators must perform daily dross skimming and weekly bottom-sludging routines.

The crucible design should feature a smooth, rounded bottom to facilitate the use of sludging tools. Sharp corners or flat bottoms allow heavy intermetallics (like iron and manganese compounds) to pack tightly, eventually hardening into a solid mass that requires pneumatic chipping tools to remove. This aggressive cleaning often damages the crucible walls, leading to premature failure. Specifying a furnace with an optimized crucible geometry drastically reduces maintenance time and extends the operational life of the equipment.

Evaluating Magnesium Melting Equipment by Energy Source

Electric Resistance Furnaces

Electric resistance heating is the standard for high-precision magnesium operations. These systems utilize heavy-gauge heating elements arranged around the crucible to provide even, highly controllable heat distribution. Foundries prioritizing metal quality and safety almost exclusively specify electric heating for their holding and dosing applications.

The primary advantage is element redundancy. Modern electric furnaces wire heating elements in parallel zones. If one element fails during a shift, the surrounding elements compensate, ensuring production continues without catastrophic metal freezing. Electric systems deliver superior temperature uniformity. They eliminate the localized hot spots common in gas systems, reducing surface turbulence and minimizing the degradation of the protective gas cover. You get a calm, stable melt surface that requires less protective gas to maintain.

Foundries must ensure adequate electrical infrastructure, specifically high-amperage 3-phase power. Heating coils are also susceptible to degradation if exposed to corrosive gas vapors or flux residues, requiring protective ceramic barriers. When evaluating electric furnaces, inspect the element mounting system. Elements should be mounted on ceramic tubes that allow for rapid slide-out replacement from the outside of the furnace shell, preventing the need to pull the entire crucible just to change a single faulty heater.

Gas-Fired Furnaces

Gas-fired systems utilize natural gas or propane burners to heat the crucible. They are typically deployed in high-volume breakdown scenarios where rapid melting is prioritized over pinpoint thermal accuracy. Central melting facilities that feed multiple holding furnaces often rely on gas power to keep up with high throughput demands.

Gas furnaces offer high energy density and rapid melt rates. They excel in central melting applications where large volumes of cold ingots must be liquefied quickly before transfer to holding furnaces. However, indirect heating is mandatory. The combustion chamber must be completely isolated from the magnesium crucible. Any interaction between combustion gases (which contain moisture) and molten magnesium will result in violent explosions. The crucible acts as the only barrier between the flame and the reactive metal.

Installing gas systems requires extensive facility modifications, including high-capacity exhaust ducting, makeup air handling, and emissions compliance monitoring. Recuperative burners are often necessary to improve efficiency, adding complexity to the maintenance schedule. Burner tuning is critical; an improperly tuned burner can create a localized hot spot on the crucible wall, leading to rapid scaling, thinning, and eventual breach of the steel vessel.

Matching the Furnace to Your Magnesium Die Casting Line

Hot Chamber Furnace Systems

A hot chamber furnace is engineered for high-speed production of smaller, thin-walled components like electronics housings or power tool bodies. In this setup, the injection mechanism (the gooseneck) is submerged directly in the molten magnesium. This eliminates the need to transfer metal through the air, drastically reducing oxidation and cycle times.

This configuration demands a continuous, highly stable holding temperature. The furnace must integrate seamlessly with the die casting machine, providing a sealed environment that prevents oxidation around the submerged components. The gooseneck itself acts as a massive heat sink, so the furnace must have the thermal capacity to recover quickly after each shot. The primary limitation is capacity; hot chamber systems are restricted by the size of the gooseneck and are generally unsuitable for massive structural castings. Maintenance also requires specialized protocols to safely extract and service the submerged injection hardware, which involves pulling heavy, hot steel components out of the melt using overhead cranes.

Automatic Dosing Furnaces for Cold Chamber Casting

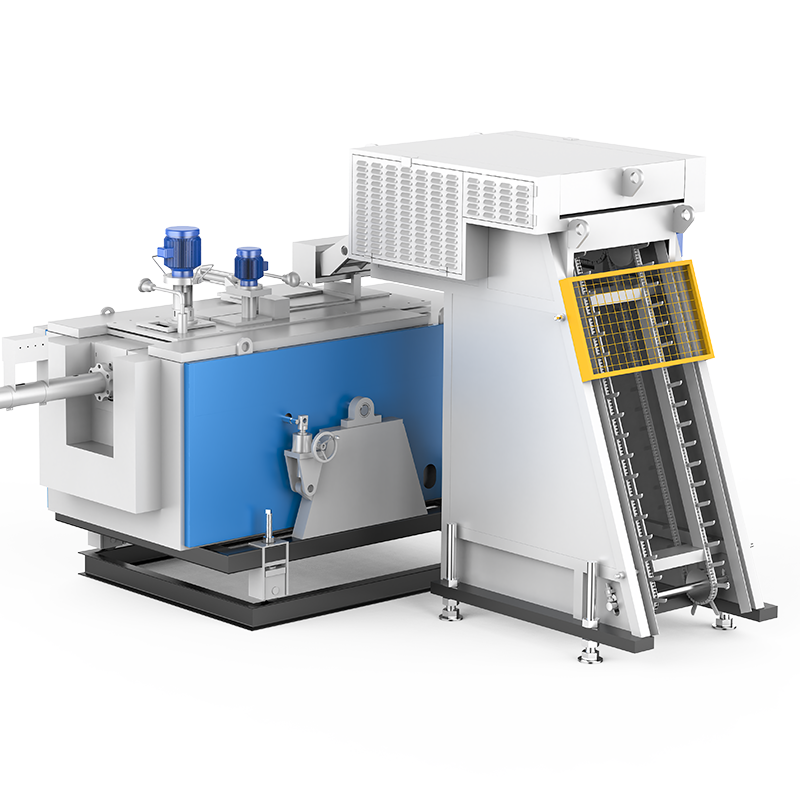

For larger structural components, such as automotive cross-car beams or transmission cases, an automatic dosing furnace paired with a cold chamber machine is required. These furnaces hold the molten metal and dispense exact volumes into the shot sleeve for each cycle. They bridge the gap between the melting process and the high-pressure injection phase.

The critical advantage of automated dosing is the reduction of metal turbulence. Mechanical ladling exposes magnesium to air, causing instant oxidation. An enclosed dosing system utilizes inert gas pressure or a mechanical pump to transfer the metal through a heated launder tube directly into the shot sleeve. This maintains the protective gas cover throughout the transfer, drastically reducing oxide inclusions and ensuring highly repeatable shot weights for large-scale manufacturing. The launder tube must be independently heated and monitored to prevent the metal from freezing during transfer, which would cause immediate production halts and require dangerous manual clean-out procedures.

Precision Casting Furnace Requirements

Foundries serving the aerospace and high-end automotive sectors must meet stringent metallurgical standards. A precision casting furnace is designed specifically for alloy purity and process traceability. These systems feature advanced PLC-based controls that log temperature data, gas flow rates, and dosing volumes for every single shot. Quality control departments rely on this data to certify that every casting was produced within the specified thermal window.

They often incorporate automated alloy replenishment systems, utilizing pre-heated ingots fed through airlocks to maintain absolute thermal stability and prevent moisture introduction. Manual ingot charging causes temperature drops and disturbs the protective gas layer. Automated systems feed metal at the exact rate it is consumed, keeping the melt level constant. A constant melt level is critical for automatic dosing systems that rely on gas pressure, as variations in the metal height will alter the dosing volume and cause short shots or flashing in the die.

Critical Technical Specifications to Evaluate

Crucible Metallurgy

Standard cast iron or basic steel crucibles are insufficient for long-term magnesium melting. Molten magnesium aggressively attacks certain metals, particularly nickel and copper. You must specify crucibles fabricated from low-nickel, low-copper steel alloys. For high-capacity operations, bimetallic clad crucibles offer superior resistance to high-temperature creep and prevent iron dissolution into the magnesium melt, which would otherwise ruin the alloy's corrosion resistance. The exterior of the crucible, exposed to the heating elements, must resist scaling and oxidation at temperatures exceeding 800°C, while the interior must remain inert to the molten magnesium.

Protective Gas Mixing Systems

The industry is rapidly phasing out SF6 due to strict environmental regulations regarding greenhouse gases. Your chosen furnace must feature a gas mixing panel capable of handling modern alternatives like N2/SO2 blends, HFC-134a, or Novec 612. The system must provide precise mass flow control to maintain the exact concentration required to form a stable protective film on the melt surface without generating excessive corrosive byproducts. If the SO2 concentration is too high, it will aggressively corrode the steel crucible above the melt line and destroy the furnace lid seals. The mixing panel must include automatic switchover valves for backup gas cylinders to prevent a loss of atmosphere if a primary supply line runs empty.

Leak Detection and Containment

Crucible breaches are a reality in magnesium processing. The furnace design must include mandatory bi-level leak detection probes situated in the heating chamber. If molten metal breaches the crucible, these probes instantly trigger alarms and shut down heating elements. Furthermore, the furnace must sit above an emergency run-off pan sized to safely contain the entire volume of the crucible, preventing the molten magnesium from contacting concrete floors and causing structural fires. The run-off pan must be kept completely dry and free of debris at all times. Moisture in the run-off pan will cause a catastrophic steam explosion if molten magnesium pours into it.

Facility Footprint & Structural Compatibility

Before finalizing a specification, evaluate the physical demands the equipment will place on your facility. Magnesium furnaces, complete with thick refractory linings and heavy steel shells, exert massive point loads on foundry floors. Verify structural floor load ratings. Additionally, ensure adequate overhead clearance for cranes to extract crucibles for maintenance, and sufficient lateral space for automated ingot charging elevators. You must also account for the routing of protective gas lines, electrical conduits, and exhaust ventilation for the SO2 or other cover gases that escape during charging or drossing operations.

Implementation Risks and Mitigation Strategies

Deploying a new melting system introduces specific operational risks that must be managed through rigorous engineering and procedural controls. You cannot simply install the equipment and expect it to run flawlessly without a comprehensive risk management plan.

1. Implement strict daily visual inspection protocols for the crucible interior, looking for signs of pitting or excessive scaling near the melt line.
2. Conduct monthly ultrasonic thickness testing on the crucible walls to track wear rates and predict failure before it happens.
3. Ensure the furnace design incorporates expansion joints that allow the crucible to expand and contract without binding against the refractory lining.
4. Choose heavy-gauge electric elements housed behind protective ceramic barriers to prevent corrosive gas attack.
5. Require redundant gas delivery lines and automated backup flow meters tied directly to the main PLC to trigger audible alarms if primary flow drops.
6. Mandate automated pre-heating conveyors and charging elevators that dry the ingots and lower them slowly into the melt, keeping operators at a safe distance from potential splashing.

Operator training is the final, and often most neglected, mitigation strategy. Your personnel must understand the specific hazards of magnesium. They need hands-on training for emergency procedures, including how to respond to a crucible leak alarm, how to manually extinguish a surface fire using Class D extinguishing agents, and how to safely evacuate the area if a thermal runaway occurs. The equipment vendor should provide this specialized training during the commissioning phase.

Vendor Selection and Validation

Selecting the right manufacturing partner is as critical as the hardware itself. You are integrating a highly volatile process into your magnesium die casting line, requiring specialized expertise. Assess the vendor's engineering capability to customize furnace layouts. Off-the-shelf solutions rarely fit perfectly into existing foundry footprints. The vendor must demonstrate the ability to modify launder lengths, dosing angles, and control panel placements to match your specific infrastructure.

Prioritize manufacturers that mandate comprehensive Factory Acceptance Testing (FAT). Never accept delivery of a magnesium furnace without reviewing documented dry-run testing and thermal mapping validation performed at the vendor's facility. This ensures the heating zones perform to specification before the equipment reaches your floor. Evaluate the practical maintenance intervals of the proposed design. Heating elements, thermocouples, and clean-out ports must be easily accessible. Finally, verify the vendor's specific track record in magnesium processing. General aluminum or zinc furnace manufacturers often lack the nuanced understanding of protective gas dynamics and specialized crucible metallurgy required for safe magnesium operations.

Conclusion

1. Define your exact capacity requirements and casting method to determine if you need a hot chamber holding setup or an automated cold chamber dosing system.
2. Audit your facility's utility infrastructure to confirm you have the necessary 3-phase power or gas supply to support the chosen energy source.
3. Request detailed thermal uniformity surveys and crucible metallurgy specifications from shortlisted vendors before issuing an RFQ.
4. Verify the vendor's protective gas mixing technology complies with current environmental regulations and supports modern gas blends.

FAQ

Q: What is the best protective gas for Mg alloy melting?

A: The industry is moving away from SF6 due to environmental regulations. Modern facilities utilize precisely mixed blends of dry air or Nitrogen with small concentrations of SO2, HFC-134a, or Novec 612. The ideal gas depends on local regulations and the specific furnace's gas mixing panel capabilities.

Q: How long does a crucible typically last in a magnesium melting furnace?

A: Crucible lifespan varies based on throughput, alloy type, and maintenance. A standard low-nickel steel crucible lasts 6 to 12 months under continuous use. High-end bimetallic clad crucibles can extend this lifespan to 18-24 months if proper sludge removal and thermal management protocols are followed.

Q: What is the difference between a hot chamber furnace and an automatic dosing furnace?

A: A hot chamber furnace features a submerged injection mechanism directly in the melt, ideal for high-speed, small parts. An automatic dosing furnace holds the metal and precisely pumps a specific volume into a separate cold chamber machine, suited for large structural castings.

Q: Why are electric furnaces often preferred over gas for magnesium?

A: Electric furnaces provide superior temperature uniformity and eliminate localized hot spots. They offer heating element redundancy, meaning if one zone fails, others compensate to prevent metal freezing. They also eliminate the risk of combustion gases interacting with the magnesium.

Q: How do modern furnaces prevent magnesium fires during the melting process?

A: Modern furnaces prevent fires through tightly sealed crucible covers and automated protective gas mixing systems that maintain an oxygen-free barrier over the melt. They also utilize automated ingot pre-heaters to eliminate moisture before charging, preventing steam explosions.

Q: What are the signs of intermetallic sludge buildup in a magnesium furnace?

A: Signs include inconsistent temperature readings, reduced effective crucible capacity, and difficulty maintaining a stable protective gas cover. Operators will also notice increased physical resistance when probing the bottom of the crucible during routine manual inspections.
