How Do You Maintain A Cold Chamber Die Casting Machine?

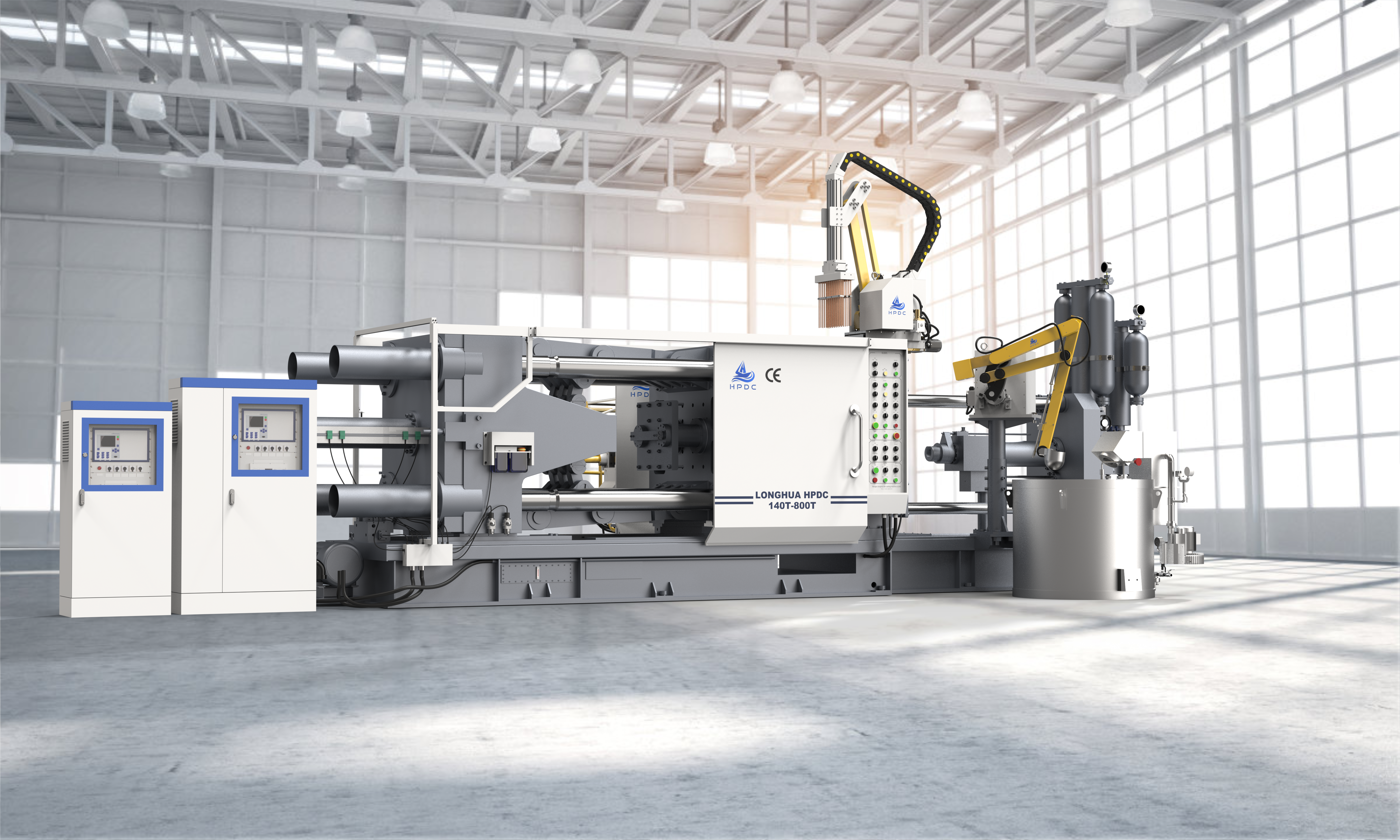

Maintaining industrial equipment is rarely glamorous. Yet, it dictates the financial heartbeat of any foundry. When pouring molten alloys at blistering temperatures, proactive care separates peak performance from catastrophic failure. A Cold Chamber Die Casting Machine operates in a severely punishing environment. The high melting points of aluminum, brass, and magnesium accelerate mechanical wear. They also induce rapid thermal fatigue across critical components. Ignoring these harsh realities risks devastating unplanned downtime. You will also see crippling drops in Overall Equipment Effectiveness (OEE).

This guide gives plant managers an evidence-based framework for evaluating maintenance strategies. We explore critical wear points thoroughly. We also analyze various internal and external service models. Ultimately, you will learn how to shift from reactive fixes to sustainable, condition-based reliability.

Key Takeaways

• Targeted maintenance of the shot end (plunger, tip, and sleeve) is the primary variable in controlling scrap rates and extending equipment lifecycle.

• Transitioning from reactive repairs to condition-based predictive maintenance significantly reduces unplanned downtime and stabilizes yield.

• Successfully scaling a maintenance program requires balancing internal technician training with the strategic use of OEM service agreements and CMMS (Computerized Maintenance Management System) platforms.

The Business Impact of Maintenance on Die Casting Operations

Effective maintenance transforms equipment from a massive liability into a predictable asset. Foundry leaders must reframe their operational mindset. You must shift away from merely fixing broken parts. Instead, prioritize maximizing equipment availability. Consistent cycle times and superior casting quality should drive your daily agenda.

Defining Success Criteria

Modern foundries measure maintenance success through precise operational metrics. You cannot manage what you do not measure. Establish clear benchmarks for your maintenance teams. Consider the following performance indicators:

1. Mean Time Between Failures (MTBF): Tracks the average operational hours before a machine requires repair.

2. First Pass Yield (FPY): Measures the percentage of defect-free castings produced without requiring rework.

3. Planned Maintenance Percentage (PMP): Compares scheduled maintenance hours against reactive emergency repairs.

The Cost of Unplanned Downtime

Reactive maintenance destroys profitability. When a machine fails unexpectedly, you suffer compounded financial losses. First, you lose valuable production hours. Next, you often pay premium freight rates for expedited replacement parts. Finally, you waste massive amounts of energy. Holding furnaces must maintain molten metal temperatures while the machine sits idle. These hidden costs accumulate rapidly. They drain your operating budget and frustrate your customers.

Yield and Scrap Correlation

Minor mechanical neglect directly sabotages product quality. Small pressure drops in the hydraulic system cause sluggish injection speeds. Thermal inconsistencies in the die lead to premature solidification. These unaddressed wear issues directly translate to porosity, severe flash, and rejected castings. By maintaining tight tolerances, you stabilize your yield. A well-maintained machine produces fewer scrapped parts. This efficiency maximizes your material utilization and boosts your bottom line.

Critical Wear Points in a Cold Chamber Die Casting Machine

Every industrial press features specific subsystems vulnerable to continuous operational stress. Identifying these zones allows you to allocate maintenance resources effectively. You must inspect these areas meticulously to prevent catastrophic breakdowns.

The Shot End (Plunger, Tip, and Sleeve)

The shot end represents the heart of the injection process. It endures extreme thermal shock during every cycle. Molten aluminum enters the shot sleeve at roughly 650°C. The steel sleeve absorbs this intense heat instantly. A water-cooled plunger then rams the metal forward. This violent temperature cycling causes heat checking and microscopic surface cracks.

You must establish strict evaluation criteria for this zone:

• Lubrication Effectiveness: Ensure automated sprayers distribute plunger lubricant evenly. Dry spots cause immediate galling.

• Clearance Tolerances: Measure the gap between the plunger tip and the sleeve walls. Excessive clearance allows molten metal to blow back, destroying pressure integrity.

• Cooling Channel Flow: Verify unobstructed water flow inside the plunger rod. Mineral buildup restricts cooling and accelerates tip degradation.

Hydraulic and Injection Systems

Precise injection speeds rely entirely on a robust hydraulic system. Fluid cleanliness is non-negotiable. Contaminated hydraulic oil destroys expensive proportional valves. You must monitor filtration systems constantly. Take oil samples quarterly to check for water ingress and particulate degradation.

Additionally, monitor your nitrogen accumulators. Accumulator pressure dictates the explosive force needed for the final intensification phase. A slow pressure leak results in porous, defective castings. Check pre-charge pressures weekly to ensure consistent injection profiles.

Die Clamping and Tie Bar Systems

The die clamping system absorbs immense physical forces. Routine tonnage calibration prevents uneven die separation. If you fail to calibrate tonnage, you risk dangerous metal flash. Worse, uneven strain distribution causes catastrophic mechanical failure. A snapped tie bar halts production for weeks.

Common Mistake: Many operators ignore tie bar strain monitoring until a fracture occurs. You should use strain gauges regularly. Verify balanced load distribution across all four tie bars after every major die change.

Structuring Your Maintenance Strategy: Preventive vs. Predictive

Choosing the right maintenance framework defines your operational efficiency. Most facilities utilize a hybrid approach. They blend routine schedules with advanced sensor technology.

Calendar-Based Preventive Maintenance (PM)

Preventive maintenance relies on strict, calendar-based schedules. You define baseline Standard Operating Procedures (SOPs) for different intervals. This ensures technicians address basic wear items systematically.

However, calendar-based PM has limitations. Schedule-based parts replacement often leads to over-maintenance. You might replace a perfectly good valve simply because the calendar dictates it. This wastes money and introduces unnecessary human error during the swap.

Condition-Based Predictive Maintenance (PdM)

Predictive maintenance tracks actual equipment health in real-time. You evaluate the integration of IoT (Internet of Things) sensors across the machine. Vibration analysis monitors pump bearings. Thermal imaging detects failing electrical contactors. Pressure transducers track hydraulic efficiency.

Integrating these sensors requires upfront capital. However, the long-term financial benefits easily justify the cost. Forecasting failures before they impact production stabilizes your workflow. You order parts only when sensors indicate impending wear. This approach maximizes part lifespan and drastically reduces unnecessary interventions.

Implementation Risks and Operator Safety in Metal Die Casting

Transitioning maintenance strategies involves significant hurdles. You must navigate safety regulations, personnel shortages, and fragmented data systems. A Metal Die Casting Machine demands specialized handling. Generalized approaches often lead to severe accidents or compromised machinery.

Compliance and Safety Protocols

Safety remains paramount when servicing foundry equipment. Technicians work around high-pressure hydraulics, extreme temperatures, and heavy moving platens. You must enforce non-negotiable safety standards. Strict Lockout/Tagout (LOTO) procedures prevent accidental machine activation during repairs.

Furthermore, managing fire-resistant hydraulic fluids requires specific protocols. Some synthetic fluids become highly toxic when heated beyond their flashpoints. Technicians need proper personal protective equipment (PPE). They must also understand fluid handling compliance to avoid environmental fines.

The Skills Gap and Training Realities

The manufacturing sector faces a severe shortage of specialized maintenance technicians. Relying on generalized maintenance staff poses massive risks. A technician skilled in HVAC repair may not understand the nuances of proportional hydraulic valves.

You must strategize internal capability building. Invest heavily in specialized training programs. Send your best mechanics to OEM-certified workshops. Cultivate a deep understanding of PLC troubleshooting and fluid dynamics. If you cannot build this expertise internally, you risk prolonged downtime during complex breakdowns.

Best Practice: Pair junior mechanics with senior technicians for a full year. Mentorship transfers undocumented, machine-specific quirks better than any manual.

Data Silos

Isolated data cripples maintenance optimization. Many facilities keep maintenance records in fragmented spreadsheets. Others rely on paper binders stuffed in cabinets. This creates dangerous data silos. You lose valuable historical failure data. When a veteran technician retires, their institutional knowledge vanishes.

You must digitize and centralize your records. Integrated tracking systems highlight recurring failure patterns. If a specific pump fails three times in six months, centralized data flags the anomaly. Spreadsheets rarely provide this critical diagnostic visibility.

Evaluating Service Partners and Maintenance Software

Scaling a reliable maintenance program rarely happens in isolation. Most successful foundries leverage external expertise and advanced software. Selecting the right partners streamlines your operations and protects your capital investment.

Shortlisting OEM Service Agreements

External service partners provide critical support during major breakdowns. When evaluating Original Equipment Manufacturer (OEM) service agreements, scrutinize several key dimensions. Do not base your decision solely on hourly rates.

• Guaranteed Response Times: Will they dispatch an engineer within 24 hours of a critical failure?

• Spare Parts Availability: Do they maintain a domestic warehouse for obscure hydraulic manifolds and custom shot sleeves?

• Technician Expertise: Are their field service engineers factory-certified on your specific machine model?

• Predictive Audit Capabilities: Can they perform advanced vibration analysis and thermal audits during annual visits?

Selecting a CMMS for Die Casting Fleets

A robust Computerized Maintenance Management System (CMMS) acts as your operational brain. When selecting software, map features to your desired outcomes. Avoid generic platforms designed for light manufacturing.

Look for a CMMS that integrates directly with your machine PLCs. The software should automate work order generation based on actual cycle counts, not just calendar days. It must also track the historical lifespan of consumable parts. If you know a plunger tip historically lasts 15,000 shots, the CMMS should alert you at 14,000 shots.

Next-Step Actions

Do not wait for a catastrophic failure to revamp your strategy. Take immediate action to audit your current financial baseline. Assess your internal technician competencies honestly. Identify the gaps in their hydraulic and electrical troubleshooting skills. Finally, conduct a vendor evaluation to secure specialized external maintenance support. Proactive planning mitigates future chaos.

Conclusion

You must stop viewing maintenance as a sunk cost. It is a direct investment in process stability and operational profitability. Disciplined maintenance protocols protect the initial capital investment of your heavy machinery. When you prioritize the shot end, maintain fluid cleanliness, and monitor tie bar strain, you guarantee consistent performance.

The transition from reactive firefighting to predictive monitoring takes time. However, the resulting improvements in casting yield and machine uptime transform your business. Encourage your engineering teams to audit current maintenance intervals against OEM specifications. If your internal resources fall short, consult with a specialized service engineer for a comprehensive lifecycle cost analysis.

FAQ

Q: What is the typical lifespan of a shot sleeve in a cold chamber die casting machine?

A: A shot sleeve typically lasts between 40,000 and 100,000 shots. Lifespan depends heavily on the specific alloy poured, operating temperatures, and lubrication consistency. Using aggressive alloys or operating with inadequate plunger cooling will drastically reduce this lifespan through accelerated heat checking and physical wear.

Q: How does maintenance differ between hot chamber and cold chamber machines?

A: Cold chamber machines process high-melt alloys like aluminum. This demands rigorous shot-end maintenance due to extreme thermal shock from manual or automated ladling. Hot chamber machines submerge the injection mechanism directly in lower-melt alloys like zinc. They require less frequent sleeve replacement but demand intense monitoring of the submerged gooseneck and nozzle systems.

Q: What are the early warning signs of hydraulic fluid degradation in die casting equipment?

A: Look for unusual fluid discoloration, burnt odors, or visible sludge inside the reservoir tank. You might also experience sluggish injection speeds, erratic pressure readings, or rapidly clogging filters. Conducting regular laboratory fluid analysis can detect microscopic metal wear and water ingress long before physical symptoms appear.

Q: How often should tie bar strain be calibrated?

A: You should calibrate tie bar strain annually or immediately after any major die crash. High-volume foundries often conduct semi-annual checks. Regular calibration guarantees even clamping force across the platens. This vital practice prevents uneven die wear, dangerous metal flash, and catastrophic tie bar fractures.
