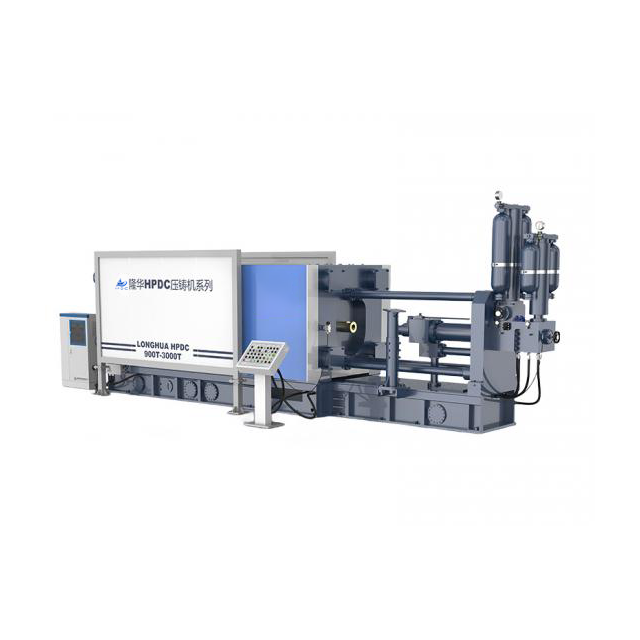

In high-volume manufacturing, the difference between a structurally sound component and a rejected part often comes down to milliseconds. The speed at which molten metal fills a die cavity dictates the viability of the entire production run. Slow or inconsistent mold filling leads to premature solidification, cold shuts, and severe porosity. For procurement and engineering teams evaluating capital equipment or contract manufacturing partners, failing to scrutinize a machine’s injection capabilities directly translates to high scrap rates, compromised part integrity, and degraded ROI. Understanding the exact mechanics of how a High Pressure Die Casting Machine achieves rapid, uniform mold filling is critical. This guide breaks down the injection phases, equipment configurations, and control systems necessary to evaluate machine performance, mitigate production risks, and ensure precise dimensional accuracy.
Three-Phase Injection is Mandatory: Rapid filling relies on a precisely timed sequence—slow shot (air evacuation), fast shot (millisecond filling), and intensification (compaction)—to prevent defects.
Material Dictates Machine Architecture: Aluminum requires a cold chamber high pressure die casting machine to prevent equipment degradation, altering the baseline injection dynamics compared to hot chamber systems.
Closed-Loop Control Separates Tiers: High-end machines utilize real-time sensor feedback to adjust injection velocity and pressure mid-shot, significantly reducing porosity and flash.
Speed vs. Tooling Trade-Offs: While higher injection speeds prevent premature freezing, they exponentially increase die wear; evaluating thermal management and lubrication systems is critical for long-term tooling survival.
To achieve cycle times measured in seconds while maintaining structural integrity, the machine must overcome the rapid cooling rate of molten metal contacting steel dies. The core challenge lies in moving liquid metal from a holding state into a complex geometric void before the material drops below its liquidus temperature. This requires immense force, precise timing, and robust mechanical architecture. We see this daily on the shop floor: if the metal loses too much heat before reaching the furthest thin-wall sections, the part is scrap.
The primary setup involves the interaction between the two-part die-cast mold tool. This tool consists of the fixed cover die, which remains stationary, and the moving ejector die, which opens and closes to release the finished part. The injection unit connects directly to the fixed half, forcing the molten alloy through a runner system and into the cavity. Achieving a flawless fill requires a strictly controlled, three-phase injection sequence. Operators monitor these phases through shot curves displayed on the machine's HMI, looking for specific velocity and pressure transitions.
The injection cycle begins with the slow shot. The plunger moves forward past the pour hole, sealing the molten metal inside the shot sleeve. At this stage, velocity is intentionally kept low, typically between 0.1 and 0.3 meters per second. The primary objective is not to fill the mold, but to gather the molten metal into a solid front while pushing the existing air out of the sleeve and runner system. A controlled, slow velocity prevents turbulence. If the plunger moves too quickly during this phase, it creates a wave effect, folding air into the molten metal. This entrapped air inevitably becomes internal porosity in the final casting. We often adjust the slow shot length to ensure the metal reaches the gate exactly as the fast shot triggers.
Once the metal reaches the gates of the die cavity, the machine transitions instantly to the fast shot. This is where the physics of millisecond filling take over. The hydraulic accumulator discharges its stored energy, driving the plunger forward at extreme velocities. Plunger speeds often exceed 5 meters per second during this phase, pushing metal through the gates at velocities up to 40 meters per second. This massive acceleration ensures the metal reaches the furthest extremities of complex molds before solidification begins. The fast shot must complete the entire cavity fill in roughly 10 to 100 milliseconds. Any delay allows the metal front to freeze prematurely, resulting in cold shuts and incomplete features. The transition from slow to fast shot must be instantaneous; sluggish valves here ruin parts.
Immediately after the cavity fills, the machine initiates the intensification phase. The plunger applies peak hydraulic pressure at the end of its stroke. This sudden spike in pressure serves two critical functions. First, it crushes any residual entrapped gas into microscopic, structurally insignificant pockets. Second, it feeds shrinkage porosity. As the molten metal transitions from liquid to solid, it naturally contracts. The intensification pressure forces additional molten material from the runner system and the biscuit into the cavity, compensating for this volumetric shrinkage and ensuring dimensional accuracy. The timing of this pressure spike is critical; if it hits after the gates have frozen, it does nothing for the part.
The method of delivering molten metal to the injection system fundamentally alters fill speed capabilities, thermal profiles, and equipment lifespan. Machine architecture is dictated almost entirely by the alloy being cast. You cannot force an alloy into the wrong machine type without catastrophic equipment failure.
Hot chamber systems utilize a submerged gooseneck mechanism. The injection cylinder and plunger sit directly inside a crucible of molten metal. Because the injection mechanism is constantly heated, there is no temperature loss during the transfer phase. This setup offers the advantage of shorter fill distances and continuous heat maintenance, allowing for extremely rapid cycle times. However, hot chamber machines have a strict limitation. They are incompatible with highly corrosive, high-melting-point alloys like aluminum. Aluminum aggressively attacks and dissolves the submerged steel components, destroying the injection system rapidly. We only use hot chamber setups for zinc and specific magnesium alloys.

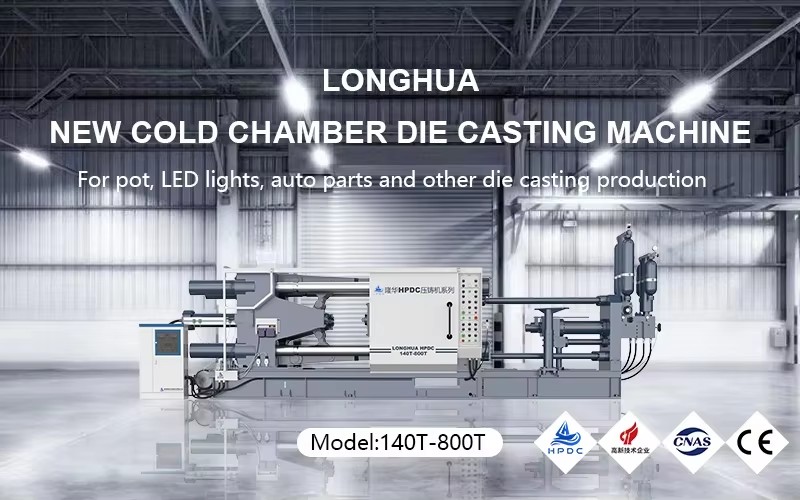

For aluminum and brass, manufacturers must use a cold chamber high pressure die casting machine. In this setup, molten metal is transferred via manual or automated ladling into an unheated shot sleeve for each cycle. This creates specific engineering challenges. The machine must execute the injection sequence fast enough to compensate for the heat lost while the metal sits in the cold sleeve. Alloy-specific melt temperatures heavily impact injection speed and pressure requirements. Aluminum requires higher injection velocities to overcome the rapid temperature drop and prevent premature freezing within the runner system. The shot sleeve itself undergoes severe thermal shock every cycle, requiring specialized H13 tool steel and precise water cooling to maintain its internal diameter.
Feature | Hot Chamber System | Cold Chamber System |
|---|---|---|
Compatible Alloys | Zinc, Magnesium, Lead | Aluminum, Brass, Copper |
Injection Mechanism | Submerged in molten metal | External, unheated shot sleeve |
Cycle Speed | Extremely fast (shorter fill distance) | Slower (requires ladling step) |
Thermal Loss Risk | Minimal | High (requires faster injection velocities) |
Maintenance Focus | Gooseneck and nozzle wear | Shot sleeve and plunger tip wear |
When sourcing equipment specifically for tight-tolerance aluminum components, buyers must evaluate the subsystems that enable and control rapid injection. A machine's ability to maintain consistent fill rates dictates the overall quality of the production run. We look past the basic tonnage rating and dig into the hydraulic schematics and control logic.
The fast shot requires more instantaneous hydraulic fluid flow than standard pumps can deliver. Nitrogen-charged accumulators provide the instantaneous hydraulic energy required for this millisecond burst. The accumulator stores hydraulic fluid under high nitrogen gas pressure, often exceeding 150 bar. When the fast shot proportional valve opens, this pressure forces the fluid into the injection cylinder at massive speeds. Success criteria for evaluating a machine depend heavily on accumulator capacity. The capacity must adequately match the required shot weight and die complexity. An undersized accumulator will suffer a pressure drop mid-shot, causing the metal to stall and freeze in the mold. We calculate the required fluid volume for the shot and ensure the accumulator can deliver it with less than a 10% pressure drop.
Control systems dictate how accurately the machine executes the injection profile. Open-loop systems rely on static valve settings. They cannot adjust to changing conditions during the shot. In contrast, closed-loop systems use sensors to adjust hydraulic valves in milliseconds. A high precision aluminum die casting machine requires closed-loop control of speed, pressure, and alignment parameters. This technology maintains consistent fill velocities despite fluctuations in metal temperature, hydraulic fluid viscosity, or mechanical friction from a worn plunger tip. Closed-loop control drastically reduces scrap rates by ensuring every shot matches the programmed ideal curve. If the plunger encounters unexpected resistance, the servo valve opens wider instantly to maintain the programmed speed.
Rapid filling generates immense heat. Managing this heat is critical for both part quality and tool life. Die lubrication systems apply precise amounts of fluid to the mold surfaces between cycles. This serves a critical two-step function. First, the water-based lubricant acts as a cooling agent, flashing to steam and pulling heat out of the die steel to lower the mold temperature. Second, the residual oils form a protective release barrier, preventing the molten aluminum from soldering to the steel. Die temperature directly impacts fill speed. If the die is too cold, the metal freezes prematurely, causing cold runs. If the die is too hot, the metal solders to the surface, causing physical erosion and extending cycle times. We use thermal imaging to map the die face and adjust the spray nozzles to target hot spots specifically.
Faster is not universally better. Engineers must balance injection parameters against physical realities to produce sound castings. Pushing a machine to its absolute velocity limits often introduces new defects. We use PQ2 diagrams to find the operating window where the machine's power matches the die's requirements.
Excessive injection speeds cause turbulent flow at the gate. Instead of filling the cavity with a solid front, the metal atomizes, spraying into the mold and trapping air pockets. This results in severe internal porosity, weakening the component. To mitigate this, manufacturers often integrate vacuum assist systems in high-speed applications. Vacuum systems evacuate air from the two-part die cavity just before the fast shot begins. By removing the air resistance, the machine can inject metal at higher velocities without the risk of gas entrapment, yielding denser, stronger parts. We also utilize chill vents, which allow air to escape but freeze the metal instantly upon contact, sealing the vacuum line.
Molten aluminum injected at 5 meters per second acts like an abrasive waterjet. This high-velocity flow causes an erosive effect on die steel, known as washout. Washout degrades fine mold details, alters dimensions, and eventually destroys the tool. Engineers face a strict financial trade-off. Higher injection speeds may reduce cold shuts and improve surface finish, but they will accelerate tooling degradation. This requires more frequent die maintenance, weld repairs, or complete replacement. Optimizing the gate design to reduce metal velocity upon entering the cavity is essential to prolonging die life. We often increase the gate area slightly to lower the gate velocity while maintaining the overall fill time.
Defect Type | Primary Cause | Field Mitigation Strategy |
|---|---|---|
Cold Shuts | Fill time too slow; die too cold | Increase fast shot velocity; reduce die lube spray time |
Gas Porosity | Excessive gate velocity; poor venting | Implement vacuum assist; optimize slow shot speed |
Shrinkage Porosity | Inadequate intensification pressure | Increase peak pressure; ensure gates freeze after the part |
Die Soldering | Die temperature too high; inadequate lube | Increase cooling water flow; adjust lube mix ratio |
Practical considerations for procurement and facility integration go beyond pure injection speed. A machine must safely contain the forces it generates and remain reliable under continuous operation. A fast injection unit is useless if the clamping unit cannot hold the die closed.
There is a direct relationship between injection pressure and clamping force. High injection speeds and intense final compaction pressures create massive separation forces inside the two-part die-cast mold. If the internal cavity pressure exceeds the machine's clamping force, the die halves will separate slightly during the shot. This causes molten metal to spit out of the parting line, creating dangerous flash and dimensional inaccuracies. To mitigate this risk, ensure the machine's locking tonnage exceeds the calculated internal cavity pressure by a safe margin, typically 20-30%. Whether utilizing a hydraulic or mechanical toggle system, the clamping unit must remain rigid under peak intensification. We measure tie bar stretch during setup to confirm the tonnage is applied evenly across all four corners.
Operating machinery at extreme speeds and pressures requires rigorous maintenance. Hydraulic valves, accumulators, and shot sleeves operate under severe stress and degrade over time. Contaminated hydraulic fluid will destroy servo valves, crippling closed-loop control systems. We maintain hydraulic fluid cleanliness to strict ISO standards using offline filtration loops. Shot sleeves wear out from the abrasive action of the plunger tip and molten aluminum. When selecting equipment, establish strict criteria for evaluating OEM support. Prioritize vendors with robust spare parts availability and machines capable of predictive maintenance software integration. Monitoring valve response times and accumulator charge pressures prevents catastrophic failures and unplanned downtime.
A high pressure die casting machine achieves rapid mold filling not through brute force alone, but through a highly orchestrated, multi-phase injection sequence powered by advanced hydraulics and precise thermal management. Understanding the physics of the slow shot, fast shot, and intensification phases allows engineers to optimize parameters and eliminate defects. When evaluating machines or casting partners, prioritize closed-loop injection controls, appropriate chamber architecture for your specific alloy, and sufficient clamping tonnage to withstand high-velocity intensification. To move forward effectively:
Audit your current part designs for wall thickness and flow distance to determine realistic fill time requirements.
Calculate the required shot weight and projected area to establish baseline accumulator and clamping tonnage needs.
Request documented injection capability data, specifically real-time shot curves, from prospective equipment vendors or foundries.
Evaluate the integration of vacuum assist and automated lubrication systems to support high-speed production safely.
A: Mold filling typically occurs in 10 to 100 milliseconds, depending on the part's size, wall thickness, and the specific alloy being cast. This extreme speed is necessary to ensure the entire cavity is filled before the molten metal begins to solidify against the cooler steel die.
A: The slow shot gently pushes air out of the shot sleeve and runner system to prevent turbulence and air entrapment. The fast shot then takes over, firing the metal at high velocity to ensure it fills the entire complex cavity before it begins to freeze.
A: Hot chamber machines have the injection mechanism submerged in molten metal, making them ideal for zinc or magnesium. Cold chamber machines require molten metal to be ladled into a separate, unheated sleeve. This is necessary for aluminum, as its high melting point and corrosive nature would destroy submerged components.
A: If the injection speed is too high without proper venting or vacuum assist, it causes turbulent flow that traps air, leading to internal porosity. If the speed is too slow, the metal freezes prematurely, causing cold shuts and incomplete filling.
A: It is the final phase where maximum hydraulic pressure is applied immediately after the mold is filled. This compresses any remaining trapped gas into microscopic pockets and forces additional metal into the cavity to compensate for volumetric shrinkage during cooling.
A: Closed-loop controls use sensors to monitor and adjust injection speed and pressure in real-time. This ensures consistent part quality and dimensional accuracy by automatically compensating for environmental or mechanical variations, such as changes in metal temperature or hydraulic fluid viscosity.
