Capital equipment investment and facility layout in high-volume manufacturing carry high stakes. Minor inefficiencies compound rapidly into significant operational losses, making the initial design phase the most critical step in plant engineering. Aligning alloy specifications, machine tonnage, thermal management, and automation into a cohesive workflow presents a complex mechanical challenge. You must balance these variables without creating cycle-time bottlenecks or excessive scrap rates that derail production schedules.
This guide serves as a technical blueprint for evaluating, designing, and optimizing a complete Die Casting Production Line. Moving systematically from raw material melting to final part finishing, we examine the mechanical and thermal requirements necessary to build a highly efficient, repeatable manufacturing cell. We will cover exact equipment configurations, thermal regulation tactics, and automation integration steps to ensure your facility maximizes yield while maintaining strict dimensional tolerances across thousands of cycles.
Process Alignment: The physical properties of the target alloy dictate the foundational choice between hot-chamber and cold-chamber configurations.
Automation is Mandatory for Yield: Integrating robotic ladling, extraction, and automated die lubrication is critical for maintaining thermal consistency, reducing cycle times, and preventing part damage.
Post-Casting Integration: A true end-to-end line must account for trimming, CNC machining, and surface finishing within the continuous workflow to minimize work-in-progress (WIP) inventory.
Scalability vs. Footprint: Custom configurations require balancing high-tonnage machine footprints with the spatial demands of automated cooling and finishing cells.
A well-configured manufacturing cell relies on strict adherence to defined engineering criteria. The primary goals include maximized equipment uptime, minimized internal porosity, consistent thermal cycling across the tooling, and strict dimensional repeatability. Achieving these outcomes requires treating the entire setup as a single, synchronized thermodynamic system rather than isolated pieces of machinery. If the water cooling flow rate drops at the die, the extraction robot will grip a hotter, softer part, leading to dimensional distortion downstream.

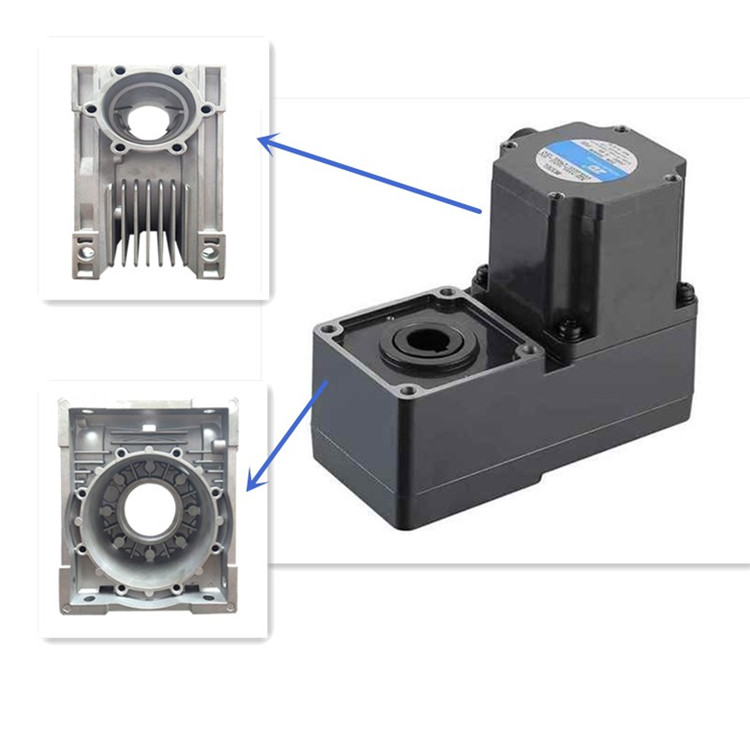

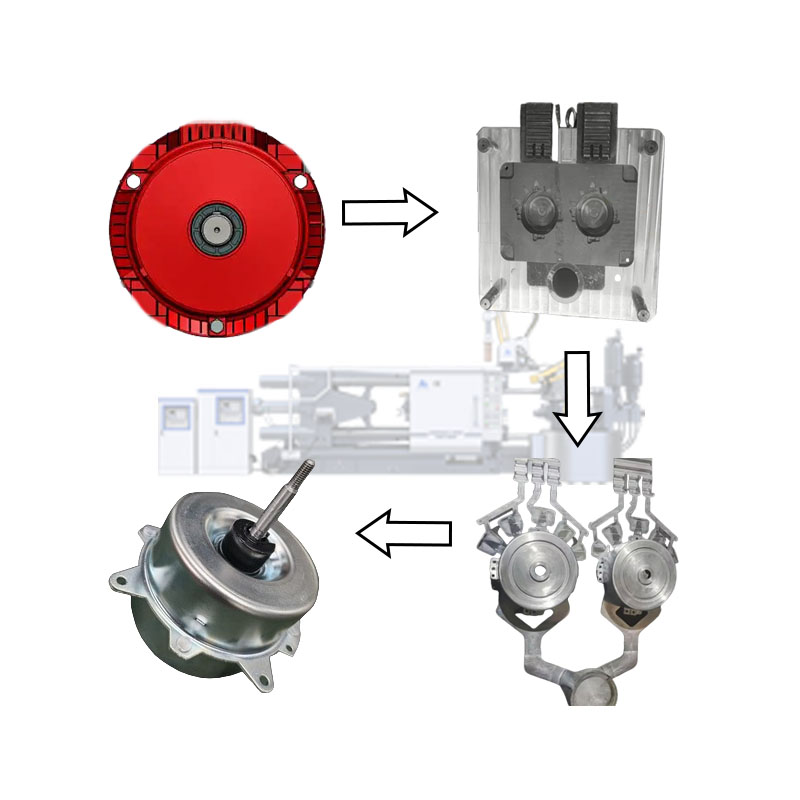

The overarching workflow maps across four main stages. Streamlining these core steps keeps the incremental cost per item exceptionally low during high-volume production runs.
Melting and Holding: Raw ingots and clean scrap are melted in a primary furnace, treated to remove impurities, and transferred to a holding furnace at the machine station to maintain precise injection temperatures.
Injection and Casting: Molten metal is forced into the closed steel die under extreme hydraulic pressure. The machine transitions through slow-shot, fast-shot, and intensification phases to fill the cavity before solidification.
Extraction and Cooling: The die opens, and an automated system removes the solidified casting. The part is then routed through a quench tank or forced-air conveyor to stabilize its temperature.
Secondary Operations: The cooled part moves into a hydraulic press to shear off the runner system and overflows, followed by CNC machining for tight-tolerance features and final surface finishing.
Establishing baseline requirements demands a thorough analysis of the specific component you intend to manufacture. Part volume dictates the necessary furnace capacity and ladling speed. Wall thickness directly influences the required injection pressure and cooling time. Material selection establishes the foundational temperature parameters and cycle speeds. Together, these variables form the operational baseline that dictates every subsequent equipment choice.
Design for Manufacturability (DFM) heavily impacts the physical layout and complexity of the line. Critical part design elements directly dictate tooling complexity and ejection mechanisms. Insufficient draft angles require stronger ejection forces, potentially slowing cycle times and causing ejector pin punch-through. Heavy ribbing and complex internal geometries demand multi-slide molds, which require larger machine platen sizes and more sophisticated robotic extraction paths. Addressing these geometries during the DFM phase prevents costly retrofits to the production cell later.
Baseline Production Requirements
Design Variable | Impact on Line Configuration | Equipment Affected |
|---|---|---|
Part Weight & Volume | Determines shot size and metal consumption rate. | Furnace capacity, ladle size, robot payload. |
Wall Thickness | Drives fill time requirements and cooling duration. | Injection cylinder speed, die cooling channels. |
Projected Area | Dictates the force pushing the die halves apart. | Machine tonnage, tie bar spacing. |
Internal Undercuts | Requires moving slides or hydraulic core pulls. | Mold complexity, auxiliary hydraulic circuits. |
Aluminum possesses a high melting point and a highly corrosive nature toward standard machine components when in a molten state. If an injection mechanism remains submerged in molten aluminum, the metal will rapidly dissolve the steel components, leading to catastrophic equipment failure. This metallurgical reality dictates the necessity of cold chamber systems for any aluminum die casting production line. In this setup, molten metal is ladled from a separate holding furnace into an unheated shot sleeve immediately before injection.
Injection pressure parameters in cold chamber systems are extreme. Production lines typically run in the range of 7 to 140 MPa (1,000 to 20,000 psi). This immense pressure is required to push the relatively cooler metal through the runner system and fill thin walls rapidly before metal solidification occurs. Precise control over the plunger speed and pressure curve is mandatory to prevent cold shuts and ensure complete mold cavity filling. The plunger tip, often made of beryllium copper for heat dissipation, must be continuously lubricated to prevent galling inside the shot sleeve.
Lower-melting-point alloys like zinc and certain magnesium blends utilize hot chamber configurations. The defining mechanical feature is the submerged injection mechanism, commonly known as the gooseneck. Because these alloys do not aggressively attack the steel gooseneck, the injection cylinder remains continuously submerged in the molten metal bath. When the plunger actuates, it forces the metal directly up the gooseneck, through the nozzle, and into the die.
Hot chamber lines offer distinct cycle speed advantages against material limitations. By eliminating the separate ladling step, the machine can cycle much faster. The metal is always ready at the exact injection temperature, reducing thermal variation and minimizing oxide formation. However, this technology is strictly limited to alloys that will not degrade the submerged pumping mechanism. Zinc alloys like Zamak 3 are ideal for this process, allowing for rapid production of complex, thin-walled components.
Casting Technology Decision Matrix
Chamber Type | Compatible Alloys | Cycle Speed | Typical Applications |
|---|---|---|---|
Cold Chamber | Aluminum, Brass, Copper | Moderate (requires ladling) | Automotive engine blocks, structural aerospace parts, heavy housings |
Hot Chamber | Zinc, Magnesium, Lead | Fast (continuous feed) | Consumer electronics, small brackets, decorative hardware, thin-wall components |
Thermal management begins long before the metal reaches the machine. Facilities must choose between central melting furnaces that feed the entire plant and local holding furnaces stationed at each machine. Central melting offers high-volume efficiency, while local holding furnaces maintain the exact temperature required for the specific shot. Energy source trade-offs play a significant role here. Gas furnaces generally provide faster melt rates and are preferred for bulk breakdown, while electric resistance furnaces offer tighter temperature control and less atmospheric contamination at the holding station.
Metal quality management within these furnaces prevents casting defects. Automated rotary degassing units inject argon or nitrogen through a spinning impeller to remove dissolved hydrogen from the molten aluminum, preventing gas porosity in the final part. Fluxing operations remove oxides and impurities, creating a dross layer that operators skim off, ensuring only clean metal enters the shot sleeve.
Selecting the correct machine size requires calculating the required clamping force based on the projected area of the casting and the maximum injection pressure. The projected area includes the part itself, the runner system, the biscuit, and the overflows. Multiplying this total area by the specific injection pressure yields the minimum force required to keep the die halves closed during the shot. For example, a projected area of 300 square inches injected at 8,000 psi requires 2,400,000 pounds of force, necessitating a machine rated for at least 1,200 tons.
Sizing carries significant operational risks. Undersizing the machine leads to flash generation, where high-pressure metal forces the die halves apart, resulting in dimensional failure, excessive scrap, and potential damage to the tie bars. Conversely, oversizing the machine results in unnecessary capital expenditure, larger facility footprint requirements, and slower dry cycle times due to the massive hydraulic cylinders moving heavy platens.
Continuous injection of molten metal rapidly heats the steel tooling. Thermoregulators, utilizing either water or oil-based fluids, circulate through internal die channels to maintain optimal die temperatures. Water systems offer superior heat extraction rates and are standard for aluminum casting, while oil systems can operate at higher temperatures without boiling, providing better control for complex geometries or magnesium casting.
Controlled thermal cycling prevents premature die failure known as heat checking, where extreme temperature fluctuations cause microscopic cracks on the die surface. Consistent thermal regulation also ensures the metal cools uniformly. Achieving turbulent flow inside the cooling channels—measured by a high Reynolds number—maximizes heat transfer, which drastically reduces part distortion and maintains tight dimensional tolerances upon ejection.
A modern custom die casting production line utilizes 6-axis robots to remove parts consistently. These robots follow precise, repeatable paths, ensuring the part is extracted at the exact same temperature and angle every cycle. Payload sizing is critical; the robot must handle the combined weight of the casting, the heavy runner system, and the end-of-arm tooling. Contrast this with the severe inefficiencies and damage risks of manual extraction. Operators manually prying out individual sections of complex, multi-slide molds introduce massive cycle time variations, risk damaging the tooling, and create severe safety hazards.
Automated ladling in cold chamber lines replaces manual pouring. Servo-driven ladles ensure precise shot weights, preventing under-filling or excessive flash. They also move quickly from the holding furnace to the shot sleeve, minimizing temperature loss and maintaining the thermodynamic consistency of the molten metal. Advanced ladles feature automatic pour-back functions to handle machine interruptions without letting metal freeze in the cup.
Once the part is extracted, the die must be prepared for the next shot. Automated die sprayers apply release agents uniformly across the cavity. This lubrication prevents the molten metal from soldering to the steel and aids in part ejection. Spray manifolds are custom-built for each die, with individual nozzles angled to hit deep ribs and core pins. Manual spraying often results in uneven application, leading to localized soldering or gas porosity from excess lubricant burning off inside the cavity.
The industry is actively transitioning toward micro-spray technology. Traditional flood spraying uses large volumes of water-based lubricants, which cools the die but creates massive thermal shock and generates significant wastewater. Micro-spraying applies highly concentrated lubricants in minute quantities using high-velocity air. This drastically reduces wastewater, minimizes thermal shock to the tooling, and extends die life by preventing the rapid expansion and contraction cycles that cause heat checking.
Catching defects immediately prevents value from being added to scrap parts. In-line quality inspection integrates vision systems to verify part completeness and check for short shots immediately after extraction. Cameras verify that all overflows are present, confirming the cavity filled completely. Automated X-ray inspection cells can scan structural components for internal porosity before they move to the trimming station. Identifying a thermal or pressure issue in real-time allows operators to adjust machine parameters before hundreds of defective parts are produced.
Parts exiting the die are too hot for immediate trimming. The configuration of water quench tanks or air-cooling conveyors stabilizes part temperature. Water quenching is fast and efficient but can introduce thermal distortion if the part geometry is complex or has varying wall thicknesses. Air-cooling conveyors take up more floor space but provide a gentler, more uniform temperature reduction, preserving dimensional stability for tight-tolerance components. Fans positioned along the conveyor belt accelerate the convective cooling process.
Removing the runner system and overflows requires hydraulic trim presses matched to the cycle time of the casting machine. If the casting machine cycles every 45 seconds, the trim press and its loading robot must complete their operation in 40 seconds to prevent a bottleneck. Trim dies use hardened steel shear edges to punch the part out of the runner system cleanly.
Strategic handling of parting lines is critical during the die design phase to facilitate easy trimming. Place parting lines along sharp edges, underside faces, or assembly breaks. Strictly avoid placing parting lines across smooth or highly visible faces to minimize secondary machining requirements and prevent aesthetic defects on consumer-facing components. A well-designed pinch trim leaves minimal burrs, reducing the need for manual filing.
Casting achieves near-net shape, but critical mounting surfaces, O-ring grooves, and threaded holes require secondary machining. Modern lines incorporate multi-axis CNC cells directly downstream from the trim press to achieve tight tolerances. Integrating these cells into the continuous workflow minimizes work-in-progress inventory and reduces material handling. Tombstone fixtures and pallet changers keep the CNC spindles running continuously while operators or robots load new castings.
Shot blasting, vibratory finishing, and coating preparations serve as the final stages of the production loop. These processes remove minor burrs, create a uniform surface texture, and prepare the substrate for painting, powder coating, or anodizing. Steel shot or ceramic media bombard the part surface, peening it to improve fatigue resistance and aesthetic uniformity.
Evaluating equipment requires mapping specific machine features directly to production outcomes. Real-time closed-loop shot control monitors and adjusts plunger speed in milliseconds, resulting in zero-porosity structural parts. Vacuum assist systems evacuate air from the die cavity before injection, drastically reducing gas entrapment. This allows parts to undergo high-temperature heat treatments without blistering. Investing in these features directly reduces scrap rates and expands the range of viable applications for your facility.
Facility layout constraints often dictate equipment selection. Fully automated cells require significant floor space for safety fencing, robotic reach envelopes, and cooling conveyors. You must analyze the spatial requirements against the projected throughput gains. A linear layout might offer the fastest material flow, while a U-shaped cell allows a single operator to monitor both the casting machine and the CNC finishing station simultaneously. Vertical accumulators can save floor space by stacking cooling parts vertically rather than spreading them across a long conveyor.
The energy demands of holding furnaces represent a major continuous operational expense. Selecting high-efficiency refractory linings and insulated covers reduces heat loss and lowers gas consumption. Environmental management of die lubricants and wastewater requires integrated filtration systems. Transitioning to micro-spray technology not only improves tool life but also simplifies environmental compliance by virtually eliminating effluent discharge, keeping the shop floor dry and safe.
The constant bombardment of high-pressure, high-temperature metal creates a severe risk of die degradation. Washout occurs near the gate where metal velocity is highest, eroding the steel. Thermal fatigue leads to heat checking, which transfers unwanted textures onto the cast parts. Mitigate this risk through predictive maintenance sensors embedded in the die that monitor temperature spikes. Optimized cooling channel design, including conformal cooling manufactured via 3D printing, ensures even heat extraction and extends tooling life.
A continuous line is only as fast as its slowest operation. Common bottlenecks occur when secondary operations, such as trimming or complex CNC machining, take longer than the primary casting cycle. Mitigate this through parallel processing—routing parts from one casting machine to two separate CNC cells—or by implementing buffer zones using accumulating conveyors to absorb minor stoppages without halting the main casting machine. Time studies must be conducted during commissioning to balance the line perfectly.
Building a custom cell involves integrating equipment from multiple vendors. The risk of mismatched communication protocols between the casting machine, robots, and trim presses can delay commissioning by weeks. Mitigate this by standardizing PLC architectures across all equipment. Utilizing open communication standards like OPC UA ensures seamless data handshakes, allowing the robot to know exactly when the die is open, the core pins are retracted, and the part is ready for extraction.
A high-performing die casting production line is not just a collection of machines, but a synchronized thermal and mechanical system. Every component, from the holding furnace to the final CNC cell, must be calibrated to support the specific metallurgical requirements of the alloy and the geometric demands of the part. Success relies on eliminating manual interventions, maintaining strict thermodynamic control, and engineering the cell to handle the physical realities of high-pressure metal injection.
When shortlisting equipment integrators or contract manufacturing partners, evaluate them based on proven Overall Equipment Effectiveness (OEE) metrics. Prioritize partners with strong in-house tooling capabilities and deep automation expertise, as the integration between the die and the extraction robotics dictates the ultimate yield.
Take the following steps to advance your production line planning:
Conduct a comprehensive facility audit to determine spatial, electrical, and cooling water utility constraints before ordering equipment.
Define precise alloy specifications and annual volume requirements to establish the baseline machine tonnage and furnace capacity.
Contact an engineering specialist for a custom line consultation and 3D layout simulation to identify potential spatial bottlenecks.
Standardize communication protocols across all planned equipment purchases to ensure automation integration functions correctly from day one.
A: Cycle times vary significantly based on part size, wall thickness, and technology. Hot chamber machines casting small zinc parts can cycle in 3 to 10 seconds. Cold chamber machines casting large aluminum automotive components typically range from 45 seconds to over two minutes, allowing time for ladling, injection, and sufficient metal solidification.
A: Required tonnage is calculated by multiplying the total projected area of the casting (including the part, runner system, and overflows) by the specific injection pressure of the molten metal. This calculation determines the minimum clamping force necessary to keep the die halves securely closed during the high-pressure injection phase.
A: The primary difference is the location of the melting pot and the injection mechanism. Hot chamber lines feature a submerged injection system used for low-melting-point alloys like zinc and magnesium. Cold chamber lines require molten metal to be ladled into an unheated sleeve for each shot, necessary for high-melting-point, corrosive alloys like aluminum and brass.
A: Vacuum systems evacuate air from the die cavity immediately before the metal is injected. This drastically reduces gas porosity inside the part. Parts cast under vacuum possess higher structural integrity, can be welded, and can undergo high-temperature heat treatments without blistering, expanding the application range of the production line.
A: Aluminum die casting typically requires specific injection pressures ranging from 7 to 140 MPa (1,000 to 20,000 psi). These extreme pressures are necessary to force the molten aluminum through the runner system and rapidly fill thin-walled sections of the mold cavity before the metal begins to freeze.
A: Parting lines are addressed during the initial die design phase. Engineers strategically place them on sharp edges, undersides, or assembly breaks to avoid highly visible or smooth faces. Downstream, these parting lines and flashes are efficiently removed using automated hydraulic trim presses or multi-axis CNC machining cells.
