A 3000T aluminum die casting machine can provide the clamping force, die space, injection capacity, and automation platform required for large aluminum radiator components, but it is not automatically the most economical choice for every radiator manufacturer. The investment only makes sense when the casting geometry, projected area, mold size, aluminum shot weight, production volume, and future product plan actually require a machine in this capacity range.
Radiator castings can be demanding because they often combine broad projected areas with thin heat-dissipation structures, long metal-flow paths, ribs, mounting features, and relatively large dies. These characteristics can increase both the required locking force and the injection performance needed to fill the cavity before the aluminum begins to solidify. Larger radiator designs may also require substantial opening space, core movement, extraction clearance, mold spraying, cooling, and automated handling.

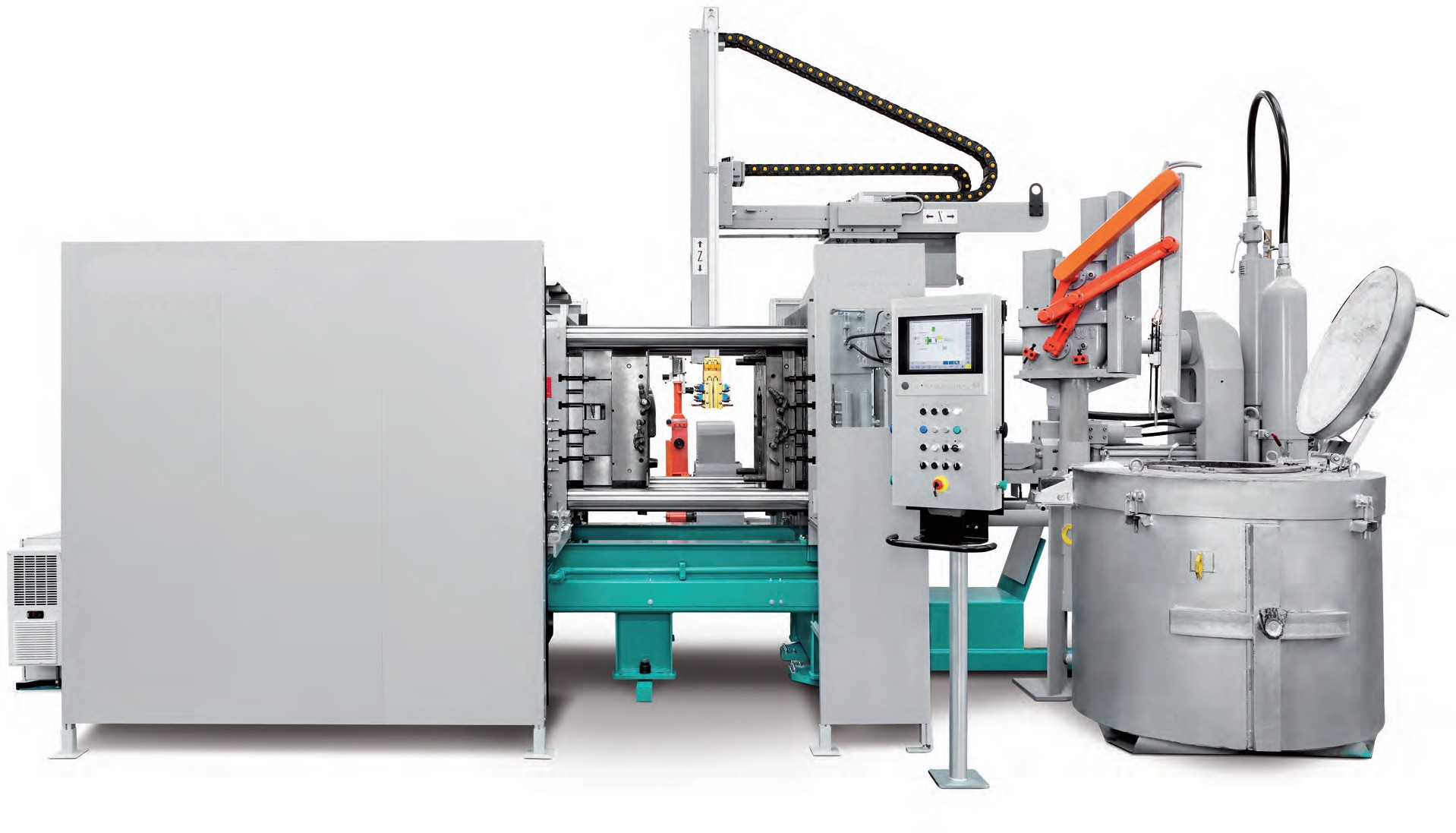

Longhua Die Casting Machine Co., Ltd. offers an LH-HPDC-3000T Cold Chamber Aluminum Die Casting Machine for Heating Radiator. The key purchasing question is therefore not whether 3000T is a powerful machine. It is whether your radiator production can use that capacity efficiently enough to justify the additional machine, tooling, utility, automation, and factory costs.
The strongest reason to move into the 3000T class is usually projected casting area.
During high-pressure die casting, molten aluminum generates cavity pressure across the projected area of the casting, runners, gates, and overflow system. The die casting machine must provide enough clamping force to prevent the die halves from separating during filling and intensification.
Radiator products can create large projected areas even when the finished casting is not extremely heavy. A broad heating radiator panel with multiple fins, channels, mounting structures, or several cavities may occupy a large surface area inside the die. This can push clamping-force requirements upward much faster than part weight alone would suggest.
Longhua's 3000T standard configuration provides 30,000 kN of clamping force and lists a maximum casting area of approximately 7500 cm² at 40 MPa. These figures provide a useful preliminary reference, but the actual required capacity should still be calculated from the radiator design, runner system, cavity pressure, and appropriate process margin.
A 3000T machine becomes worth serious consideration when several conditions occur together:
The radiator has a very large projected area.
The die is too large for medium-tonnage tie-bar spacing.
Total aluminum shot weight is beyond the comfortable range of smaller machines.
Multiple cavities are required to achieve the target output.
The radiator contains long thin sections that require strong injection performance.
Future projects are expected to use similarly large molds.
Production volume is high enough to keep a large machine utilized.
The last point is particularly important.
A technically suitable machine is not automatically an economically suitable machine. If a 3000T machine spends much of the week idle because only one low-volume radiator product requires it, the cost per casting can become difficult to justify.
Before selecting this capacity, buyers should review not only the current radiator but also the planned product family for the next several years.
A common machine-selection mistake is to calculate clamping force correctly but ignore the injection unit and physical die space.
Longhua's 3000T configuration lists an aluminum injection weight of approximately 62 kg, an injection stroke of 1180 mm, and plunger diameters from approximately 150 to 190 mm. This is substantially beyond the requirements of ordinary medium-sized aluminum castings and is intended for large shot volumes and large dies.
A radiator project's required shot weight should include:
Finished casting + runner + gates + overflow + biscuit + process allowance
For example, a large finished radiator casting may weigh significantly less than the machine's maximum shot specification, but once the complete runner and overflow system is included, total metal consumption per cycle can increase considerably.
The machine also needs enough injection performance to fill long and thin radiator features before premature solidification occurs. Thin heat-transfer fins and long flow paths can be difficult to fill consistently. For this reason, buyers should not choose a machine from shot weight alone. Injection speed, pressure, plunger configuration, sleeve dimensions, filling ratio, switching positions, and intensification also need to match the actual die.
Mold size can become an equally important limitation.
The Longhua 3000T standard machine lists:
1650 × 1650 mm tie-bar spacing
800–2000 mm die thickness range
1500 mm opening stroke
300 mm ejector stroke
900 kN ejector force
These dimensions provide room for substantial molds, but they should still be checked against the exact radiator die.
A large radiator mold may include not only the cavity plates but also slides, core-pull cylinders, cooling circuits, hydraulic connections, ejector systems, and handling fixtures. The mold must fit between the tie bars with enough working clearance for installation and maintenance.
The 1500 mm opening stroke is also relevant because enough space is required for the casting to clear the die, for the extractor or robot to enter, and for the spray system to treat the mold before the next cycle.
This is why the RFQ should contain the complete mold drawing whenever available.
If tooling has not yet been built, send the radiator CAD data, planned cavity number, gating concept, and expected mold envelope. Longhua Die Casting Machine Co., Ltd. can then evaluate whether the 3000T machine provides appropriate capacity or whether a smaller machine would still meet the project requirements.
Larger equipment is sometimes purchased because buyers want additional capacity for future products. Some reserve capacity is reasonable, but excessive oversizing can increase the total manufacturing cost without improving radiator quality or output.
A 3000T machine is a substantial piece of equipment. Longhua's current standard specification lists machine dimensions of approximately 15.3 × 5.3 × 5.2 meters, a reference lifting weight of approximately 200 tonnes, and two 75 kW motors.
The machine itself is only part of the required investment.
A complete 3000T production cell may also require:
Larger foundation
Higher crane capacity
Larger melting and holding furnace
Higher cooling capacity
Larger hydraulic and electrical infrastructure
Heavy-duty mold handling
Higher-payload extraction robot
Larger die spraying system
More extensive safety guarding
Larger trimming equipment
More maintenance space
If the radiator project fits comfortably on a substantially smaller machine, these additional costs may not create additional value.
For example, assume a casting fits the projected-area requirement of a lower-tonnage machine, its mold fits comfortably between the tie bars, and its total aluminum shot weight remains well within the injection capacity. In that situation, moving directly to 3000T simply because it offers more capacity may result in poor capital utilization.
The same applies to production speed.
A 3000T machine does not automatically produce more radiators per hour than a smaller press.
Total cycle time can be controlled by:
Aluminum dosing
Injection
Solidification
Mold cooling
Mold opening
Casting extraction
Die spraying
Air blowing
Core movement
Trimming
Part cooling
Radiators with thin fins may fill quickly but still require controlled solidification and extraction. Larger castings may also require longer cooling periods before they can be removed without distortion.
If cooling dominates the cycle, adding clamping force does not solve the bottleneck.
The correct capacity should therefore be determined by the complete process envelope rather than a general preference for a larger press.
A useful rule is:
Choose the smallest machine that safely satisfies clamping force, shot capacity, mold space, injection performance, automation, and future confirmed projects with adequate process margin.
That approach usually produces better capital utilization than purchasing maximum tonnage without a defined production requirement.
A 3000T machine can make economic sense when it enables a production strategy that smaller equipment cannot support efficiently.
One example is larger integrated castings.
If a radiator design can be produced as a larger single casting instead of several smaller components that later require assembly, the manufacturer may reduce secondary operations, handling, joining, inventory, and dimensional stack-up. The economic benefit then comes from simplifying the overall production process, not merely from casting on a larger machine.
Another potential advantage is multi-cavity production.
If projected area, shot weight, and die dimensions allow a larger machine to run several radiator components in one cycle, output per shot may increase. However, the economic calculation must still include the larger mold, higher shot weight, longer filling and cooling requirements, and increased tooling investment.
Higher machine utilization is therefore essential.
Before purchasing, calculate expected annual machine loading:
Annual available machine hours
× Planned utilization
× Castings per cycle
÷ Total cycle time
Then compare this with annual demand.
If the machine will run high-volume radiator production across multiple shifts, the capital cost can be distributed across many more castings.
If production is seasonal or limited to one small contract, outsourcing large castings or using a smaller machine may provide a lower financial risk.
Scrap also becomes more important as casting size increases.
A defective large radiator casting wastes substantially more aluminum, machine time, furnace energy, and downstream processing than a small component. This is why large-machine economics depend heavily on stable process control.
Established large-tonnage die casting manufacturers emphasize repeatable injection control, homogeneous clamping force, automation, and process monitoring because the financial impact of each rejected large casting is higher.
Buyers evaluating the Longhua 3000T aluminum die casting machine should therefore examine expected scrap rate, cycle time, uptime, maintenance, and automation together with the purchase price.
A large die casting machine should generally be evaluated as the center of a production cell rather than as an independent press.
Handling tens of kilograms of molten aluminum and large hot radiator castings requires a carefully coordinated process.
A complete line may include:
Aluminum melting furnace
Holding or dosing furnace
Automatic ladler
Industrial robot or extractor
Die spraying system
Mold temperature controller
Cooling system
Conveyor
Trimming press
Safety guarding
Quality inspection
The size of these peripherals must match the 3000T machine.
A standard die casting servo sprayer designed for a 500T or 900T machine should not be assumed to fit a 3000T radiator die. Large dies require greater movement range, larger spray coverage, more nozzle capacity, and appropriate access through the much larger mold-opening space.
Longhua Die Casting Machine Co., Ltd. provides automatic die casting equipment alongside the main press, including robots, extractors, ladlers, sprayers, furnaces, and temperature-control systems. For a large radiator project, these components should be evaluated together during cell-layout planning.
Automation can create value in several ways.
An automated metal-delivery system can improve shot-weight consistency. A robot can remove large castings more predictably than manual handling. Automated spraying can standardize mold treatment. Integrated conveyors and trimming equipment can reduce material handling between processes.
More importantly, coordinated automation can reduce idle time between operations.
The production goal should be a balanced cycle where metal dosing, extraction, spraying, cooling, and preparation are synchronized around the machine.
Simply attaching more automation equipment does not guarantee higher productivity. Poorly coordinated robots can create their own bottlenecks.
Before ordering, ask the supplier to provide a complete cycle sequence and plant layout showing:
Equipment positions
Robot reach
Furnace location
Casting removal path
Sprayer movement
Conveyor direction
Trimming location
Operator access
Mold-change path
Safety zones
Maintenance clearance
For a 200-ton-class machine installation, finding these conflicts after delivery can be extremely expensive.
Before deciding whether the machine is worth the investment, send a complete technical and commercial RFQ.
Item | Information to Provide |
|---|---|
Radiator Type | Heating / Industrial / Project Design |
Aluminum Alloy | Required Alloy |
Finished Weight | Casting Weight |
Total Shot Weight | Casting + Runner + Overflow |
Dimensions | Finished Overall Size |
Projected Area | Complete Pressure Area |
Wall Thickness | Minimum and Typical |
Fin Geometry | Height, Thickness and Spacing |
Cavities | Single / Multi-Cavity |
Mold Size | L × W × H |
Mold Weight | Estimated / Actual |
Core Pulls | Quantity and Direction |
Quality | Porosity / Leakage / Dimensions |
Output | Parts per Hour / Day |
Cycle Time | Required Total Cycle |
Automation | Ladler + Robot + Spray System |
Furnace | Required Capacity |
Cooling | Die + Casting Cooling |
Factory | Layout and Utilities |
Annual Volume | Current + Future Forecast |
The supplier should then confirm four key questions.
Does the radiator require approximately 3000T of clamping capacity?
If the projected area and casting pressure can be handled comfortably by a significantly smaller machine, there may be no technical reason to select 3000T.
Does the casting require the 3000T injection unit?
The total shot weight and filling requirements should justify the larger injection system.
Does the mold require the 1650 × 1650 mm tie-bar space and large die-thickness range?
If the mold is substantially smaller, another machine class may provide better utilization.
Can the annual production volume justify the capital investment?
This is the commercial question that completes the technical analysis.
A 3000T machine becomes more attractive when several of these conditions are present simultaneously:
Production Condition | 3000T Justification |
|---|---|
Very large projected radiator area | Strong |
Heavy total aluminum shot | Strong |
Large mold beyond medium machine space | Strong |
Multi-cavity large radiator tooling | Strong |
High annual production | Strong |
Multi-shift utilization | Strong |
Confirmed future large products | Medium to Strong |
Small radiator castings | Weak |
Low annual volume | Weak |
Existing smaller machine has enough capacity | Weak |
Cooling, not clamping force, is the main bottleneck | Weak |
This is more useful than asking whether 3000T is “better.”
The machine is worth the investment only when the additional technical capacity can be converted into manufacturing value.
A 3000T aluminum die casting machine can be worth the investment for radiator production when the casting has a large projected area, substantial shot weight, a large die, demanding injection requirements, and enough annual volume to keep the equipment productively utilized.
Longhua's 3000T standard configuration provides 30,000 kN clamping force, 1650 × 1650 mm tie-bar spacing, up to approximately 62 kg aluminum shot capacity, and substantial mold-opening space, giving it the process envelope required for very large aluminum components.
However, these capabilities come with significant supporting requirements. A 3000T line also needs appropriate foundations, furnace capacity, cooling, mold handling, robots, spraying, trimming equipment, utilities, and maintenance infrastructure.
Longhua Die Casting Machine Co., Ltd. offers a dedicated 3000T Aluminum Die Casting Machine for Heating Radiator together with a wider Die Casting Machine and automation portfolio.
The investment should therefore be justified from the radiator design upward. Calculate the required clamping force, total shot weight, mold envelope, complete cycle, annual demand, automation scope, and infrastructure cost first. If those requirements genuinely fall into the 3000T process range, the machine can provide the capacity needed for stable large-scale radiator production. If they do not, a smaller machine may deliver a better return on capital.
A: No. Machine tonnage should be selected from projected casting area, required cavity pressure, total shot weight, mold size, and process requirements. Smaller radiator products may run efficiently on substantially lower-tonnage machines.
A: Longhua's current standard 3000T specification lists an aluminum injection weight of approximately 62 kg. Actual usable shot capacity depends on plunger configuration, filling ratio, alloy, runner design, and process settings.
A: Longhua's standard 3000T configuration lists approximately 1650 × 1650 mm tie-bar spacing, an 800–2000 mm die thickness range, and a 1500 mm opening stroke. Actual mold compatibility should be checked from the complete mold drawing.
A: Radiators can have broad projected areas combined with thin fins and long flow paths. Cavity pressure acts across the complete projected area, so large flat castings can require substantial locking force even when their finished weight is moderate.
A: Not automatically. Output depends on the complete cycle, including metal dosing, injection, solidification, cooling, extraction, spraying, core movement, and trimming. Larger tonnage provides process capacity but does not eliminate other cycle bottlenecks.
A: Depending on the project, the line may require a melting or holding furnace, automatic metal dosing, robot or extractor, engineered spraying system, mold temperature control, cooling, conveyor, trimming equipment, and safety systems.
A: Calculate required clamping force, projected area, total aluminum shot weight, mold dimensions, target cycle time, annual output, expected machine utilization, energy and utility requirements, automation cost, and infrastructure investment.
A: A smaller machine is generally more economical when it provides enough clamping force, injection capacity, mold space, opening stroke, and production capability for both current and confirmed future castings. Oversizing creates additional capital and operating costs without guaranteed production benefits.
