High scrap rates and sudden field failures kill profitability. Porosity often serves as the hidden culprit behind these costly bottlenecks. It acts as a structural hazard rather than just a cosmetic flaw. Eliminating every microscopic void remains physically impossible. Industry baselines typically accept around 5% porosity by volume. However, you can successfully control where these voids form. You can also dictate how they behave under stress.
Moving past trial-and-error troubleshooting demands a deeper approach. We must thoroughly understand the physics behind gas entrapment. We also need to grasp thermodynamic shrinkage phenomena. Furthermore, structural defect elimination requires specific hardware capabilities. A modern setup must meet rigorous performance standards to succeed. In this guide, you will learn to identify defect morphologies. You will see why blindly increasing pressure fails. Finally, we detail how strategic equipment upgrades prevent these critical failures.
Pressure has limits: Increasing injection pressure offers diminishing returns for gas porosity (based on Boyle’s Law geometry) and only works on shrinkage porosity during the alloy’s semi-solid "freezing range."
Biscuit height is critical: Low biscuit heights drastically reduce thermal mass, causing premature cooling and leaving up to 77cm³ of trapped air in the chamber.
Machining exposes defects: The outer 0.5mm "skin" of a casting is dense; CNC machining strips this layer, turning harmless enclosed pores into critical leak paths.
Hardware dictates limits: Consistent mitigation requires a Cold Chamber Die Casting Machine capable of precise static (min. 3,000 psi) and intensified (min. 8,000 psi) pressure phases.
Different porosity types heavily dictate your scrap severity. They also directly impact downstream failure rates. You must identify what kind of voids plague your production. This knowledge dictates your entire troubleshooting strategy.
We categorize these defects into three distinct groups. Each poses unique risks to your final product.
Porosity Category | Physical Characteristics | Business Impact & Risks |
|---|---|---|
Blind Porosity | Starts at the casting surface and terminates internally. Forms shallow craters. | Leads to internal corrosion. Ruins surface treatments and causes anodizing blistering. |
Fully Enclosed Porosity | Hidden internal voids surrounded by solid metal. Leaves the outer surface intact. | Harmless structurally if located in low-stress zones. Highly volatile if machined. |
Through Porosity | Creates an open channel completely penetrating from one side to the other. | Causes total failure in pressure-sealed applications. Forms immediate leak paths. |
Castings develop a highly dense outer "skin" layer during the process. This layer usually measures roughly 0.5mm thick. It represents the most thermally stable section of your part. Internal enclosed voids sit harmlessly beneath this skin. They rarely compromise baseline mechanical strength when left untouched.
However, CNC machining changes this equation entirely. Tapping or milling operations strip away this protective layer. This action penetrates the dense skin. It instantly converts formerly enclosed voids into open leak paths. Yields for hydraulic and pneumatic components plummet accordingly. Designers must acknowledge this physical reality during the DFM phase. You cannot machine away deep porosity. You only expose it.
You cannot fix a defect without diagnosing its origin. Operators must visually and scientifically differentiate root causes. Accurate diagnosis separates effective solutions from wasted effort.
Visual inspection provides the first critical clue. Gas porosity and shrinkage porosity look completely different under magnification.
Gas Porosity: Characterized by smooth, round voids. They look like distinct, shiny bubbles inside the metal.
Shrinkage / Flow Porosity: Characterized by jagged, irregular, or sharp-angled internal tears. They lack a smooth internal surface.
Gas voids form when air or vapor becomes trapped. The fast injection phase leaves almost no time for air evacuation. Several factors drive this problem.
Plunger Speed Violations: Operators often ignore the Critical Slow Shot Speed (CSS). Moving the plunger too slowly causes wave reflection. The metal sloshes backward, trapping air. Moving too fast causes the metal to "surf" over the air pocket.
Excess Die Lubricant: Heavy lubricant application creates immediate issues. The intense heat flashes this liquid into rapidly expanding gas.
Low Biscuit Heights: A thin biscuit provides inadequate feeding volume. It causes rapid heat loss. The system subsequently fails to evacuate remaining air within the brief 16-millisecond fill time.
Shrinkage relates entirely to thermodynamics. Metal shrinks as it cools. If no liquid metal feeds the shrinking area, voids appear.
Volume Contraction: Alloys naturally lose volume during the liquid-to-solid phase change. This physics principle remains unavoidable.
Isolated Hot Spots: Certain thick sections cool much slower than surrounding walls. You can verify these via simulation tools. Look for a loss of feeding ability (known as FStime).
Temperature Deltas: Mold temperature variations matter immensely. Deltas exceeding 50°C increase cold shut and shrink risks by up to 30%.
Operators commonly reflexively crank up machine pressure. They want to literally crush the voids out of existence. This approach feels logical on the shop floor. However, physics violently disagrees.
You cannot destroy trapped gas using brute force. Boyle’s Law dictates the relationship between pressure and volume. The geometry of a sphere complicates this further.
Increasing system pressure by 600 times (e.g., up to 9,000 psi) yields minimal visual improvements. This massive jump only reduces a gas bubble’s radius by a factor of 8.5. The gas does not disappear. High pressure simply splinters large bubbles into thousands of micro-pores. Furthermore, this excessive force causes severe die flashing. The trapped gas remains inside your part.
Intensification pressure offers a powerful tool against shrinkage. However, it operates strictly within a narrow time limit. You must apply force during the alloy’s specific "freezing range."
For example, 380 aluminum possesses an 80°F semi-solid window. During this brief phase, pressure successfully pushes extra metal into shrinking voids. If the machine applies pressure after the gate freezes, the effort fails. Applying tonnage to solidified metal wastes energy completely. The metal cannot flow.
We must also add a crucial tooling caveat. Adjusting your die temperature does not magically eliminate shrink porosity. It simply moves the defect. The void relocates to the newly established thermal center. True elimination requires proper feeding and precise timing.

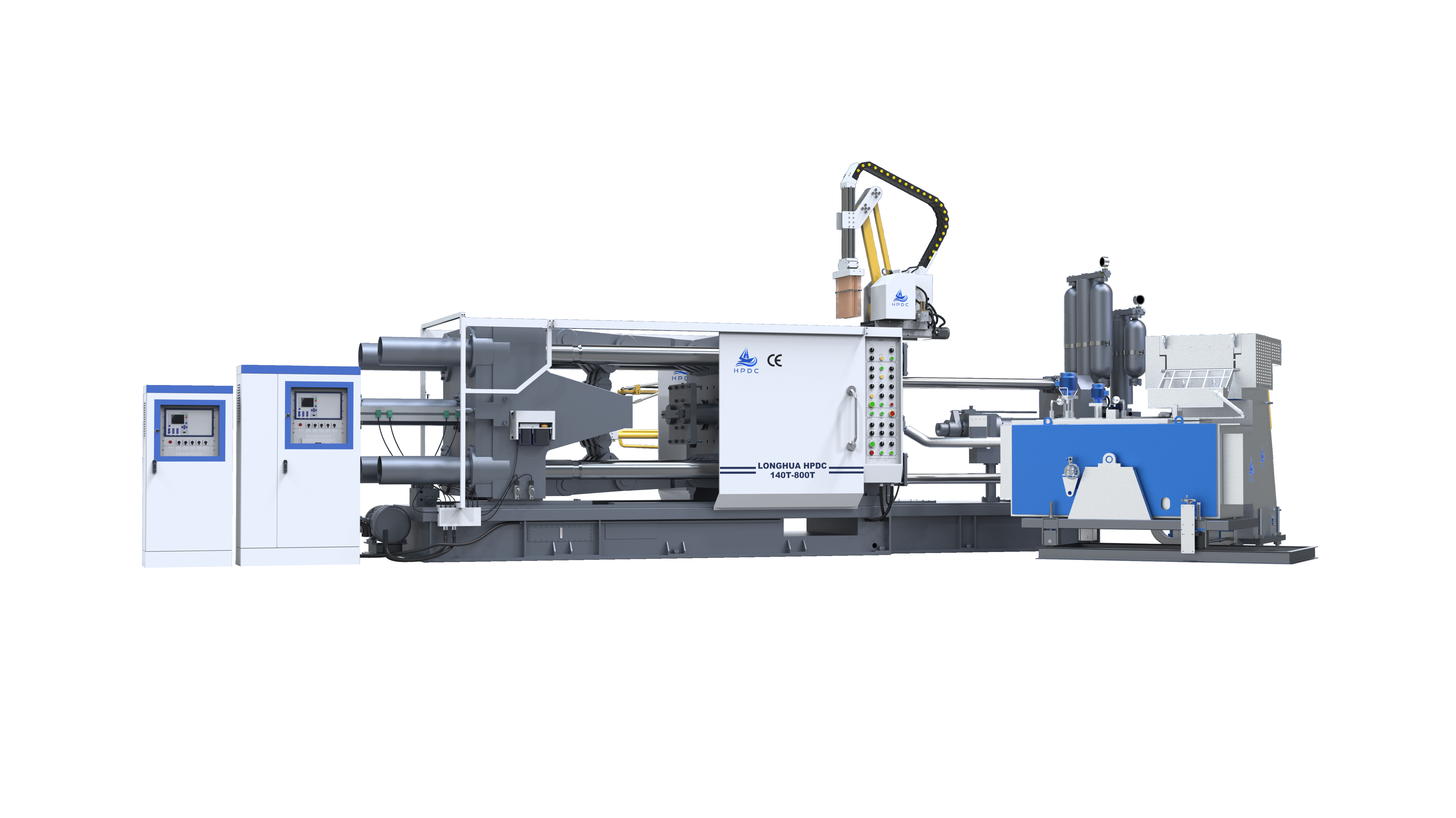

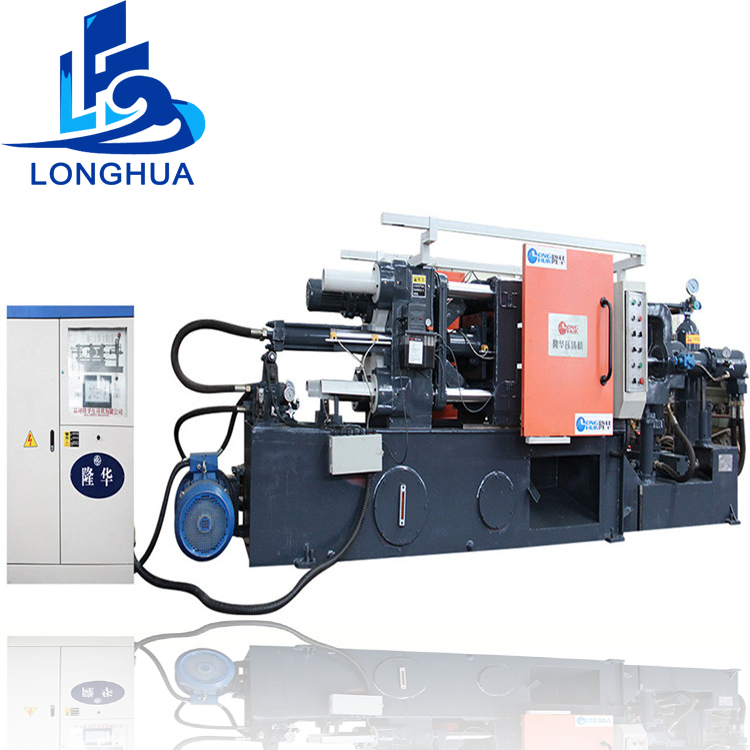

Hardware specifications ultimately solve these physics problems. Sourcing an Aluminum Die Casting Machine requires stringent evaluation. You need equipment capable of meeting extreme physical demands.
Modern equipment must feature distinct phase control. A machine must seamlessly transition between the slow shot, fast fill, and intensification stages. Imprecise transitions ruin the filling dynamics.
Baseline industry standards exist for a reason. Processing aluminum requires a minimum of 3,000 psi static pressure. More importantly, the system must deliver 8,000 to 10,000 psi of intensification pressure. Sluggish intensification valves guarantee high scrap rates.
Data drives modern manufacturing stability. Importance heavily relies on real-time thermal monitoring. Advanced setups use integrated thermocouples and infrared sensors.
We use this data to identify thermal baseline deviations. A 15% deviation triggers an immediate system alert. This proactive approach prevents severe thermal fatigue. It also stops subsequent porosity spikes before they ruin a production run.
Evacuating air quickly remains paramount. Ensuring exhaust design accounts for sonic velocity limits proves essential. Air cannot exit the mold faster than roughly 8,000 inches per second.
Engineers must perform strict vent area calculations. The total vent area should equal 20-25% of the gate area. This ratio physically removes air before the plunger packs the metal tight. Inadequate venting guarantees extensive gas entrapment.
Quality control extends far beyond the casting cell. You must lock in process variables before pouring begins. You must also implement proven post-processing safeguards.
Melt quality dictates final casting density. Poor upstream management introduces massive amounts of hydrogen and oxides.
Mandating Rotary Degassing: Facilities must use argon or nitrogen rotary degassing. This drops the hydrogen content safely below 0.15 mL/100g.
Ladle Transfer Rules: Transferring metal requires extreme care. You must maintain laminar flow at all times. Keep the flow rate under 0.5m/s. Use a 15-20° tilt angle. This prevents turbulent oxide and air entrapment.
Predicting flaws saves vast amounts of tooling capital. Using CAE tools like MAGMASOFT provides a massive advantage.
Engineers use these programs to evaluate the Niyama criterion. This specific metric predicts feeding behavior. Values dropping below 0.7 indicate a high micro-porosity risk. You must redesign runners and cooling channels until this value improves.
Even perfect processes yield occasional porous parts. You need approved remediation tactics for high-value components.
Vacuum Impregnation: This involves a standard 3-step process. First, pull a deep vacuum to empty the pores. Second, inject a positive pressure sealant. Third, apply a thermal cure. This seals machined components perfectly. It completely preserves original dimensional tolerances.
Hot Isostatic Pressing (HIP): This serves high-end aerospace and automotive sectors. HIP applies massive heat and uniform pressure. It forces absolute internal void collapse. It literally welds internal tears shut.
Porosity control requires a delicate, scientific balance. It demands pristine melt quality, strict thermal windows, and precise fluid dynamics. Operators cannot fix structural problems by simply turning up a pressure dial. Instead, they must address the physics governing gas behavior and alloy shrinkage.

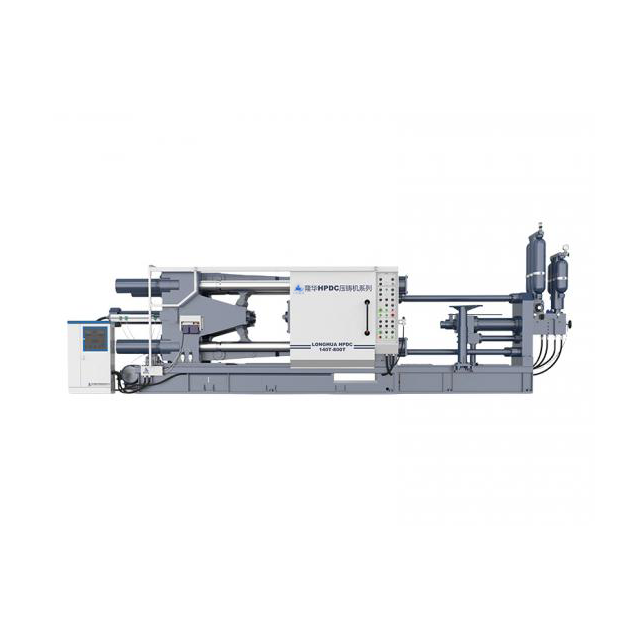

We strongly advise evaluating your current equipment. Test your machines against strict intensification response times. Verify your actual venting capabilities. Investing in an appropriately sized Cold Chamber Die Casting Machine provides massive returns. Real-time injection profiling yields a dramatically higher ROI. It easily outpaces the financial drain of absorbing perpetual scrap or funding endless machining-rework loops.
A: No. A baseline of roughly 5% volume is entirely normal. The engineering goal focuses on directing this porosity to non-critical, non-machined areas. Complete elimination defies the physical realities of rapid alloy solidification.
A: We rely heavily on non-destructive testing. X-ray imaging provides 2D checks, while CT scanning maps full 3D volumes. Ultrasound also works well. For quantitative metrics, we use Archimedes density displacement methods to calculate exact void percentages.
A: While exact dimensions vary by mold, thicker is generally safer. Studies show increasing biscuit height from 10mm to 30mm significantly retains necessary thermal mass. This extends your intensification window and reduces trapped gas volume by dozens of cubic centimeters.
