While the foundation of the hot chamber die casting process dates back to 1849, modern demands for rapid, automated manufacturing have transformed it into a cornerstone of high-volume production. Manufacturers face intense pressure to produce complex, defect-free metal components at record speeds. They need systems capable of running continuously without sacrificing dimensional accuracy.
For engineering and procurement leaders, choosing the right casting infrastructure dictates unit economics. Hot chamber systems offer unmatched cycle speeds. However, their strict material constraints dictate exactly which sectors can leverage them effectively. You must balance cycle time advantages against alloy limitations to ensure profitable production runs.

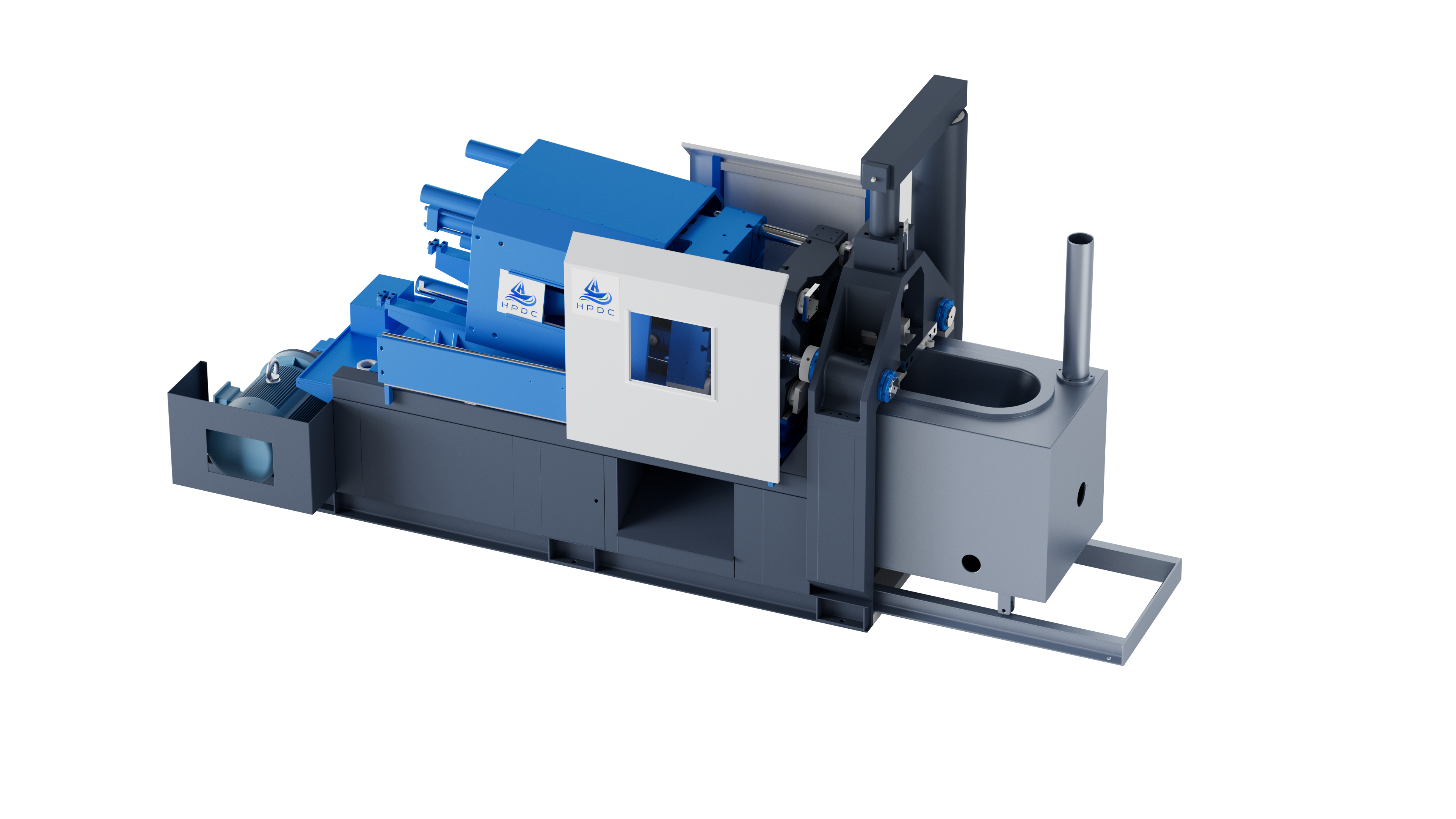

This guide breaks down the specific industries utilizing this technology, the mechanical realities driving those use cases, and an evidence-based framework for evaluating if a Hot Chamber Die Casting Machine aligns with your production roadmap. We will explore mechanical principles, material compatibilities, and actionable steps to optimize your manufacturing strategy.
Speed & Automation: Integrated furnaces allow for continuous metal flow, yielding cycle times often under 60 seconds (up to 15 cycles/minute for multi-slide setups).
Material Restraints as a Filter: Ideal for low-melting-point alloys (zinc, magnesium, lead). Exceeding 660°C (e.g., using aluminum) will cause rapid equipment degradation.
Primary Industries: Automotive (interior mechanics), Consumer Electronics (EMI shielding), Industrial Hardware (pneumatic/hydraulic parts), and Medical Devices.
Capital Evaluation: Higher initial tooling ROI due to lower thermal shock, but requires massive production volumes to justify the equipment footprint and setup costs.
High-volume manufacturing requires minimal manual intervention, low material waste, and high repeatability. Facilities cannot afford delays caused by manual metal transfer or excessive secondary machining. They need a system designed for continuous output. Hot chamber systems solve these bottlenecks by unifying metal melting and injection into a single, closed-loop environment.
Understanding the hardware-to-outcome matrix reveals how specific machine components address production friction. Here is a breakdown of the core mechanics:
Integrated Furnace & Gooseneck: Submerging the injection mechanism directly in the molten pool prevents oxidation. It significantly reduces heat loss. This design eliminates the manual ladling required in cold chamber setups, keeping the metal pure and ready for immediate injection.
Hydraulic/Servo Plungers: These plungers apply consistent pressure, typically ranging between 5 and 35 MPa. High pressure forces the liquid metal into every micro-cavity of the mold. It allows manufacturers to capture intricate mold details right out of the machine, largely eliminating the need for secondary machining.
Automated Ejection & HMI: Modern units utilize touchscreen parameter tracking. Human-Machine Interfaces (HMI) monitor pressure, temperature, and cycle speeds in real time. Automated die lubrication systems maximize tooling life and enforce strict dimensional consistency across hundreds of thousands of shots.
The true advantage lies in the scalability factor. By keeping the metal continuously molten, manufacturers achieve a fully automatic loop. The metal is always ready for injection. This setup is ideal for continuous shifts where downtime severely impacts profit margins. You can run these machines around the clock with minimal operator oversight, ensuring maximum throughput.
The speed and precision of this process make it highly sought after in specific sectors. Industries demanding tight tolerances and rapid scalability rely heavily on hot chamber technology.
The automotive industry consumes millions of small, intricate metal parts annually. Hot chamber systems excel at producing carburetor components, seatbelt mechanisms, gearboxes, and custom brackets. The automotive sector requires extreme dimensional stability under strict safety tolerances.
Why it fits: The hot chamber process yields exceptionally low-porosity parts. High-stress automotive safety components demand solid, dense metal structures to prevent mechanical failure during impacts. The ability to cast these components rapidly without sacrificing structural integrity makes this method indispensable for Tier 1 automotive suppliers.
Consumer electronics require components that are both lightweight and highly protective. Applications frequently include complex connectors, switch housings, and internal heat sinks. The rapid product cycles in electronics demand manufacturing methods that can scale instantly.
Why it fits: Magnesium alloys cast in these machines provide superior radio frequency (RF) shielding. They also offer excellent electromagnetic interference (EMI) shielding for sensitive electronics. Magnesium combines these protective properties with an ultra-lightweight profile. This combination is essential for modern smartphones, laptops, and telecommunication network hardware.
Industrial applications demand rugged precision. Common outputs include pneumatic valves, hydraulic fluid controls, lock mechanisms, and complex plumbing fixtures. These parts often feature internal threading or intricate fluid pathways.
Why it fits: The process handles complex internal geometries effortlessly. Using advanced core pulling techniques, manufacturers can cast elaborate internal shapes directly in the mold. Achieving high surface finishes right out of the machine eliminates costly and time-consuming post-processing steps. You get a finished, ready-to-assemble piece straight from the ejector pins.
The decision to invest in this equipment hinges entirely on the metal alloy required for your end product. You cannot adapt a hot chamber machine for incompatible metals without causing catastrophic equipment failure.
A dedicated Zinc Die Casting Machine leverages zinc's low melting point of approximately 420°C. Zinc possesses extreme flowability in its molten state. This characteristic allows engineers to design components with ultra-thin walls and highly complex geometric shapes. Zinc maintains excellent electrical and thermal conductivity, making it perfect for both hardware and electronic applications.
Magnesium provides exceptional strength-to-weight ratios. It offers high impact resistance and robust structural integrity. Engineers favor magnesium for weight-sensitive applications in aerospace, automotive interiors, and portable electronics. It flows easily through the gooseneck mechanism and solidifies rapidly, keeping cycle times incredibly short.
However, you must acknowledge a critical disqualifier: the aluminum limitation. Aluminum's melting point exceeds 660°C. Exposing the internal gooseneck and plunger directly to these extreme temperatures causes a severe metallurgical reaction. The molten aluminum will actively dissolve and corrode the machine's high-grade steel components. This aggressive corrosion leads to rapid equipment failure, compromised injection pressure, and ruined batches. Therefore, aluminum parts necessitate cold chamber alternatives where the injection system remains isolated from the primary melting pot.
Procurement teams must compare the two dominant die casting processes to finalize their equipment shortlisting. Choosing the wrong machine architecture leads to severe production delays and wasted capital.
Below is a standardized matrix outlining the evaluation criteria for both processes.
Evaluation Criteria | Hot Chamber Die Casting | Cold Chamber Die Casting |
|---|---|---|
Cycle Speed & Efficiency | Under 60 seconds per cycle. Metal is instantly available. Lower exposure to external oxidation. | 60–120+ seconds per cycle. Requires external ladling. Higher risk of temperature drops. |
Ideal Part Profile | Optimized for high-volume, small-to-medium components requiring ultra-thin walls. | Necessary for large, bulky parts and massive, high-strength structural components. |
Compatible Materials | Zinc, Magnesium, Lead, Tin (Low melting points below 450°C - 600°C). | Aluminum, Brass, Copper (High melting points exceeding 600°C). |
Tooling & Maintenance | Lower thermal fatigue extends die life. Cast iron or tool steel molds last significantly longer. | High thermal shock reduces die lifespan. Requires frequent tool maintenance and replacement. |
Cycle speed dictates daily output. Hot chamber systems dominate efficiency metrics because they eliminate the ladling step. The metal remains in a sealed, temperature-controlled environment. This limits external contaminant exposure and prevents oxidation.
Conversely, cold chamber systems require an external mechanism to pour molten metal into the injection sleeve for each cycle. This step adds time. It also introduces the risk of temperature fluctuations during the transfer phase.
Tooling longevity heavily influences your overall return on investment. Hot chamber molds experience much lower thermal fatigue. Because zinc and magnesium melt at lower temperatures, the die steel endures less thermal shock upon injection. This preserves mold integrity, significantly extending die life and improving long-term capital ROI.
While highly efficient, the process remains susceptible to specific defects if operators manage parameters poorly. Engineering teams must monitor the injection variables closely.
Managing defect rates requires strict adherence to physical limits. Rapid injection speeds can trap gases inside the mold cavity. This trapped gas leads to internal porosity, weakening the final part. Alternatively, if the machine's clamping force is inadequate against the injection pressure, molten metal escapes the die parting line. This creates flashing, which requires manual trimming and slows down your delivery schedule. You must calibrate plunger velocity and clamping tonnage perfectly.
Thermal fatigue presents another implementation risk. Despite operating at lower temperatures than aluminum casting, the continuous rapid cycling generates immense heat buildup. Modern machines require advanced cooling systems and strategically placed thermal sensors. These sensors prevent premature die failure by regulating mold temperatures between shots.
You must also evaluate production volume thresholds. Hot chamber die casting is rarely cost-effective for low-volume runs. The initial setup requires custom tool steel molds, which demand significant capital. You only realize the true ROI when you amortize these tooling costs over hundreds of thousands of units. For production runs under 10,000 units, alternative manufacturing methods might prove more viable.
Before committing to a machine architecture, engineering teams must execute specific next-step actions. Run finite element analysis (FEA) on all part designs. Calculate expected cycle times against your minimum order quantities (MOQs). Validate your mold flow simulations to identify potential porosity zones before cutting any physical steel.
Hot chamber die casting machines offer an unrivaled mix of speed, precision, and automation. They stand as the definitive manufacturing solution for industries utilizing zinc, magnesium, or lead. By integrating the furnace and injection system, these machines deliver continuous output and capture extraordinary part details without secondary machining.
Your shortlisting logic should remain straightforward. If your product requires complex, thin-walled geometries, demands high EMI shielding, and scales into the hundreds of thousands, hot chamber systems are the definitive choice. They will optimize your unit economics and accelerate time-to-market. Conversely, if your project demands aluminum or massive structural parts, you must pivot your evaluation to cold chamber alternatives to avoid catastrophic equipment degradation.
Take proactive steps today. Consult with a specialized tooling engineer to review your CAD files. Run a comprehensive mold-flow simulation to predict cooling rates and potential defect zones. Use this data to determine the exact machine tonnage required for your next highly automated production line.
A: Standard machines average under 60 seconds per cycle. However, advanced multi-slide hot chamber machines can achieve up to 10 to 15 cycles per minute. This extreme speed applies primarily to small, highly automated parts requiring minimal cooling time.
A: The alloys used, such as zinc and magnesium, melt at significantly lower temperatures than aluminum or brass. Injecting cooler metal reduces thermal shock, heat checking, and general wear on the die steel. This extends the operational life of the mold.
A: It is generally not recommended due to high initial tooling costs. Creating the custom steel molds requires significant capital. Alternatives like 3D printing or CNC machining are better for prototyping. Transition to hot chamber casting only when the design is locked for mass production.
