Views: 0 Author: Site Editor Publish Time: 2026-07-07 Origin: Site
The accelerating demand for lightweighting in automotive, aerospace, and consumer electronics has positioned magnesium as a primary manufacturing material. Its unique thermal and chemical properties complicate the casting process. Unlike aluminum or zinc, magnesium is highly reactive in its molten state. Manufacturers must implement specialized melting processes to prevent oxidation, manage severe safety risks, and maintain tight temperature controls without inflating energy costs or cycle times. Selecting the appropriate melting technology and casting process requires a rigorous evaluation of production volume, part complexity, and equipment capabilities. This guide breaks down the technical applications, equipment requirements, and operational trade-offs of Mg Alloy Melting for die casting operations.
Defining a successful magnesium casting operation requires looking at shop-floor realities. High yield rates depend entirely on maintaining absolute melt purity. Operators must achieve minimal porosity, strict dimensional tolerances, and zero safety incidents during the melting phase. Any exposure to ambient oxygen or moisture compromises the batch. This leads to excessive dross formation and hazardous conditions. Success means controlling the thermal environment so precisely that the molten metal flows flawlessly into complex dies without degrading the equipment or risking operator safety. We measure success by the reduction of scrap rates and the extension of crucible lifespans under continuous operation.
Engineers specify common magnesium alloys primarily for their exceptional strength-to-weight ratios. These materials offer structural integrity comparable to heavier metals while significantly reducing overall component mass. The thermal dynamics of magnesium dictate specific handling procedures on the floor. It melts at approximately 650°C (1200°F) and possesses a low latent heat of fusion. This specific heat capacity allows the metal to solidify rapidly once injected into the die. Rapid solidification translates directly to shorter cycle times and drastically reduced thermal shock on the die steel. This extends tooling life well beyond what aluminum casting permits.
| Magnesium Alloy | Primary Characteristics | Common Applications | Melting Considerations |
|---|---|---|---|
| AZ91D | High strength, excellent corrosion resistance, good castability. | Powertrain components, brackets, electronics housings. | Requires strict temperature control to prevent aluminum segregation. |
| AM60B | Excellent ductility, high energy absorption, good elongation. | Steering wheels, seat frames, dashboard supports. | Prone to oxidation if cover gas mixture is inconsistent. |
| AM50A | Maximum ductility, slightly lower strength than AM60B. | Safety components requiring high impact resistance. | Demands precise dosing to maintain structural integrity. |
Magnesium dominates sectors where mass reduction equals performance enhancement. In the automotive industry, manufacturers cast engine blocks, transmission cases, steering wheels, and structural brackets from magnesium. Every kilogram removed from a vehicle directly improves fuel efficiency and extends electric vehicle battery range. The electronics and aerospace sectors rely on magnesium for EMI shielding housings, drone frames, and specialized heat sinks. These applications require extreme thin-wall castability. Molten magnesium excels here due to its high fluidity at optimal casting temperatures. You will see these components in high-stress environments where failure is not an option.
In hot chamber die casting, the injection mechanism remains completely submerged in the molten metal bath. A piston forces the liquid magnesium up through the gooseneck and directly into the die cavity. This closed-loop system is best suited for smaller, highly complex components. Because the melt remains enclosed and transfers directly into the die without atmospheric exposure, the process minimizes metal oxidation. Operators benefit from significantly faster cycle times and reduced material waste. Maintenance teams must regularly inspect the submerged components for wear, as the continuous exposure to molten magnesium degrades standard steel rapidly.
Cold chamber systems separate the melting furnace from the injection mechanism. Molten magnesium is ladled or dosed from a holding furnace into a shot sleeve under high pressure. Manufacturers utilize this method for large automotive components that exceed the tonnage limits of hot chamber machines. Transferring molten magnesium requires precise dosing technology to minimize heat loss and prevent air exposure. Any delay or inaccuracy during the transfer phase introduces oxides into the shot sleeve. This ultimately degrades the mechanical properties of the final cast part. You must calibrate the dosing pumps daily to ensure volumetric accuracy.
Thixomolding offers a distinct alternative to traditional liquid casting. Instead of creating a full liquid melt, this process heats magnesium chips into a semi-solid slurry. An injection molding machine forces this slurry into the die. This method eliminates the need for a traditional alloy melting system and hazardous cover gases. Thixomolding yields parts with exceptionally low porosity and tight tolerances. It requires specialized, high-capital injection machinery, making it a significant upfront investment compared to standard die casting setups. We often see this used for ultra-thin consumer electronics components.
Managing the thermal environment extends beyond the furnace. Die lubrication technology plays a critical role in magnesium casting. Operators must choose between water-free and water-based lubricants for die surfaces. High melt temperatures demand advanced, often water-free, lubricants to prevent soldering and thermal cracking while ensuring clean part release. Maintaining thermal equilibrium between the molten magnesium and the die steel prevents pre-solidification defects like cold shuts. Precise temperature control ensures the metal fills the entire cavity before solidifying. You must monitor die surface temperatures using infrared sensors to maintain this balance.

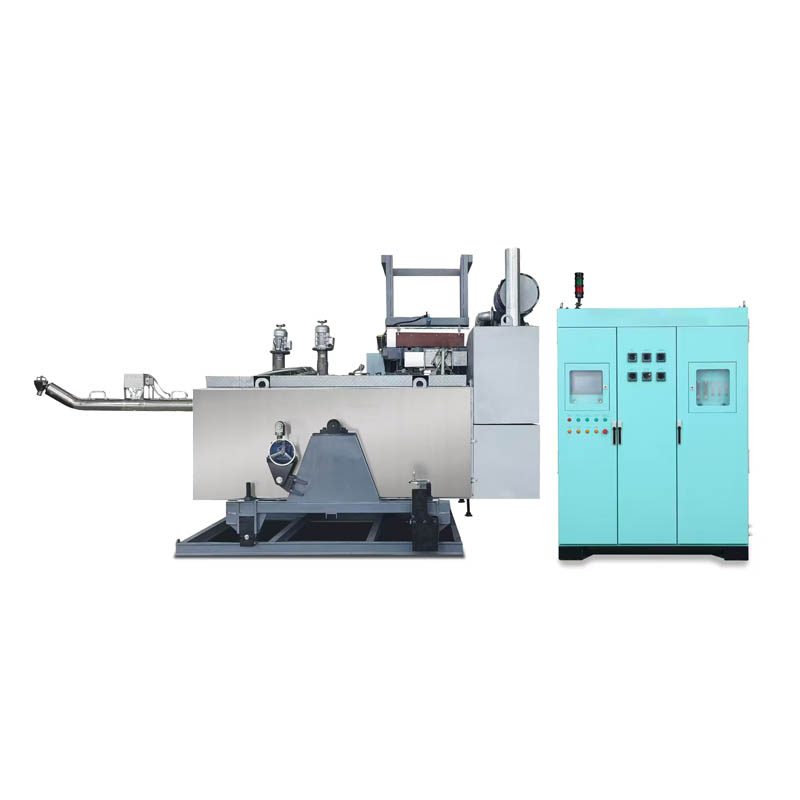

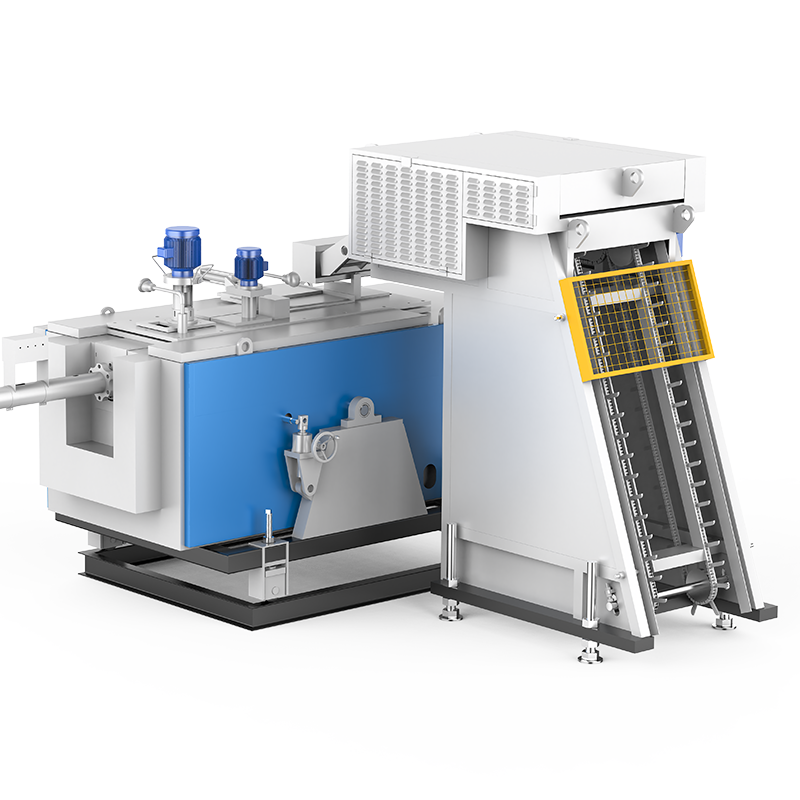

Choosing the right magnesium alloy melting furnace dictates the efficiency of the entire operation. Facilities must evaluate gas-fired versus electric resistance heating technologies. Gas furnaces generally offer faster recovery rates when adding cold ingots. Electric furnaces provide superior temperature stability and quieter operation. Crucible material selection is equally vital. Magnesium aggressively attacks certain metals, so operators must utilize bi-metallic or clad steel crucibles. These specialized materials prevent iron contamination. Iron contamination ruins the corrosion resistance of the magnesium alloy and leads to premature part failure in the field.
A melting furnace cannot operate in isolation. It must integrate seamlessly with the magnesium die casting machine. Facilities must evaluate transfer mechanisms such as mechanical pumps, vacuum dosing systems, or gravity feeds. The synchronization between the melting furnace's dosing accuracy and the die casting machine's shot profile is non-negotiable. If the dosing pump delivers the metal too slowly, the magnesium cools, resulting in cold shuts or incomplete fills. Precision integration ensures repeatable, high-quality casting cycles. We recommend hardwiring the furnace PLC directly to the casting press for millisecond-level communication.
Molten magnesium ignites when exposed to oxygen. Melt protection relies heavily on cover gases to create a protective barrier over the liquid metal. Historically, the industry relied on SF6. Due to its massive global warming potential, modern facilities are transitioning to SO2, Novec 612, or HFC-134a to maintain environmental compliance. Some manufacturers are adopting fluxless melting systems. These systems rely entirely on the gas blanket rather than chemical fluxes. This significantly reduces dross formation and improves overall metal cleanliness in the crucible. You must monitor gas flow rates continuously; a drop in pressure will cause an immediate crucible fire.
| Cover Gas Type | Environmental Impact | Operational Characteristics |
|---|---|---|
| SF6 (Sulfur Hexafluoride) | Extremely high GWP. Being phased out globally. | Highly stable, excellent protection, but environmentally unsustainable. |
| SO2 (Sulfur Dioxide) | Low GWP, but highly toxic and corrosive. | Requires strict ventilation and corrosion-resistant furnace components. |
| Novec 612 (Fluorinated Ketone) | Ultra-low GWP. Environmentally friendly. | Requires precise mixing equipment. Higher consumable cost. |
| HFC-134a | Moderate GWP. Transitional gas. | Good balance of cost and protection, but faces future regulatory scrutiny. |
Efficient operations rely on specialized magnesium casting equipment beyond the primary furnace. Automated ingot pre-heaters are mandatory to eliminate surface moisture before charging the melt. Introducing a damp ingot into molten magnesium causes catastrophic steam explosions. Integrated scrap recycling systems handle runners and biscuits directly at the press. Efficient recycling impacts melt purity and furnace efficiency. This allows facilities to maximize material utilization without compromising the chemical composition of the alloy. You should implement a strict segregation protocol for different alloy scraps to prevent cross-contamination.
Magnesium’s lower melting point offers a theoretical energy advantage over aluminum. Facilities must weigh this against the continuous energy required to maintain strict holding temperatures and power the atmospheric control systems. The rapid solidification of magnesium allows for higher throughput and faster cycle times. Operators must balance the energy saved per cycle against the continuous draw of the specialized holding furnaces and gas mixing cabinets required to keep the melt safe and stable. We track kilowatt-hours per kilogram of good castings to determine true operational efficiency.
Investing in magnesium infrastructure requires careful financial planning. The upfront costs of specialized magnesium casting equipment, including sealed furnaces and gas delivery systems, are substantial. These initial CapEx investments yield long-term OpEx savings. Magnesium causes significantly lower thermal fatigue on tooling compared to aluminum, drastically extending die life. The faster cycle times increase overall production capacity. This allows manufacturers to amortize the equipment costs over a larger volume of high-value parts. You must factor in the cost of cover gas consumables when calculating your monthly operating budget.
Magnesium melting systems demand rigorous, proactive maintenance. Facilities must account for the labor and downtime associated with routine dross removal. Crucibles require frequent ultrasonic thickness inspections to detect thinning before a catastrophic breach occurs. In hot chamber systems, operators must regularly clean and rebuild the gooseneck and plunger assemblies. In cold chamber setups, the shot sleeve and dosing pumps require constant attention to prevent metal buildup and ensure accurate delivery volumes. We mandate a weekly teardown of the dosing pump to clear oxide blockages.
The most significant risk in magnesium casting is fire. Molten magnesium reacts violently with water and oxygen. Mitigation requires strict moisture-control protocols for all ingots and tools prior to charging the melt. Facilities must implement automated dosing systems to remove human operators from the immediate splash zone. Standard fire suppression systems are useless. Casting environments must be equipped with specialized Class D fire extinguishing agents specifically designed to smother combustible metal fires. You must train every operator on the floor to recognize the early signs of a magnesium flare.
Non-metallic inclusions, such as oxides or flux particles, severely compromise the mechanical integrity of a cast magnesium part. To mitigate this risk, operators must implement advanced melt filtration systems within the dosing mechanism. Precise temperature monitoring is critical to prevent localized overheating, which accelerates oxidation. Facilities must enforce strict adherence to alloy chemistry standards. You must regularly sample the melt to ensure the proper balance of aluminum, zinc, and manganese in alloys like AZ91D or AM60B. We use optical emission spectroscopy on the floor for real-time alloy verification.
Conduct a comprehensive part-design audit to determine if hot chamber or cold chamber casting is required for your specific geometry.
Evaluate local environmental regulations to select a compliant, low-GWP cover gas system for the melting furnace.
Request detailed dosing accuracy specifications and thermal recovery rates from equipment manufacturers before procurement.
Implement rigorous, mandatory safety training focused on moisture control and Class D fire suppression for all furnace operators.
Calculate the lifecycle operational costs for the required alloy melting system, factoring in crucible replacement and cover gas consumption.
A: Most die casting magnesium alloys, such as AZ91D and AM60B, melt at approximately 650°C (1200°F). This relatively low melting point reduces the baseline energy required to liquefy the metal compared to aluminum, allowing for faster heating and reduced thermal fatigue on the casting dies.
A: Hot chamber die casting integrates the melting pot directly with the injection machine. This closed system prevents the molten magnesium from being exposed to the atmosphere, drastically reducing oxidation. It enables much faster cycle times and is ideal for producing smaller, highly intricate components.
A: Safety is paramount due to magnesium's reactivity. Operators must pre-heat all ingots and tools to eliminate moisture, preventing steam explosions. The furnace must utilize protective cover gases to prevent ignition, and the facility must be equipped with Class D fire extinguishers designed for combustible metals.
A: Magnesium has a lower melting temperature but is vastly more reactive than aluminum. While aluminum can be melted in open air, molten magnesium requires a strict, continuous blanket of protective cover gas to prevent it from rapidly oxidizing or catching fire upon contact with ambient oxygen.
A: Historically, the industry used Sulfur Hexafluoride (SF6). Due to its extremely high global warming potential, modern facilities have transitioned to environmentally compliant alternatives like Sulfur Dioxide (SO2), Novec 612, or HFC-134a to safely blanket the molten metal.
A: While the base hydraulic press may be similar, standard machines cannot process magnesium safely. The alloy melting system, dosing mechanism, and safety enclosures must be purpose-built or heavily retrofitted to handle magnesium's specific thermal requirements and fire risks.
A: Magnesium's low latent heat means it solidifies very quickly. Specialized, often water-free, die lubricants are required to manage rapid heat transfer, prevent premature solidification, and protect the die components from soldering without introducing moisture into the casting environment.
