Die casting is a pivotal process in the manufacturing industry, instrumental in producing complex metal parts with high precision and efficiency. Its significance spans across various sectors, including automotive, aerospace, and consumer electronics. This article delves into the intricacies of die casting, exploring its principles, machine types, applications, and the technological advancements shaping its future. Understanding the die casting machine is essential for factories, channel partners, and distributors aiming to optimize production and enhance product quality.
Die casting is a metal casting process characterized by forcing molten metal under high pressure into mold cavities. These mold cavities are created using two hardened tool steel dies, which have been machined into shape and work similarly to an injection mold during the process. The method is renowned for producing intricate parts with excellent surface finish and dimensional consistency.
Historically, die casting emerged in the early 19th century, primarily used for printing type. However, with industrial advancements, it has evolved to accommodate non-ferrous metals like zinc, copper, aluminum, magnesium, lead, pewter, and tin-based alloys. The global die casting market has witnessed significant growth, with a compound annual growth rate (CAGR) of 6.6% from 2014 to 2020, reflecting its critical role in modern manufacturing.
At the core of the die casting process is the principle of die casting machine operation. The machines utilize a combination of high pressure and speed to inject molten metal into the die cavity. The fundamental principle involves four stages:
1. Clamping: The die casting machine consists of two halves: the cover die and the ejector die. Before injection, these dies are securely clamped together to withstand the forces of the injection.
2. Injection: Molten metal is injected into the die cavity at high speed and pressure, ensuring the metal fills intricate geometries before solidification occurs.
3. Cooling: Once the cavity is filled, the metal is allowed to cool and solidify within the die, forming the desired shape.
4. Ejection: After solidification, the dies open, and ejector pins push the casting out of the die cavity, preparing the machine for the next cycle.
This high-efficiency cycle allows for rapid production rates, making die casting an optimal choice for high-volume manufacturing.
Die casting machines are broadly classified based on their injection systems and structural configurations. The two primary types are hot chamber and cold chamber die casting machines. The selection between them hinges on the melting point of the metal being cast and production requirements.

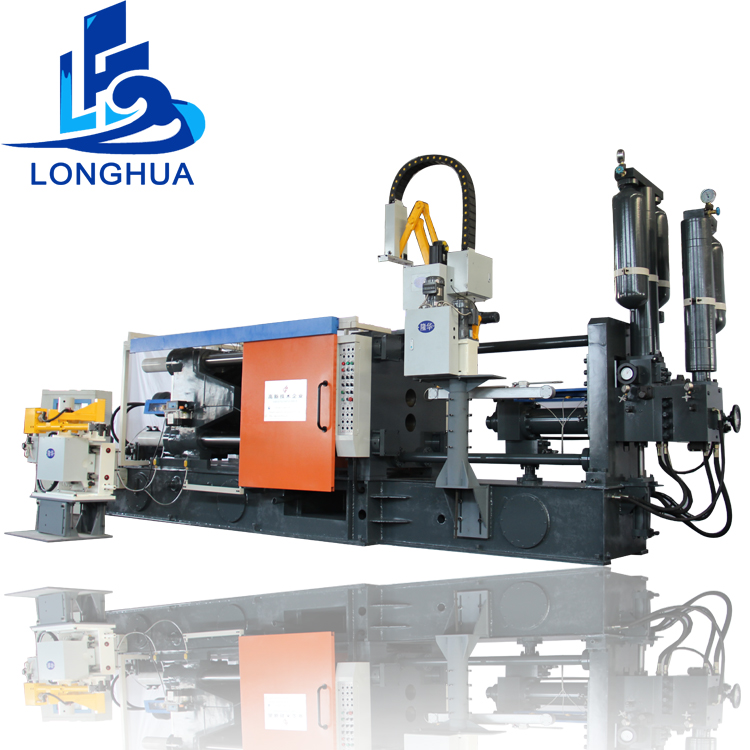

The Cold Chamber Die Casting Machine is specifically designed for metals with high melting points, such as aluminum, magnesium, and copper alloys. In this machine, the molten metal is manually or automatically ladled into the injection chamber, also known as the cold chamber. A hydraulic piston then forces the metal into the die cavity.
One of the key advantages of cold chamber machines is their ability to minimize corrosion in the injection components, a common issue when casting metals at higher temperatures. However, this process typically has slightly slower cycle times compared to hot chamber machines due to the additional step of transferring the molten metal.
Technological advancements have led to the development of energy-efficient cold chamber machines. For instance, Longhua Die Casting Machine's LH-2000T model integrates innovative features for the aerospace industry, offering precision and reliability in producing complex components.
The advent of automation has revolutionized die casting, leading to the creation of the Automatic Die Casting Machine. These machines incorporate robotic systems and advanced controls to automate the die casting process fully. Automation enhances consistency, reduces human error, and significantly increases production speed.
Automatic machines are equipped with features like automatic ladling, spraying, and extraction, which streamline the entire cycle. They are also integrated with monitoring systems that provide real-time data analytics, enabling proactive maintenance and quality control.

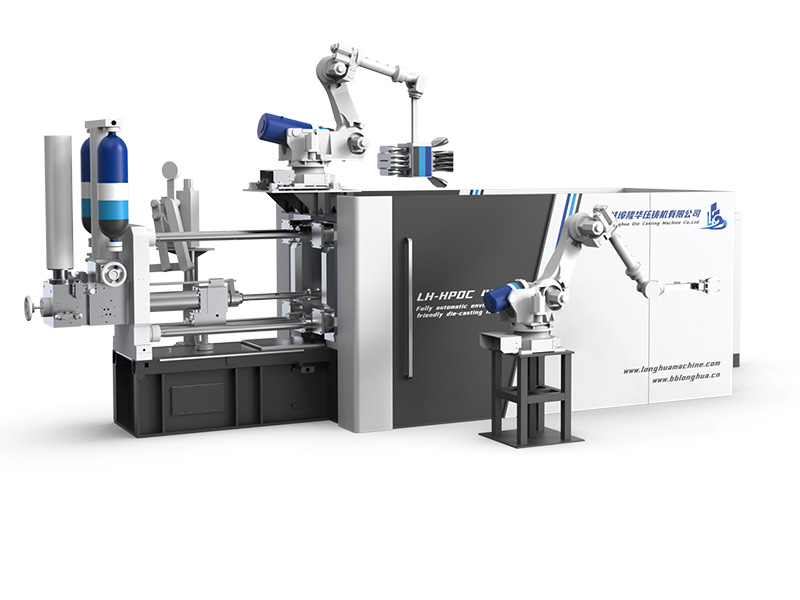

Longhua Die Casting Machine's LH-HPDC series exemplifies cutting-edge automation, offering high-speed and high-precision casting solutions. These machines cater to industries demanding meticulous standards, such as automotive and electronics manufacturing.
Die casting's ability to produce complex shapes with tight tolerances makes it indispensable across various industries. Its applications are extensive:
Automotive Industry: Components like engine blocks, transmission housings, and structural parts are die-cast to reduce weight and improve fuel efficiency. The push towards electric vehicles has further increased the demand for die-cast components due to their thermal and electrical properties.
Aerospace Industry: Die casting produces lightweight yet strong components for aircraft, including brackets, housings, and complex assemblies. The LH-1250T Environmental Protection Die Casting Machine by Longhua caters specifically to magnesium alloy components, which are prized in aerospace applications for their strength-to-weight ratio.
Consumer Electronics: The miniaturization of electronic devices requires precise and intricate parts. Die casting provides the necessary accuracy for components like heat sinks, enclosures, and connectors.
Industrial and Machinery: Die-cast parts are used in heavy machinery and equipment, offering durability and the ability to withstand harsh operational environments.
Die casting presents numerous advantages that make it a preferred manufacturing method:
High Production Efficiency: The rapid cycling of die casting machines allows for mass production of parts, significantly reducing lead times.
Complex Geometries: The process can produce intricate designs with tight tolerances that would be challenging or cost-prohibitive with other methods.
Excellent Surface Finish: Die-cast parts have smooth surfaces, reducing the need for additional machining or finishing processes.
Material Conservation: The process generates minimal waste, as excess material can often be recycled and reused.
However, die casting also faces challenges:
High Initial Costs: The creation of dies and the investment in machinery can be substantial. This initial outlay is offset over large production runs.
Material Limitations: Die casting is typically suitable for non-ferrous metals. Ferrous metals with high melting points are generally not compatible with standard die materials.
Porosity Issues: Gas entrapment can lead to porosity in the cast parts, affecting mechanical properties and requiring careful process control.
The die casting industry is continually evolving with technological innovations aimed at enhancing efficiency, environmental sustainability, and product quality.
Energy-Efficient Machines: Modern die casting machines are designed to consume less energy. For example, the LH-1600T Energy Saving Die Casting Machine by Longhua incorporates advanced hydraulic systems that reduce power consumption without compromising performance.
Automation and Robotics: The integration of automation has streamlined operations, reduced labor costs, and improved consistency. Robotic systems handle tasks such as die lubrication, part extraction, and trimming.
Advanced Materials: The development of new die materials and coatings extends die life and allows for casting of more demanding alloys.
Simulation Software: Computational tools enable manufacturers to model and optimize the die casting process, predicting potential defects and allowing for adjustments before production begins.
Environmental sustainability is becoming increasingly important in manufacturing. Die casting addresses these concerns in several ways:
Recyclability: The metals used in die casting are highly recyclable, reducing the need for raw material extraction and minimizing waste.
Energy Efficiency: Energy-saving machines reduce the carbon footprint of production. Longhua's LH-HPDC-160G model exemplifies this, offering significant energy savings for aluminum alloy parts production.
Emission Controls: Advances in technology have led to better control of emissions from the die casting process, aligning with global environmental standards.
The die casting industry is poised for significant growth, driven by technological innovation and market demands:
Lightweight Materials: The emphasis on fuel efficiency in transportation is leading to increased use of lightweight alloys, boosting demand for die-cast components.
Additive Manufacturing Integration: Combining die casting with additive manufacturing techniques can lead to hybrid processes that leverage the strengths of both methods.
Industry 4.0: The implementation of smart manufacturing systems, IoT, and data analytics is optimizing production and enabling predictive maintenance.
Global Supply Chain Shifts: Changes in global trade dynamics are impacting the supply chain, with manufacturers seeking localized production to reduce dependence on global logistics.
Founded in 1982, Longhua Die Casting Machine stands at the forefront of die casting technology. As a national high-tech enterprise, Longhua specializes in the design, R&D, manufacturing, and sales of horizontal cold chamber J11 series die casting machines, die-casting robots, molds, and peripheral equipment.
With a commitment to innovation, Longhua collaborates with esteemed institutions like the Anhui Institute of Science and Technology and the Hefei Institute of Materials Science. This partnership has yielded advanced high-speed and high-precision AI die casting machines and robots, exemplifying the company's dedication to technological excellence.
Longhua's products, such as the LH-3000T Cheap Aluminium Die Casting Machine, cater to diverse industries, including automotive, aerospace, and new energy sectors. The company's global footprint extends to numerous countries, supplying high-quality machines recognized for their reliability and performance.
By embracing the principles of "strengthening science and technology, establishing brands, valuing talents, and independent innovation," Longhua continues to contribute significantly to the die casting industry and China's vision of becoming a technological powerhouse.
Die casting is a dynamic and essential process in modern manufacturing, offering unparalleled advantages in producing complex metal components efficiently and with high precision. Understanding the die casting machine and its various types, such as the cold chamber and automatic die casting machines, is crucial for industry stakeholders.
As the industry advances, driven by technological innovations and a focus on sustainability, companies like Longhua Die Casting Machine are leading the way. Their commitment to quality and innovation not only enhances manufacturing capabilities but also contributes to global efforts in technological development.
For factories, channel partners, and distributors, staying abreast of these developments is essential. Embracing advanced die casting technologies can lead to improved product quality, operational efficiency, and competitive advantage in the global market.
