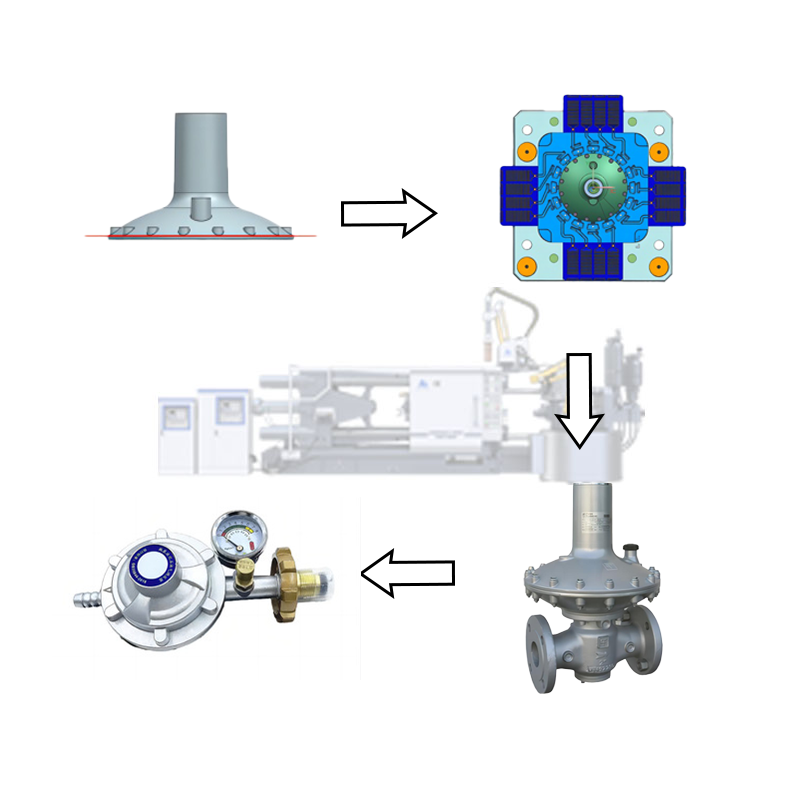

High-pressure die casting is an inherently violent process. Molten metal blasts into a steel cavity at extreme velocities under massive pressure. It must transition into a solid state within mere milliseconds. This rapid phase change creates immense engineering challenges on the production floor. If you fail to manage thermal dynamics and gas evacuation, the consequences are severe. Manufacturers routinely face high porosity, structural failures, and extended cycle times. Poor thermal control also severely compromises overall tool life.
Rigorous cooling and venting engineering solves these problems directly. It acts as the primary differentiator in the modern casting industry. It elevates a basic operational tool into a high-yield, production-ready asset. In this article, you will learn exactly how advanced venting prevents gas entrapment. We will also explore how strategic cooling channel placement achieves perfect thermal equilibrium. Finally, you will discover how to evaluate prospective tooling partners based on their predictive simulation capabilities.
Trapped cavity air directly causes internal porosity. This common defect compromises pressure-tight applications. It also severely lowers structural load-bearing limits. When mold gases cannot escape quickly enough, they compress. They form microscopic voids inside the solidifying metal structure. These voids weaken the final component drastically. You will see higher scrap rates during secondary machining operations. Machining exposes these hidden pores, rendering the part useless. Effective gas evacuation ensures a dense, reliable internal structure. It protects your profit margins by reducing late-stage part rejection.
Thermal bottlenecks in a custom pressure die casting mold increase the cooling phase duration. The cooling phase typically consumes the largest portion of the casting cycle. A longer cooling phase means fewer parts produced per hour. This delay drastically reduces the total number of shots you can achieve per shift. Return on investment drops proportionally when cycle times drag. You must extract heat from the tool as rapidly as possible. Highly optimized thermal management shaves seconds off every cycle. Over a production run of a million parts, these saved seconds translate into massive financial gains.
Poorly planned thermal mapping causes severe thermal fatigue. You will often see heat checking and localized soldering on the die face. Extreme temperature swings expand and contract the die steel unevenly. This continuous thermal shock causes micro-cracking across the cavity surface. This stress leads to premature mold failure. Localized soldering occurs when cooling fails to address specific hot spots. Molten aluminum bonds chemically to the overheated tool steel. Maintenance downtime becomes an expensive, recurring burden. A balanced thermal design extends the operational life of your tooling significantly.
Air must escape the mold cavity before the advancing metal front arrives. Fluid dynamics dictate this high-speed race. The molten metal fills the empty space in milliseconds. If the exhaust pathways are too restrictive, trapped air compresses rapidly. This compression creates internal backpressure. Backpressure disrupts the smooth metal flow, causing turbulence and splashing. Turbulence folds air directly into the molten material. You must design evacuation pathways based on the total volume of the cavity. You must also account for the volume of the shot sleeve.
Traditional methods use shallow exhaust channels and overflow wells. Engineers machine these pathways directly along the parting line. However, standard vents have strict geometric limitations. They often fall short for highly complex part geometries. Intricate part designs trap air in blind pockets. Standard parting-line vents cannot reach these isolated areas. Furthermore, standard vents must remain very shallow. If you cut them too deep, molten metal will spray out of the die. This limitation restricts the sheer volume of air they can exhaust.
Modern production molds deploy specialized copper alloy chill vents. Beryllium Copper is a highly popular material choice for these blocks. These alloys offer rapid thermal conductivity. They feature deep, corrugated channels. These channels allow massive volumes of gas to escape freely. When the molten metal eventually hits the vent block, it freezes instantly. The high thermal conductivity of the copper alloy drops the metal temperature immediately. This immediate solidification prevents dangerous flash from forming outside the cavity. Chill vents offer a massive performance upgrade over standard exhaust grooves.
Sometimes, advanced chill venting is still not enough. You must upgrade to vacuum die casting for ultra-low porosity requirements. A vacuum system extracts air actively before the metal injection begins. It creates a negative pressure environment inside the cavity. The initial tooling investment for vacuum valves is quite high. You also need specialized vacuum pumps and controllers. However, the dramatic yield improvements easily justify the expense. You need vacuum systems for critical structural components. They are mandatory for parts undergoing subsequent heat treatment or welding.
You must maintain a narrow, stable temperature window across the entire die face. Continuous production generates immense heat energy. A high precision custom mold relies on carefully balanced internal cooling networks. If the tool runs too hot, the metal solders to the steel. If it runs too cold, the metal freezes prematurely, causing short shots. Thermal equilibrium means heat entering the die equals heat leaving the die. Achieving this steady state requires precise calculation of coolant flow rates and channel placements.
Engineers use several channel topologies to target localized hot spots. Straight lines cool flat, easily accessible cavity areas. They are cheap and easy to drill. However, complex parts require complex cooling.
Additive manufacturing revolutionized modern thermal management. Engineers now use 3D-printed tool steel inserts. These inserts feature conformal cooling channels. Traditional drills can only create straight holes. Conformal channels bend and curve freely. These internal passages hug the exact part geometry closely. They maintain a uniform distance from the cavity surface everywhere. The upfront cost for these specialized inserts is high. However, they extract heat faster and more evenly than any other method. The long-term cycle time reduction is massive.
Flow rate and pressure drop matter deeply in tool design. You need turbulent flow within the cooling channels. Laminar flow is smooth and highly inefficient. Turbulent flow creates chaos inside the channel. This chaotic action breaks the thermal boundary layer against the steel wall. Breaking this boundary layer maximizes heat transfer efficiency. Engineers must size the cooling lines carefully. If channels are too small, the pressure drop is too high. The factory water system will fail to push enough volume through the tool.
| Cooling Technology | Best Application | Upfront Cost | Cooling Efficiency |
|---|---|---|---|
| Straight Drilled Lines | Flat surfaces, simple geometries | Low | Baseline |
| Baffles and Bubblers | Core pins, deep pockets, thick walls | Medium | High (Localized) |
| Conformal Cooling (3D Printed) | Complex contours, strict thermal limits | High | Maximum (Uniform) |
Credible manufacturers provide computational fluid dynamics (CFD) simulations routinely. They also deliver comprehensive thermal mapping models. They perform these studies before cutting any steel. Relying on trial and error on the factory floor is unacceptable today. Advanced software predicts exactly how the metal behaves during injection. It reveals hidden air traps and pinpoints thermal hot spots accurately. You should demand a full simulation report during the quoting phase. It proves the partner understands engineering, not just basic machining.
The manufacturer must specify varying steel grades correctly. Standard H13 tool steel is common for the main block. However, premium grades like Dievar offer superior heat checking resistance. They must also choose specialized alloys for venting blocks. The specific metal alloy you intend to cast dictates these material choices. Zinc, aluminum, and magnesium each present different thermal loads. Your partner must demonstrate deep knowledge of metallurgy. They should explain why they selected specific materials for core pins versus cavity blocks.
Procurement and engineering teams must ask for hard data. Request the metrics driving the proposed cooling and venting layout. Look for verifiable numbers in their design presentations. You want predicted fill times. You need to see exact thermal gradients mapped across the tool surface. You should also ask about gas pressure limits at the end of fill. Do not accept vague assurances. A competent partner will justify every cooling line and vent depth with simulation data.
The first physical shot of the mold is called T0. A successful T0 trial demonstrates excellent thermal performance immediately. It also proves complete cavity filling. You should not see major short shots. You should also avoid severe blistering on the part surface. The engineering team monitors the tool carefully during these initial shots. They verify that the mechanical components operate smoothly under thermal expansion. T0 is not about producing a perfect part instantly. It is about validating the core engineering assumptions.
Modern foundries use infrared thermography during initial production runs. This technology validates the theoretical cooling design perfectly. An infrared camera captures the heat signature of the open die face. Engineers compare these actual thermal maps against the predictive simulation models. You can instantly spot unpredicted hot spots or cold zones. If a core pin is running hotter than expected, they know exactly where to adjust water flow. This real-world validation prevents catastrophic tool failures later.
Post-trial adjustments are a completely standard process. You might tweak injection gate velocities slightly to optimize fill. You can also adjust vent depths carefully based on flash formation. However, you must execute these changes methodically. You want to avoid compromising the structural integrity of the Custom Die Casting Mold. Major welding or re-machining of hardened steel is risky. Front-loading the engineering work minimizes the need for drastic post-trial modifications. Small, data-driven tweaks ensure the tool reaches peak production efficiency safely.
Cooling and venting are not post-design additions. They represent the foundational architecture of a highly profitable casting tool. Proper thermal and gas management dictates everything from part quality to cycle time. You cannot achieve tight tolerances or zero-porosity standards without a world-class evacuation system. Similarly, you cannot achieve maximum profitability if your cooling layout is inefficient.
When selecting a manufacturing partner, use a strict shortlisting heuristic. Prioritize manufacturers who front-load engineering hours into predictive simulation. Seek out teams who custom-design thermal networks based on data. Avoid suppliers who quote solely on dimensional machining and steel weight.
Your next step is clear. Initiate a formal Design for Manufacturability (DFM) review for your upcoming project. Request sanitized simulation reports from your prospective tooling partners. Evaluate their approach to chill vents, conformal cooling, and thermal equilibrium carefully.
A: Chill vents utilize corrugated internal designs and high-conductivity materials, typically beryllium copper. They allow large volumes of air to pass freely. When molten metal contacts the highly conductive copper, it freezes instantly. This instant solidification eliminates flash automatically. It also removes the need for moving mechanical shut-off valves, making the tool much more reliable.
A: Vacuum systems are required for parts needing subsequent heat treatment or structural welding. They are also mandatory for safety-critical structural components with strict zero-porosity tolerances, like automotive crash nodes. Standard venting simply cannot evacuate air thoroughly enough to meet these extreme structural density demands.
A: Minor adjustments, like adding internal baffles to an existing line, are sometimes possible. However, rerouting primary cooling channels in a hardened steel block is highly risky, extremely expensive, and severely compromises tool integrity. This reinforces the absolute necessity of performing rigorous upfront thermal simulation.
A: Soldering is the chemical bonding of molten aluminum or zinc directly to the die steel. It is directly caused by localized thermal spikes, or hot spots, on the die face. Proper mold cooling targets these zones, regulating the surface temperature uniformly. It keeps the steel safely below the critical soldering temperature threshold.
