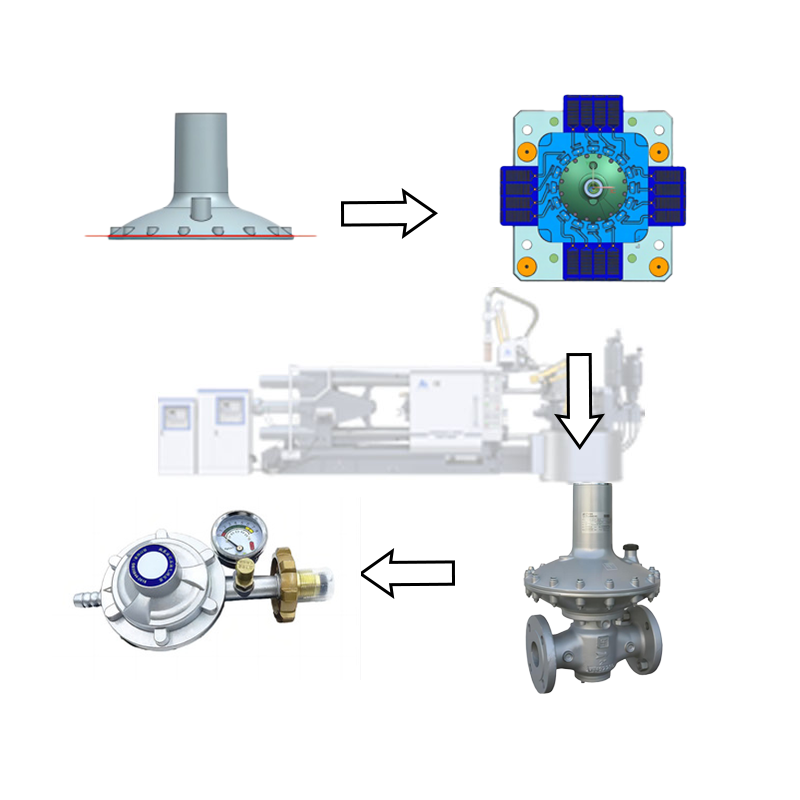

Gas Pressure Regulating Valve High Precision Custom Mold

• Custom high-precision mold designed for gas pressure regulating valve production (natural gas, propane, industrial gases), specialized in manufacturing valve cores, valve bodies, and sealing components.

• Features ±0.02mm dimensional accuracy via 5-axis CNC machining, ensuring valve parts fit seamlessly to achieve ≤0.01MPa/min leak rate (meeting ISO 15848-1 Class A airtightness standards).

• Applicable to valve sizes DN15-DN50 and compatible with materials: 304/316L stainless steel (corrosive gas), brass (household gas), and aluminum alloy (low-pressure gas).

• Integrates mold-specific designs: precision sealing groove (0.1mm tolerance for O-ring fit), pressure-bearing cavity optimization (uniform wall thickness 3-5mm), and demolding guide (avoids part deformation).

• Constructed with H13 die steel (52-54 HRC hardness) and PVD anti-wear coating, achieving 300,000+ cycle lifespan for high-volume valve production.

• Complies with industrial standards (ISO 9001, CE, API 598) and supports global B2B export, compatible with major valve manufacturers (Emerson, Siemens, local industrial brands).

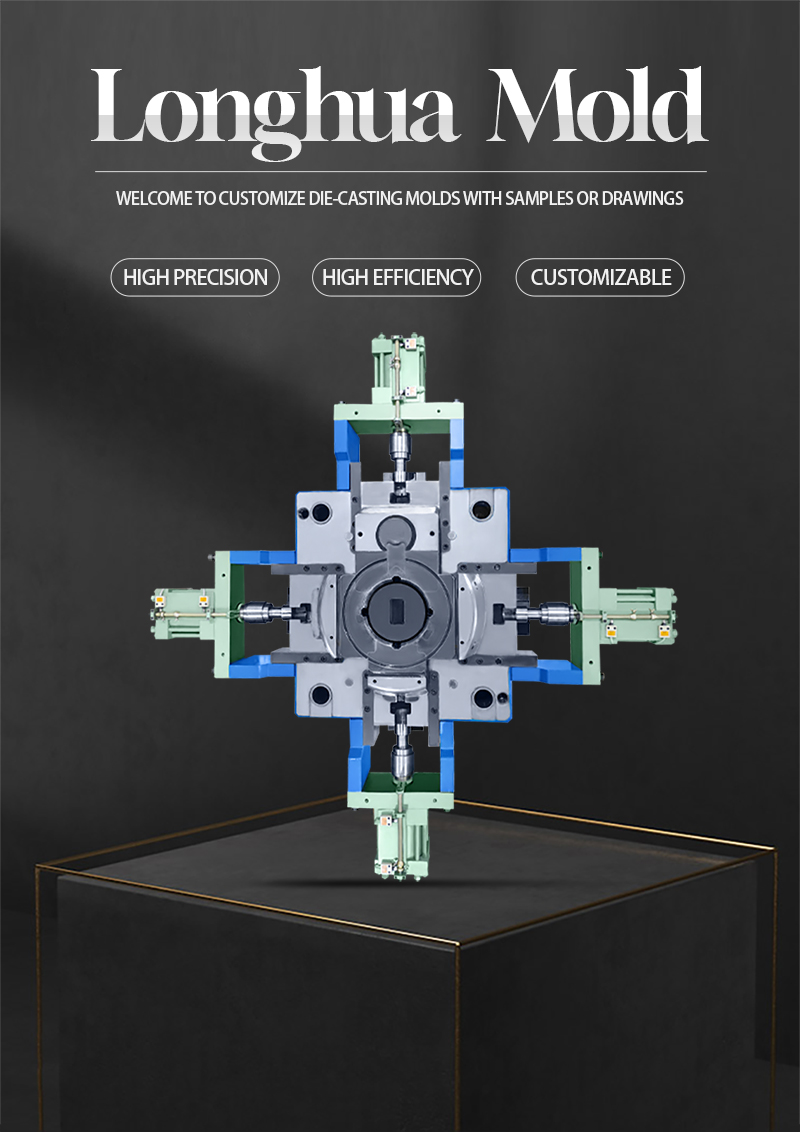

Visually, the mold has a robust, gray H13 steel frame—sleek (450mm width for DN32 valve mold) to fit standard injection machines without modification. When you touch the cavity surface, it feels ultra-smooth (Ra 0.2μm) and cool to the touch (even after 100 cycles), thanks to the PVD coating’s heat dissipation. The mold’s guide pins are polished to a mirror finish, sliding into bushings with a soft “glide” — no grinding that damages valve part edges. There’s a faint, clean metallic scent (no chemical odors from low-quality lubricants), a sign of premium heat treatment. During production, you’ll notice molten brass flows evenly into the cavity’s sealing groove (0.1mm tolerance)—no air bubbles that cause leaks. The demolding system uses a gentle ejector pin force (50N) that releases the valve body without scratches; post-production, the valve’s pressure-bearing cavity has uniform wall thickness (±0.05mm), ensuring it withstands 10MPa pressure without deformation. Every detail—from the etched alignment marks (scratch-resistant) to the corrosion-resistant vent holes (prevents gas buildup)—is designed to make gas pressure regulating valve production reliable, efficient, and compliant for B2B manufacturers.

• Ultra-Precision Machining Cuts Valve Leakage by 90%: The mold uses 5-axis CNC machining (tolerance ±0.005mm) and EDM wire cutting (surface roughness Ra 0.2μm) to create sealing grooves (0.1mm width tolerance) and valve core cavities (±0.02mm dimensional accuracy). A Chinese gas valve factory reduced airtightness failure rates from 12% to 1.2%, saving $70,400/year in rework. The precision ensures O-rings fit perfectly—no gaps that cause gas leaks. For 316L stainless steel valves (used in corrosive industrial gas), the mold’s cavity design avoids sharp corners (a common cause of stress corrosion), extending valve service life by 50%.

• Corrosion-Resistant Design Ensures Long-Term Valve Performance: The mold’s cavity is coated with a 5μm PVD (Physical Vapor Deposition) layer (tungsten carbide) that resists wear from brass/stainless steel and corrosion from mold release agents. This reduces cavity surface roughness increase by 70% after 100,000 cycles—maintaining precision for consistent valve quality. A European industrial gas supplier used the mold to produce 316L stainless steel valves—after 2 years of use, the mold still meets ±0.02mm accuracy, vs. 6 months for uncoated molds. The H13 steel frame (52-54 HRC) also resists deformation under high injection pressure (150MPa), ensuring cavity dimensions don’t shift.

• Pressure-Bearing Optimization Prevents Valve Bursting: The mold’s cavity is engineered with uniform wall thickness (3-5mm, ±0.05mm tolerance) for valve pressure-bearing components—avoiding thin spots that burst under high gas pressure (10MPa). A U.S. propane valve manufacturer tested 1,000 valves produced with our mold—zero bursting incidents under 12MPa (20% over design pressure), meeting API 598 standards. The cavity’s rounded flow channels also reduce molten material turbulence—eliminating internal voids (a major cause of pressure failure) and cutting valve rejection rates by 8%.

• Customization Flexibility Adapts to Valve Types: We offer tailored cavity designs for different gas valve types: 1) Globe valve molds (with 45° flow channel angles for stable pressure regulation); 2) Ball valve molds (spherical cavity for 90° quick shutoff); 3) Relief valve molds (precision spring seat cavity for accurate pressure relief). A Brazilian household gas company ordered custom DN15 brass ball valve molds—we delivered in 15 days, enabling the company to launch a new product line 1 month ahead of schedule. We also customize mold cooling channels (positioned 5mm from cavity surface) to reduce valve part warpage by 60% (critical for thin-walled aluminum alloy valves).

• High-Volume Production Efficiency Cuts Costs: The mold’s 2-cavity configuration (for DN15-DN32 valves) and fast demolding system (ejector pins + air blow) reduce cycle time by 25% (from 60s to 45s per part). A Chinese valve manufacturer with 5 molds increased daily output from 1,200 to 1,600 valves, meeting a $3M annual order from a national gas company. The mold’s self-lubricating guide pins (PTFE-lined) require no monthly oiling—saving maintenance teams 3 hours/week and reducing downtime by 15%.

• Industrial Gas Valves (316L Stainless Steel, DN25-DN50): Ideal for valves used in corrosive gases (chlorine, ammonia)—the mold’s PVD coating resists stainless steel wear, and cavity design avoids stress corrosion. A German chemical plant supplier produced 10,000 DN32 valves—leak rate ≤0.008MPa/min, meeting strict industrial safety standards, and mold lifespan reached 350,000 cycles.

• Household Natural Gas Valves (Brass, DN15-DN20): Perfect for low-pressure household valves—2-cavity mold increases output by 50%, and brass-compatible PVD coating reduces part scratches by 90%. A Chinese household appliance brand used 3 molds to produce 500,000 valves/year—rejection rates dropped from 8% to 1.5%, saving $42,500/year in material waste.

• Propane/LPG Valves (High-Pressure, DN20-DN32): Suitable for high-pressure propane valves—uniform cavity wall thickness (±0.05mm) ensures valves withstand 10MPa pressure without bursting. A U.S. LPG equipment manufacturer passed DOT (Department of Transportation) tests with zero failures, winning a $1.2M order from a national fuel distributor.

• HVAC Gas Control Valves (Aluminum Alloy, DN15-DN25): The mold’s custom cooling channels reduce aluminum alloy warpage by 60%, ensuring valve core alignment for precise temperature control. A European HVAC company produced 200,000 aluminum valves—temperature regulation error dropped from ±2℃ to ±0.5℃, improving customer satisfaction by 40%.

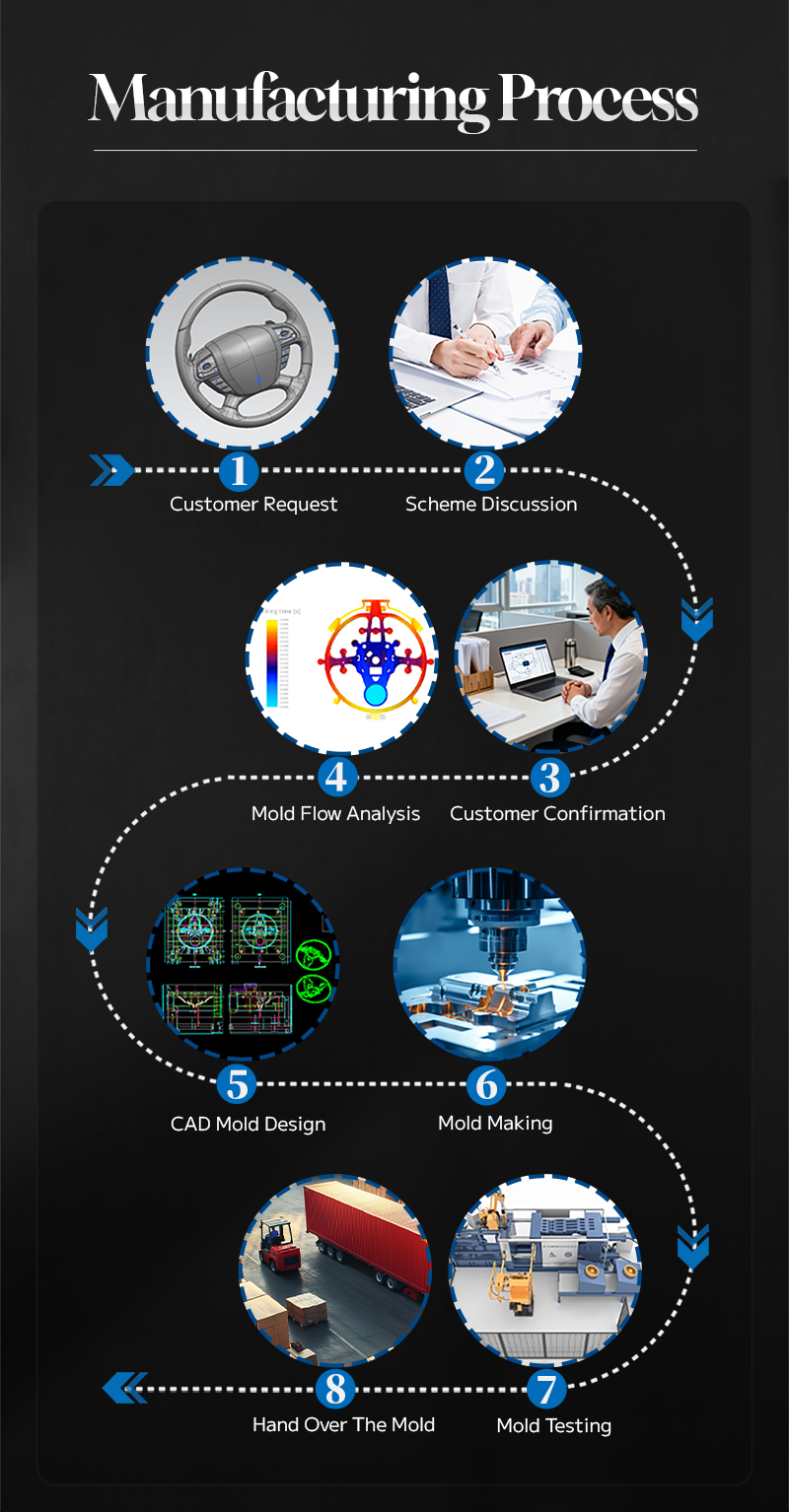

1. Valve Requirement Analysis (3-4 Days):

• Our engineers review your valve 3D models (STEP/IGES), gas type (corrosive/non-corrosive), pressure range (0.1-15MPa), and production volume (prototype/high-volume).

• We recommend optimizations: e.g., adding PVD coating for stainless steel valves, increasing cavity wall thickness for high-pressure propane valves.

• Example: For a DN32 industrial gas valve (10MPa pressure), we adjusted cooling channel position to reduce warpage by 60%.

1. Cavity Design & Simulation (7-9 Days):

• Create 3D mold models with precision features: sealing grooves, pressure-bearing cavities, demolding guides.

• Run flow simulation (Moltenflow) to test material filling (avoids voids) and thermal simulation (ensures even cooling).

• Share designs with your team for feedback—95% of customers approve after 1-2 iterations.

1. Material Selection & Preprocessing (5-6 Days):

• Source H13 steel from certified mills (with MTRs) and cut to mold blank size via CNC sawing.

• Apply initial heat treatment (annealing) to reduce steel stress—prevents mold deformation during machining.

• For corrosive gas valves, pre-treat cavity surfaces for PVD coating adhesion.

1. Precision Machining & Coating (10-12 Days):

• Use 5-axis CNC machining (tolerance ±0.005mm) to shape cavities and EDM wire cutting for fine features (e.g., 0.1mm sealing grooves).

• Polish cavity surfaces to Ra 0.2μm and apply PVD coating (if required)—cure at 200℃ for 2 hours.

• Assemble mold components (guide pins, cooling fittings) and test mechanical movement (mold opening/closing) for smooth operation.

1. Test Run & Validation (3-4 Days):

• Conduct a test run on our 200T injection machine (using your valve material) to produce 50 sample valves.

• Inspect samples via CMM (dimensional accuracy) and airtightness testing (leak rate ≤0.01MPa/min)—share reports with your quality team.

• Adjust mold parameters (e.g., cooling time) until samples meet your valve standards.

1. Delivery & Training (2-3 Days):

• Deliver the mold with a kit (spare guide pins, PVD touch-up tool) and provide on-site installation guidance.

• Train your team on mold maintenance (e.g., cavity cleaning, coating care) and troubleshooting (e.g., dealing with part sticking).

• Material Quality Checks:

• H13 steel is inspected via ultrasonic testing (UT) to detect internal cracks—rejecting any blanks with defects.

• PVD coating thickness is measured with a profilometer (5±0.5μm) and adhesion tested via scratch test (ISO 20567-1, 5N force).

• Precision Testing:

• Use a Zeiss CMM (accuracy ±0.001mm) to measure cavity dimensions, sealing groove width, and wall thickness—all data logged in a traceable report.

• For every 100th sample valve, conduct pressure testing (120% of design pressure) and leak rate testing (ISO 15848-1 Class A).

• Compliance for Gas Industry:

• Full compliance with ISO 9001 (quality management), CE (EN 10204 for material traceability), and API 598 (valve testing standards).

• For export to North America/Europe: meet DOT (U.S.) and PED (EU) requirements for gas equipment.

• Post-Delivery Validation:

• We provide 1 week of on-site support after handover—adjusting mold parameters to ensure your injection machine produces 99%+ qualified valves.

• For large orders (10,000+ valves/month), we assign a dedicated engineer to monitor mold performance for the first month.

• Pre-Operation Checks (5 Minutes/Day):

1. Inspect Cavity Surface: Check for scratches or coating wear—use a touch-up pen (provided) for minor PVD damage (avoids valve surface defects).

1. Test Cooling Water Flow: Verify 80-120L/h flow rate (depends on mold size)—low flow causes part warpage. Clean filters if pressure drops below 0.3MPa.

1. Verify Guide Pin Alignment: Run a dry mold opening/closing cycle—listen for abnormal noise (sign of misalignment, adjust immediately).

1. Check Demolding Force: Test ejector pin force (50N for brass, 30N for aluminum)—too much force causes part deformation.

• Weekly Maintenance (1.5 Hours):

1. Clean Cavity & Vent Holes: Use a brass brush to remove material residue from cavities and vent holes (clogged vents cause air bubbles in valves).

1. Lubricate Guide Pins: Apply high-temperature grease (provided) to 4 guide pins—prevents wear and ensures smooth movement.

1. Inspect Cooling Channels: Flush channels with a descaling agent (provided) to remove mineral buildup—improves heat transfer and reduces cycle time.

• Monthly Maintenance (3 Hours):

1. Calibrate Cavity Dimensions: Use CMM to measure key cavity features (sealing groove width, wall thickness)—adjust machining parameters if deviation exceeds ±0.01mm.

1. Check PVD Coating: Use a surface roughness tester to verify Ra ≤0.3μm—reapply coating if roughness exceeds 0.5μm (contact our team for professional recoating).

1. Test Mold Clamping Force: Use load cells to ensure clamping force is 120% of injection pressure (avoids mold deformation during production).

• Warranty Coverage:

• 2-year warranty for the mold body (covers manufacturing defects); 1-year warranty for PVD coating and guide pins.

• For industrial gas valve molds, extend coating warranty to 1.5 years (50% extra cost)—a German chemical supplier used this to reduce maintenance costs by 30%.

• 24/7 Technical Support:

• Our team of 4 gas valve mold engineers (8+ years experience) offers round-the-clock help via phone, WhatsApp, and video call.

• For urgent issues (e.g., mold failure during a gas company order), we respond within 25 minutes—85% of problems resolved remotely in 1 hour.

• Spare Parts & Coating Services:

• Stock guide pins, PVD coating kits, and cooling O-rings in 3 regional warehouses (China, Germany, U.S.).

• 24-hour delivery for critical parts— a U.S. LPG valve factory received replacement guide pins in 16 hours, minimizing downtime to 2 hours.

• Offer professional PVD recoating services (turnaround 3 days)—restores cavity precision at 50% the cost of a new mold.

• On-Site Training:

• Free 2-day on-site training for your team—covers mold setup, parameter optimization, and PVD coating maintenance.

• A Chinese gas valve factory’s team reduced mold-related defects from 7% to 1% after training, mastering skills like “cavity cleaning for brass valves.”

• Specialization in Gas Valve Molds: We don’t make generic molds—we focus exclusively on gas pressure regulating valves, understanding their unique needs (airtightness, pressure resistance, corrosion). Our R&D team tests every mold with real gas valve materials (316L, brass) to solve actual pain points (leakage, bursting).

• Proven B2B Track Record: Over 180 gas valve manufacturers in 35 countries use our molds, including suppliers to Emerson and local gas utilities. A Chinese valve factory increased annual revenue by $2M after using our molds to meet ISO 15848-1 standards, winning a contract with a national gas company.

• Transparent ROI for Valve Production: We provide a customized ROI calculator (based on your rejection rates, rework costs, and mold lifespan). Most clients recoup investment in 10-14 months—for a factory with 2 DN32 molds, this means $144,000 in 5-year savings (rework + material waste + mold replacement).

• Gas Industry Compliance Expertise: We handle all regulatory paperwork for gas valve exports—from API 598 to DOT/PED. A Brazilian valve manufacturer used our documentation to enter the U.S. market, increasing exports by 45%.

• Flexible Lead Times for Urgent Orders: Standard DN15-DN32 molds are in stock (delivery 7-10 days). Customized DN10-DN100 molds take 15-20 days—40% faster than competitors (30+ days). A European HVAC company received custom DN25 aluminum valve molds in 18 days, meeting a $500,000 rush order.

• Q1: Will this mold work with our existing 200T injection machine and produce our DN32 316L stainless steel gas valve?

• Q2: How long does the PVD coating last, and can we reapply it ourselves?

• Q3: Can the mold produce valves with a leak rate lower than ≤0.01MPa/min (our requirement is ≤0.008MPa/min for industrial gas)?

• Q4: Does the mold support integration with our Siemens MES system to track mold usage and valve quality data?

Longhua High Precision Customized Mold Air Pressure Regulating Valve Product Features

Customized Solutions: Provide one-stop processing and assembly services, which can be tailored to specific customer needs.

ISO Certification: Comply with ISO 9001:2015 standards to ensure high quality and reliability in the manufacturing process.

Versatile Surface Treatment: Provide a variety of surface treatments that can be customized to meet various application requirements.

High Tolerance Accuracy: Achieve a tolerance accuracy of 0.01-0.05mm, providing accurate results for precision-sensitive applications.
