Product Detail

loading

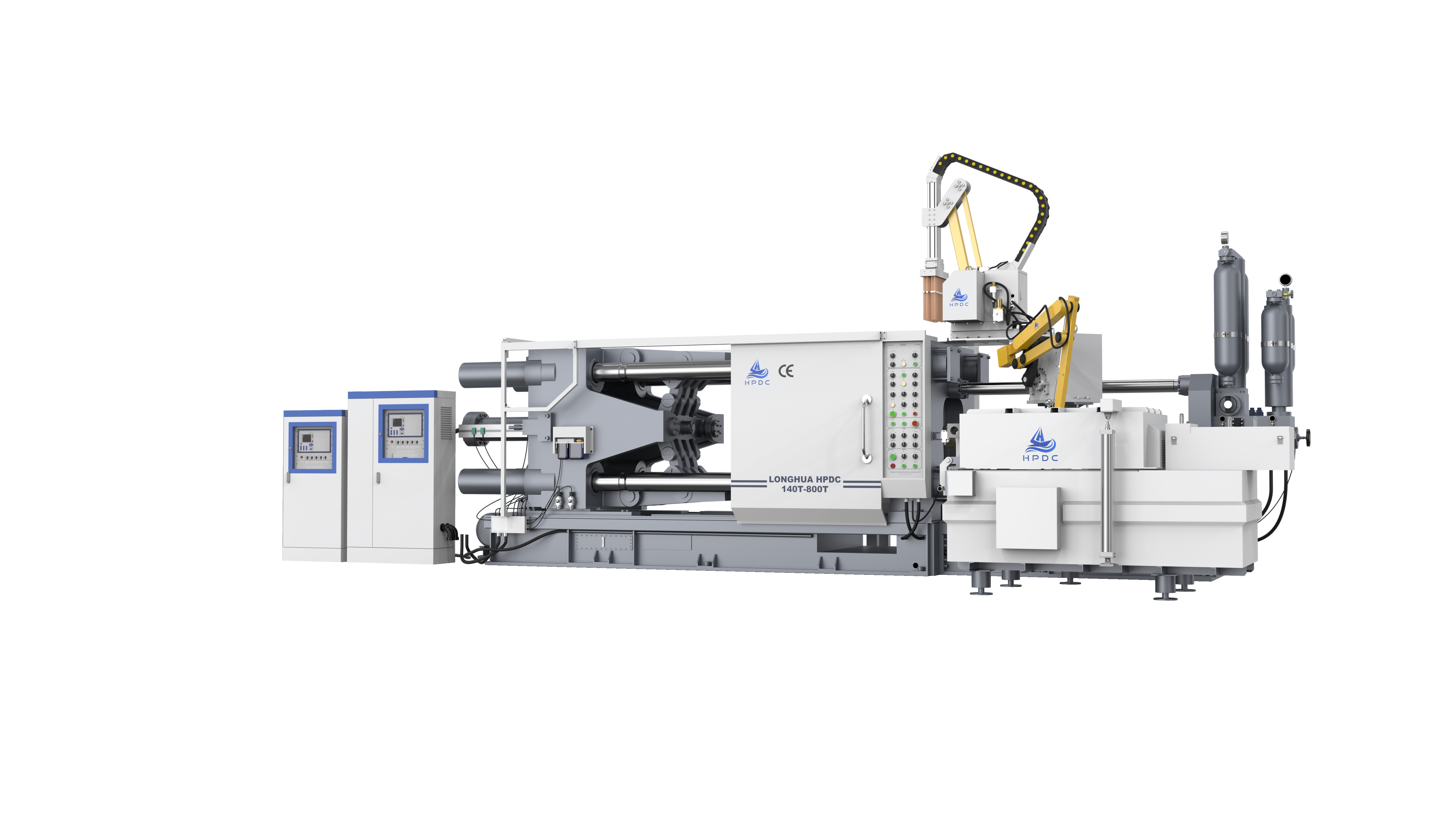

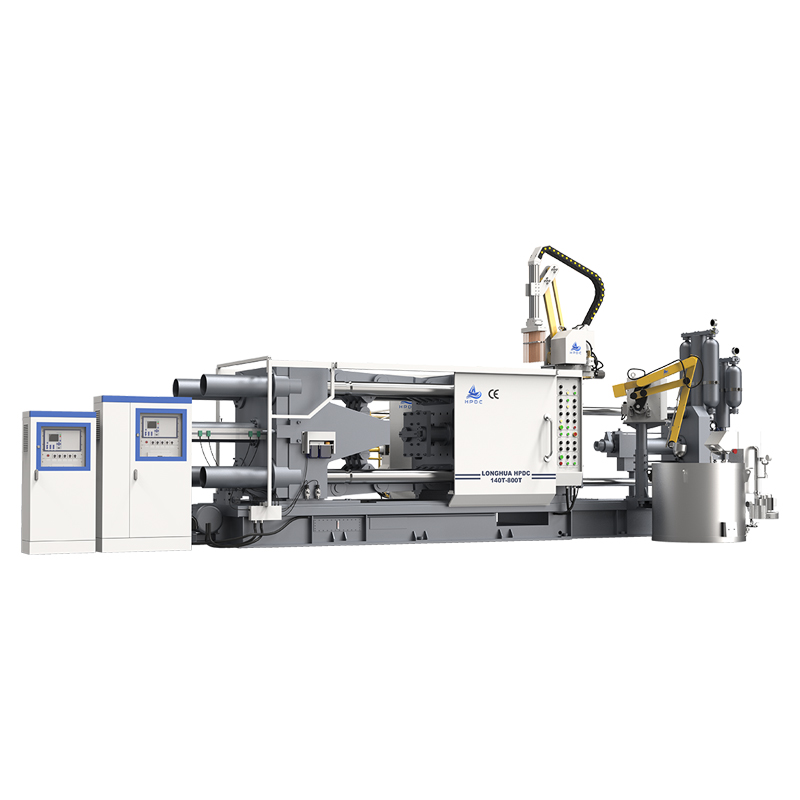

140T Horizontal Cold Chamber Die Casting Machine LH-HPDC-140T for Metal Casting

Availability:
Quantity:
Inquire Add to Basket

sharethis sharing button

LH series of standard parameter table (140 t)
ITEMS Unit Specification
Clamping Force KN 1450
Clamping
Unit
Opening stroke mm 350
Die thickness(Min--Max) mm 250-500
Space between tie bars mm 420*420
Ejector stroke mm 85
Ejector force KN 108
Injection position（0 as center） mm 0 ，--  140
Injection
Unit
Injection force（intensification) KN 220
Injection stroke mm 320
Plunger diameter mm ￠40 ￠50 ￠60
lnjection weight(aluminum) Kg 1.6
Casting pressure (intensification) MPa 175/112/77
Max. casting area(40Mpa) CM2 362
Injection plunger penetration mm 110
Diameter of pressure chamber flange mm 110
Height of pressure chamber flange mm 10
Max.working pressure MPa 12
Others
Motor power Kw 11
Dimensions  (L*W*H) m 4.6*1.2*1.5
Machine lifting reference weight T 4.5
Oil tank capacity L 480
