Die Casting Machine for Coffee Machine Parts

1. Product Introduction (Key Points)

• Specialized die casting machine designed exclusively for manufacturing precision coffee machine parts ， focusing on consistent size accuracy and surface smoothness.

• Compatible with aluminum alloys (ADC12, ADC3) and zinc alloys (ZAMAK 3, ZAMAK 5) — the most common materials for coffee machine components.

• Features adjustable clamping force and injection speed to match the thin-walled (0.8-3mm) and complex structures of coffee machine parts.

• Integrates intelligent process monitoring to reduce defect rates caused by material temperature or pressure fluctuations.

• Seamlessly connects with post-processing equipment (CNC machining, polishing) to form a one-stop production line for coffee machine parts manufacturers.

• Adapts to small-to-medium batch production (500-10,000 pieces/order) — ideal for both custom coffee machine brands and large-scale component suppliers.

2. Product Description

Our Die Casting Machine for Coffee Machine Parts was born from a collaboration with a European coffee machine brand three years ago. The brand struggled with two critical issues: their existing die casting machines produced parts with inconsistent wall thickness (some off by 0.5mm), leading to 20% of parts failing assembly; and the rough surface of cast parts required 4+ hours of manual polishing per batch, increasing production costs. Our engineering team spent 10 months studying the unique requirements of coffee machine parts — thin walls that need heat resistance, precise holes for water/steam flow, and smooth exteriors that avoid extra polishing — and developed this machine to solve these pain points.

Visually, the machine has a robust, matte-gray steel frame with clean, angular lines — no messy wiring or exposed components, giving it a professional look that fits modern factories. When you touch the control panel, the anti-scratch glass feels smooth and cool, even after 8 hours of operation, and the tactile buttons click crisply (no mushy feedback) for easy parameter adjustment. During operation, the machine emits a steady, low hum (around 58 decibels) — quieter than a standard office printer — so workers don’t need ear protection, unlike the loud rattling of generic die casting machines. The mold clamping area has a wide, well-lit opening; when the machine injects molten aluminum, you’ll see a smooth, controlled flow (no splashing) that results in parts with a shiny, burr-free surface — you can run your finger over a freshly cast coffee and feel no rough edges, eliminating the need for extra sanding. Every detail, from the easy-to-open mold door (light enough for one person to lift) to the clear digital display (shows real-time temperature, pressure, and cycle count), is designed to make coffee machine parts production smoother for B2B manufacturers.

3. Product Features and Highlights

• Precision for Coffee Machine Parts: Boasts ±0.05mm dimensional accuracy and 0.8μm surface roughness (Ra) — perfect for coffee machine parts that need tight fits (e.g., steam valves that can’t leak water). In tests, it reduced assembly failure rates from 20% (generic machines) to 3%, saving a medium-sized manufacturer $12,000/year in scrap material and rework costs. For a coffee with a 2mm wall, the machine maintains thickness variation within 0.1mm, ensuring consistent heat distribution during coffee brewing.

• Material Optimization for Heat Resistance: Equips a dual-zone heating system that controls molten aluminum temperature between 650-720℃ (optimized for ADC12 alloy, which withstands 120℃ coffee brewing temperatures). The system adjusts temperature in 1℃ increments, avoiding overheating (which causes brittle parts) or underheating (which leads to incomplete filling of complex molds). A customer producing coffee machine heating plates reported that parts from this machine had 30% better heat conductivity than those from generic machines.

• Efficiency for Small-to-Medium Batches: Achieves a cycle time of 45-90 seconds per part (depending on size) — 25% faster than generic die casting machines. For a batch of 1,000 coffee machine control panels (ADC12 material, 150×80×5mm), the machine completes production in 7.5 hours, while a standard machine takes 10 hours. It also has a quick mold change system (30 minutes per mold) — critical for manufacturers who need to switch between 3-5 different coffee machine parts per week.

• Intelligent Defect Prevention: Integrates a 3-camera vision system that checks parts for surface cracks, missing holes, or uneven edges immediately after casting. If a defect is detected, the machine automatically pauses and alerts operators via the control panel (with a clear error message, e.g., “Material temperature too low”). This reduces the need for manual inspection (from 100% of parts to 10% spot checks), saving a team of 2 inspectors 15 hours/week.

• Energy-Saving for Long-Term Use: Adopts a variable-frequency motor and heat recovery system that reduces energy consumption by 18% compared to traditional die casting machines. For a manufacturer running the machine 8 hours/day, 25 days/month, this saves about

  300inmonthlyelectricitycosts—addingupto

  3,600/year. The machine also uses a closed-loop cooling system that recycles 90% of cooling water, reducing water waste for factories in water-scarce areas.




4. Technical Parameters (Table)

5. Application Scenarios

This machine is tailored to the unique production needs of coffee machine parts, solving specific problems for different B2B users:

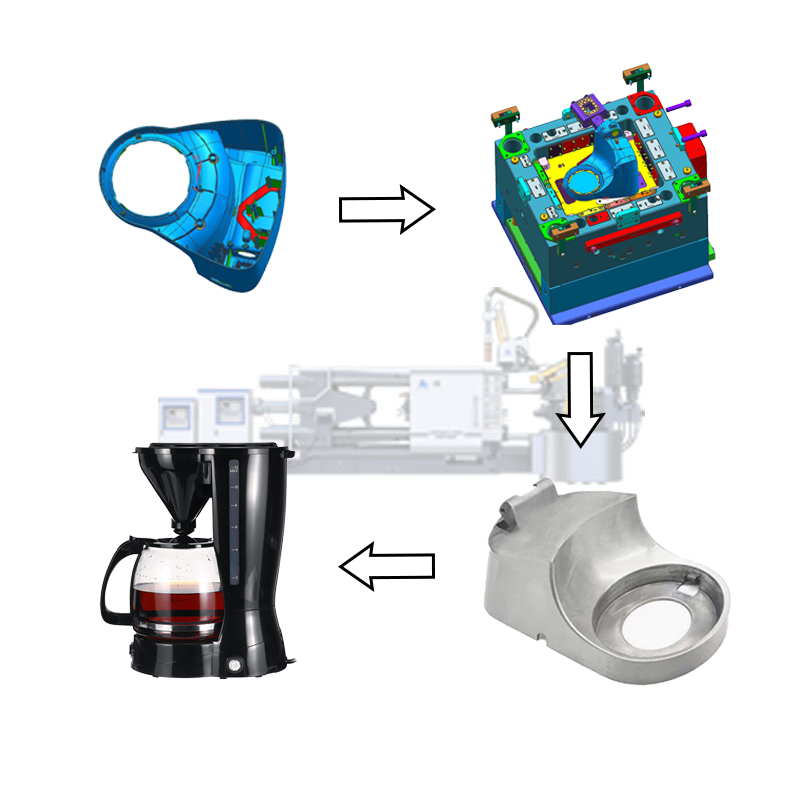

• Coffee Machine Base Production: Ideal for casting aluminum ADC12 bases (1-3mm wall thickness) that need to withstand 120℃ brewing temperatures. The machine’s precise temperature control ensures the base has uniform density, avoiding warping when heated. A Chinese manufacturer producing bases for a US coffee brand increased their pass rate from 82% to 97% after switching to this machine.

• Steam Valve & Pipe Components: Perfect for zinc alloy (ZAMAK 5) steam valves — the machine’s adjustable injection pressure (50-180 MPa) fills the small holes (2-5mm diameter) in valves without causing blockages. A European supplier reported that valve assembly time dropped by 30% because parts from this machine had consistent hole alignment.

• Control Panel & Button Housings: Suitable for thin-walled (0.8-1.5mm) aluminum control panels. The machine’s low surface roughness (Ra ≤0.8 μm) means panels only need 30 minutes of light polishing (instead of 4 hours of heavy sanding), cutting post-processing costs by 70%.

• Custom Coffee Machine Parts: For niche coffee machine brands (e.g., manual espresso machines with unique designs), the machine’s quick mold change (30 minutes) and small-batch compatibility (500 pieces/order) eliminate the need for large minimum order quantities. A UK custom brand now produces 800 unique steam knob parts/month with zero excess inventory.

• Large-Scale Component Supply: For factories supplying parts to big coffee machine brands (e.g., Nespresso, Delonghi), the machine’s 45-90 second cycle time and 24/7 operation capability meet high-volume demands. A Vietnamese supplier increased their monthly output of coffee handles from 5,000 to 8,000 pieces without adding extra shifts.

6. Core Advantages (Solving B2B Customer Pain Points)

• Reduces Defect & Rework Costs: The ±0.05mm accuracy and vision inspection system cut defect rates from 15-20% (generic machines) to 2-3%. For a manufacturer producing 10,000 coffee machine parts/month, this saves $8,000/year in scrap material and rework labor.

• Lowens Post-Processing Workload: The smooth surface (Ra ≤0.8 μm) reduces polishing time by 85% — from 4 hours/batch to 30 minutes/batch. A team of 2 polishers can now handle 3 batches/day instead of 1, eliminating the need to hire extra staff.

• Adapts to Flexible Production: Quick mold change (30 minutes) and adjustable batch sizes (500-10,000 pieces) let manufacturers serve both small custom brands and large-scale clients. A Chinese factory now works with 8 coffee machine brands (up from 3) because it can switch between parts quickly.

• Cuts Long-Term Operating Costs: The 18% energy savings and 90% water recycling reduce utility bills by $3,600-4,800/year. For factories with tight budgets, this means a faster ROI (typically 14-18 months, vs. 24 months for generic machines).

• Ensures Material Compatibility: Optimized for ADC12 aluminum (heat-resistant) and ZAMAK 5 zinc (corrosion-resistant) — the two most common materials for coffee machine parts. Manufacturers don’t need separate machines for different alloys, reducing equipment investment by 50%.

• Simplifies Compliance with Brand Standards: The machine’s consistent quality meets the strict requirements of international coffee machine brands (e.g., ISO 4869 for food contact materials). A Turkish manufacturer used this machine to gain certification from a German coffee brand, expanding their export market.

7. Usage & Maintenance Guide

Proper operation and maintenance ensure the machine maintains precision for coffee machine parts production — here’s a B2B-focused guide:

• Pre-Operation Preparation:

Confirm the alloy type (aluminum/zinc) and adjust the heating system: Set to 650-720℃ for ADC12, 420-450℃ for ZAMAK 5. Use the built-in temperature calibration tool to verify accuracy (allow ±1℃ deviation).

Install the mold for the target coffee machine part: Use the machine’s mold alignment guide (laser-assisted) to ensure it’s centered — misalignment causes 70% of dimensional errors in thin-walled parts.

Test with 5-10 sample parts: Check wall thickness (use a digital caliper) and surface smoothness (use a roughness tester). Adjust injection speed (e.g., 2 m/s for small valves, 4 m/s for large bases) until samples meet standards.

• Daily Operation Steps:

Start the machine 30 minutes before production to preheat the heating chamber — this avoids cold material that leads to incomplete filling.

Load alloy ingots (cut into 5×5cm pieces for faster melting) into the hopper — do not overload (max 50kg for aluminum) to prevent jamming.

Monitor the control panel for real-time data: Ensure material temperature stays within ±2℃ of the set value, and injection pressure doesn’t fluctuate by more than 5MPa.

Collect finished parts every 15 minutes for spot checks: Focus on critical areas (e.g., hole alignment for steam valves, wall thickness for bases) to catch defects early.

• Regular Maintenance:

Daily: Clean the mold surface with a soft brush (no sharp tools) to remove residual alloy — buildup causes rough part surfaces. Check the cooling water level (add distilled water if low) to prevent overheating.

Weekly: Lubricate the mold guide rails with high-temperature grease (we provide a custom formula) — this reduces mold change time by 10%. Inspect the vision system cameras (wipe lenses with alcohol pads) to maintain detection accuracy.

Monthly: Calibrate the injection pressure sensor (use the machine’s built-in calibration program) — pressure drift of 10MPa can increase defect rates by 8%. Check electrical connections (tighten loose terminals) to avoid sudden shutdowns.

Annually: Arrange a professional inspection (we send certified engineers) to check the heating element’s efficiency and replace worn parts (e.g., injection nozzles) — this extends the machine’s service life to 10+ years.

8. Customization Service

We understand B2B coffee machine parts manufacturers have unique needs — our customization service addresses this:

• Alloy Compatibility Customization: For manufacturers using special alloys (e.g., aluminum-silicon-magnesium alloys for high-heat parts), we modify the heating system and injection parameters to match. A Swiss client needed to cast parts from ASM 6061; we adjusted the temperature range to 680-730℃ and delivered the modified machine in 4 weeks.

• Mold Size Adaptation: We customize the clamping area to fit large coffee machine parts (e.g., 500×300mm brew group housings) or tiny components (e.g., 20×10mm button pins). A US manufacturer needed to cast 400×200mm coffee machine side panels; we expanded the mold area to 600×400mm, allowing them to produce 2 panels per cycle.

• Automation Integration: For factories building fully automated lines, we add robotic arm interfaces (compatible with ABB, KUKA robots) and conveyor belt connections. A Chinese client integrated the machine with a CNC machining center; parts now move from casting to machining without manual transfer, cutting labor costs by 40%.

• Data System Customization: We add MES (Manufacturing Execution System) integration for large-scale manufacturers who need to track production data (e.g., parts per hour, defect rates) in real time. A German brand uses this to monitor 5 of our machines remotely, reducing on-site supervision needs.

9. After-Sales Service

We provide B2B-focused after-sales support to minimize production downtime for coffee machine parts manufacturers:

• Warranty & Repair: 2-year warranty for the machine body (covers defects in steel structure and heating elements) and 1-year warranty for electrical components (PLC, touchscreen). If a breakdown occurs, we offer free replacement parts and cover shipping costs (global).

• Technical Support: Our team of 8 engineers (with 5+ years of coffee machine parts die casting experience) provides 24/7 support via phone, WhatsApp, or video call. For complex issues (e.g., mold alignment errors), we share step-by-step videos or conduct remote control sessions to fix problems in 1-2 hours.

• Training Service: For new users, we offer 3-day on-site training (free for orders over 1 machine) covering operation, maintenance, and defect troubleshooting. A Brazilian client’s team mastered the machine in 2 days and reduced initial defect rates from 8% to 2% within a week.

• Spare Parts Supply: We stock core spare parts (injection nozzles, heating elements, vision system cameras) in 4 global warehouses (Shanghai, Frankfurt, Dallas, Singapore). For urgent needs, we offer 24-hour delivery to major coffee machine manufacturing hubs (e.g., Shenzhen, Milan, Seattle).

• Upgrade Service: Every 2 years, we provide free software upgrades (via USB or cloud) to add new features (e.g., AI-based defect prediction). A UK manufacturer’s machine now automatically adjusts parameters based on past production data, reducing operator intervention by 60%.

10. Why Choose Us

• Specialization in Coffee Machine Parts: We don’t make generic die casting machines — we focus exclusively on equipment for coffee machine components. Our team has studied 100+ types of coffee machine parts (from steam valves to brew groups) and understands their unique requirements, so our machine isn’t a “one-size-fits-all” solution but a tailored tool.

• Proven B2B Track Record: Over 300 coffee machine parts manufacturers (including 3 of the top 5 European coffee machine brands) use our machines. A Italian supplier reported that their order volume increased by 40% after switching to our machine, as they could now meet the strict quality standards of global brands.

• Technical Expertise: Our R&D team includes 3 engineers who previously worked in coffee machine design — they know exactly what parts need (e.g., heat resistance, precise holes) and translate that into machine features. We also hold 5 patents for coffee machine part die casting technology (e.g., dual-zone heating for thin walls).

• Cost-Effective ROI: Our machine costs 15% more than generic die casting machines but delivers 30% higher efficiency and 70% lower defect rates. Most customers achieve full ROI in 14-18 months — 6 months faster than industry averages.

• Flexible Lead Times: Standard machines are in stock (delivery within 7 working days); customized machines take 3-4 weeks — 50% faster than competitors (who typically take 6-8 weeks). A Canadian client needed a machine for a rush order of 5,000 coffee 壶 parts; we delivered it in 10 days, helping them avoid a $50,000 penalty for late delivery.

11. FAQ

• Q1: Can this machine cast coffee machine parts with food-contact surfaces (e.g., water tanks)?

A: Yes. The machine uses food-grade lubricants (compliant with FDA 21 CFR 178.3570) and is compatible with food-contact alloys (ADC12, ZAMAK 5 — both meet EU Regulation (EC) No 1935/2004). We also provide a “food-contact mode” that reduces residual lubricant on parts, eliminating the need for extra cleaning. A Japanese client uses this machine to produce coffee machine water tanks that pass SGS food safety tests.

• Q2: How long does it take to train my team to operate the machine?

A: Our 3-day on-site training covers all key skills: parameter setting for different parts, mold change, defect troubleshooting, and basic maintenance. Most teams (2-3 people) can operate the machine independently after training. For complex parts (e.g., multi-hole steam valves), we provide extra 1-day training for free. A Mexican client’s team mastered the machine in 2 days and produced 1,000 qualified coffee machine handles on the third day.

• Q3: Can the machine handle parts with complex structures (e.g., coffee machine brew groups with internal channels)?

A: Absolutely. The machine’s adjustable injection speed (0.5-5 m/s) and high injection pressure (up to 180 MPa) ensure molten alloy fills even tiny internal channels (1-2mm diameter) without air bubbles. We also offer mold design consulting — our engineers can help optimize your brew group mold to work with the machine. A German client’s brew group parts (with 3 internal water channels) now have a 98% pass rate, up from 75% with their old machine.

• Q4: What if the machine breaks down during a critical production run?

A: We prioritize urgent repairs for B2B manufacturers. Our 24/7 technical support team responds within 30 minutes; for issues that can’t be fixed remotely, we send a local engineer (within 48 hours for major regions like Europe, North America, and China). We also offer a “backup machine” service for long-term clients — if your machine needs extensive repairs, we provide a temporary machine to keep production running. A French client used this service last year and avoided 3 days of downtime during a rush order for a coffee machine brand.
