Product Description

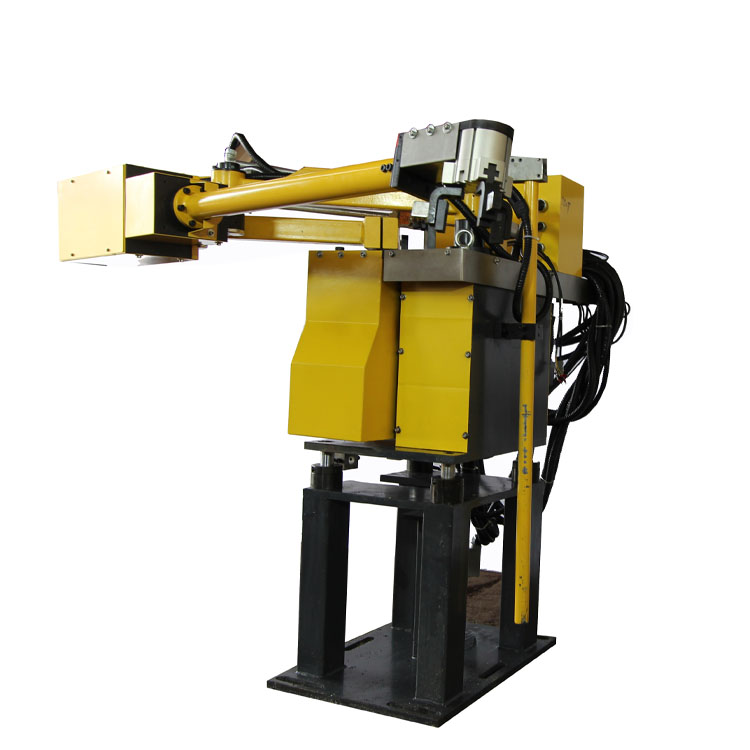

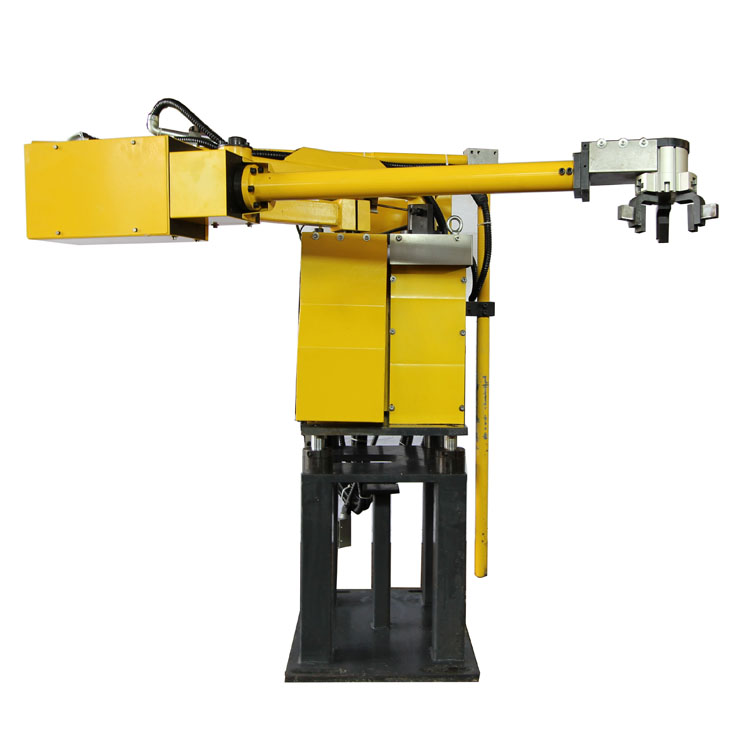

High Quality Explosion-Proof Die Casting Machine,Manipulator,Soup Machine
Product parameters
1. The main parts are all imported from the fir, with low failure rate and long service life.
2. The soup arm and the spoon drive gearbox adopt the integral casting box body to be processed by the CNC machining center in one time, and the high-precision worm gear drive makes the arm travel more quickly and smoothly.
3, using PLC and inverter control, so that the arm position is more accurate, using Chinese man-machine interface, can easily set various parameters, monitor the machine status, with fault self-diagnosis display function, use and maintenance very convenient.
4. The fuselage transmission part adopts imported bearings and high-temperature self-lubricating bearings, which are easy to maintain and have a long service life.
5, diversified standby mode, complex and variable, cored mold can also be freely coupled, there are manual / automatic two-way operation mode, three standby modes and front standby / rear standby and linkage control.
6. The soup volume is controlled by Japanese/German imported encoders. In the manual/automatic state, the amount of soup can be increased or decreased, the amount of soup is stable, the repeatability is good, and the product defect rate is reduced.
Specification / model | LH-1 | LH-2 | LH-3 | LH-4 | LH-5 | LH-6 | LH-7 | |
Suitable die-casting machine | 125-200T | 250-350T | 400-500T | 630-800T | 1000-1250T | 1600-2000T | 2500-3000T | |
Soup quantity | 0.5-2.0kg | 1.0-3.5kg | 1.5-6.0kg | 2.5-8.0kg | 6.0-15kg | 18-25kg | 20-40kg | |
Soup feeding precision | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | |
Spoon capacity | 0.5-2.5kg | 1.0-4.5kg | 1.5-6.0kg | 2.5-8.0kg | 6.0-15kg | 18-25kg | 20-40kg | |
Inner diameter of crucible | 450mm | 50mm | 550mm | 600mm | 800mm | 850mm | 900mm | |
Furnace wall thickness | 300mm | 300mm | 300mm | 350mm | 350mm | 400mm | 400mm | |
Source | 220V | 220V | 220V | 220V | 220V | 220V | 220V | |
Power supply capacity | 2.4KVA | 2.4KVA | 2.4KVA | 2.4KVA | 4.2KVA | 5.7KVA | 5.7KVA | |
Operation power supply | DC24V | DC24V | DC24V | DC24V | DC24V | DC24V | DC24V | |
Spoon motor | 0.4kw CV-3 | 0.4kw CV-3 | 0.4kw CV-3 | 0.4kw CV-3 | 1.5kw CV-3 | 1.5kw CV-4 | 1.5kw CV-4 | |
Soup arm motor | 1.5kw CV-3 | 1.5kw CV-3 | 1.5kw CV-3 | 1.5kw CV-3 | 2.2kw CV-5 | 3.7kw CV-5 | 3.7kw CV-5 | |
Time to serve soup at a time | 5 sec | 5 sec | 6 sec | 6 sec | 10 sec | 12 sec | 12 sec | |
Source | 3Φ-380V/50HZ |
With development of science and technology If there are any changes about pictures, parameters, etc.will not be notified (reference)
Packaging & Shipping
High Quality Explosion-Proof Die Casting Machine,Automatic Soup Machine,Soup Machine
Packing&Shipping
Company Information
Introduction
High Quality Explosion-Proof Die Casting Machine,Automatic Soup Machine,Soup Machine
Bengbu City Long Hua die casting machine factory was founded in 1982, is a professional R & D, production, sales of die-casting machine, die casting peripheral equipment, die-casting mould of high technology enterprises
On December 10, 2005 Anhui provincial Party secretary Comrade Wang Jinshan, to Long Hua pointed out that the strengthening of science and technology, establish a brand, pay attention to talent, independent innovation"
Longhua was awarded the national science and technology project 2 (National Torch project, major national science and technology projects a). Longhua die-casting machine products has won: "first national Ministry of machinery, products Buyou title", "casting machinery industry standard demonstration unit", "China product quality association member units", "Shou contract re credit enterprises", "import and export Mianjian products", "Alibaba depth inspection factory integrity enterprise", "Anhui Province high technology enterprise" honor.
Long Hua die casting machine products, are to achieve computer aided optimization design (CAD/CAE), hydraulic system using the German technology, Japan's hydraulic technology, the program uses PLC man-machine interface system, human nature, the operation is more simple
Longhua after 39 years of unremitting efforts, long China research and development of magnesium alloy (aluminum) energy saving vacuum die casting machine was awarded the "Anhui Province high-tech projects progress award" a, and gradually won the State Intellectual Property Office nine high-tech patent: a high-tech invention patents, eight Gaoke technology and practical patents.
LH-160ton Cold Chamber Die Casting Machine for Aluminum, copper, zinc, magnesium
Long Hua die-casting machines are applicable to manufacture of automobile and motorcycle parts (engine cylinder block, cylinder head, crankcase, hinged door covers, oil pan, gearbox housing, gearbox end cap, dashboard, etc.), electric escalator handrail/steps, industrial/road/railway/air/agricultural machinery, streetlights shells,potlight shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products, non-ferrous metal processed products and other die casting products.
Product details
Our Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping
Our Customers
FAQ
Q: Are you trading company or manufacturer ? | |
Our edge is the factory of production, export product quality, factory direct prices. | |
Q:Why choose us? | |
1.Our machine Efficient, energy saving, environmental protection,Quality has been recognized by the national quality supervision department. | |
2.Our service has been recognized by international customers. |
