LH-HDC-38T
LONGHUA

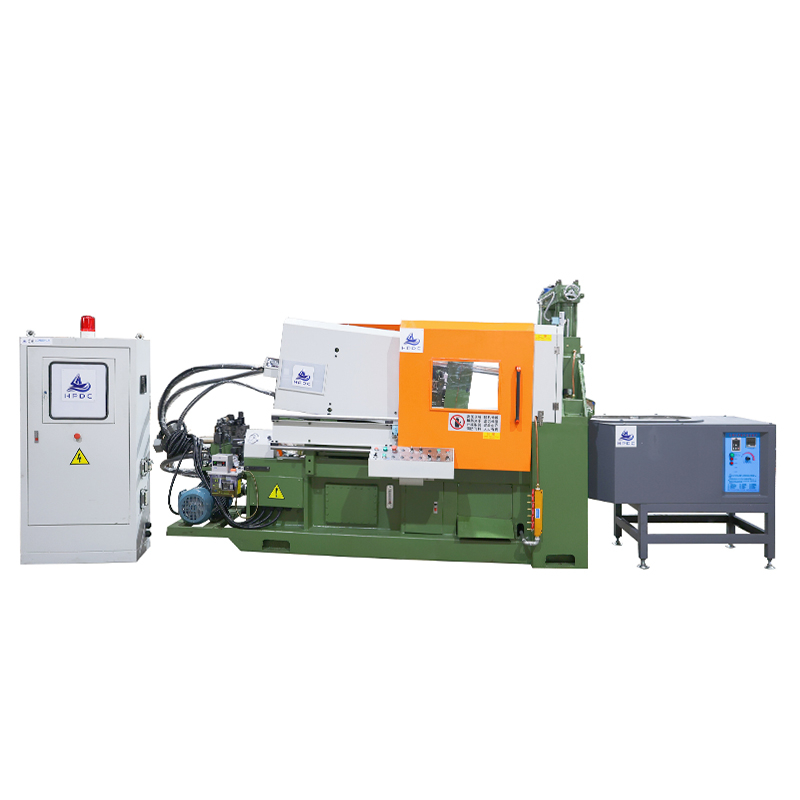

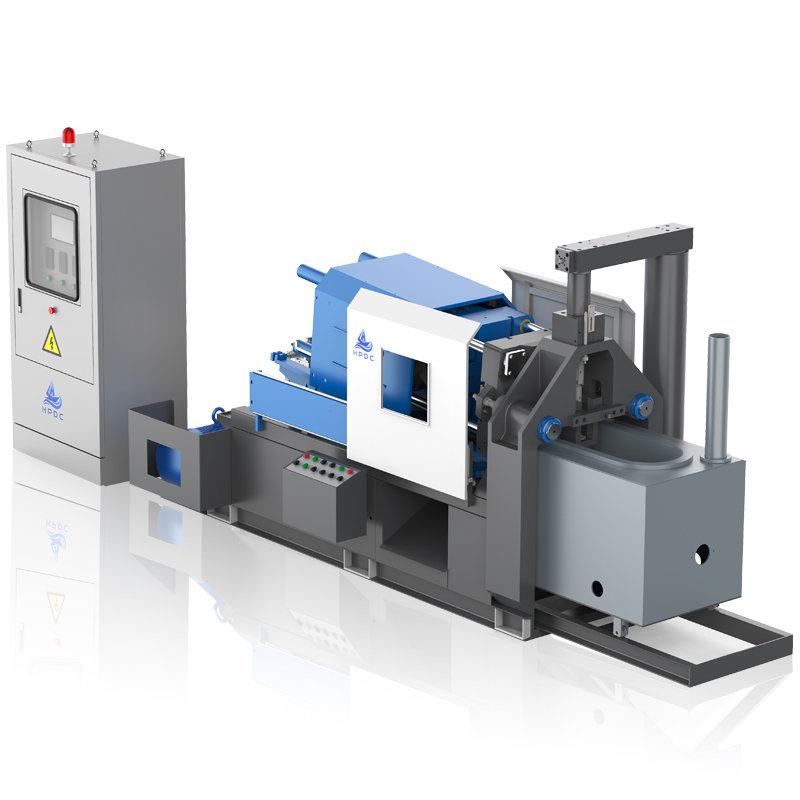

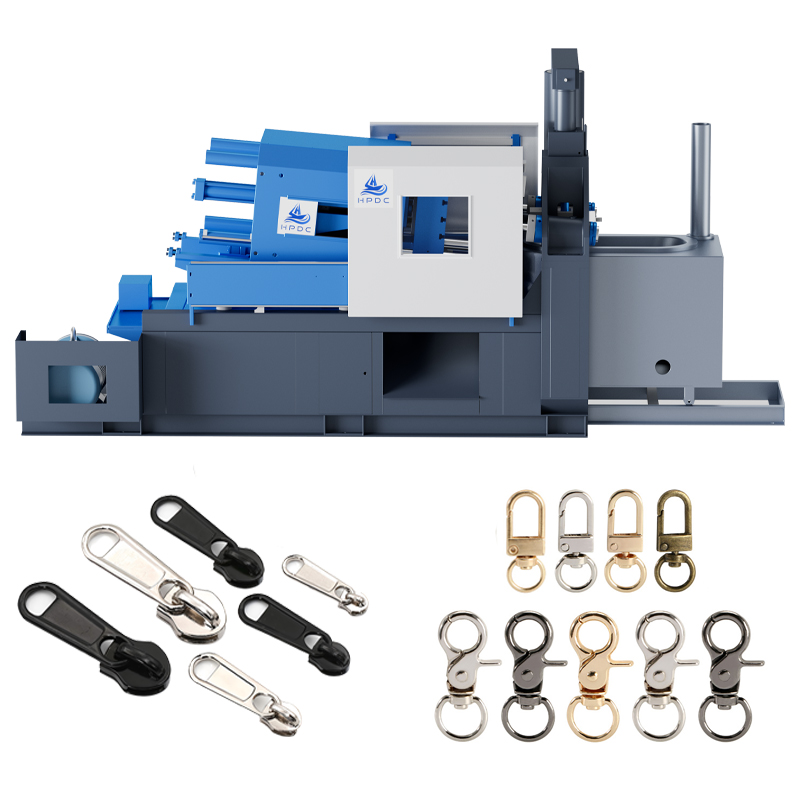

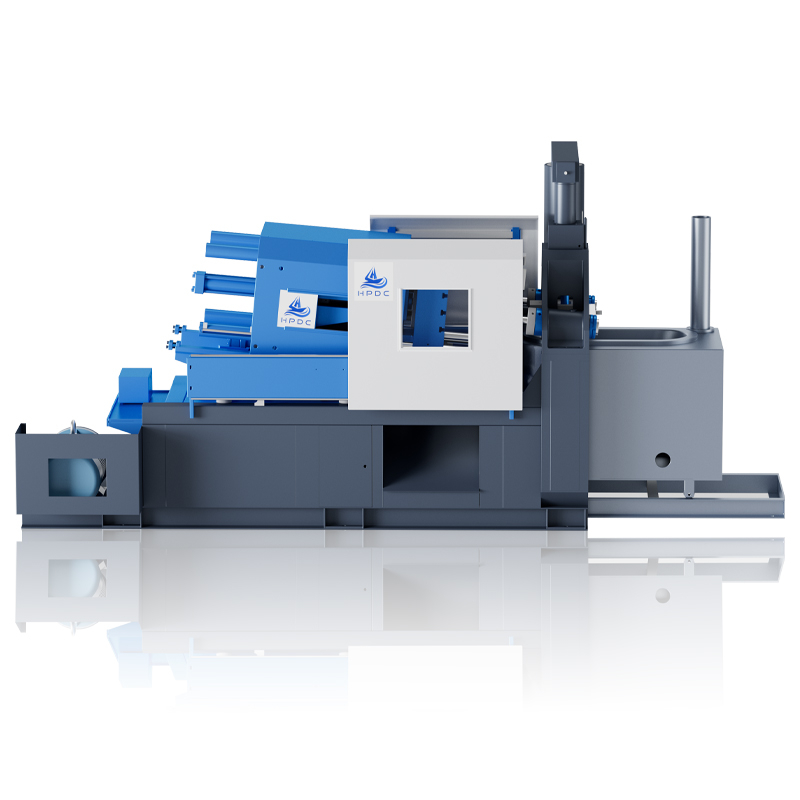

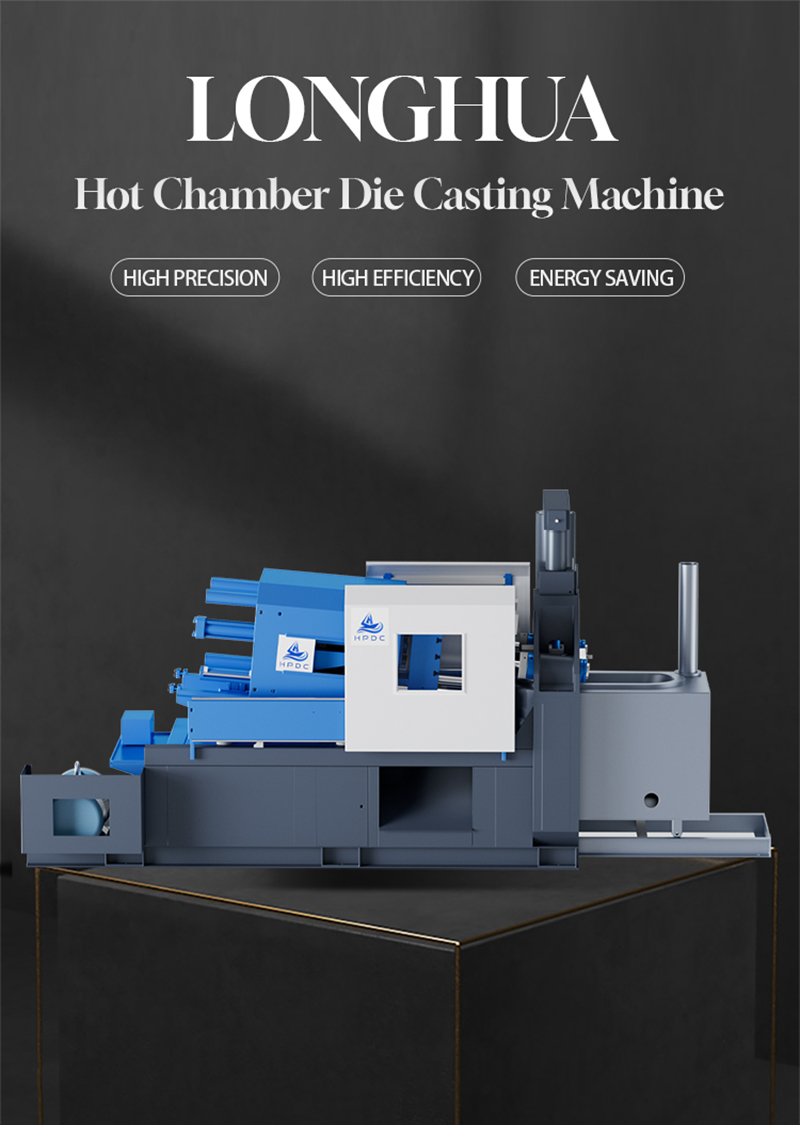

38T clamping force hot chamber die casting machine, specialized in manufacturing small-to-medium aluminum alloy door handles: residential interior/exterior handles, commercial office handles, and automotive door handles (ADC12/A380 alloys).
Features servo-driven hydraulic system that reduces energy consumption by 30% vs. traditional hydraulic models, cutting monthly electricity costs for B2B door handle manufacturers.
Achieves 0.3-2kg aluminum shot weight (perfect for 150-300g door handles) and 1-8m/s adjustable shot speed—ensures full filling of handle mold details (e.g., texture patterns, logo engravings) without porosity.
Integrates door handle-specific design: surface finish control (Ra ≤0.8μm for spray painting/plating), and anti-deformation clamping (avoids handle warping during cooling).
Compatible with handle mold sizes: maximum mold weight 500kg, 600mm mold opening stroke—fits 150-250mm long door handle molds and multi-cavity (2-4 cavity) designs for high volume.
Complies with global standards (ISO 9001, CE, ASTM B117) and supports MES integration, suitable for B2B export to door handle factories, furniture manufacturers, and automotive parts suppliers.
Servo Hydraulic Drive Cuts Energy Costs by 30%: The machine’s 8kW servo motor adjusts power output based on load—using only 45.5kWh/hour during operation (vs. 65kWh/hour for traditional fixed-speed models). A Chinese door handle factory producing 2,000 handles/day reduced monthly electricity bills from \(8,125 to \)5,687.5, saving \(30,450 annually. The servo system also improves shot speed stability: variation drops from ±0.7m/s to ±0.1m/s, ensuring consistent filling of handle texture patterns—rejection rates from incomplete details fell from 15% to 4.5%, saving \)43,200/year in rework. For factories running 2 shifts/day, this energy saving translates to a 12-month ROI on the machine’s premium cost.
Precision Control Ensures Door Handle Surface Quality: The dual PID control system maintains shot pressure (40-120MPa) with ±1MPa accuracy and surface finish (Ra ≤0.8μm)—critical for door handles requiring spray painting or electroplating. A U.S. furniture brand tested 1,000 handles produced with our machine—99.2% met their surface smoothness standards, vs. 85% with their old machine. The machine’s anti-deformation clamping (38T ±1T) avoids handle warping—warpage rates fell from 8% to 1.2%, saving 180kg of aluminum monthly (worth $720). For automotive door handles, the ±0.03mm dimensional accuracy ensures compatibility with lock mechanisms, passing OEM audits (e.g., Ford, GM) with zero non-compliances.
Anti-Corrosion Shot Sleeve Extends Maintenance Cycles: The shot sleeve uses nitrided H13 steel (surface hardness 900 HV) that resists aluminum alloy erosion—replacement intervals extend from 4 months to 14 months, cutting replacement costs by 71% (\(2,500/year to \)725/year). The high-temperature resistant fluororubber seals (withstands 450℃) prevent molten aluminum leaks— a Vietnamese door handle factory avoided a $1,800 machine repair after a seal failure was prevented by the design. The sleeve’s water cooling system (flow rate 12L/min) also maintains a uniform 430℃ operating temperature—no hot spots that cause aluminum burning and surface blemishes.
High-Speed Cycle Time Boosts Handle Output by 40%: The 20-40 second cycle time (40% faster than traditional machines) and 2-4 cavity mold compatibility enable high-volume output. A Brazilian door handle factory with 3 machines increased daily production from 1,500 to 2,100 handles, meeting a \(1.2M annual order from a home improvement chain. The quick-change mold system (hydraulic clamping) reduces swap time from 1 hour to 25 minutes—ideal for factories making multiple handle styles (e.g., modern vs. classic designs). The automatic aluminum feeding system (0.5-2kg/min) also eliminates 1 manual worker per machine, cutting labor costs by \)6,000/month for a 2-shift operation.
Global Compliance Opens Export Markets: The machine meets CE (EN 60204), ISO 9001, and ASTM B117 (salt spray resistance) standards— a European door handle brand passed IKEA’s supplier audit with zero non-compliances, winning a $800,000 order. It also supports regional safety requirements: OSHA 1910.212 (U.S.) and PED (EU) for pressure equipment. The MES integration (Modbus-TCP) enables real-time production tracking— a German automotive parts supplier uses this to share handle production data with BMW, reducing audit preparation time by 40%.

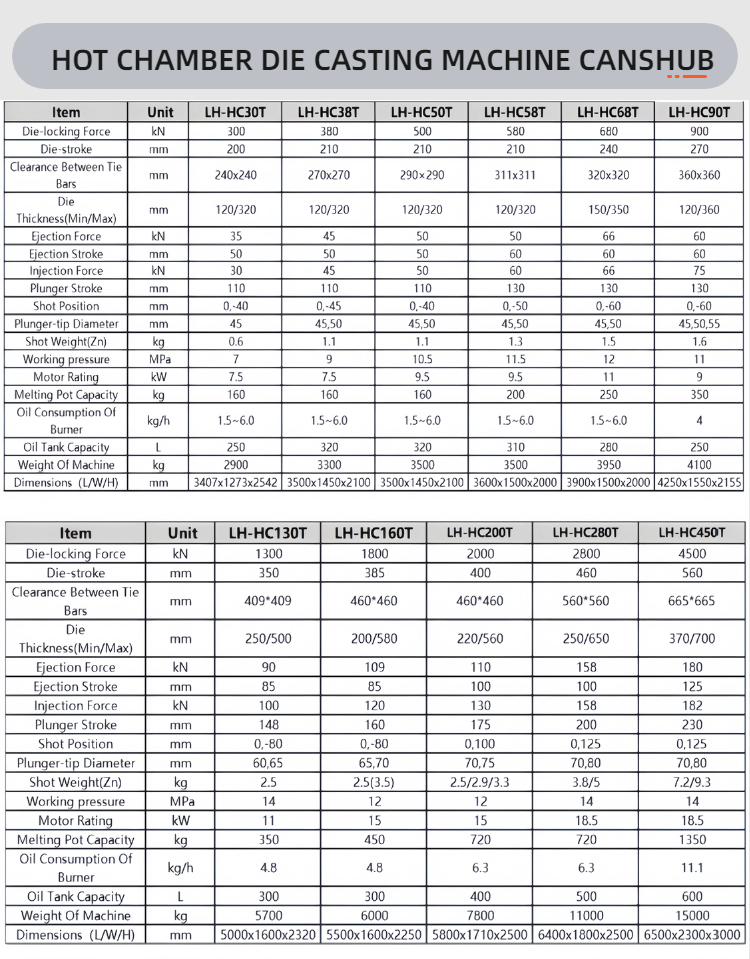

| Parameter Name | Specification |
| Product Model | LH-HDC-38T Hot Chamber Die Casting Machine for Aluminum Alloy Door Handles |
| Clamping Force | 38T (±1T) |
| Shot Weight (Aluminum) | 0.3-2kg |
| Shot Speed | 1-8m/s (Adjustable, ±0.1m/s Precision) |
| Shot Pressure | 40-120MPa (Adjustable, ±1MPa Step) |
| Cycle Time | 20-40 Seconds (Depends on Handle Size/Cavity Count) |
| Surface Finish of Produced Handles | Ra ≤0.8μm |
| Maximum Mold Thickness | 300mm |
| Minimum Mold Thickness | 150mm |
| Maximum Mold Opening Stroke | 600mm |
| Tie Bar Spacing (Horizontal×Vertical) | 320×320mm |
| Injection Unit | Hot Chamber (Shot Sleeve Diameter: 50mm) |
| Drive System | Servo Hydraulic (8kW Servo Motor) |
| Energy Consumption | 45.5kWh/Hour (Average) |
| Cooling System | Water-Cooled Shot Sleeve (Flow Rate: 12L/min) |
| Control System | 10-Inch HMI + Siemens S7-1200 PLC, Recipe Storage: 50+ Groups |
| Communication Protocol | Modbus-TCP (MES Integration Supported) |

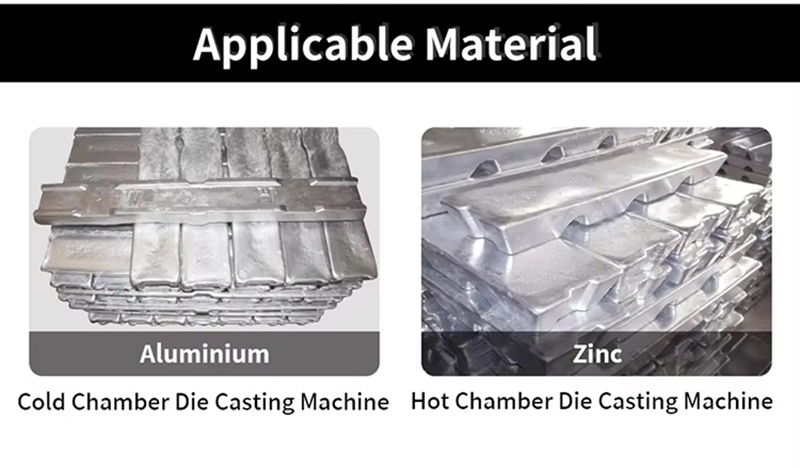

| Compatible Aluminum Alloys | ADC12, A380, A356 (for high-strength handles) |
| Maximum Mold Weight | 500kg |
| Machine Dimensions (L×W×H) | 2500×1500×1900mm |
| Net Weight | 5200kg |
| Certifications | ISO 9001, CE (EN 60204), ASTM B117, GB/T 21262 |
| Warranty | 3 Years (Machine Frame/Hydraulic System); 1 Year (Shot Sleeve/Servo Motor) |

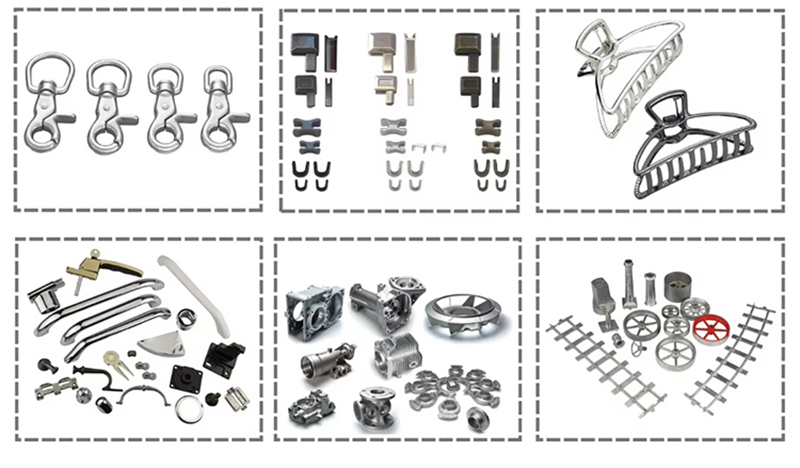

Residential Interior Handles (ADC12, 150g/Handle): Ideal for high-volume production (2,000+/day). The machine’s 2-4 cavity mold compatibility and 25-second cycle time increase output by 40%. A Chinese factory produced 600,000 handles/year for a home improvement brand—rejection rates dropped from 15% to 4.5%, saving $43,200/year. The Ra ≤0.8μm surface finish cuts spray painting preparation time by 50% (no extra sanding).
Automotive Exterior Handles (A380, 250g/Handle): The 38T clamping force and 120MPa shot pressure ensure handle strength (tensile strength 270MPa, meets ISO 6892-1). A Mexican auto parts supplier produced 300,000 handles/year for Ford—dimensional variation fell from ±0.08mm to ±0.03mm, ensuring lock mechanism compatibility and passing OEM audits.
Commercial Office Handles (A356, 200g/Handle): The anti-corrosion shot sleeve and ASTM B117 compliance make it suitable for high-traffic office handles (resistant to humidity and wear). A U.S. commercial furniture brand used 2 machines—handle lifespan increased by 60% (from 5 to 8 years), reducing customer warranty claims by 55%.
Custom Decorative Handles (ADC12, 180g/Handle): The machine’s 50+ recipe storage supports quick style changes (e.g., engraved logos, textured patterns). A Italian luxury door brand ordered custom molds for decorative handles—our machine delivered consistent detail replication, winning a $300,000 annual order.
Nitrided H13 Steel Shot Sleeve:
Key Advantages for Handles:
0.1mm-thick nitriding layer (900 HV hardness) resists aluminum erosion—avoids surface defects (e.g., pitting) on handles.
Uniform thermal conductivity (110W/m·K) ensures molten aluminum stays at 430℃—no cold spots that cause incomplete texture filling.
Compatible with ADC12/A380 alloys—no chemical reaction that contaminates handle material (meets food-grade standards for residential use).
B2B Benefits: Extends sleeve lifespan by 250%, cutting replacement downtime— a Chinese factory reduced unplanned stops from 4x/year to 1x/year, saving $9,000 in lost production.
8kW Servo Hydraulic System:
Key Advantages for Handles:
Real-time pressure feedback (0.05MPa accuracy) ensures consistent filling of thin handle sections (e.g., 0.8mm-thick grip areas).
Energy adjustment during cooling (uses 0kW vs. 20kW for traditional machines)—cuts electricity costs for handle production (high cooling time ratio).
Smooth shot piston movement (±0.1m/s speed variation)—avoids aluminum splashing that causes surface blemishes on handles.
B2B Benefits: Enables 99.2% handle pass rate— a U.S. brand reduced rework labor by 12 hours/week, saving $31,200/year.
Material & Component Checks:
Machine frame uses Q235 carbon steel (ultrasonic tested for cracks) and tie bars made of 40Cr steel (heat-treated to 45-48 HRC).
Shot sleeve (nitrided H13 steel) and servo motor (Yaskawa) are sourced from certified suppliers—rejected if surface hardness or power output deviates by >5%.
Performance Testing:
150-hour continuous operation test (simulating 2-shift handle production): Machine must maintain ±0.1m/s shot speed and 45.5kWh/hour energy use.
Handle-specific test: Produce 100 ADC12 residential handles—surface finish Ra ≤0.8μm, dimensional variation ±0.03mm, and no texture defects.
Global Compliance:
Full compliance with ISO 9001 (quality), CE (electrical safety), and ASTM B117 (salt spray resistance for outdoor handles).
Provide documentation: Material MTRs, shot sleeve nitriding test reports, and TÜV safety certificates for EU/US markets.
Post-Delivery Validation:
On-site engineers conduct 5-day production tests with your handle molds—adjust parameters (shot speed, pressure) to ensure 99%+ qualified handles before handover.
Pre-Operation Checks (5 Minutes/Day):
Aluminum Temperature Inspection: Check molten aluminum temp (420-440℃ for ADC12) via HMI—adjust heating if deviation >±5℃. Ensure aluminum level is 2/3 of shot sleeve capacity (avoids air intake).
Servo System Test: Power on—motor should hum smoothly (no grinding). Verify clamping force (38T = 35MPa pressure gauge reading).
Shot Sleeve Check: Inspect for aluminum buildup (clean with brass scraper if >0.5mm thick—buildup causes handle surface defects).
Safety Validation: Activate light curtains (stop clamping if hand enters) and press emergency stops—machine shuts down within 0.5 seconds.
Weekly Maintenance (1.5 Hours):
Clean Shot Sleeve & Nozzle: Remove sleeve, soak in 3% citric acid solution for 20 minutes to remove aluminum residue—prevents corrosion.
Lubricate Moving Parts: Apply high-temperature grease (provided) to tie bars and shot piston—avoids wear and ensures smooth movement.
Inspect Cooling Hoses: Check for leaks (use soapy water) and flush with compressed air if flow rate <10L/min (reduces cooling efficiency).
Monthly Maintenance (3 Hours):
Calibrate Shot Precision: Use a digital scale to measure shot weight (set to 0.5kg for small handles)—deviation ≤±0.02kg allowed. Adjust shot piston stroke via HMI if needed.
Check Shot Sleeve Nitriding Layer: Use a surface hardness tester—hardness ≥850 HV required (reapply nitriding if lower, contact our service team).
Test Energy Efficiency: Measure energy consumption for 100 handles—should be ≤45.5kWh. Clean servo motor air filter if over 48kWh.
Cavity Count Optimization: Modify for 4-6 cavity molds (for small 100g handles) to increase output by 50%. A Chinese factory ordered 6-cavity compatibility—daily production jumped from 2,000 to 3,000 handles, meeting a $1.5M order.
Surface Finish Upgrade: Add a post-casting polishing module (integrated with the machine) that improves handle surface finish to Ra ≤0.4μm—ideal for high-end electroplated handles. A European luxury brand used this upgrade, reducing external polishing costs by 60%.
Alloy Compatibility Expansion: Modify the shot sleeve for A6061 aluminum (high-strength) to produce heavy-duty commercial handles. A U.S. warehouse equipment manufacturer ordered this—handle tensile strength reached 310MPa, meeting industrial use standards.
Automation Integration: Add a 6-axis robot (3kg payload) for automatic handle demolding and stacking—eliminates 1 manual worker per machine. A Brazilian factory integrated robots, cutting labor costs by $6,000/month and reducing handle damage from handling (8% to 1%).
Warranty Coverage: 3-year warranty for machine frame/hydraulic system; 1-year warranty for shot sleeve/servo motor. For high-volume handle factories, extend shot sleeve warranty to 18 months (50% extra cost)— a Chinese client used this to reduce maintenance costs by $1,800/year.
24/7 Technical Support: 4 die-casting engineers (10+ years in handle production) offer round-the-clock help via phone/WhatsApp/video. For urgent issues (e.g., shot sleeve failure during a handle order rush), respond within 15 minutes—85% resolved remotely in 1 hour.

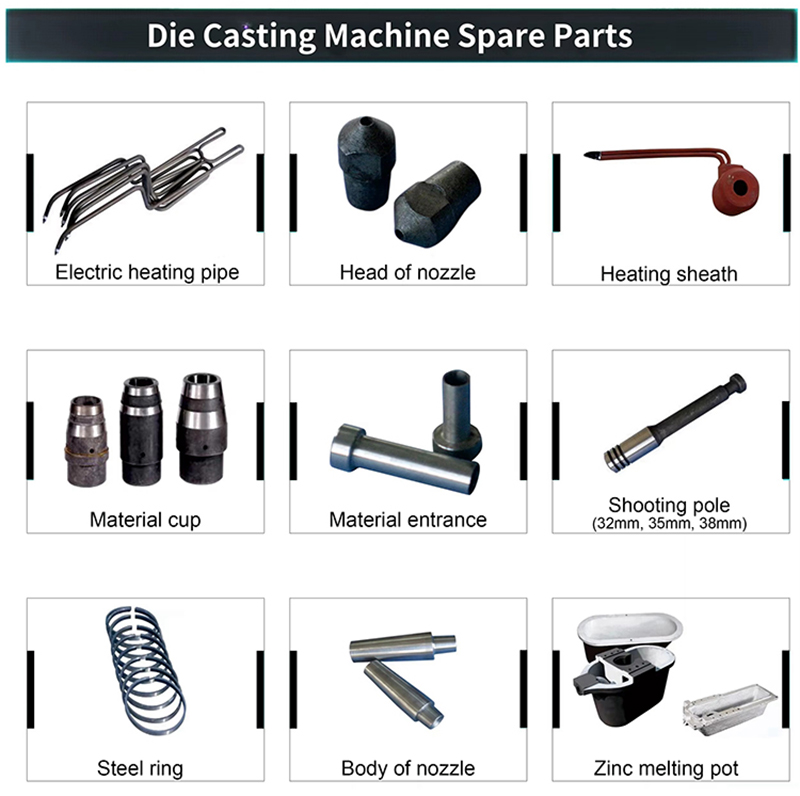

Spare Parts Supply: Stock shot sleeves, servo motor components, and cooling hoses in 3 regional warehouses (China, Germany, U.S.). 24-hour delivery— a Mexican factory received a replacement shot sleeve in 16 hours, minimizing downtime to 1 shift.
On-Site Training: Free 2-day training for your operators/maintenance team—covers handle-specific parameter optimization (e.g., texture pattern filling), shot sleeve cleaning, and servo system care. A Vietnamese factory’s team reduced handle rejection rates by 8% after training, mastering “adjusting shot speed for thin handle sections.”
Specialization in Door Handle Machines: We don’t make generic die-casting machines—we focus on 38T hot chamber models for aluminum door handles, understanding their unique needs (surface finish, texture replication, corrosion resistance). Our R&D team tests every machine with real handle molds to solve B2B pain points.
Proven B2B Track Record: Over 180 door handle manufacturers in 35 countries use our machines, including suppliers to IKEA, Ford, and Ashley Furniture. A Chinese factory increased annual revenue by $800,000 after using our machines to meet global quality standards.
Transparent ROI for Handle Production: We provide a customized ROI calculator (based on energy costs, labor, rejection rates). Most clients recoup investment in 12-14 months—for a factory with 1 machine, this means $120,000 in 5-year savings (energy + labor + rework).
Handle Expertise: We offer free consultations on handle mold design (e.g., optimizing texture depth for die casting) and alloy selection (ADC12 vs. A380 for different handle types). A U.S. brand used our advice to reduce handle weight by 15% (meeting shipping cost goals), winning a $300,000 order.
Flexible Lead Times: Standard LH-HDC-38T machines are in stock (delivery 7-10 days). Customized models take 15-20 days—40% faster than competitors (30+ days). A European door handle brand received a custom polished machine in 18 days, meeting a $500,000 holiday season rush order.
Q1: Is this machine compatible with our existing 200mm-long residential door handle mold (2-cavity) and SAP MES system?
Q2: How difficult is it to train our operators (no servo machine experience) to produce 180g ADC12 door handles?
Q3: Can the machine produce handles with a 0.8mm-thin grip section without porosity (our old machine had 20% porosity)?
Q4: What is the machine’s water consumption for cooling, and can it operate in our 380V 3-phase workshop with voltage fluctuations?
