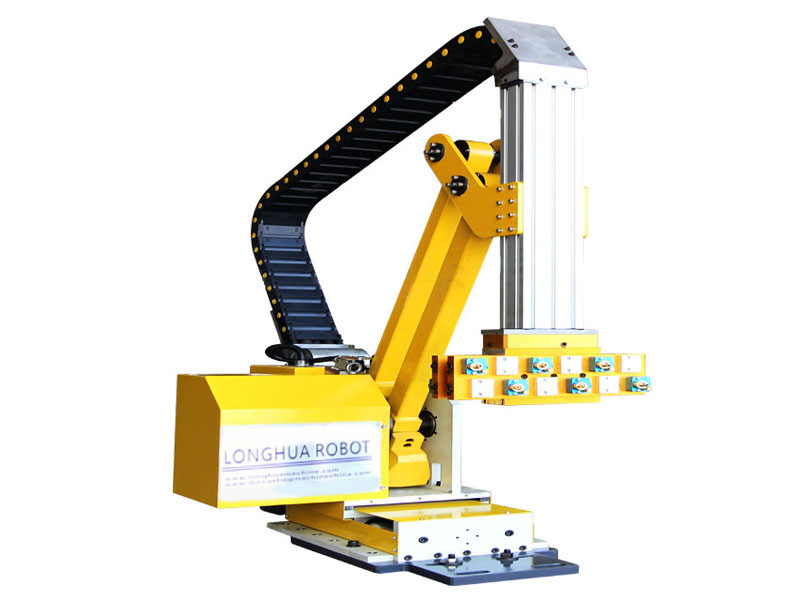

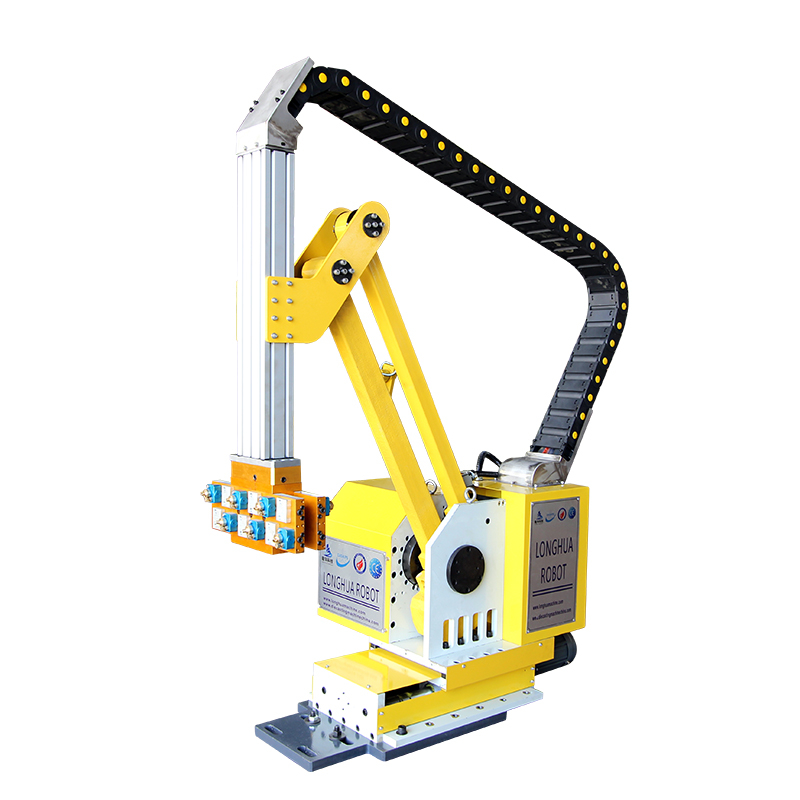

ELECTRIC SPRAYER
1.Using connecting rod structure,high mechanical strength,good stability and long service life.
2.Adopt Taiwan import servo motor ,run smoothly.
3.Optional brass nozzle or independent atomizing nozzle nozzle.
4.The touch machine interface is free to edit the spray,but can be sprayed or sprayed on a fixed point.Fault self-diagnostic display function.
5.Bring down the function in advance,can save the spray cycle effectively.
6.Electric die adjustment function,save time,energy,safety.
Product Parameters
Specification / model | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Suitable die-casting machine | 200T | 400T | 630T | 800T | 1000T | 1250T | 1600T |
Ø6 Copper tube (fixed mold) | 15 PCS | 19 PCS | 21 PCS | 24 PCS | |||
Ø6 Copper tube (middle) | 14 PCS | 18 PCS | 20 PCS | 24 PCS | |||
Ø6 Copper tube (movable mold) | 15 PCS | 19 PCS | 21 PCS | 24 PCS | |||
Wind pressure source | (PT1") | (PT1") | (PT1½") | (PT1½") | (PT1½") | (PT1½") | (PT1½") |
Release agent PT½" | 6.5kg/□ | 6.5kg/□ | 6.5kg/□ | 6.5kg/□ | 6.5kg/□ | 6.5kg/□ | 7.5kg/□ |
Rise Time | 1.0sec | 1.2sec | 1.6sec | 1.6sec | 2.5sec | 2.5sec | 2.5sec |
Ascent time | 1.2sec | 1.2sec | 1.6sec | 1.6sec | 3.0sec | 3.0sec | 3.5sec |
power supply | AC220&220V 50&60HZ | ||||||
Release agent spray time | Fixed mold max999.9sec & movable mold max999.9sec | ||||||
Release agent water volume | Rotate the white knob of the atomizer to adjust the water output of the release agent |
1.LHfour-bar, LH straight, LH vertical rotary, LH horizontal sprayer characteristics
2.Four-bar spray sprayer, the mechanical structure is sturdy and durable.
3.Vertical rotary sprayer, can choose the function of fixed point before and after rotation, convenient to up and down mound, can increase the speed of producing finished product, strong and durable.
4.Straight-in sprayer, can choose vertical front fixed point and vertical post-fixed point function, convenient up and down die, can increase the production speed of finished products, mechanical durable.
5.Horizontal sprayer, can choose the function of front and rear fixed point, easy to up and down mold, can increase the speed of production products, durable machinery.
6.The device can be single-acting, can also be with die-casting machine, soup machine, extraction machine on-line, into full-automatic production.
7.The atomizer alone makes the atomization effect of fixed and movable mold good, and the water quantity can be adjusted, and there is no leakage at all. The atomization effect of the atomizer is more prominent when used in small finished products.
8.The device can be separately fixed side, active side spray release agent time adjustment.
9.The device has the function of rising and falling blowing air, it can clean the fixed and movable mould surface simultaneously, make the die surface clean and clean.
10.This device can adjust the dosage of spray release agent per minute.
11.The injection device can be divided into front injection and back injection, which can make injection lubrication effect on die surface.
12.Visual customer demand device intermediate spray, increased spray effect.
13.The device adopts PLC control loop and has the function of displaying fault code.
