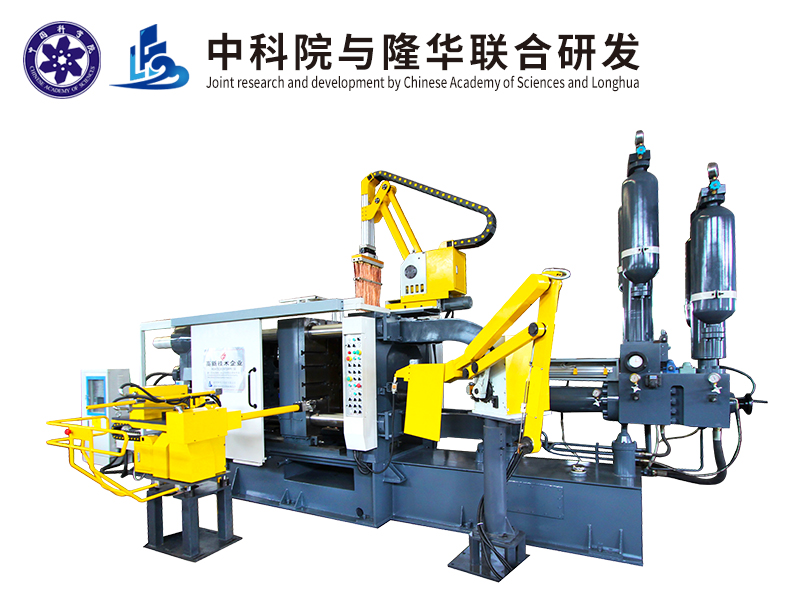

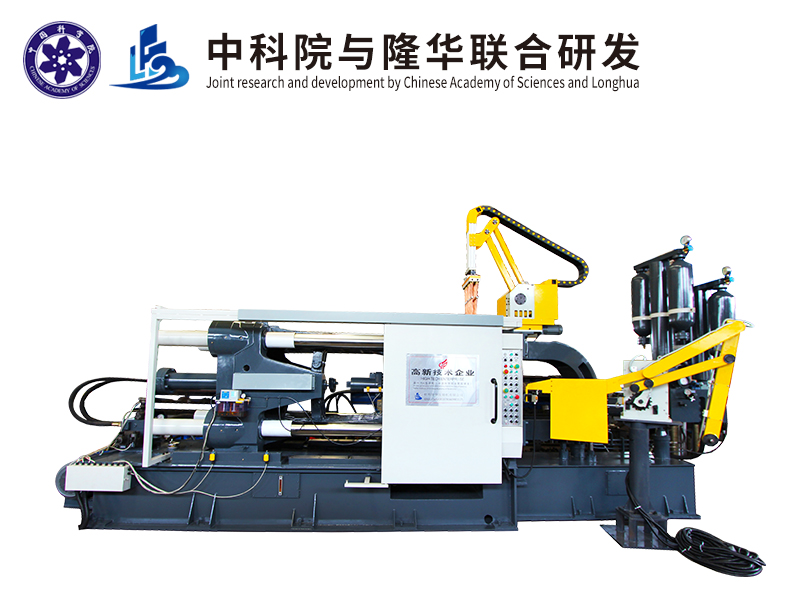

LH series of standard parameter table (550 t)
| Items | Unit | Specification |
| Hydraulic Working Pressure | MPa | 14 |
| Clamping Force | KN | 5500 |
| Space Between Tie Bars | mm | 750*750 |
| Tie Bar Diameter | mm | ¢170 |
| Die Opening Stroke | mm | 650 |
| Injection Force(intensify) | KN | 480 |
| Plunger Launch Distance | mm | 250 |
| Injection Position | mm | 0 -- 250 |
| Plunger Diameter | mm | ¢70----¢90 |
| Injection Stroke | mm | 580 |
| Casting Pressure (intensify) | MPa | 135/104/82 |
| Casting Fiange Protrusion | mm | 15 |
| Casting Fiange Diameter | mm | 165 |
| Max Casting Area Under 40Mpa | CM2 | 1375 |
| lnjection Weight(Al) | Kg | 9 |
| Die Height(Min--Max) | mm | 350~850 |
| Ejector Force | KN | 250 |
| Ejector Stroke | mm | 150 |
| Motor Capacity | Kw | 22 |
| Machine Dimensions (L*W*H) | m | 8.1*2.1*3.1 |
| Referential Machine Weight For Uplifting | T | 26 |
| Oil Tank Capacity | L | 1250 |
Wereserve the right to make any technical improvement without further notice
