Specification of 300 ton Cold Chamber Die Casting Machine Aluminium:
Specification | Unit | LH-300T |
Hydraulic working pressure | Mpa | 14 |
| Clamping force | KN | 3000 |
| Space between tie bars | mm | 560*560 |
| Tie bar diameter | mm | 110 |
| Die Opening stroke | mm | 420 |
| Injection force(Intensify) | Mpa | 315 |
| Plunger Launch distance | mm | 140 |
| Injection Position | mm | 0-160 |
| Plunger diameter | mm | 50-70 |
| Injection stroke | mm | 420 |
| Casting pressure (intensify) | Mpa | 143/99/73 |
| Casting fiange protrusion | mm | 12 |
| Casting fiange diameter | mm | 110 |
| Max casting area under 40Mpa | cm2 | 700 |
| Injection weight (Al) | KG | 3.5 |
| Die height (Min-Max) | mm | 250-650 |
| ejector force | KN | 150 |
| ejector stroke | mm | 120 |
| Motor capacity | KW | 15 |
| Machine dimensions (L*W*H) | M | 6.4*1.7*2.8 |
| Oil tank capacity | L | 750 |
| Referential machine weight foruplifting | T | 12.5 |
P.s.:
We reserve the right to make any technical improvement without further notice

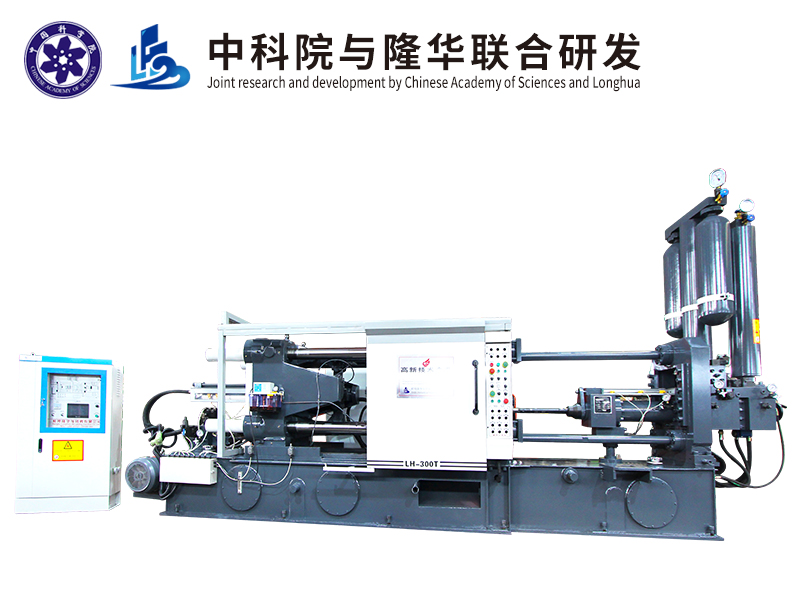

LH-300T cold chamber die casting machine
1. Easy to handle
- Completely automatic process cycle and analysis function
- Permanent process monitoring via sensors
- Extensive security installations
2.Excellent performance
- High efficiency and reduced scrap
- High quality casting of complex and large parts
- Extremely stable value of the machine
- Multi-shift operation possible
3.Flexible
- Small or large casting clusters
- Non-ferrous metals including zinc, aluminium, bronze and brass alloys
- Moulding chamber easily adaptable for shell-, sand- and block moulds.
