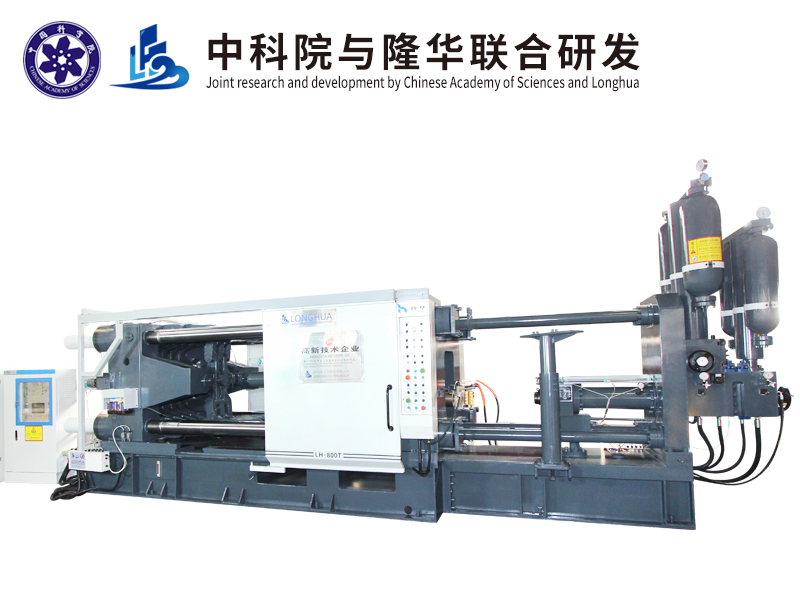

Lh- 800t Aluminum Alloy Pressure Die Casting Machine

Availability:
Quantity:

网站800T-1

LH series of standard parameter table (800 t)
          Items Unit Specification
Hydraulic Working Pressure MPa 14
Clamping Force             KN 8000
Space Between Tie Bars mm 800*800
Tie Bar Diameter mm ¢160
Die Opening Stroke mm 720
Injection Force(intensify)                   KN 590
Plunger Launch Distance mm 250
Injection Position mm 0  --  250
Plunger Diameter mm ¢80----¢100
Injection Stroke mm 700
Casting Pressure (intensify) MPa 117/92/75
Casting Fiange Protrusion mm 15
Casting Fiange Diameter mm 165
Max Casting Area Under 40Mpa CM2 1750
lnjection Weight(Al) Kg 12.8
Die Height(Min--Max) mm 350~900
Ejector Force KN 315
Ejector Stroke mm 160
Motor Capacity Kw 30
Machine Dimensions  (L*W*H) m 8.6*2.3*3.2
Referential Machine Weight For Uplifting T 33
Oil Tank Capacity L 1350
Wereserve the right to make any technical improvement without further notice  LH-400T-2_04LH-400T-2_05LH-400T-2_06LH-400T-2_09LH-400T-2_10LH-400T-2_11LH-400T-2_12
